SKU: 3DMR-0779
📋 GST Invoice Available

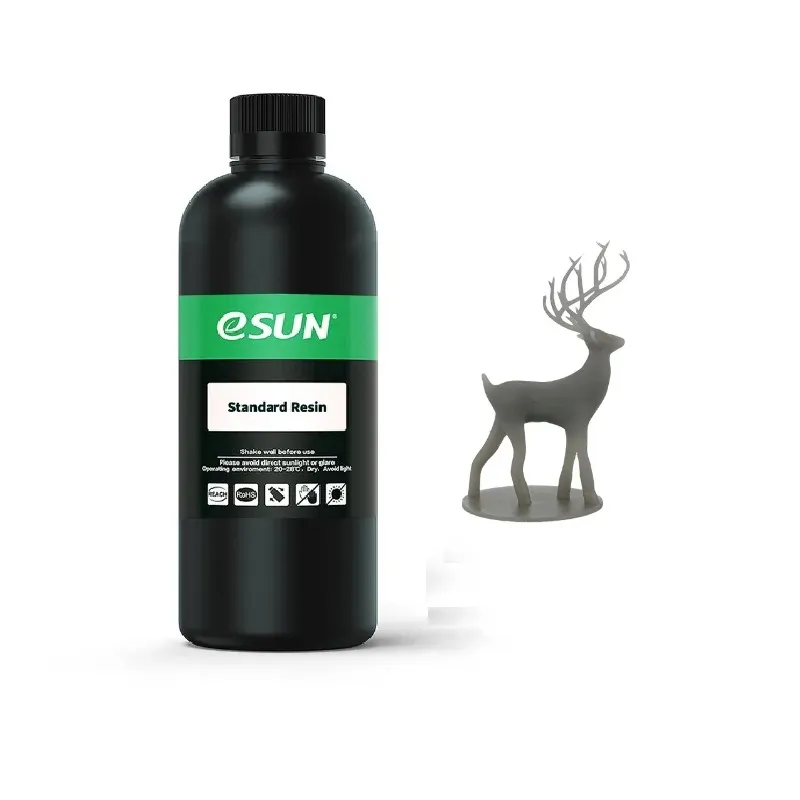

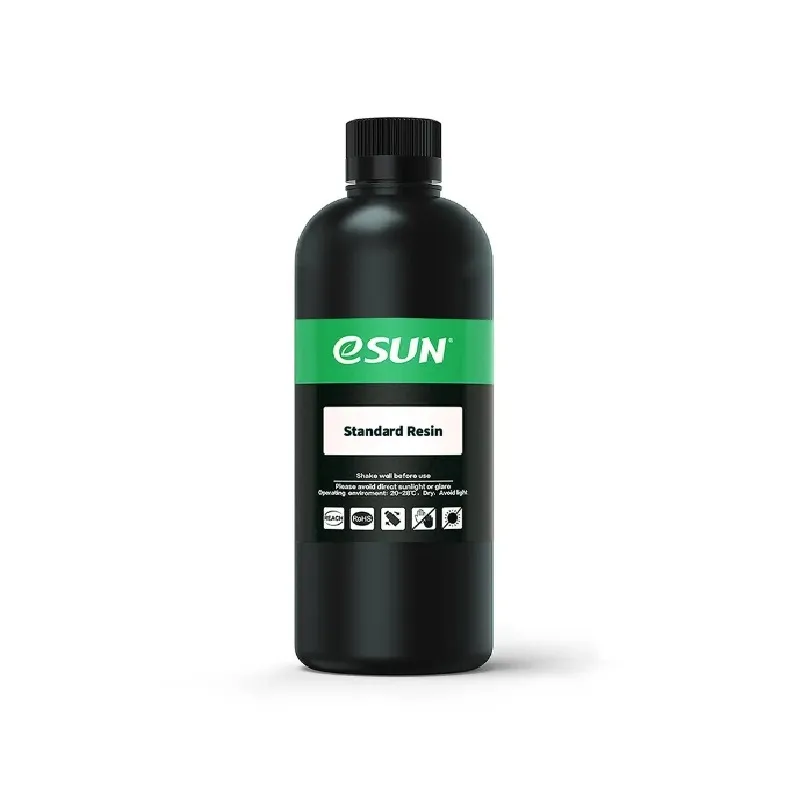

eSUN Standard Resin Grey 1kg LCD 3D Printer

₹1,939.00 (Inclusive of all taxes)
Out of Stock

eSUN Standard Resin Grey is an ideal photopolymer for general-purpose LCD and DLP 3D printing, offering excellent rigidity and precision for detailed models. This epoxy-based resin facilitates easy production of thin-layered parts with reliable molding accuracy for rapid prototyping.

Features

  • Achieves high precision with low shrinkage, ensuring detailed and dimensionally stable prints.
  • Features rapid curing properties and excellent fluidity for efficient, high-success-rate printing on LCD/DLP machines.
  • Delivers rigid and tough parts, ideal for functional testing and robust prototypes.

Out of stock

Description

eSUN Standard Resin in Grey offers a robust solution for a wide range of resin 3D printing applications, particularly well-suited for LCD and DLP technologies. Engineered with an epoxy base, this photopolymer material delivers parts with high rigidity and excellent molding accuracy, enabling the creation of intricate, thin-layered models with consistent dimensional stability. Its formulation supports reliable performance, making it an ideal choice for both rapid prototyping and functional testing.

This standard resin is characterized by its balanced mechanical properties, providing a good balance of hardness and impact resistance. Post-processing involves cleaning finished models with high-concentration alcohol (above 95%) for approximately 30 seconds to remove uncured resin, ensuring optimal surface finish and part integrity. The resin’s excellent fluidity contributes to successful, high-resolution prints, making it a reliable material for makers and engineers.

Key Features

  • Formulated as a rigid and tough material, suitable for durable prototypes and functional parts.
  • Ensures professional-grade LCD molding with high precision and minimal shrinkage for stable dimensions.
  • Provides rapid curing and excellent fluidity, enhancing print speed and reliability across layers.
  • Boasts a high successful printing rate, minimizing failures and material waste.
  • Exhibits strong model adhesion during printing, yet allows for easy detachment upon completion.
  • Universally compatible with the majority of common LCD and DLP 3D printers operating at 395-405 nm.

Applications

  • Rapid prototyping for design validation and form-fit testing.
  • Creating functional test parts requiring good rigidity and dimensional accuracy.
  • Producing general-purpose models, figures, and non-stress-bearing components.
  • Educational projects and conceptual design visualization.

Technical Specifications

ColorGrey
Material TypeStandard Photopolymer Resin
Nominal Volume1 kg (approx. 0.9L)
Density1.08-1.13 g/cm³
Viscosity170-200 mPa·s
Curing Wavelength395-405 nm
Tensile Strength46-67 MPa
Flexural Modulus1000-1400 MPa
Flexural Strength46-72 MPa

Frequently Asked Questions

What are the recommended post-processing steps for eSUN Standard Resin prints?

After printing, clean models thoroughly with high-concentration isopropyl alcohol (>95%) for about 30 seconds to remove any uncured resin. Ensure surfaces are dry before post-curing. For optimal mechanical properties, expose the cleaned and dried prints to UV light for a recommended duration, typically 2-5 minutes, depending on part thickness and UV intensity.

What are the optimal printing conditions for eSUN Standard Grey Resin on an LCD printer?

Optimal printing conditions typically involve a layer exposure time between 2.5-4 seconds for 50-micron layers, depending on your printer's UV power. Bottom layer exposure should be significantly higher, around 20-30 seconds, to ensure strong bed adhesion. Maintain a stable room temperature of 20-25°C for consistent performance and print quality.

How should eSUN Standard Resin be stored to maintain its quality?

Store eSUN Standard Resin in its original opaque bottle, tightly sealed, in a cool, dry, and dark place away from direct sunlight and extreme temperatures. Excessive exposure to light or heat can cause premature polymerization. Ensure the storage area is well-ventilated and keep out of reach of children and pets.

Package Includes

  • 1x eSUN Standard Resin Grey (1kg Bottle)

Additional Information

Weight 1.2 kg
Dimensions 10 × 10 × 27 cm
