SKU: 3DMR-1122
📋 GST Invoice Available

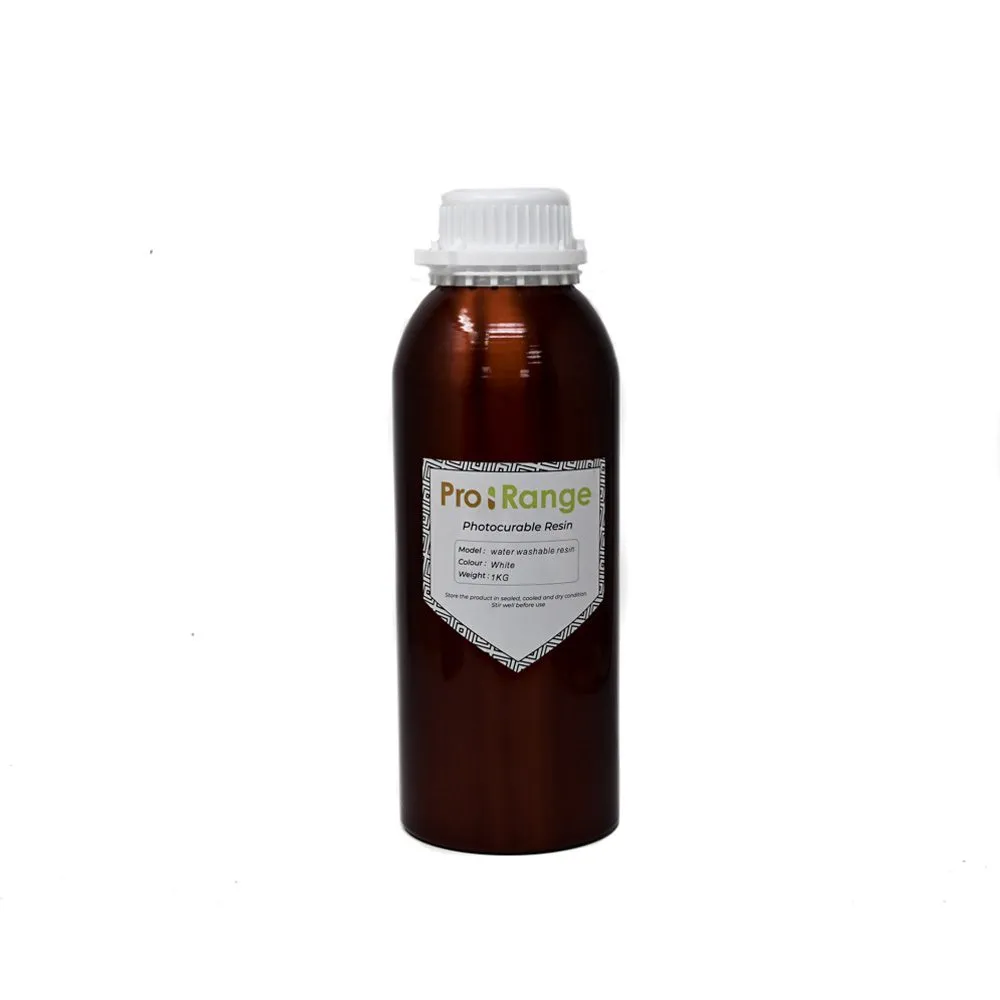

Pro-Range Standard Water Washable Resin 1Kg White

₹2,770.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range Standard Water Washable Resin in White delivers exceptional mechanical strength and impact resistance, providing performance akin to traditional ABS plastic. Engineered for user convenience, this resin simplifies post-processing, requiring only water for clean-up and making it ideal for durable functional prototypes and product appearance verification.

Features

  • Achieve effortless post-processing with water, eliminating the need for harsh solvents like IPA.
  • Experience ABS-like mechanical properties, including high tensile strength and superior impact resistance.
  • Formulate durable, functional parts suitable for prototyping and product verification applications.
  • Optimized for rapid curing on LCD/DLP 3D printers operating within the 395-405nm wavelength range.

Out of stock

Description

The Pro-Range Standard Water Washable Resin is an advanced light-curing photopolymer specifically formulated for LCD/DLP 3D printers, offering outstanding print precision and ease of use. This resin exhibits robust mechanical characteristics, closely mirroring the durability and impact resistance found in traditional ABS plastic. With a tensile strength of 29MPa and impact strength of 15-16 J/m, it produces parts capable of withstanding significant stress and wear, making it an excellent choice for functional prototypes and components that require inherent toughness.

Designed for streamlined post-processing, this resin allows for simple and effective cleaning with ordinary tap water, significantly reducing clean-up time and the need for hazardous chemicals. Its stable curing properties ensure high dimensional accuracy and minimal shrinkage, translating into reliable, repeatable print results. Users can expect a smooth surface finish that is receptive to further post-processing steps like sanding, priming, and painting, enhancing the aesthetic and functional quality of the final printed object. Ensure thorough post-curing under UV light (395-405nm) or direct sunlight for optimal mechanical property development and surface hardness.

Key Features

  • Water Washable Formula: Allows for easy and safe post-print cleaning using only water, eliminating the need for chemical solvents.
  • ABS-Like Performance: Delivers high mechanical strength, excellent tensile strength (29MPa), and superior impact resistance (15-16 J/m).
  • High Hardness: Achieves a Shore D hardness of 79-81D, ensuring durable and robust printed parts.
  • Optimized Viscosity: Features a moderate viscosity (109 mPa-s) for smooth flow and detailed print fidelity.
  • Wide UV Compatibility: Cures effectively with 395-405nm UV light sources, compatible with most LCD/DLP 3D printers.
  • Durable Part Production: Ideal for creating parts that require good structural integrity and resistance to physical stress.

Applications

  • Functional Prototypes: Create robust and durable prototypes that can withstand testing and stress.
  • Product Appearance Verification: Accurately verify the aesthetics and fit of new product designs.
  • Assembly Components: Produce parts designed for assembly, including those requiring self-tapping screws.
  • General Engineering Parts: Ideal for various engineering applications where ABS-like properties are desired.

Technical Specifications

Material TypeStandard Water Washable Resin
ColorWhite
Viscosity109 mPa-s
Wavelength395-405 nm
Tensile Strength29 MPa
Impact Strength15-16 J/m
Hardness79-81D
Gross Weight1 kg

Frequently Asked Questions

What are the recommended post-curing procedures for Pro-Range Standard Water Washable Resin?

For optimal mechanical properties and surface hardness, thoroughly post-cure printed parts after washing. Use a dedicated UV curing station at 395-405nm, typically for 2-5 minutes per side, depending on part thickness and UV intensity. Direct sunlight exposure for 15-30 minutes can also be effective.

How should prints made with this resin be cleaned after printing?

This resin is designed for water washability. After removing the print from the build plate, gently rinse it in clean tap water to remove uncured resin. Use a soft brush for intricate details if necessary. Avoid prolonged soaking. Ensure parts are completely dry before proceeding to post-curing.

What are the typical exposure settings for Pro-Range Standard Water Washable Resin?

Exposure settings vary by printer and layer height. For a 50-micron layer, common bottom layer exposure ranges from 20-30 seconds (4-6 layers), while normal layer exposure is typically 2-3 seconds. Always perform exposure calibration tests, like a R_E_R_F test, to fine-tune settings for your specific LCD 3D printer and desired detail.

Can this resin be used for outdoor applications?

While Pro-Range Standard Water Washable Resin offers good strength, it is not primarily formulated for prolonged outdoor exposure. Like most standard photopolymer resins, it may degrade over time when continuously exposed to UV radiation and harsh weather conditions. For outdoor parts, consider specialized engineering resins with enhanced UV stability.

Package Includes

  • 1x Pro-Range Standard Water Washable Resin - 1Kg (White)

Additional Information

Weight 1 kg
Dimensions 26 × 9 × 9 cm
