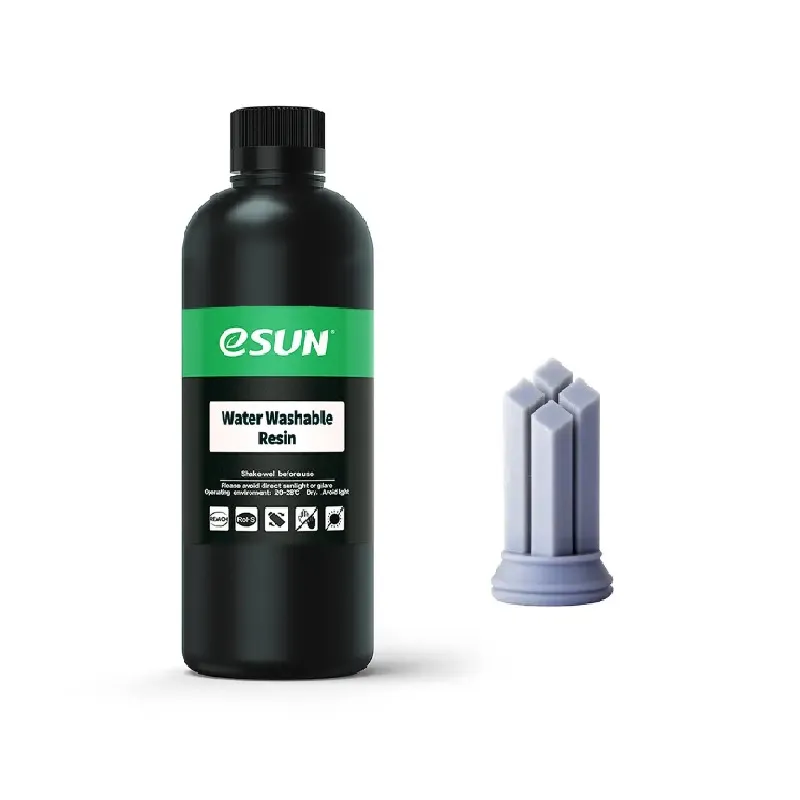

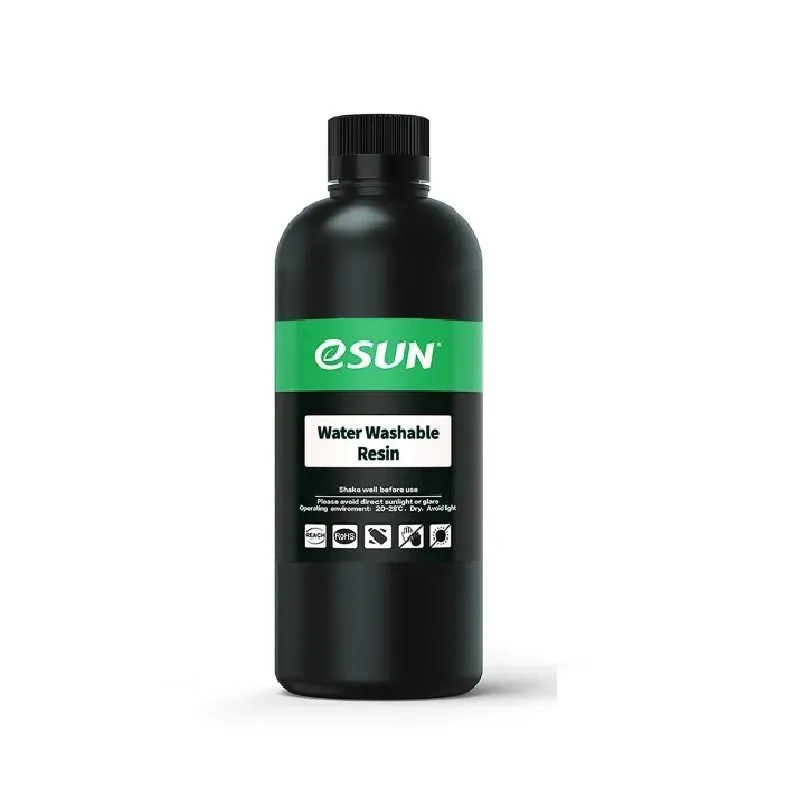

eSUN Water Washable Resin Grey 0.5kg for LCD/DLP

₹1,439.00 (Inclusive of all taxes)
Out of Stock

eSUN Water Washable Resin in Grey offers the strength and precision of standard resins with the convenience of water-based cleaning. Ideal for LCD/DLP 3D printers, it provides excellent detail and a smooth finish for various artistic and functional prototypes.

Features

  • Effortless post-processing with direct water rinse, eliminating alcohol solvents.
  • Delivers exceptional molding precision and high resolution for intricate details.
  • Balances mechanical properties: strength, toughness, and rigidity for durable parts.
  • Low viscosity formula ensures smooth printing and high success rates.

Out of stock

Description

eSUN Water Washable Resin in Grey combines the robust mechanical performance of traditional photopolymer resins with significant post-processing convenience. Engineered for DLP and LCD 3D printers operating at 395-405nm wavelengths, this resin allows for direct cleaning of printed parts and resin tools with water, eliminating the need for harsh solvents like IPA. Its low viscosity facilitates easy printing and minimizes adhesion issues, ensuring a smooth and reliable printing experience.

This resin is formulated to achieve excellent molding precision, producing parts with crisp details and a notably smooth surface finish. The balanced mechanical profile—including optimized strength, toughness, and rigidity—makes it suitable for a wide range of applications, from artistic models to functional prototypes. With good fluidity and a high release rate, eSUN Water Washable Resin simplifies the printing process from start to finish, yielding high-quality results with reduced odor during printing.

Key Features

  • Water Washable Convenience: Easily clean printed parts and resin residue with tap water, no harsh solvents required.
  • Low Viscosity: Promotes smooth resin flow, reduces print failures, and facilitates easy tank cleaning.
  • High Precision & Resolution: Captures fine details and delivers excellent surface smoothness for intricate models.
  • Balanced Mechanical Properties: Offers a good combination of strength, toughness, and rigidity for versatile applications.
  • Low Odor Formulation: Reduces unpleasant fumes during the printing process for a more comfortable environment.
  • Rapid Curing: Optimized for 395-405nm UV light, ensuring efficient curing times and strong layer adhesion.

Applications

  • Artistic models and miniatures requiring fine detail.
  • Functional prototypes and concept models for product design.
  • Educational projects and hobbyist figures.
  • General purpose parts where easy cleaning is prioritized.

Technical Specifications

ColorGrey
MaterialWater Washable Resin
Net Weight0.5 kg
Density1.10-1.14 g/cm³
Viscosity110-180 mPa·s
Curing Wavelength395-405 nm
Tensile Strength19-46 MPa
Hardness (Shore D)74-82
Impact Strength37-97 J/m
Flexural Strength15-50 MPa

Frequently Asked Questions

What are the optimal storage conditions for this resin?

Store eSUN Water Washable Resin in an opaque container away from direct sunlight and UV light to prevent premature curing. Keep it in a cool, dry place with moderate air humidity. Ensure the bottle is tightly sealed to avoid contamination or moisture absorption.

How should I clean and post-cure parts printed with water washable resin?

After printing, rinse parts thoroughly with tap water to remove uncured resin. For best results, use a soft brush. Once clean, dry the part completely, then post-cure under a 395-405nm UV lamp for 1-2 minutes. Avoid over-curing to prevent yellowing.

Can I reuse excess resin from the vat after printing?

Yes, filtered excess resin can be reused. Carefully pour any remaining resin from the vat through a mesh filter to remove any cured particles or debris. Store the filtered resin in a separate, opaque container, ensuring it's not mixed back into fresh resin.

What printing temperatures are recommended for eSUN Water Washable Resin?

Optimal printing performance is typically achieved at room temperatures between 20-25°C (68-77°F). Maintaining a stable environment temperature helps ensure consistent viscosity and reduces the risk of print failures due to thermal fluctuations.

How can I prevent models from yellowing after UV curing?

Yellowing can occur from prolonged UV exposure or high intensity. Limit post-curing to the recommended 1-2 minutes. If yellowing occurs, some users have reported mild success by briefly soaking the model in hot water and very short, controlled exposure to a microwave, though caution is advised.

Package Includes

  • 1x eSUN Water Washable Resin - Grey (0.5kg Bottle)

Additional Information

Weight 0.5 kg
Dimensions 9 × 9 × 22 cm
