SKU: 3DMR-0777
📋 GST Invoice Available

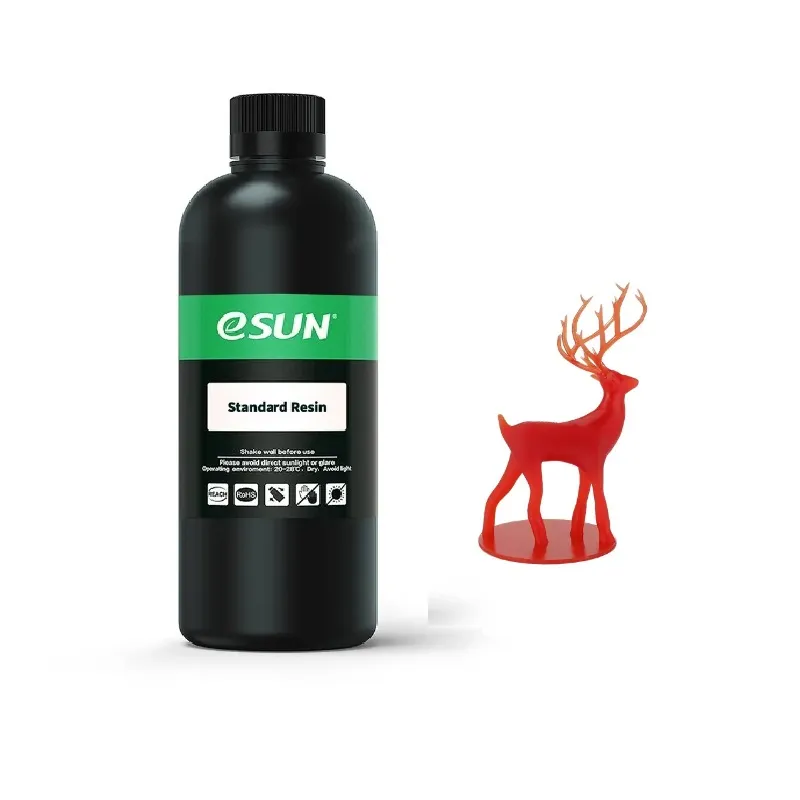

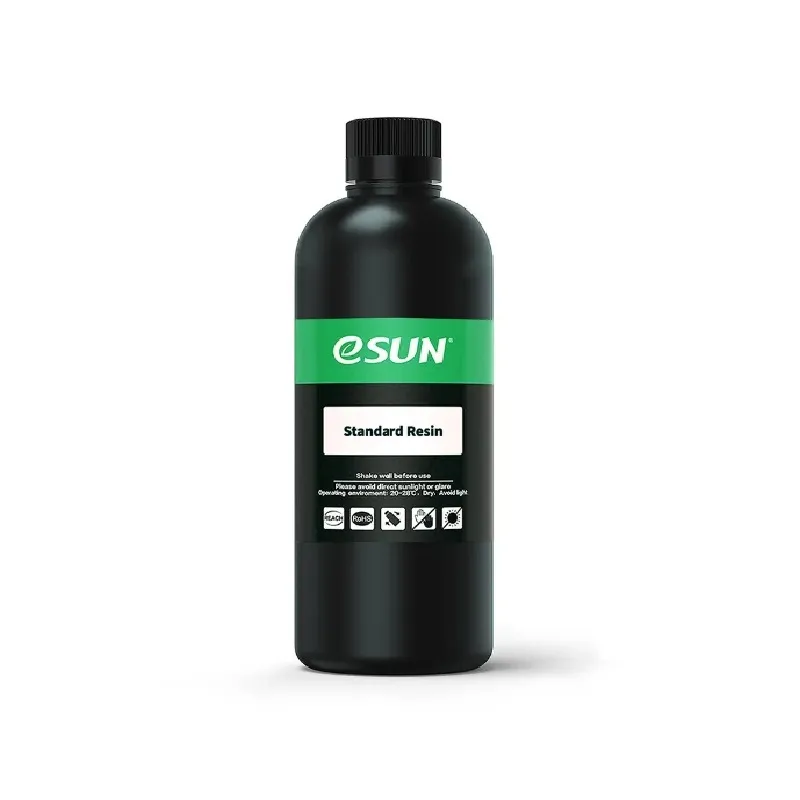

eSUN Standard Resin, Red, 1kg for LCD 3D Printers

₹1,949.00 (Inclusive of all taxes)
Out of Stock

eSUN Standard Resin in Red offers high rigidity and precise thin-layer printing for rapid prototyping. This epoxy-based photopolymer is ideal for functional testing and compatible with most LCD 3D printers.

Features

  • Achieve high rigidity and exceptional molding accuracy for detailed parts.
  • Designed for rapid prototyping and functional testing with excellent printability.
  • Features fast curing properties and superior fluidity, boosting print success rates.
  • Exhibits low shrinkage and great stability, ensuring consistent dimensional precision.
  • Compatible with a wide range of LCD 3D printers, offering broad applicability.

Out of stock

Description

eSUN Standard Resin in Red is engineered for demanding prototyping and functional testing applications, providing a robust material solution for additive manufacturing. This epoxy-based photopolymer delivers high rigidity and enables the creation of easy-to-print, thin-layered parts with remarkable molding accuracy. Its formulation ensures consistent performance, making it suitable for a wide array of test parts.

Optimized for rapid prototyping workflows, eSUN Standard Resin exhibits low shrinkage and excellent stability during the curing process, contributing to high successful printing rates and reliable dimensional precision. Post-processing is straightforward; finished models should be thoroughly cleaned using high-concentration alcohol (above 95%) for approximately 30 seconds to remove any uncured resin, ensuring optimal surface finish and part integrity.

Key Features

  • Rigid and tough material, specifically formulated as a professional LCD molding resin.
  • Ensures high precision with minimal shrinkage and excellent print stability for consistent results.
  • Offers fast curing capabilities and superior fluidity, contributing to a high successful printing rate.
  • Provides strong adhesion during printing while remaining easy to detach from the build plate post-forming.
  • Universally compatible with most LCD 3D printers, maximizing versatility for various setups.

Applications

  • Functional prototyping for form, fit, and basic function validation.
  • Rapid iteration of design concepts and test parts in product development.
  • Creation of miniature models requiring high detail and rigidity.
  • General-purpose parts where strength and accuracy are paramount.

Technical Specifications

Material TypeStandard Photopolymer Resin
ColorRed
Density1.08-1.13 g/cm³
Viscosity170-200 mPa·s
Curing Wavelength395-405 nm
Tensile Strength46-67 MPa
Flexural Modulus1000-1400 MPa
Flexural Strength46-72 MPa

Frequently Asked Questions

What are the optimal printing conditions for eSUN Standard Resin?

For best results, print eSUN Standard Resin between 20-30°C. Base layer exposure times typically range from 20-60 seconds, with normal layers requiring 2-8 seconds per layer on LCD printers. Calibrate exposure based on your specific printer and ambient conditions to achieve optimal detail and adhesion.

How should finished prints from eSUN Standard Resin be post-processed?

After printing, clean models thoroughly by submerging them in high-concentration isopropyl alcohol (>95%) for approximately 30 seconds to remove uncured resin. Use a soft brush for intricate details if necessary. Ensure the model is dry before proceeding to post-curing under a 395-405nm UV light for optimal mechanical properties.

Can eSUN Standard Resin be used for functional parts?

Yes, eSUN Standard Resin is suitable for functional testing and rapid prototyping, offering high rigidity and good molding accuracy. While it possesses reasonable mechanical strength, it's generally best for parts that don't endure extreme stress or long-term outdoor exposure. Always test the specific application for suitability.

What is the recommended storage for eSUN Standard Resin?

Store eSUN Standard Resin in a cool, dark, and dry place, away from direct sunlight and heat, with the bottle tightly sealed. Prolonged exposure to UV light or heat can cause the resin to prematurely polymerize. Keep it out of reach of children and pets for safety.

What are the safety precautions when handling this resin?

Always wear appropriate personal protective equipment, including nitrile gloves and safety glasses, when handling eSUN Standard Resin. Work in a well-ventilated area to avoid inhaling fumes. In case of skin contact, wash thoroughly with soap and water. Dispose of liquid resin responsibly as per local regulations.

Package Includes

  • 1x eSUN Standard Resin (Red, 1kg bottle)

Additional Information

Weight 1.2 kg
Dimensions 10 × 10 × 27 cm
