SKU: 3DMR-0769
📋 GST Invoice Available

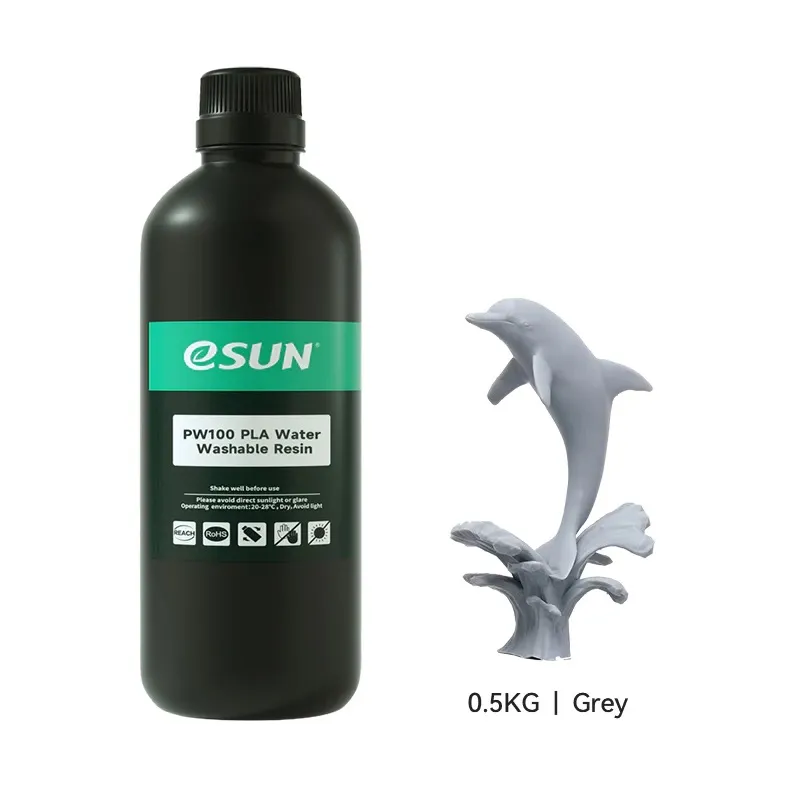

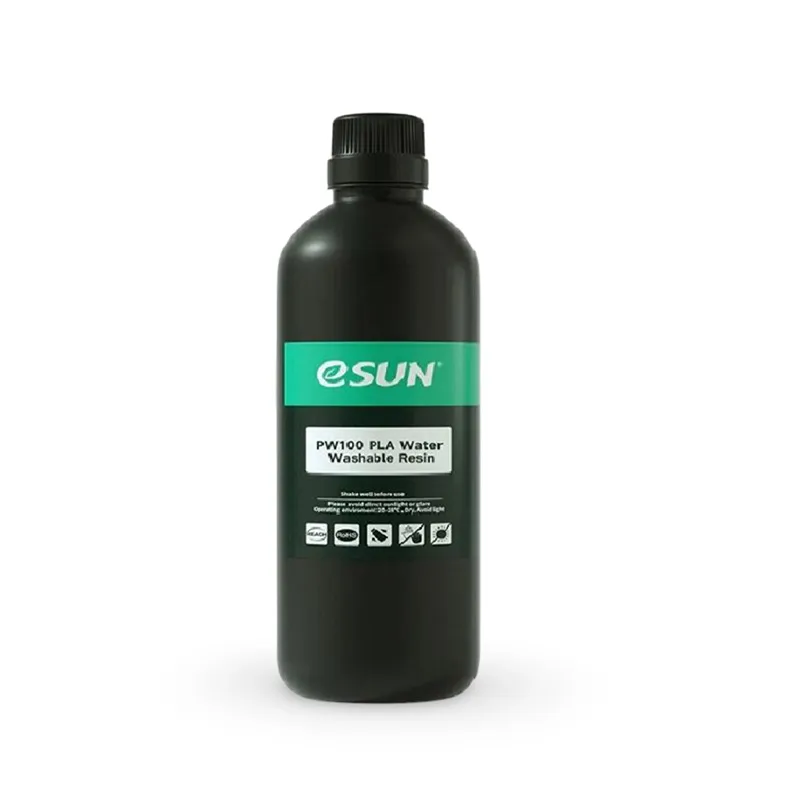

eSUN PW100 PLA Water Washable Resin - Grey 1kg

₹1,649.00 (Inclusive of all taxes)
Out of Stock

The eSUN PW100 PLA Water Washable Resin offers an innovative bio-based solution for SLA/DLP 3D printing. This grey resin provides excellent toughness, low odor, and a smooth surface finish, simplifying post-processing by allowing water-based cleaning without IPA.

Features

  • Bio-based PLA formula for enhanced sustainability and reduced environmental impact.
  • Water-washable formulation eliminates the need for alcohol, speeding up post-processing.
  • Achieves high-precision prints with a balanced profile of strength, toughness, and rigidity.
  • Features low odor for a more comfortable printing experience in various environments.

Out of stock

Description

eSUN PW100 PLA Water Washable Resin is engineered for convenience and performance, integrating eSUN’s proprietary PLA polyol technology. This advanced photopolymer resin contains bio-based components, offering a more sustainable choice for 3D printing while delivering exceptional print quality. Its unique water-washable property significantly streamlines post-processing, eliminating the need for traditional solvent-based cleaning and thereby reducing both material consumption and handling time.

Designed for broad compatibility, the PW100 resin performs consistently across a range of LCD/DLP 3D printers, including those with color and monochrome screens, as well as various build plate sizes. Users will benefit from its low viscosity, which ensures smooth resin flow, easy model release, and reduced material waste, alongside its capacity to produce models with smooth surfaces, high detail resolution, and a reliable balance of mechanical properties crucial for functional prototypes and aesthetic parts.

Key Features

  • Low Odor Formulation: Minimizes fumes for a more comfortable and safer printing environment.
  • Water Washable: Simplifies post-processing by allowing direct rinsing with water, no IPA required.
  • Wide Compatibility: Optimized for most LCD/DLP 3D printers, including color and monochrome screens.
  • Low Viscosity: Ensures smooth resin flow, easy model release, and reduced material waste.
  • High-Precision Output: Capable of rendering intricate details with excellent dimensional accuracy.
  • Balanced Mechanical Properties: Offers a good combination of strength, toughness, and rigidity for durable parts.
  • Bio-Based Components: Incorporates sustainable materials for a reduced environmental footprint.

Applications

  • Educational Models: Create detailed and safe learning aids for classrooms.
  • Decorative Ornaments: Produce intricate figurines, sculptures, and aesthetic pieces with smooth finishes.
  • General Prototyping: Ideal for quick iterations of concept models and functional prototypes where IPA cleaning is undesirable.
  • Hobbyist Projects: Suitable for makers and hobbyists seeking easy-to-use resin with minimal post-processing.

Technical Specifications

MaterialWater Washable PW100 PLA Resin
ColorGrey
Net Weight1 kg
Density1.09-1.10 g/cm³
Viscosity160-360 mPa·s
Curing Wavelength395-405 nm
Tensile Strength45-55 MPa
Impact Strength950-1050 J/m
Flexural Strength45-55 MPa

Frequently Asked Questions

How do I properly clean models printed with eSUN PW100 PLA Water Washable Resin?

After printing, remove the model and rinse it thoroughly with clean tap water. Use a soft brush to gently clean any uncured resin from crevices. Ensure all resin residue is removed, then dry the model completely before proceeding to post-curing for optimal finish and mechanical properties.

What are the recommended post-curing settings for this resin?

For best results, post-cure the cleaned and dried models under a 395-405 nm UV light source. Curing times can vary, typically ranging from 2-10 minutes per side, depending on the UV lamp's power and model thickness. Ensure even exposure to maximize hardness and strength.

Is eSUN PW100 PLA Water Washable Resin compatible with all resin 3D printers?

This resin is designed for broad compatibility with most LCD and DLP resin 3D printers operating at a 395-405 nm wavelength. It works well with both color and monochrome screens. Always perform a small test print to fine-tune exposure settings for your specific printer model.

How should I store unused eSUN PW100 PLA Water Washable Resin?

Store the resin in its original opaque bottle, tightly sealed, in a cool, dry place away from direct sunlight and UV light. Prolonged exposure to light or high temperatures can cause premature curing or degrade resin quality. Proper storage ensures optimal shelf life and performance.

Package Includes

  • 1x eSUN PW100 PLA Water Washable Resin - Grey (1kg bottle)

Additional Information

Weight 1.2 kg
Dimensions 10 × 10 × 27 cm
