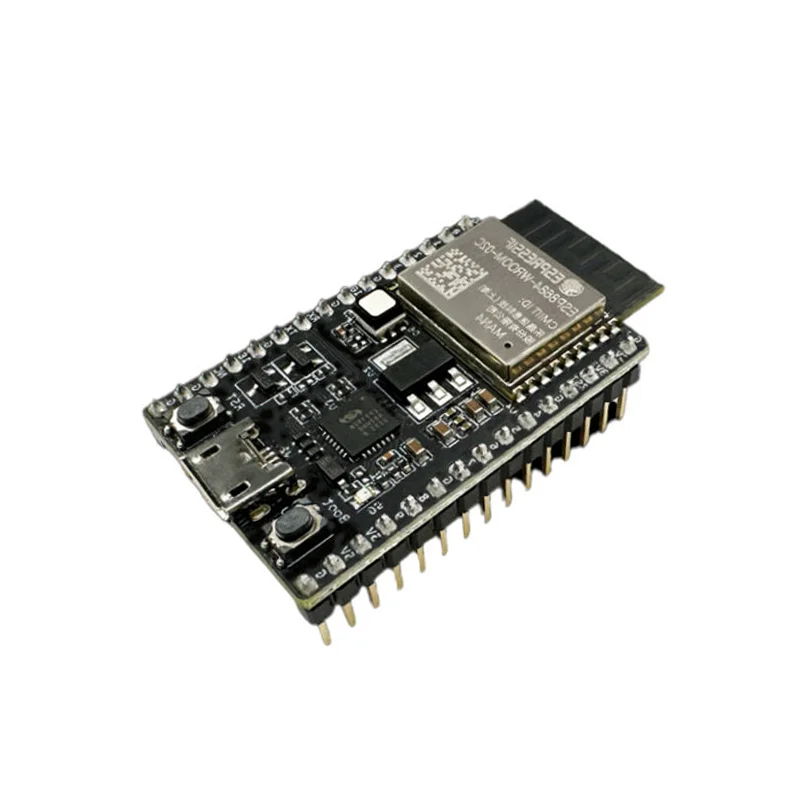

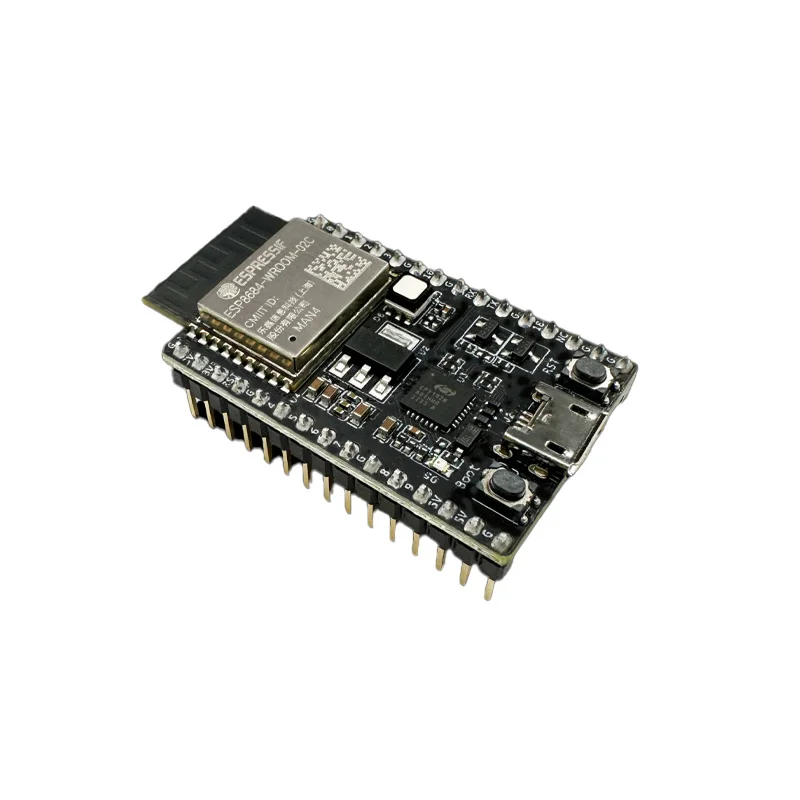

Espressif ESP8684-DevKitC-02C-N4X Development Board w/ ESP32-MINI-1

You can develop for this board using Espressif's official ESP-IDF (IoT Development Framework) for full low-level control and advanced features like power management and secure boot. It is also supported by the Arduino Core for ESP32, which is ideal for rapid prototyping and makers familiar with the Arduino ecosystem. Additionally, MicroPython provides a high-level scripting environment for quick application development and experimentation.

Connect the board to your computer using a standard USB-C cable. The USB port provides both 5V power and a serial communication channel (USB-to-UART). Upon connection, the board should power on. You can then select the correct serial port in your development environment (ESP-IDF, Arduino IDE, etc.) to upload your compiled firmware. No external power supply is required for basic development and testing.

The ESP32-MINI-1 is a pre-certified system-in-package (SiP) module that contains the ESP32-C3 chip, flash memory, crystal oscillator, and RF matching components. Using this module simplifies the board design, ensures regulatory compliance (FCC/CE), and provides reliable wireless performance. The development board breaks out the module's pins, adds a USB-serial chip, voltage regulator, and PCB antenna, creating a complete, ready-to-use development platform.

No, the ESP8684-DevKitC-02C-N4X is designed with a fixed, onboard PCB antenna and does not have an external antenna connector like an IPEX or SMA. The PCB antenna is optimized for general use and provides adequate range for most indoor and short-range applications. If you require extended range or specific antenna patterns, you would need to design a custom board or select a different Espressif development kit that includes an external antenna option.
