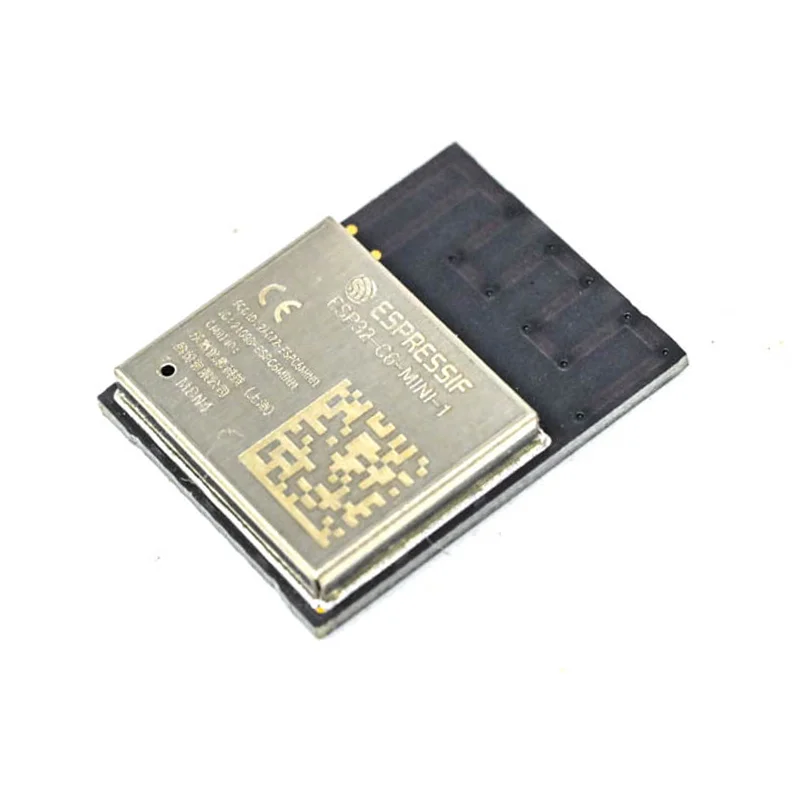

Espressif ESP32-C6-MINI-1-N4 Wi-Fi 6 + Bluetooth 5 + IEEE 802.15.4 Module

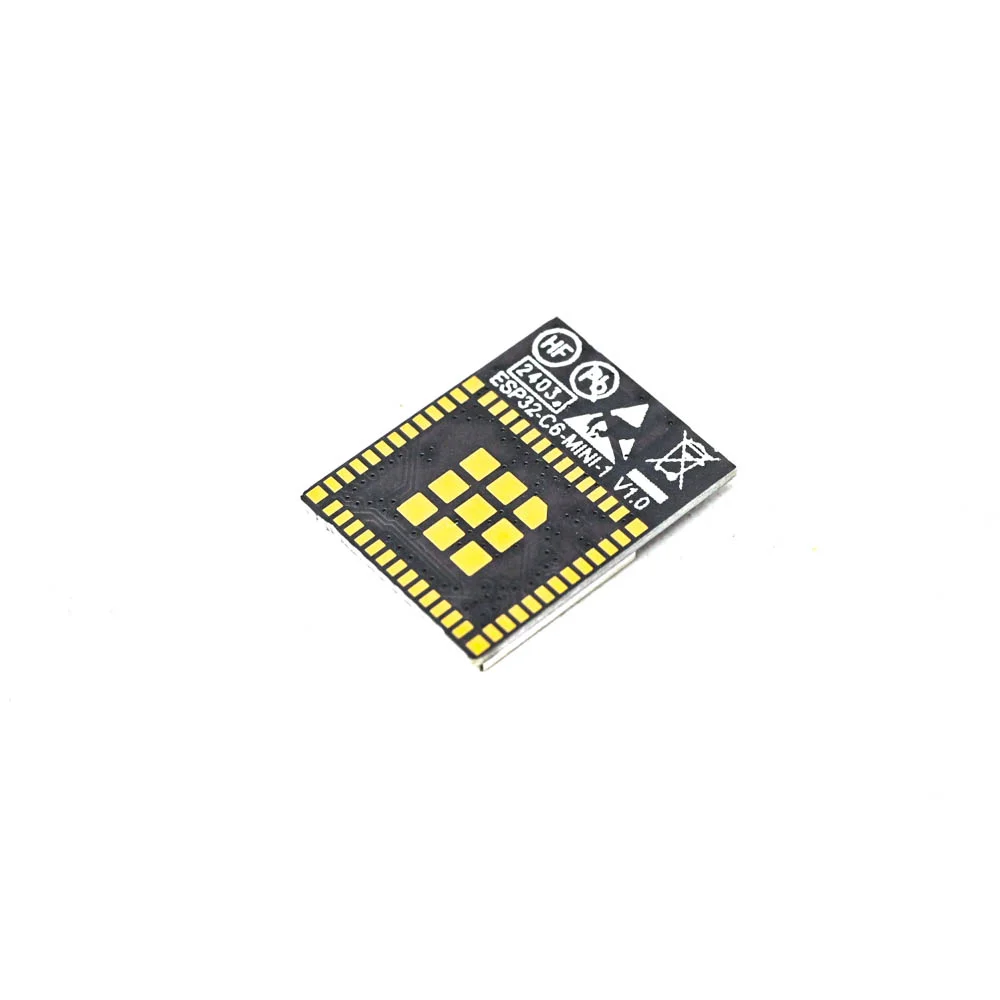

Espressif ESP32-C6-MINI-1-N4 Wi-Fi 6 + Bluetooth 5 + IEEE 802.15.4 Module - Image 2
SKU: IOWC-0707
📋 GST Invoice Available

Espressif ESP32-C6-MINI-1-N4 Wi-Fi 6 + Bluetooth 5 + IEEE 802.15.4 Module

₹309.00 (Inclusive of all taxes)
Out of Stock

The Espressif ESP32-C6-MINI-1-N4 is a compact, surface-mount wireless module integrating Wi-Fi 6, Bluetooth 5 (LE), and IEEE 802.15.4 (Thread/Zigbee) radios, powered by a RISC-V core and featuring 4MB of integrated flash for IoT edge applications.

Features

  • Triple-Radio SoC: Combines 2.4 GHz Wi-Fi 6 (802.11ax), Bluetooth Low Energy 5, and IEEE 802.15.4 (Thread/Zigbee) in a single chip for versatile connectivity.
  • RISC-V Processor & 4MB Flash: Features a high-performance 32-bit RISC-V core with 4MB of integrated SPI flash for application code and data storage.
  • Integrated PCB Antenna: Comes with a built-in PCB antenna, simplifying RF design and reducing BOM cost for compact end-products.
  • Industrial Temperature Range: Operates reliably from -40°C to 85°C, suitable for harsh environmental conditions in industrial and outdoor IoT.
  • Low Power Modes: Supports advanced sleep modes for battery-powered applications, extending operational lifespan in remote sensors.

Out of stock

Description

The ESP32-C6-MINI-1-N4 module from Espressif is a highly integrated wireless solution designed for next-generation IoT devices. It consolidates Wi-Fi 6, Bluetooth LE 5, and IEEE 802.15.4 radios onto a single, surface-mountable chip, enabling seamless connectivity across major smart home and industrial automation protocols like Wi-Fi, Bluetooth Mesh, Thread, and Zigbee. Its RISC-V processor delivers efficient processing power for complex network stacks and application logic.

Engineered for reliability and low-power operation, the module includes 4MB of on-board flash memory and operates across an industrial temperature range. The integrated PCB antenna simplifies product design and certification, making it an ideal choice for developers seeking a future-proof, multi-protocol foundation for smart home hubs, industrial controllers, healthcare monitors, and consumer electronics.

Key Features

  • Multi-Protocol Connectivity: Simultaneous support for Wi-Fi 6 (802.11ax), Bluetooth 5 Low Energy, and IEEE 802.15.4 (Thread/Zigbee) enables flexible network integration.
  • High-Performance RISC-V Core: A 32-bit RISC-V microprocessor provides the computational power needed for secure, real-time IoT applications.
  • On-Chip Memory: Integrates 4MB of SPI flash, eliminating the need for external memory in many applications and simplifying design.
  • Optimized RF Performance: Delivers a receiver sensitivity of -106 dBm and a data rate up to 150 Mbps for robust, long-range Wi-Fi connections.
  • Compact Surface-Mount Design: The miniaturized form factor is ideal for space-constrained PCB layouts in mass-produced consumer and industrial devices.
  • Comprehensive Development Support: Fully supported by the ESP-IDF framework, Arduino core, and PlatformIO for rapid firmware development and deployment.

Applications

  • Smart Home Hubs & Bridges: Acts as a central coordinator connecting Wi-Fi, Bluetooth, and Zigbee/Thread devices.
  • Industrial IoT Gateways: Provides multi-protocol wireless backhaul for sensor data aggregation and control in automation.
  • Wearable Health Monitors: Enables low-power Bluetooth connectivity combined with Wi-Fi for data sync to the cloud.
  • Consumer Electronics: Ideal for smart appliances, voice assistants, and connected toys requiring robust, multi-standard wireless.
  • Mesh Network Nodes: Forms part of Bluetooth Mesh or Thread networks for scalable lighting control and building automation.

Technical Specifications

Microcontroller/SoCEspressif ESP32-C6 (RISC-V core)
Wireless ProtocolsWi-Fi 6 (802.11ax), Bluetooth 5 LE, IEEE 802.15.4 (Thread/Zigbee)
Frequency Range2.4 GHz
RF Transmit PowerProgrammable up to +20 dBm (typical)
Receiver Sensitivity-106 dBm
Data RateUp to 150 Mbps
Supply Voltage3.0V - 3.6V
Operating CurrentVaries with mode; features active, modem-sleep, light-sleep, and deep-sleep modes
Integrated Memory4 MB SPI Flash
Antenna ConnectorIntegrated PCB Antenna
Operating Temperature-40°C to 85°C
Mounting TypeSurface Mount
DimensionsApprox. 10mm x 7mm (excluding external components)

Frequently Asked Questions

What development frameworks support the ESP32-C6-MINI-1-N4 module?

The module is fully supported by Espressif's official ESP-IDF (IoT Development Framework), which provides libraries, tools, and examples for Wi-Fi 6, Bluetooth LE, and IEEE 802.15.4. It is also supported by the Arduino-ESP32 core via PlatformIO, allowing development in the Arduino IDE. You must configure your project to target the ESP32-C6 chip and connect via serial for flashing.

Can I use an external antenna with this module instead of the PCB antenna?

The ESP32-C6-MINI-1-N4 variant comes with a pre-integrated PCB antenna and is optimized for that configuration. For designs requiring an external antenna, you would need to select a different module variant (like the ESP32-C6-MINI-1-U) which features an external antenna connector (e.g., IPEX). Impedance matching and RF layout are critical when designing with an external antenna path.

How do I power the ESP32-C6 module and what are its sleep current characteristics?

Power the module with a stable 3.3V DC supply within the 3.0V to 3.6V range. The ESP32-C6 supports several low-power modes: Active mode (varies with RF activity), Modem-sleep, Light-sleep (current in the mA range), and Deep-sleep (current can be as low as tens of µA). Configure these modes in ESP-IDF to maximize battery life in sensor applications by disabling radios and peripherals when idle.

Package Includes

  • 1 x Espressif ESP32-C6-MINI-1-N4 Module

Additional Information

Weight 0.01 kg
Dimensions 10 × 7 × 2 cm
