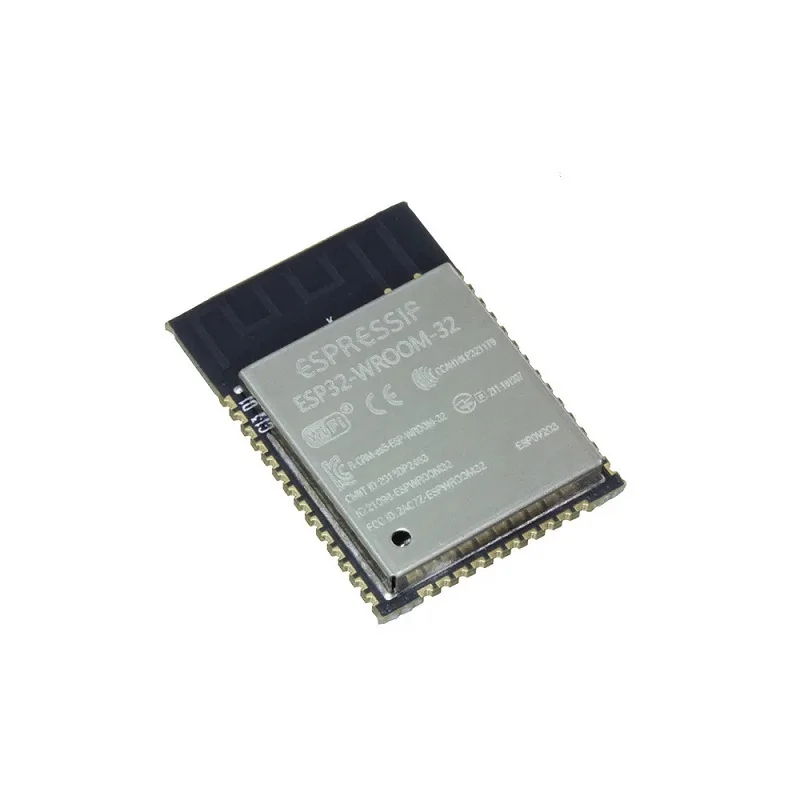

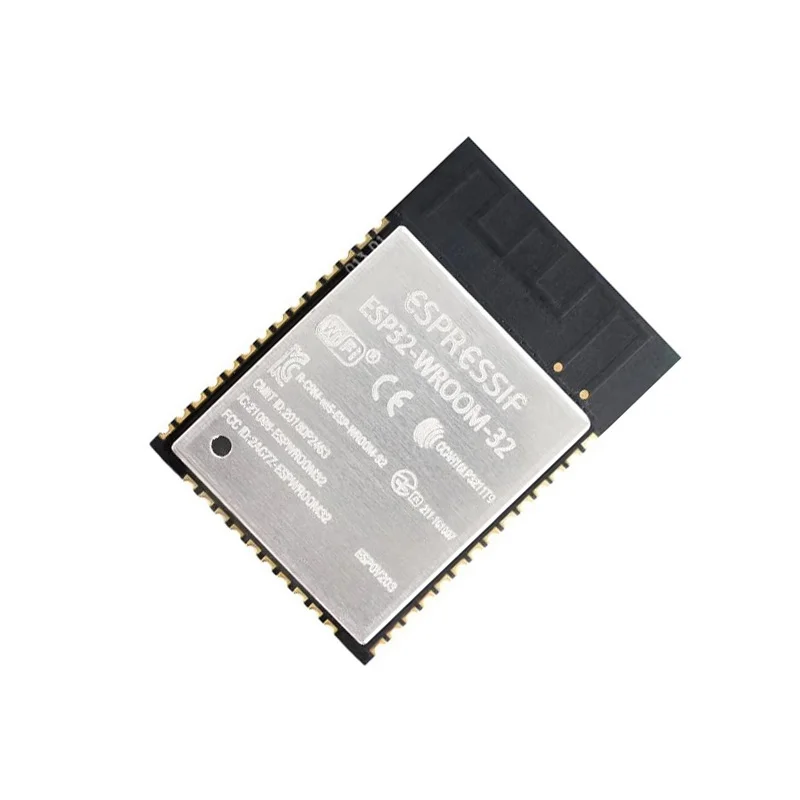

ESP32-WROOM-32 8M 64Mbit WiFi Bluetooth Module
The ESP32-WROOM-32 is a powerful Wi-Fi and Bluetooth 4.2 (BR/EDR/BLE) SoC module based on the ESP32-D0WD dual-core processor, featuring 8MB (64Mbit) of integrated flash memory. It is designed for low-power IoT applications and is programmable via ESP-IDF, Arduino IDE, or MicroPython.
Features
- Dual-Core Processing Power: Features two Xtensa® 32-bit LX6 microprocessors, clockable from 80 MHz to 240 MHz, for handling demanding tasks like voice encoding and sensor data processing.
- Integrated Wi-Fi & Bluetooth: Combines 802.11 b/g/n Wi-Fi (up to 150 Mbps) with Bluetooth 4.2 BR/EDR and BLE connectivity in a single, compact module.
- Rich Peripheral Set: Offers extensive GPIO interfaces including UART, SPI, I2C, I2S, SDIO, PWM, and capacitive touch, plus integrated Hall sensor.
- Optimized RF Performance: Integrates antenna switch, RF balun, power amplifier, and power management, requiring minimal external components for robust wireless performance.
- Low Power Operation: Supports advanced power management with dynamic clock scaling and multiple sleep modes, ideal for battery-powered sensor nodes.
Out of stock
The ESP32-WROOM-32 module encapsulates Espressif’s flagship ESP32 SoC, providing a complete, certified wireless solution for IoT development. Its highly integrated design includes PCB trace antenna, flash memory, crystal oscillator, and all necessary passive components, significantly reducing time-to-market and BOM complexity.
Architected for versatility, the module supports a wide range of applications from simple sensor networks to data-intensive edge computing. The dual-core processor allows for real-time task management, where one core can handle wireless protocol stacks while the other executes application logic. Its comprehensive peripheral suite enables direct interfacing with sensors, displays, and actuators without additional glue logic.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 3.15 × 1.8 cm |
