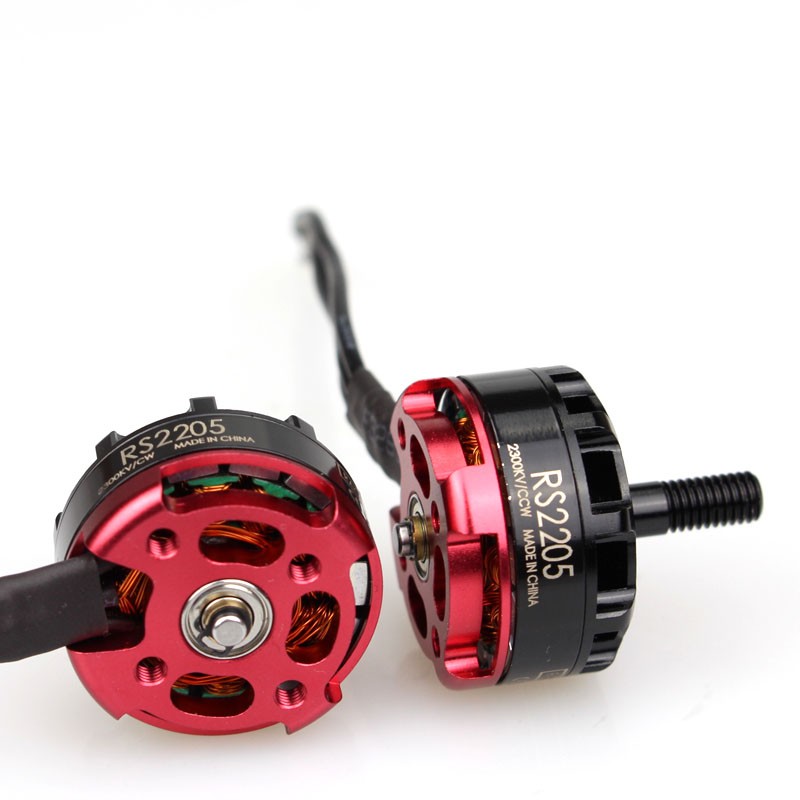

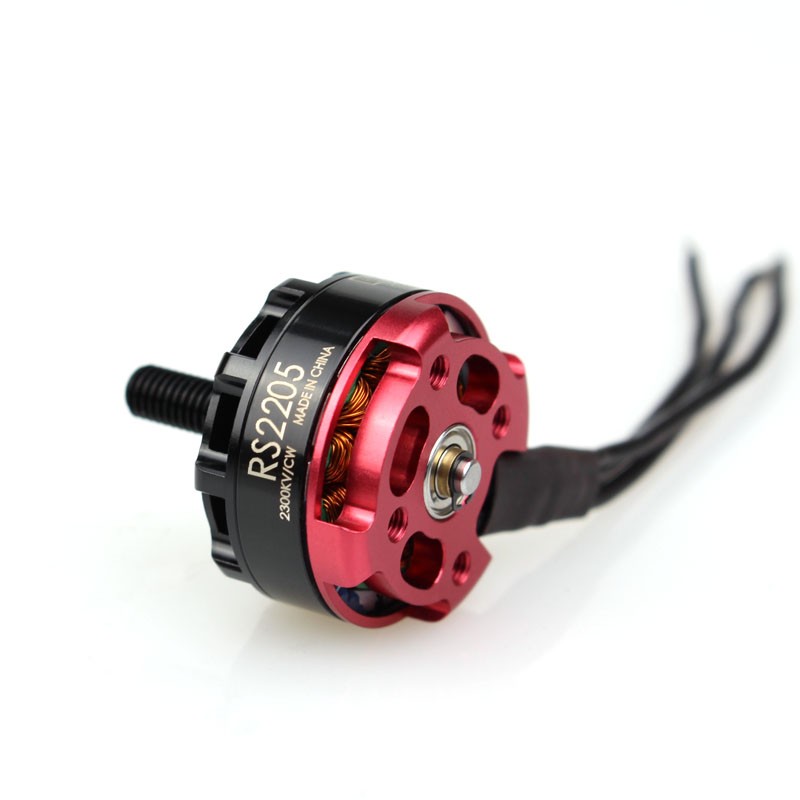

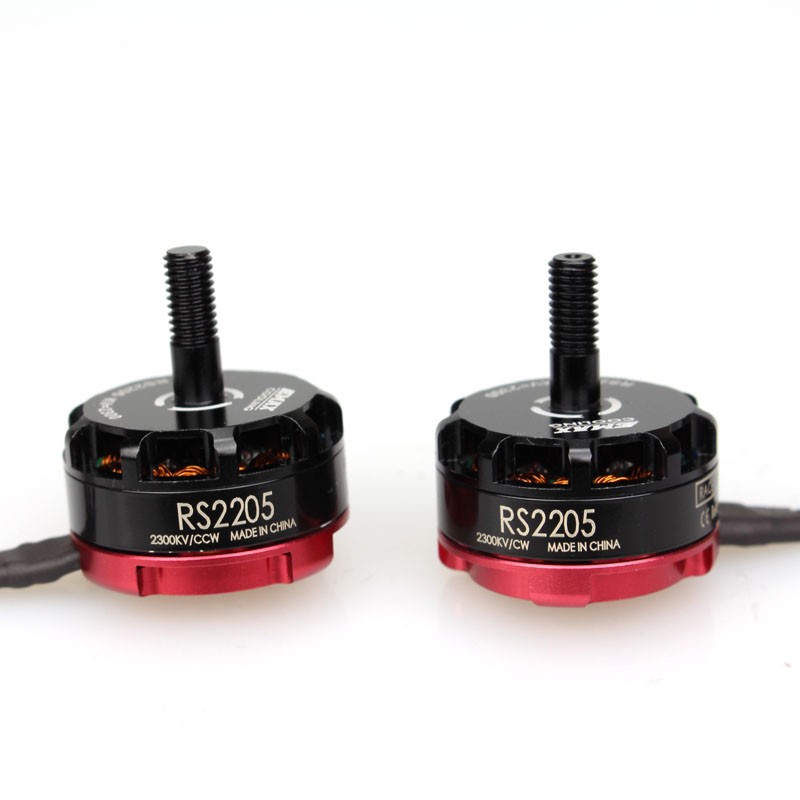

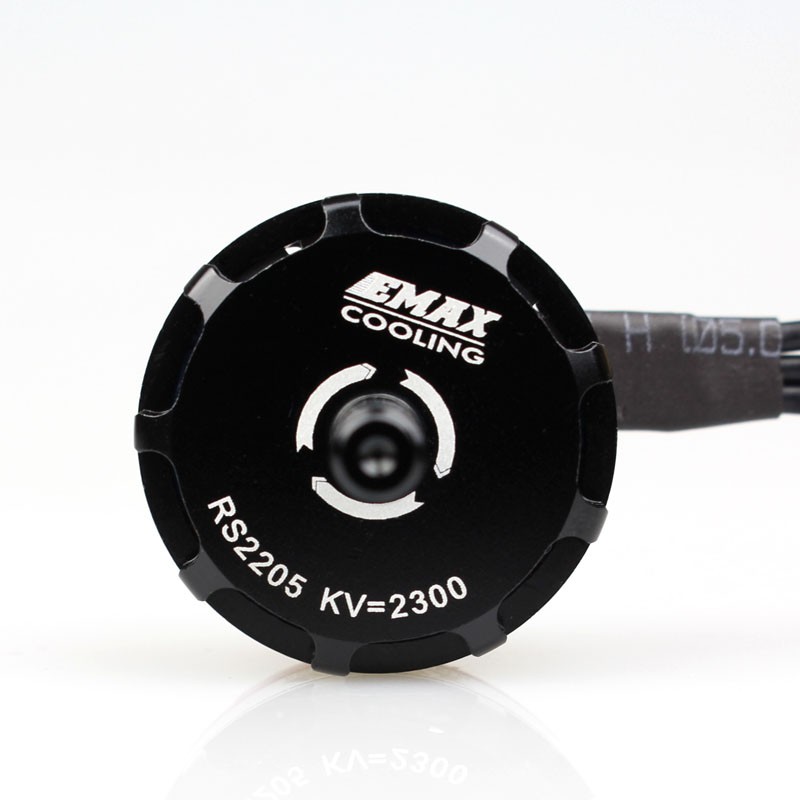

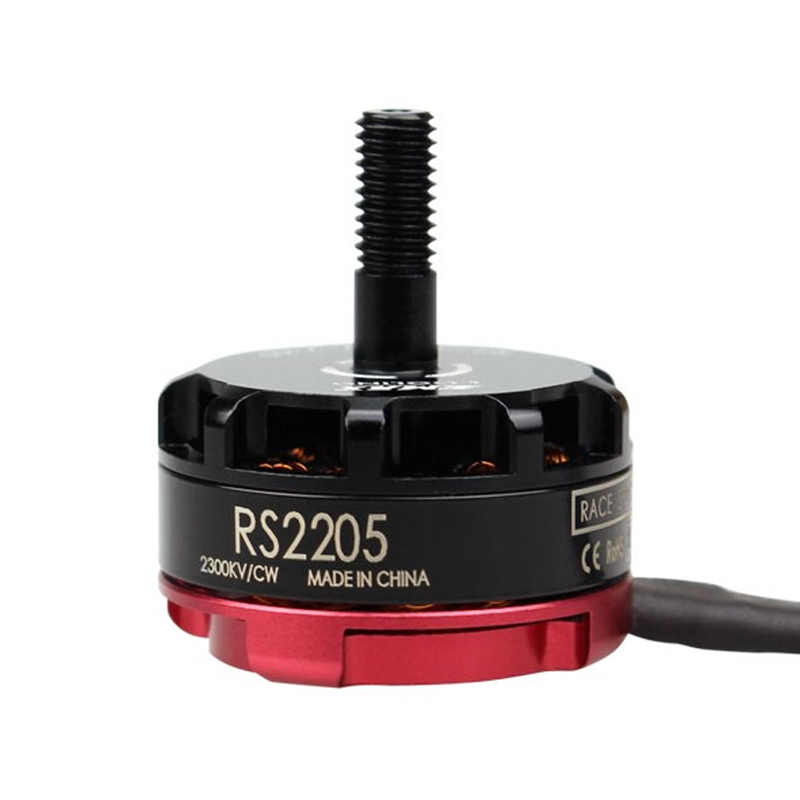

EMAX RS2205 KV2300 Brushless DC Motor for FPV Racing Drone - Red Cap (CCW Motor Rotation)
The EMAX RS2205 KV2300 is a high-performance brushless motor engineered for 3S-4S FPV racing drones, featuring a 12N14P stator design, N52 magnets, and Japanese NMB bearings for reliable, high-thrust operation.
Features
- High-performance 2205 stator size with 2300KV rating optimized for 3S-4S LiPo batteries.
- Advanced cooling fin design reduces operating temperatures by up to 30% during high-RPM flight.
- Equipped with premium N52 neodymium magnets and genuine Japanese NMB bearings for durability.
- Delivers up to 1024g of maximum thrust on a 4S LiPo for aggressive racing maneuvers.
- Includes a 15mm extended 3mm prop shaft, locknut, and motor screws for 3mm/4mm frames.
Out of stock
The EMAX RS2205 KV2300 motor is built from the ground up for competitive FPV racing. Its 12N14P stator configuration and high-purity copper windings ensure efficient power delivery and thermal management, while the integrated cooling fins actively dissipate heat during sustained high-throttle flight.
Precision dynamic balancing at the factory minimizes vibration, translating to smoother video feed and reduced frame stress. The extended 3mm shaft accommodates a wide range of propellers with 5mm mounting holes, providing flexibility for various racing setups.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 3.17 × 2.79 cm |
