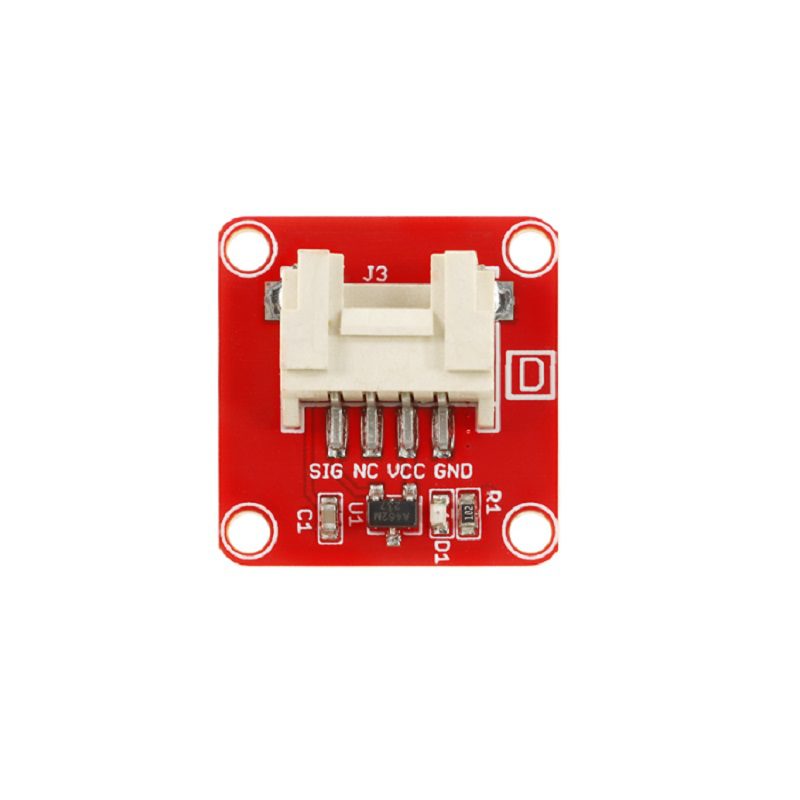

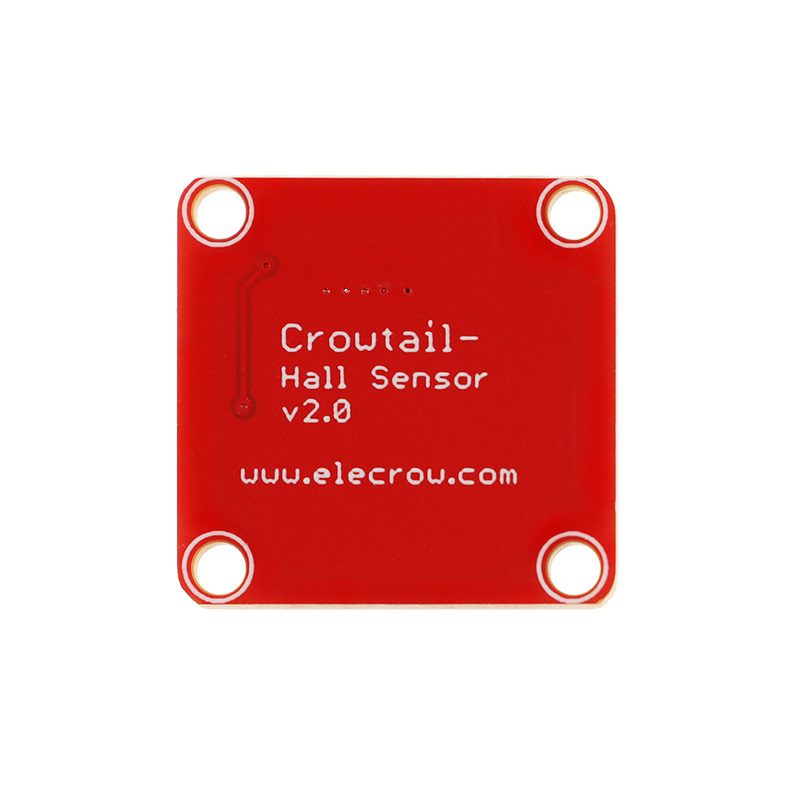

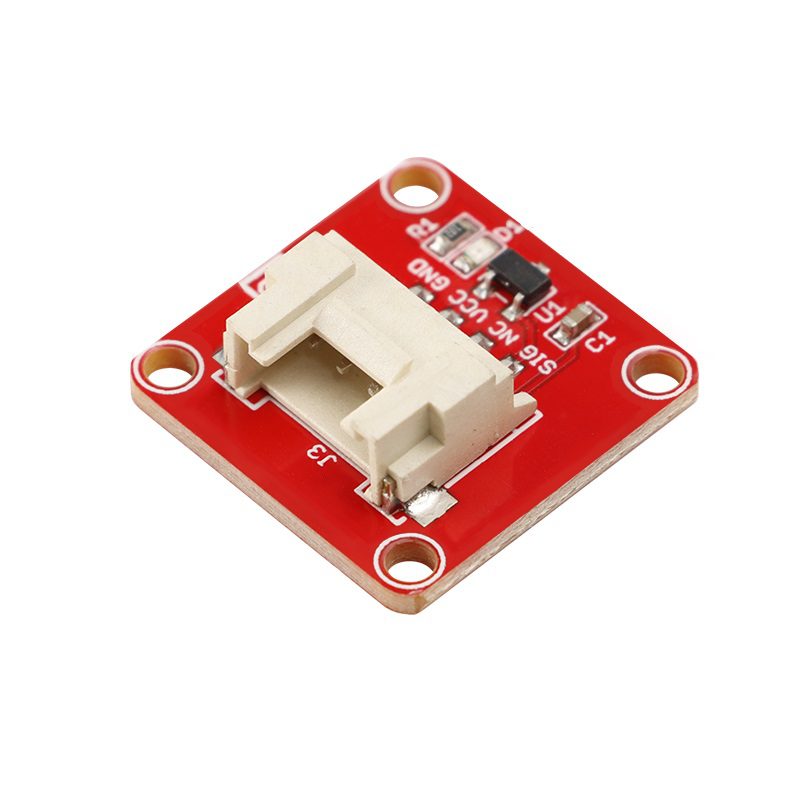

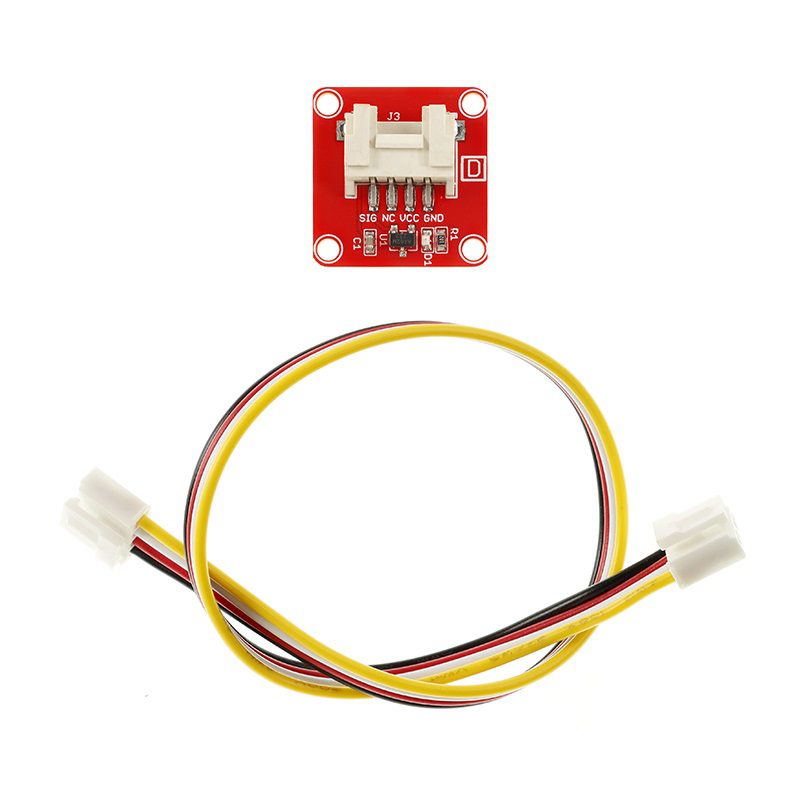

Elecrow Crowtail-Hall Sensor 2.0 Module - Unipolar Magnetic Switch
The Elecrow Crowtail-Hall Sensor 2.0 is a unipolar magnetic switch module based on the Allegro MicroSystems A1101 Hall-effect IC, designed for easy integration with Crowtail, Arduino, and Raspberry Pi systems for proximity and position sensing.
Features
- Features the Allegro MicroSystems A1101 Hall-effect switch for reliable magnetic field detection.
- Unipolar switching activates with a south magnetic pole, providing a clean digital output signal.
- Fast 400ns transition period for responsive rise and fall times.
- Built-in reverse battery protection safeguards the module during installation.
- Crowtail interface ensures plug-and-play compatibility with a wide range of microcontroller development boards.
Out of stock
This sensor module employs the Allegro MicroSystems A1101, a continuous-time Hall-effect switch that generates a low digital output when a sufficient south pole magnetic field is applied perpendicular to its face. The sensing principle relies on the Hall effect, where a voltage differential is created across a semiconductor in the presence of a magnetic field orthogonal to an applied current.
The module is designed for robust operation with a 5V DC supply and includes signal conditioning circuitry for a clean, digital output compatible with 3.3V and 5V logic systems. Its compact form factor and standardized Crowtail connector make it ideal for prototyping and embedded system integration requiring non-contact magnetic sensing.
Additional Information
| Weight | 0.009 kg |
|---|---|
| Dimensions | 6 × 8 × 2 cm |
