EDATEC ED-CM4SEN CM4 Baseboard w/ 4G, WiFi, RS485, CAN, 1GB RAM, 8GB eMMC

The ED-CM4SEN typically ships with Raspberry Pi OS (Raspbian) pre-installed on its 8GB eMMC. To update or reflash the OS, you use the Raspberry Pi Imager tool on a computer. Connect the internal Micro USB port (marked for programming) to your PC while applying power to the board's DC input. The CM4 will appear as a mass storage device, allowing the Imager to write the new OS image directly to the eMMC, similar to flashing a standard Compute Module 4.

The integrated 4G module is managed through the Linux OS. Insert a compatible SIM card into the module's slot. Using a terminal or SSH, you can use network manager commands (`nmcli`) or edit configuration files to set the APN for your cellular provider. The module typically uses standard AT commands over a serial interface, and drivers are included in the OS. Ensure the external antenna is connected for optimal signal strength. The connection will appear as a new network interface (e.g., wwan0) once configured.

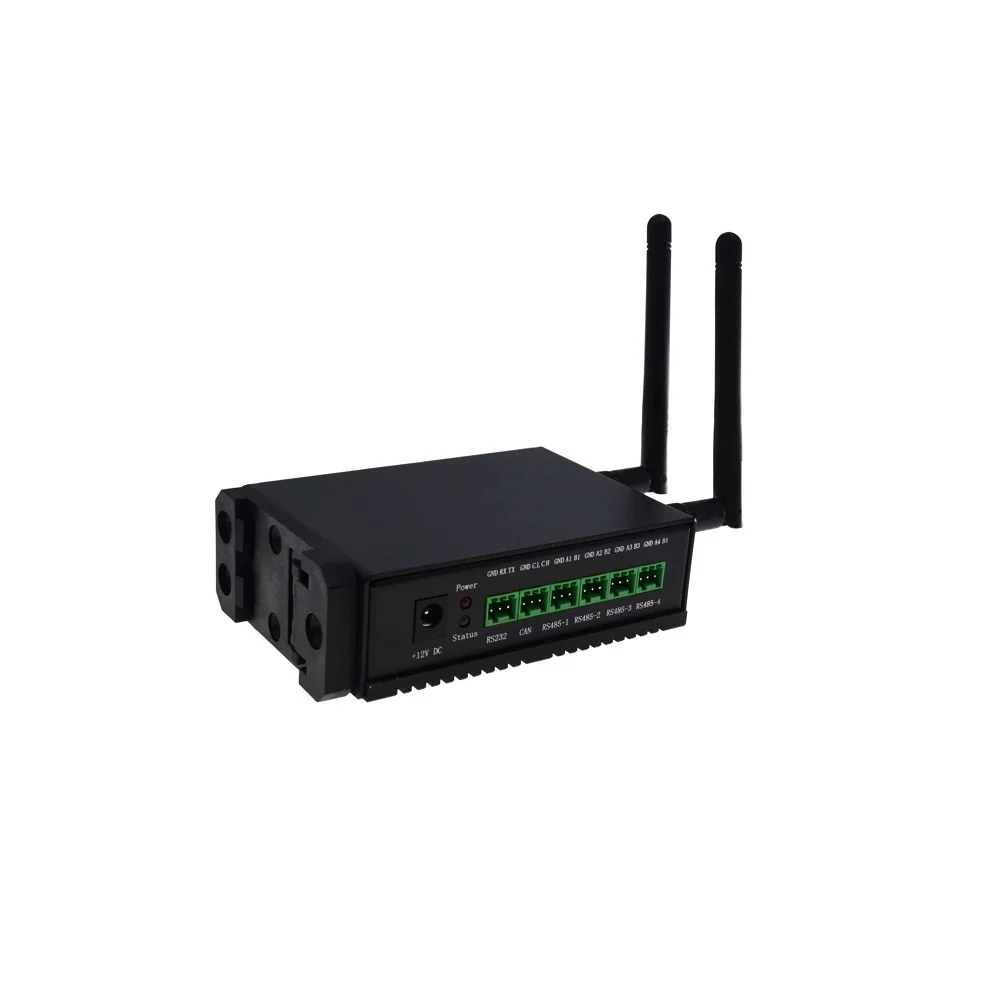

Yes, all four RS485 channels and the CAN interface can operate concurrently. The RS485 ports are accessed as standard serial devices (e.g., /dev/ttySC0, /dev/ttySC1). The CAN bus uses the standard Linux SocketCAN framework. You will need to enable the appropriate overlays in the `/boot/config.txt` file for the CM4's I/O. For programming, use Python libraries like `pyserial` for RS485 Modbus communication and `python-can` for CAN bus messaging, allowing you to build gateways that bridge industrial protocols to IP networks.

Power consumption varies with CPU load, wireless activity, and connected peripherals. With the CM4 under moderate load, the 4G module active, and one RS485 port communicating, expect a typical current draw between 0.8A to 1.5A from the 12V supply (approximately 10W to 18W). It is crucial to use a stable 12-18V DC power source capable of delivering at least 2A to account for peak demands, especially if powering an external display from the board's 5V@1.5A output.
