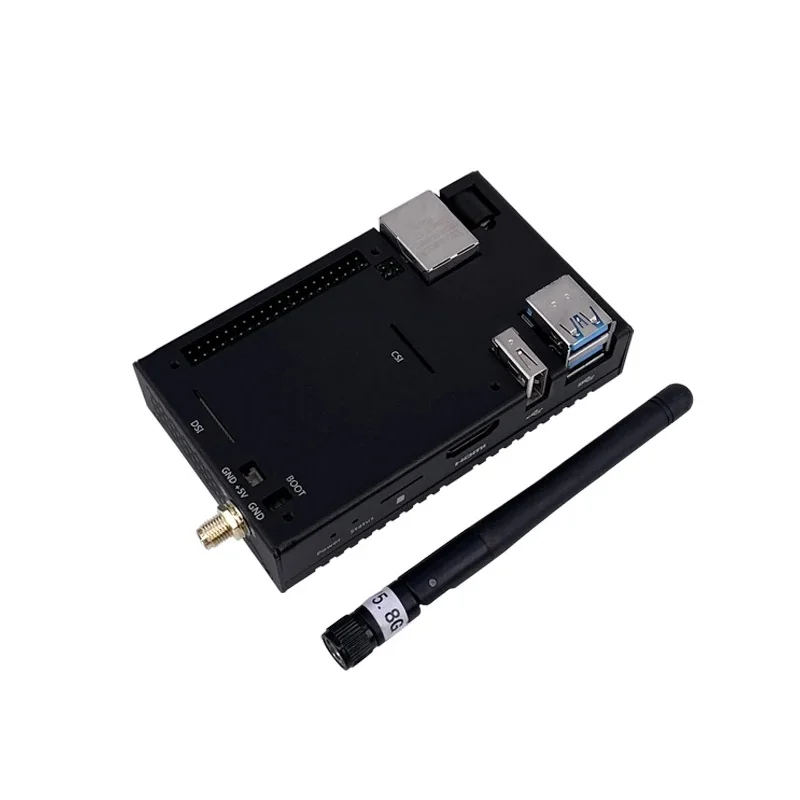

EDATEC CM4 NANO Industrial Baseboard w/ Raspberry Pi CM4, 4GB RAM, 8GB eMMC, WiFi

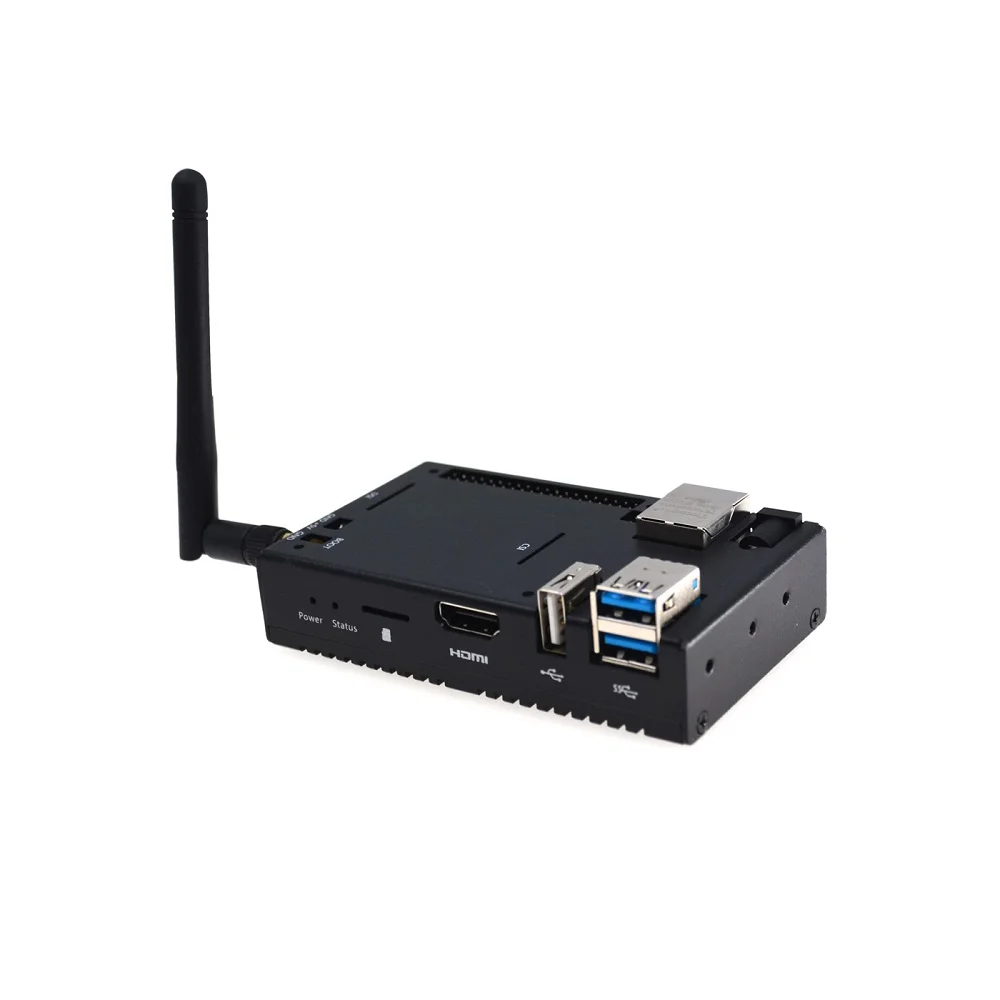

EDATEC CM4 NANO Industrial Baseboard w/ Raspberry Pi CM4, 4GB RAM, 8GB eMMC, WiFi - Image 2

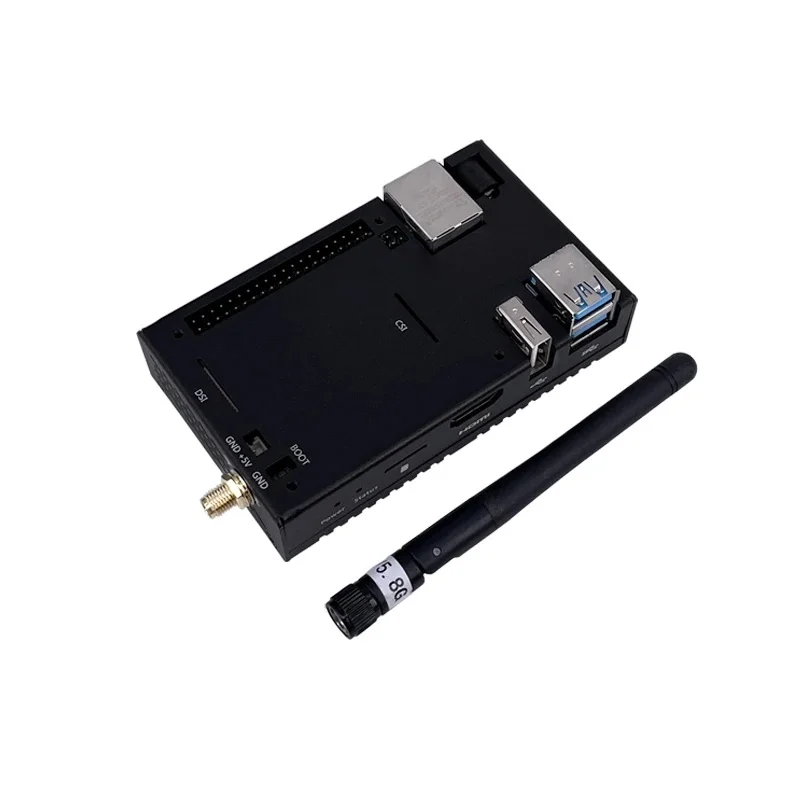

EDATEC CM4 NANO Industrial Baseboard w/ Raspberry Pi CM4, 4GB RAM, 8GB eMMC, WiFi - Image 3
SKU: IOWC-1370
📋 GST Invoice Available

EDATEC CM4 NANO Industrial Baseboard w/ Raspberry Pi CM4, 4GB RAM, 8GB eMMC, WiFi

₹15,719.00 (Inclusive of all taxes)
Out of Stock

The EDATEC CM4 NANO is an industrial-grade baseboard for the Raspberry Pi Compute Module 4, featuring a 4GB LPDDR4 RAM and 8GB eMMC configuration with dual-band WiFi, Bluetooth 5.0, and a rugged metal case for reliable IoT and edge computing deployments in extended temperature environments.

Features

  • Industrial baseboard for Raspberry Pi Compute Module 4 with Broadcom BCM2711 quad-core Cortex-A72 processor at 1.5GHz.
  • Equipped with 4GB LPDDR4-3200 RAM and 8GB eMMC storage for robust embedded OS and application hosting.
  • Features dual-band 2.4/5.8GHz WiFi and Bluetooth 5.0 BLE with external antenna support for reliable wireless connectivity.
  • Industrial-grade design with metal case, active heatsink, and wide operating temperature range of -25°C to 60°C.
  • Rich I/O includes Gigabit Ethernet with PoE support, USB 3.0 ports, CSI/DSI camera/display interfaces, and a 40-pin GPIO header.

Out of stock

Description

The EDATEC CM4 NANO Industrial Baseboard is engineered to harness the full potential of the Raspberry Pi Compute Module 4 in demanding environments. It transforms the CM4 into a compact, fanless system with superior thermal management via an integrated heatsink, ensuring stable operation of the CPU, wireless module, and power management unit even under high ambient temperatures.

This board provides comprehensive connectivity essential for industrial IoT and edge computing, including a PoE-capable Gigabit Ethernet port, high-speed USB 3.0 interfaces, and full compatibility with Raspberry Pi cameras and touch displays. Its design prioritizes reliability with features like a battery-backed real-time clock, alarm buzzer, and support for a wide 12-18V DC input range, making it suitable for DIN-rail mounting and integration into larger control systems.

Key Features

  • Industrial-grade carrier board for the Raspberry Pi Compute Module 4 (CM4) with active cooling solution.
  • Quad-core ARM Cortex-A72 processor delivers high performance for edge computing, vision processing, and network gateway applications.
  • Dual-band IEEE 802.11 b/g/n/ac WiFi and Bluetooth 5.0 BLE with optional external antenna for enhanced wireless range and reliability.
  • Gigabit Ethernet port supports Power over Ethernet (PoE) when used with an official Raspberry Pi PoE HAT, simplifying power and data cabling.
  • Comprehensive expansion via standard Raspberry Pi 40-pin GPIO header, USB 3.0 Type-C, CSI camera, and DSI display interfaces.
  • Designed for extended temperature operation (-25°C to 60°C) with a metal enclosure and M2.5 mounting holes for secure installation.
  • Onboard buzzer, RTC with backup battery, and system reset button provide essential controls for industrial automation scenarios.

Applications

  • Industrial IoT (IIoT) gateways for data aggregation and protocol conversion (Modbus, MQTT).
  • Edge computing nodes for real-time video analytics, machine vision, and sensor processing.
  • Ruggedized network appliance for VPN, firewall, or local server applications.
  • Digital signage and interactive kiosk controllers in non-climate-controlled environments.
  • Automation control panels and HMIs (Human-Machine Interfaces) with touch display support.

Technical Specifications

SoC / ProcessorBroadcom BCM2711 (Quad-core Cortex-A72 @ 1.5GHz)
RAM4GB LPDDR4-3200
Storage8GB eMMC + microSD Card Slot
Wireless ProtocolsDual-band 2.4/5.8GHz WiFi (802.11 b/g/n/ac), Bluetooth 5.0 BLE
Wired NetworkGigabit Ethernet (PoE supported with HAT)
Supply Voltage12-18V DC (5.5/2.5mm Jack or Phoenix Terminal)
USB Interfaces2x USB 3.0 (external), 1x USB 3.0 (internal), 1x USB 2.0
Video/DisplayHDMI (4K), DSI interface for Raspberry Pi displays
Camera InterfaceCSI interface for Raspberry Pi camera modules
Expansion40-pin GPIO header, 4-pin PoE header
Operating Temperature-25°C to 60°C
Dimensions (PCB)95mm x 58mm
Dimensions (Overall)103mm x 62mm x 21.5mm

Frequently Asked Questions

What operating systems are compatible with the EDATEC CM4 NANO baseboard?

The board is designed to run the standard Raspberry Pi OS (Raspbian) and other Linux distributions compatible with the Raspberry Pi Compute Module 4. You can flash the OS image to the onboard 8GB eMMC storage or boot from a microSD card inserted into the dedicated slot for greater flexibility and storage capacity.

How do I power the CM4 NANO, and does it support Power over Ethernet?

You can power the board via its 12-18V DC input using either the 5.5/2.5mm barrel jack or the Phoenix terminal block. It supports Power over Ethernet (PoE) when used with an official Raspberry Pi PoE HAT connected to its 4-pin header, allowing both data and power to be delivered through a single Ethernet cable, which is ideal for clean installations.

Can I use Raspberry Pi cameras and displays with this industrial baseboard?

Yes, the CM4 NANO features fully compatible CSI and DSI interfaces. You can connect official Raspberry Pi camera modules (like the 8MP or 12MP HQ camera) to the CSI port and official displays (like the 7-inch touchscreen) to the DSI port. The standard HDMI port is also available for 4K video output to external monitors.

What are the steps to update the system or recover the board if it fails to boot?

You can update the system by flashing a new OS image to the eMMC via the onboard USB 2.0 port, which acts as a mass storage device when the CM4 is in bootloader mode. Hold the reset button while applying power to enter this mode. For recovery, you can also boot directly from a microSD card with a valid OS image, which takes precedence over the eMMC.

Package Includes

  • 1 x EDATEC ED-CM4NANO10-1408-C Baseboard (with pre-installed CM4)
  • 1 x WiFi/BT Antenna
  • 1 x Metal Case with Heatsink

Additional Information

Weight 0.4 kg
Dimensions 10.3 × 6.2 × 2.15 cm

Related Products

Out of Stock

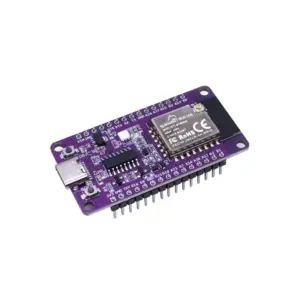

NICEMCU BW16 RTL8720DN Dual-Band WiFi & BLE 5.0 Development Board
