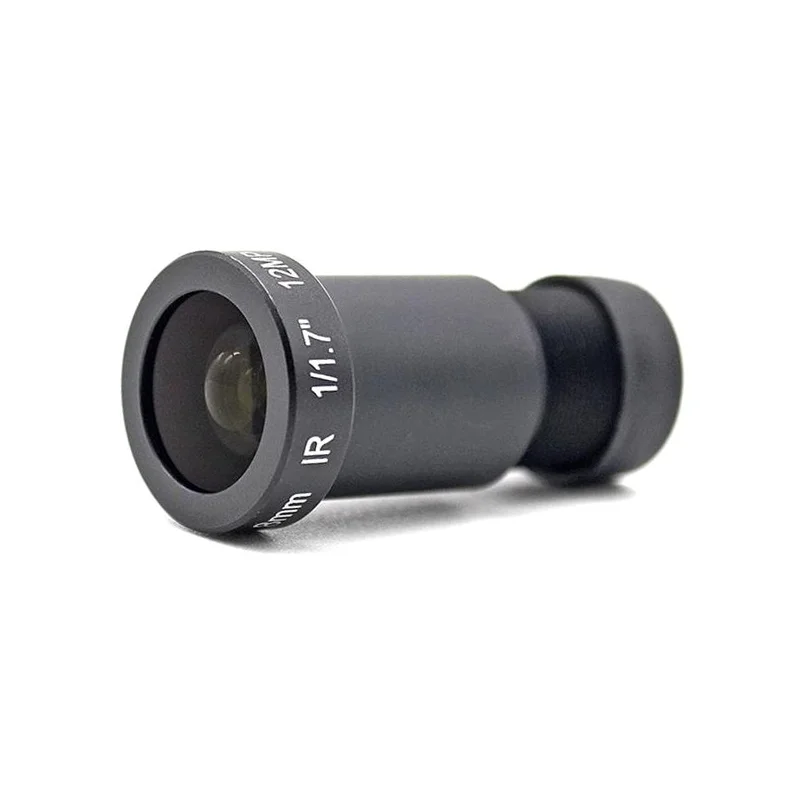

EDATEC 12MP 8mm M12 Lens for Raspberry Pi Cameras

Yes, this 12MP M12 lens is compatible with Raspberry Pi camera modules that support interchangeable lenses, such as the High Quality (HQ) Camera module. The Camera Module 3 has a fixed lens, so it is not compatible. For the HQ Camera, you would need a CS-to-M12 adapter. Always verify your specific camera module has an M12 thread or compatible mount before purchase.

To install, screw the lens clockwise into the M12 thread on your compatible camera board. For initial focus, point the camera at a detailed subject roughly 3-5 meters away. Gently rotate the lens barrel while monitoring the live video feed on your Raspberry Pi until the image is sharp. Once focused, you may secure the lens with a locking screw if your housing supports it. Avoid overtightening to prevent damage to the threads.

An 8mm focal length on a Raspberry Pi camera sensor (typically a 1/2.3" or 1/2.5" format) provides a moderate, general-purpose field of view. It is wider than a standard telephoto lens but narrower than a fisheye. It is suitable for capturing scenes, objects, or people at short to medium distances, making it ideal for applications like indoor monitoring, product photography, or robotics navigation without extreme distortion.
