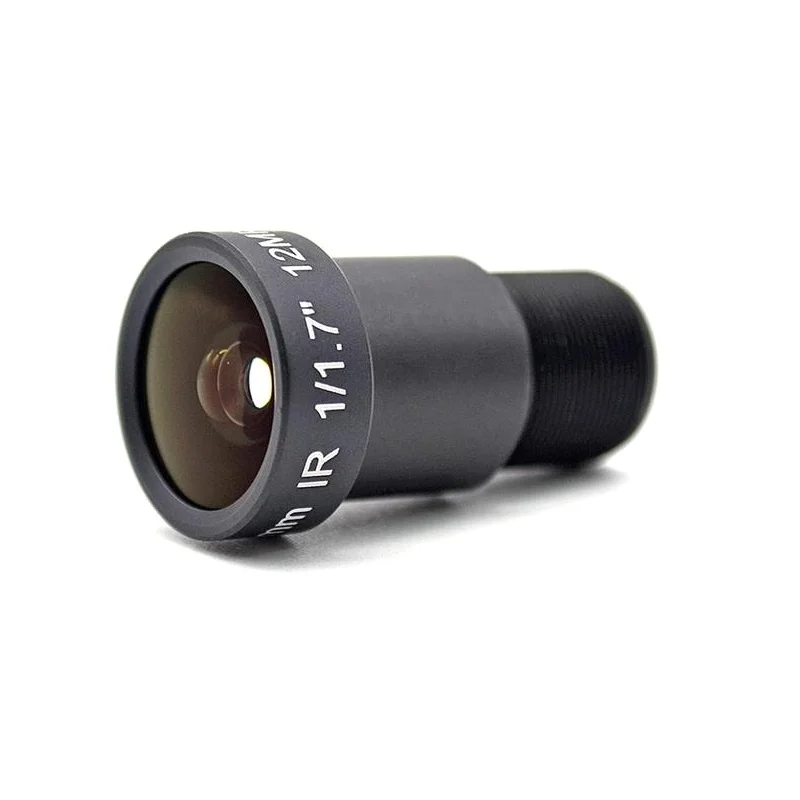

EDATEC 12MP 5mm M12 Lens for Raspberry Pi Camera Modules

Yes, this EDATEC 12MP M12 lens is compatible with Raspberry Pi Camera Modules that feature a standard M12 threaded mount, including versions designed for high-resolution sensors. For the Camera Module 3, ensure you have a compatible camera board with an M12 interface or an appropriate adapter. The lens threads directly onto the camera module's housing. After installation, you may need to adjust the focus by rotating the lens barrel and then use software like Picamera2 or OpenCV to calibrate and capture images at the full 12MP resolution.

To install, align the lens threads with the M12 mount on your Raspberry Pi camera module and screw it in clockwise until snug—avoid over-tightening. For focusing, point the camera at a detailed subject approximately at your desired working distance. Gently rotate the lens barrel to adjust focus until the image appears sharp on your monitor. You may need to loosen a locking screw if present. Use software like 'raspistill' or a Python script with Picamera2 to preview the image in real-time for precise adjustment. Once focused, you can secure the lens position if your mount allows it.

A 5mm focal length on a Raspberry Pi camera sensor (typically a 1/2.43-inch format like the IMX708) provides a wide-angle field of view, approximately in the range of 70 to 80 degrees diagonally. This is significantly wider than the standard lens, making it ideal for capturing expansive scenes in applications like room monitoring, robotic environment mapping, or panoramic imaging. The exact horizontal and vertical angles depend on the specific sensor's active area dimensions. You can calculate the precise angles using the sensor datasheet and the lens focal length formula.

Yes, this 12MP lens can be used with lower resolution cameras like 8MP modules. The lens's optical resolution exceeds that of lower MP sensors, so it will not be a limiting factor. The image quality will be determined by the camera sensor's capabilities. You will still benefit from the 5mm wide-angle focal length. Ensure the camera module has a compatible M12 mount. The lens will screw on normally, and you will follow the same focusing procedure. The resulting images will be capped at the lower sensor resolution but will utilize the center and best-corrected portion of the lens optics.
