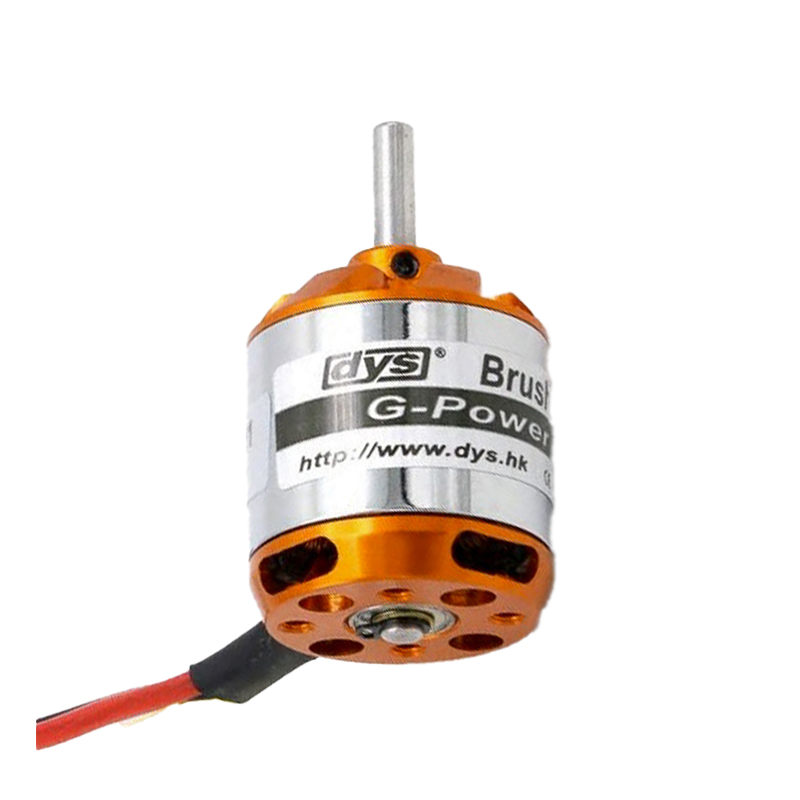

DYS D2836 750KV Outrunner Brushless Drone Motor (Original)
DYS D2836 750KV Outrunner Brushless Drone Motor (Original) - Image 2

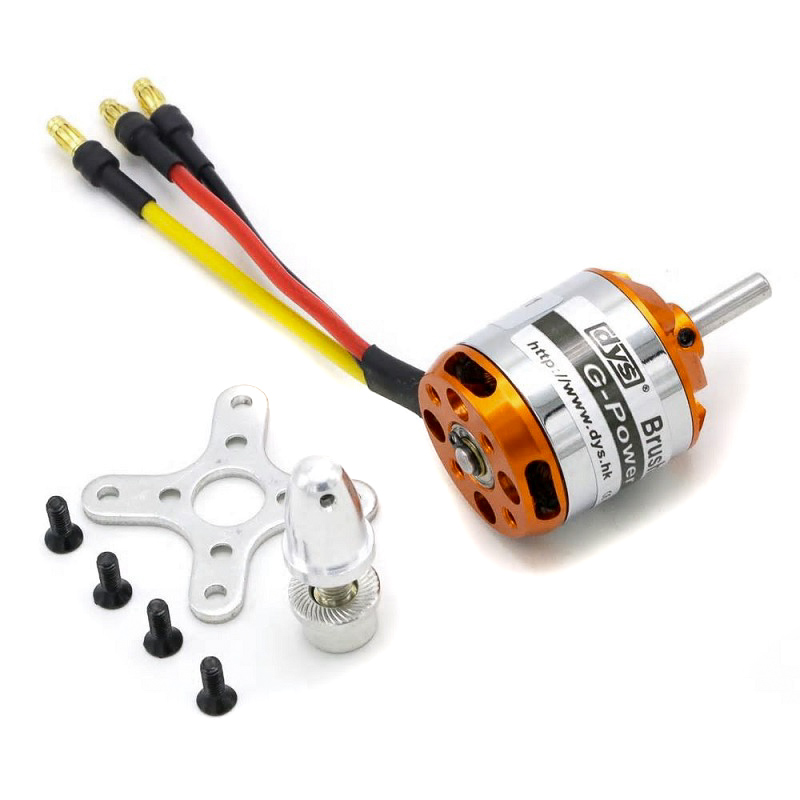

DYS D2836 750KV Outrunner Brushless Drone Motor (Original) - Image 3

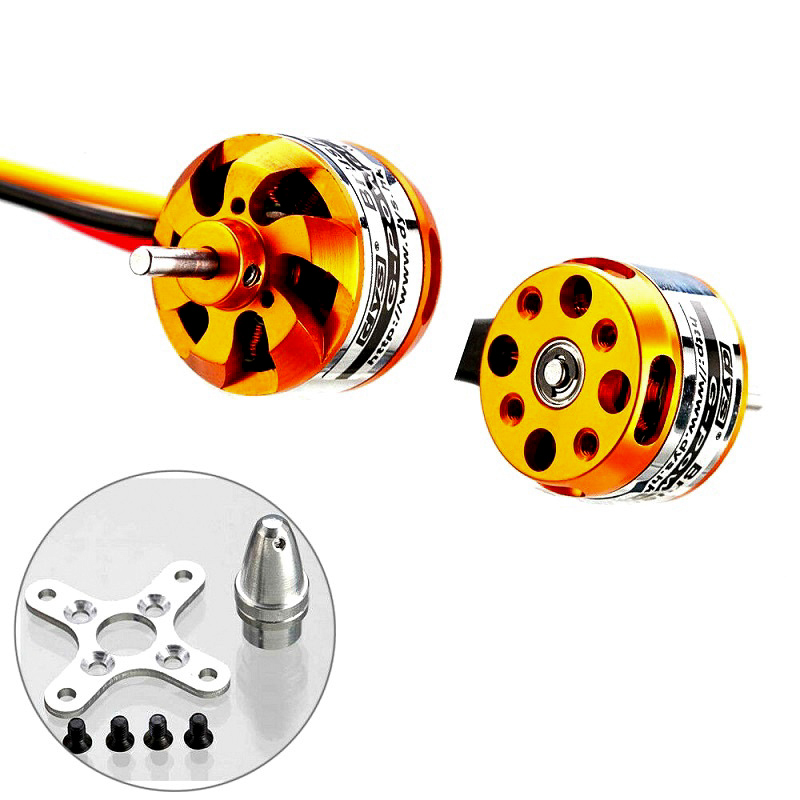

DYS D2836 750KV Outrunner Brushless Drone Motor (Original) - Image 4

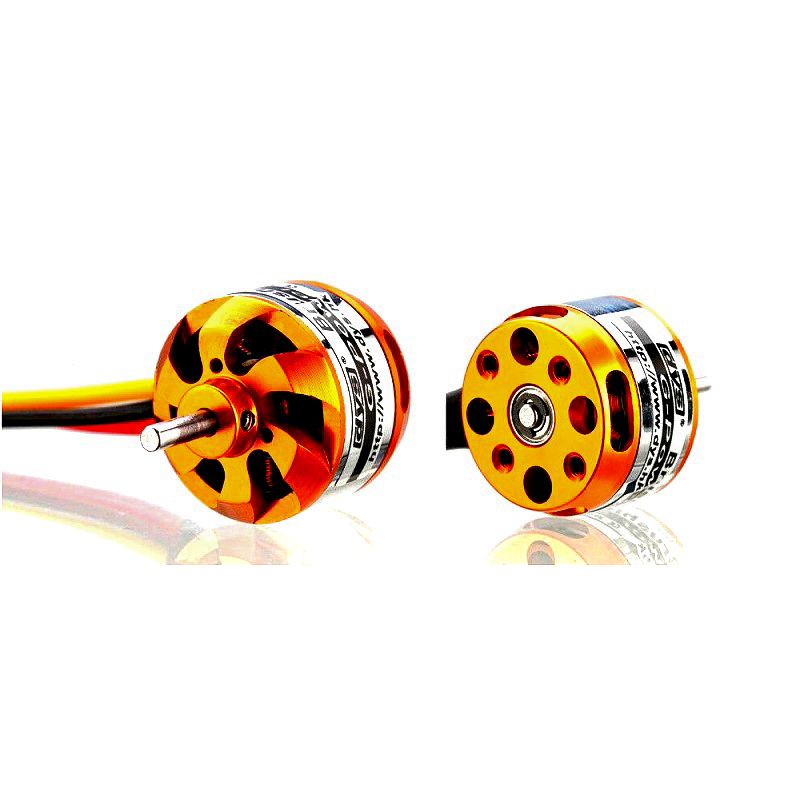

DYS D2836 750KV Outrunner Brushless Drone Motor (Original) - Image 5
SKU: DRFC-3096
📋 GST Invoice Available

DYS D2836 750KV Outrunner Brushless Drone Motor (Original)

₹1,759.00 (Inclusive of all taxes)
Out of Stock

The DYS D2836 is a 750KV outrunner brushless motor engineered for medium-sized multirotor and UAV platforms, compatible with 2-4S LiPo batteries and requiring a 40A ESC. Its design prioritizes high torque and efficient power delivery for stable, long-duration flight.

Features

  • 750KV outrunner motor optimized for 2-4S LiPo battery systems.
  • Generates up to 206W of power, paired with a recommended 40A ESC.
  • Features a 4mm steel shaft and includes a prop adapter and X-type motor mount.
  • Pre-soldered 3mm bullet connectors for simplified, solder-free installation.
  • Ideal for medium-sized quadcopters and hexacopters using 9-12 inch propellers.

Out of stock

Description

The DYS D2836 750KV motor is engineered for reliability and performance in demanding UAV applications. Its outrunner design provides excellent torque and cooling characteristics, making it suitable for medium-lift platforms requiring smooth, efficient power across the throttle range.

Constructed with a durable steel shaft and robust housing, this motor is built to withstand the vibrations and operational stresses typical in multirotor flight. The integrated bullet connectors streamline the build process, reducing setup time and potential soldering errors.

Key Features

  • High-Torque Outrunner Design: Delivers consistent power and efficient cooling for extended flight sessions.
  • Durable Steel Construction: The 4mm shaft and motor housing are built for impact resistance and longevity.
  • Plug-and-Play Connectivity: Comes with pre-soldered 3mm bullet connectors for direct ESC compatibility.
  • Optimized Thermal Management: The outrunner design promotes effective heat dissipation under load.
  • Complete Mounting Kit: Includes prop adapter and X-type motor mount with hardware for versatile frame integration.

Applications

  • Medium-sized quadcopter and hexacopter builds for aerial photography and mapping.
  • Heavy-lift UAV platforms requiring efficient 750KV motors with 9-12 inch propellers.
  • Custom multirotor projects where pre-soldered connectors and included mounting hardware reduce build complexity.
  • Educational and development platforms for testing autonomous flight control systems.

Technical Specifications

ModelD2836-11
KV Rating750 RPM/V
Motor TypeOutrunner Brushless
Input Voltage2-4S LiPo
Shaft Diameter4 mm
Shaft Length10 mm
Max Continuous Power206 W
Recommended ESC40 A
Mounting Screw SizeM3
Stator Width28 mm
Weight70 g
Compatible Propeller Size9-12 inch

Frequently Asked Questions

What is the recommended ESC for the DYS D2836 750KV motor?

A 40A Electronic Speed Controller (ESC) is recommended for optimal performance with this motor. Ensure the ESC firmware (such as BLHeli_S or BLHeli_32) is properly configured for the motor's low KV rating and the expected current draw when paired with large propellers on 3S or 4S LiPo batteries.

Does this motor come with connectors pre-installed?

Yes, the DYS D2836 motor includes pre-soldered 3mm male bullet connectors. This allows for direct, solder-free connection to compatible ESCs, simplifying the wiring process and reducing the risk of poor solder joints in your power system.

What size propellers are compatible with the D2836 750KV motor?

This motor is designed for 9 to 12 inch propellers. The optimal propeller size depends on your specific frame, battery voltage (2-4S), and desired flight characteristics (thrust vs. efficiency). Always bench-test new propeller combinations with a current sensor to ensure you stay within the motor's 206W power limit.

What is the mounting pattern for this motor?

The motor includes an X-type motor mount (holder) with an M3 screw pattern. The specific bolt hole circle (BHC) distance is standard for motors of this size. Refer to the included hardware and your frame's motor mounting plate to ensure compatibility before installation.

Package Includes

  • 1 x DYS D2836 750KV Brushless Motor
  • 1 x Prop Adapter
  • 1 x X-type Motor Holder with Screws
  • 1 x User Manual

Additional Information

Weight 0.075 kg
Dimensions 7 × 4 × 2 cm
