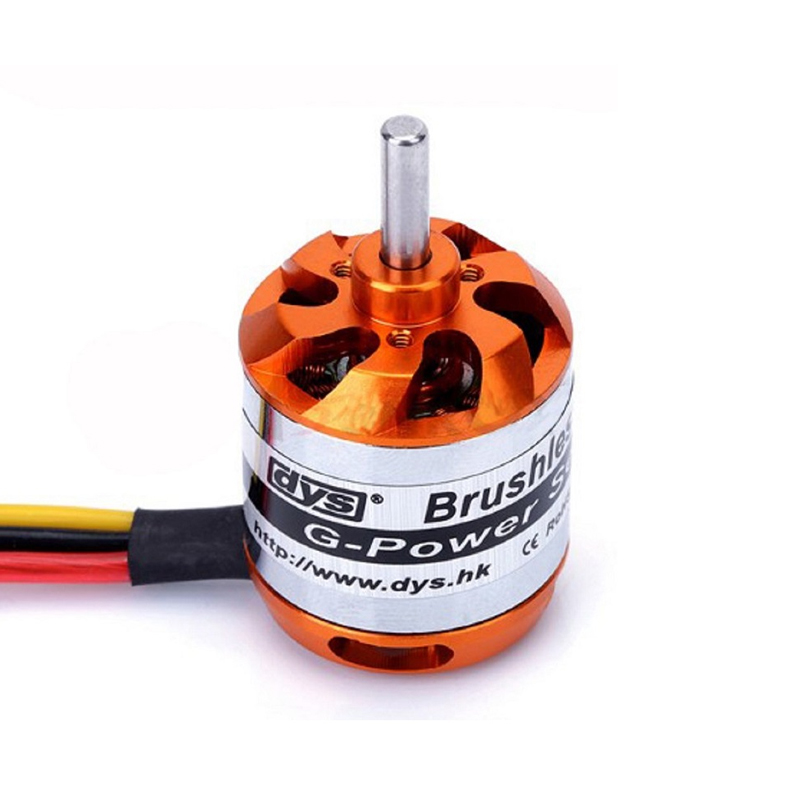

DYS D2836-7 1120KV Outrunner Brushless Drone Motor

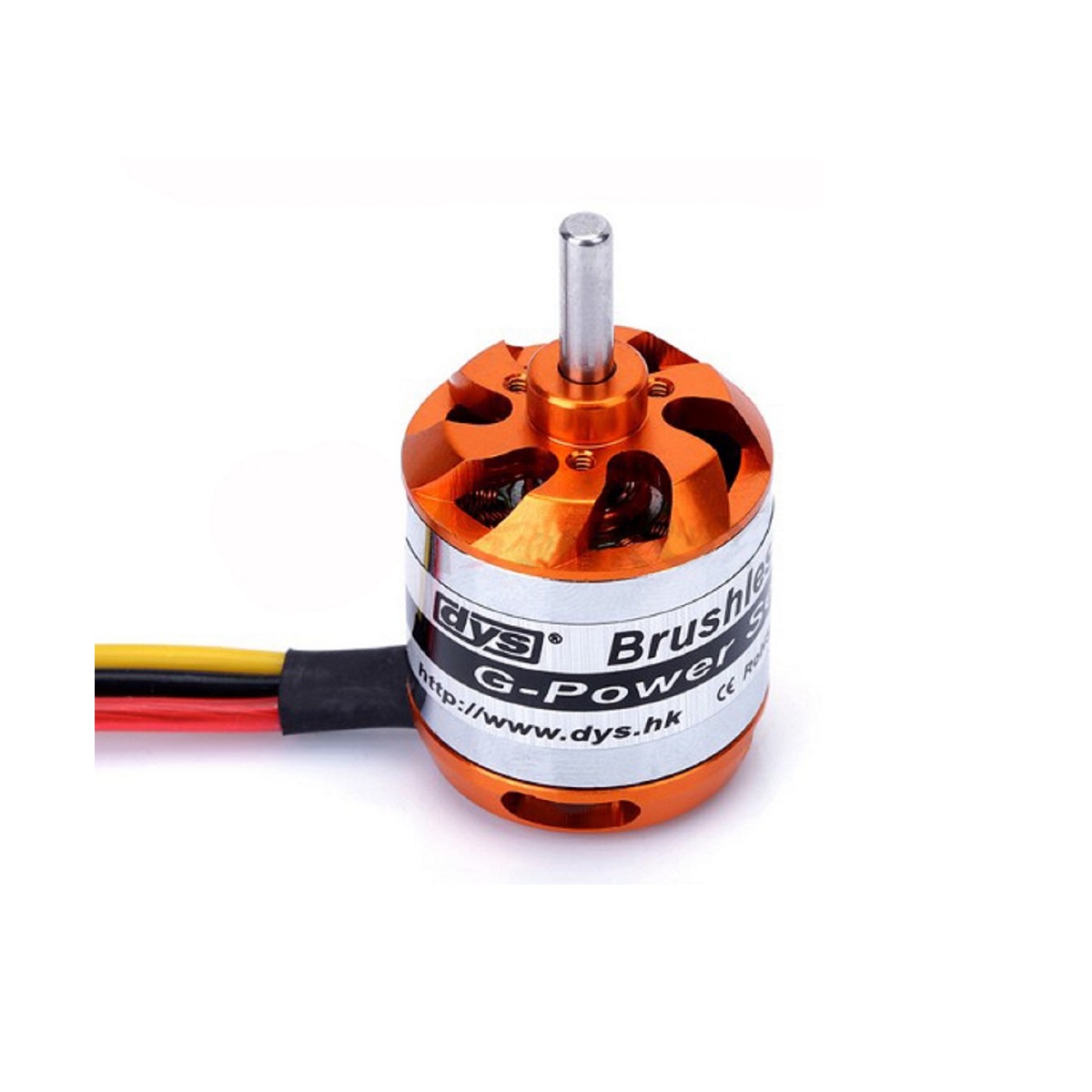

DYS D2836-7 1120KV Outrunner Brushless Drone Motor - Image 2

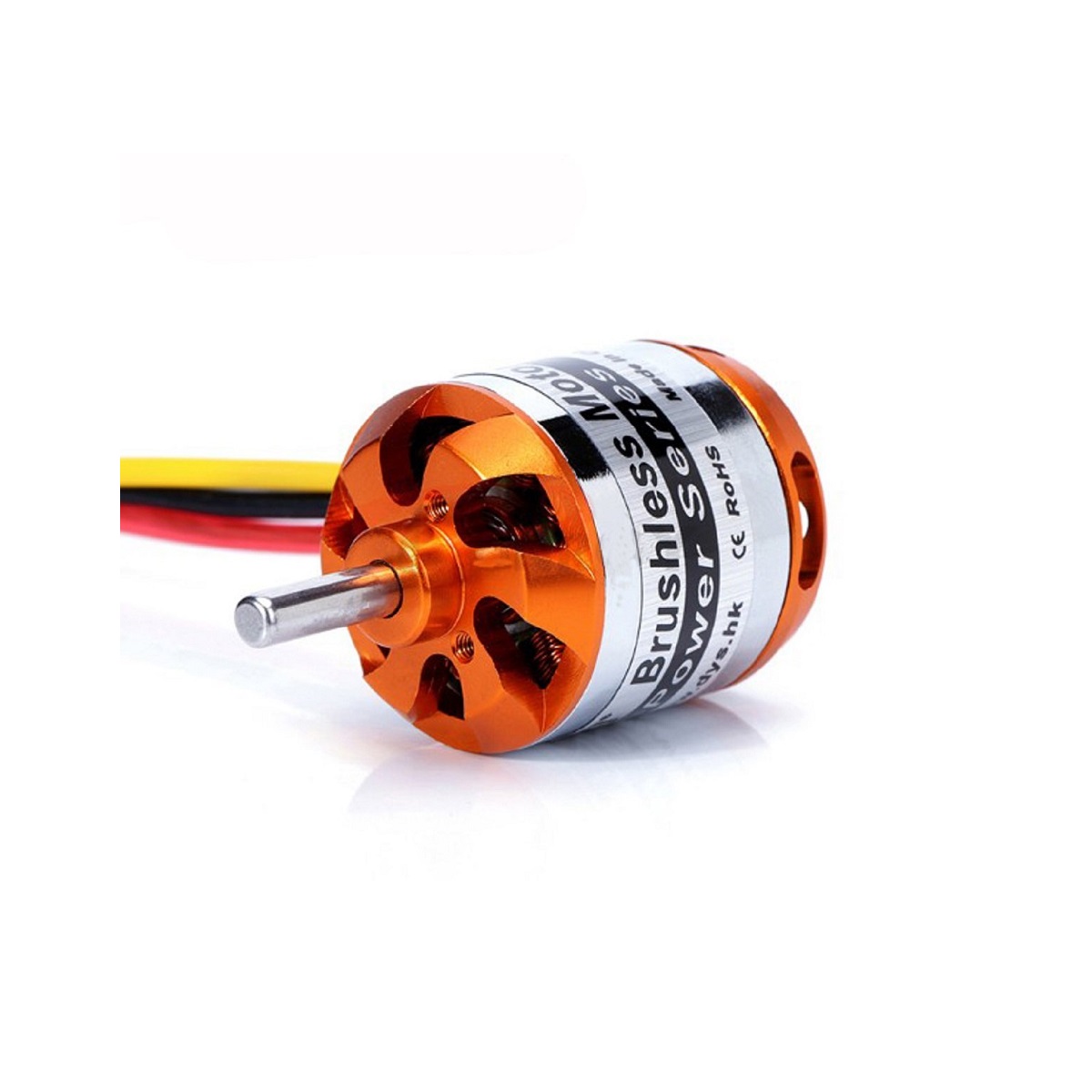

DYS D2836-7 1120KV Outrunner Brushless Drone Motor - Image 3
SKU: DRFC-2909
📋 GST Invoice Available

DYS D2836-7 1120KV Outrunner Brushless Drone Motor

₹1,799.00 (Inclusive of all taxes)
Out of Stock

The DYS D2836-7 is a 1120KV outrunner brushless motor designed for medium-sized multirotor and fixed-wing UAV applications, compatible with 2S to 4S LiPo batteries and requiring a 40A ESC. Its robust steel construction and efficient design deliver up to 336W of power for reliable, long-range flight performance.

Features

  • 1120KV rating optimized for 2S to 4S LiPo battery systems
  • Robust steel outrunner construction for durability and heat dissipation
  • Delivers up to 336W maximum power with a 40A ESC requirement
  • Features a 4mm diameter shaft with 13mm length for secure propeller mounting
  • Includes pre-soldered bullet connectors for simplified installation

Out of stock

Description

The DYS D2836-7 brushless motor employs an outrunner design, where the outer bell rotates around a fixed stator, providing high torque and efficient cooling for sustained operation. This architecture is ideal for applications requiring smooth throttle response and reliable power delivery across a wide voltage range.

Engineered with a steel housing and precision-balanced components, the motor minimizes vibration and maximizes lifespan under competitive flight conditions. Its 70g weight and compact form factor make it suitable for integration into a variety of medium-sized quadcopter and hexacopter frames where a balance of thrust and efficiency is critical.

Key Features

  • Outrunner design offers high torque and excellent thermal management for extended flight times.
  • Steel construction ensures structural integrity and resistance to impacts in demanding environments.
  • Precision-balanced rotor and bell reduce harmonic vibration, leading to smoother video footage and longer bearing life.
  • Optimized magnetic circuit and winding configuration provide brilliant efficiency and consistent power output.
  • Pre-soldered 3.5mm bullet connectors streamline the build process and ensure reliable electrical connections.
  • Compatible with standard M3 mounting hardware and includes a versatile X-type motor holder for flexible frame integration.

Applications

  • Medium-sized (450-550mm) FPV and aerial photography quadcopters requiring efficient 4S power.
  • Long-range and endurance UAV builds where a balance of thrust and low current draw is paramount.
  • Heavy-lift hexacopters and octocopters for payload carrying on 3S or 4S battery systems.
  • Fixed-wing RC airplanes and UAVs needing reliable, high-torque propulsion.
  • DIY multirotor projects and educational platforms where robust, connector-ready motors are preferred.

Technical Specifications

ModelD2836-7
Motor TypeOutrunner Brushless
KV Rating1120 rpm/V
Voltage Range2S to 4S LiPo
Max Power336W
Max Current40A ESC Recommended
Shaft Diameter4mm
Shaft Length13mm
Mounting Screw SizeM3
Weight70g

Frequently Asked Questions

What is the recommended ESC for the DYS D2836-7 motor?

A minimum 40A electronic speed controller (ESC) is recommended to handle the motor's maximum power draw of 336W. For optimal performance and headroom, especially on 4S LiPo batteries, using a 45A or 50A ESC is advised. Ensure the ESC firmware (e.g., BLHeli_S, BLHeli_32) supports the motor's KV and pole count for smooth operation.

What propeller size is suitable for this 1120KV motor?

For 3S and 4S LiPo applications, common propeller pairings range from 9x4.5 to 11x4.7 inches for multirotors. The optimal size depends on your desired thrust-to-weight ratio and flight style; larger, higher-pitch props will draw more current. Always use a watt meter or monitor ESC temperature during initial tests to ensure you stay within the motor's 336W and recommended 40A limits.

Does this motor come with connectors installed?

Yes, the DYS D2836-7 motor includes pre-soldered 3.5mm bullet connectors on its three motor leads. This allows for direct plug-and-play connection with compatible ESCs that have matching female bullet connectors, simplifying the wiring process and ensuring a secure, low-resistance electrical interface.

What is the mounting pattern for the DYS D2836-7?

The motor features a standard 16x19mm or 19x16mm mounting hole pattern, compatible with many medium-sized multirotor frames. It uses M3 screws for mounting, which are included in the package along with an X-type motor holder for additional flexibility in frame integration and vibration damping.

Package Includes

  • 1 x DYS D2836-7 1120KV Brushless Motor
  • 1 x Propeller Adapter
  • 1 x X-type Motor Holder
  • 1 x Set of Mounting Screws
  • 1 x User Manual

Additional Information

Weight 0.089 kg
Dimensions 10 × 6 × 5 cm
