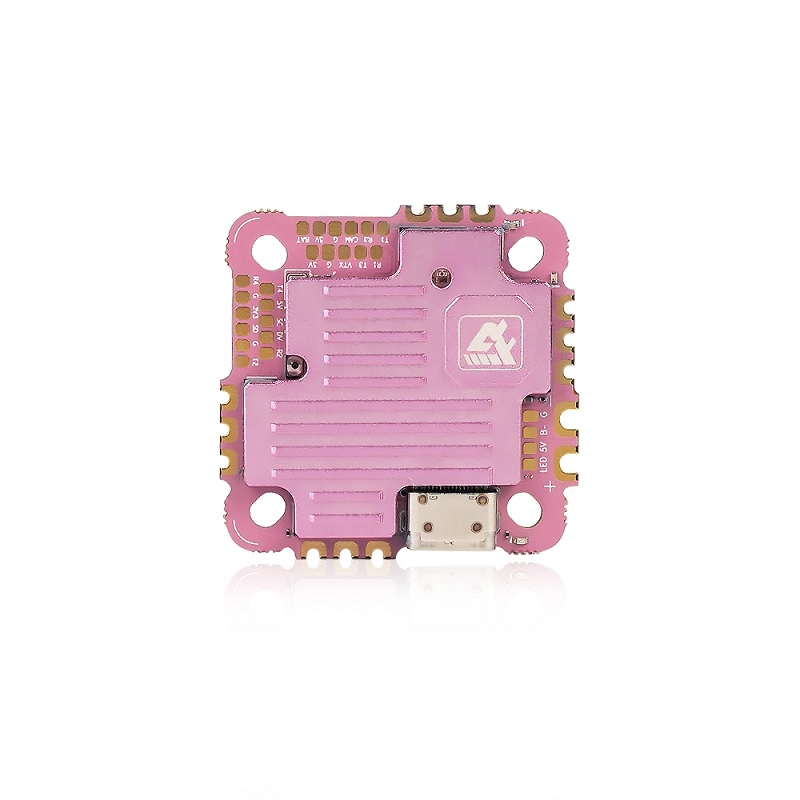

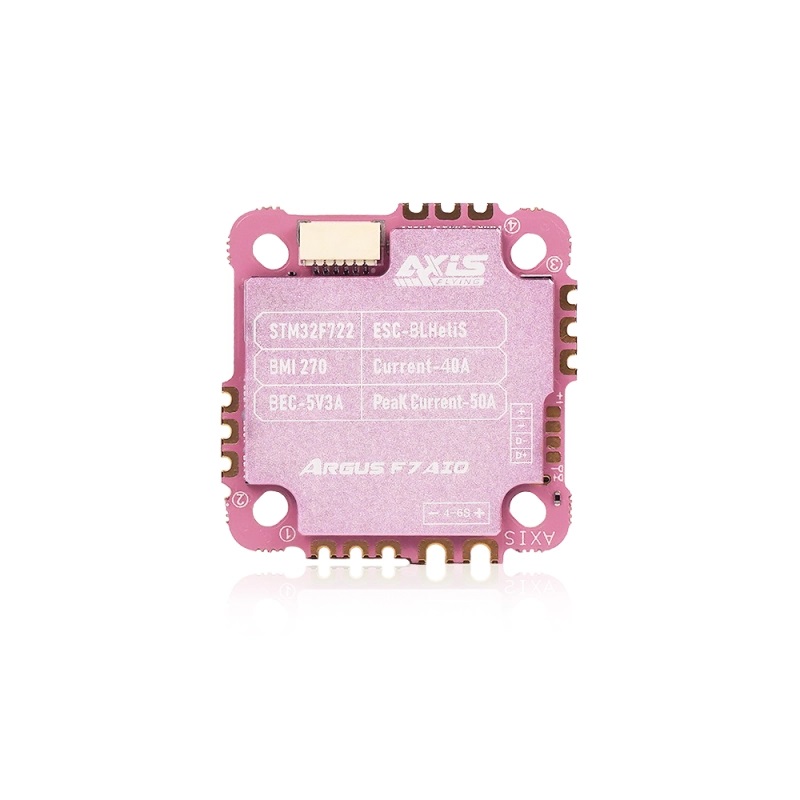

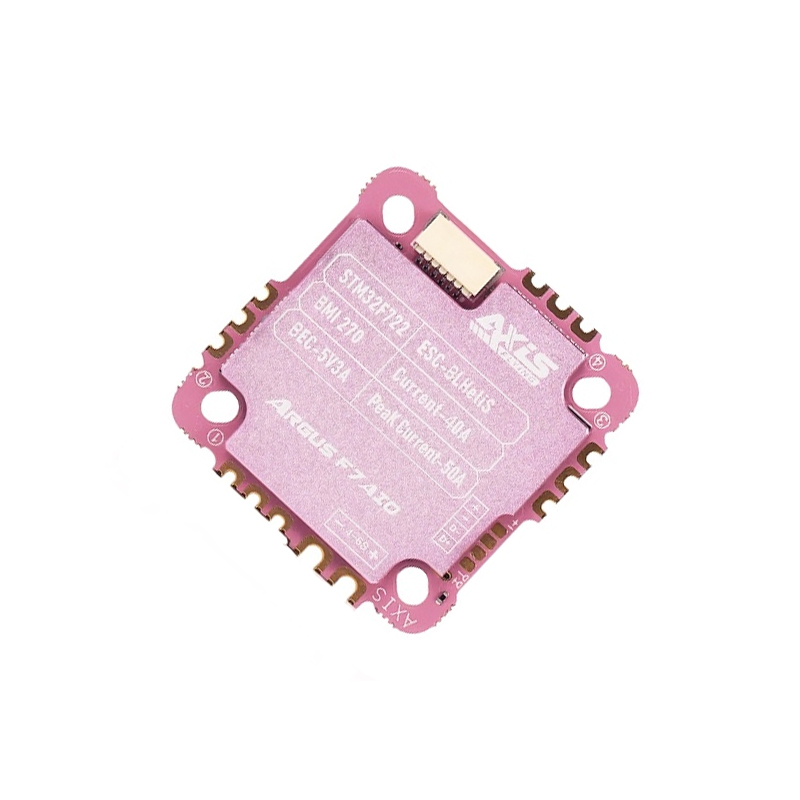

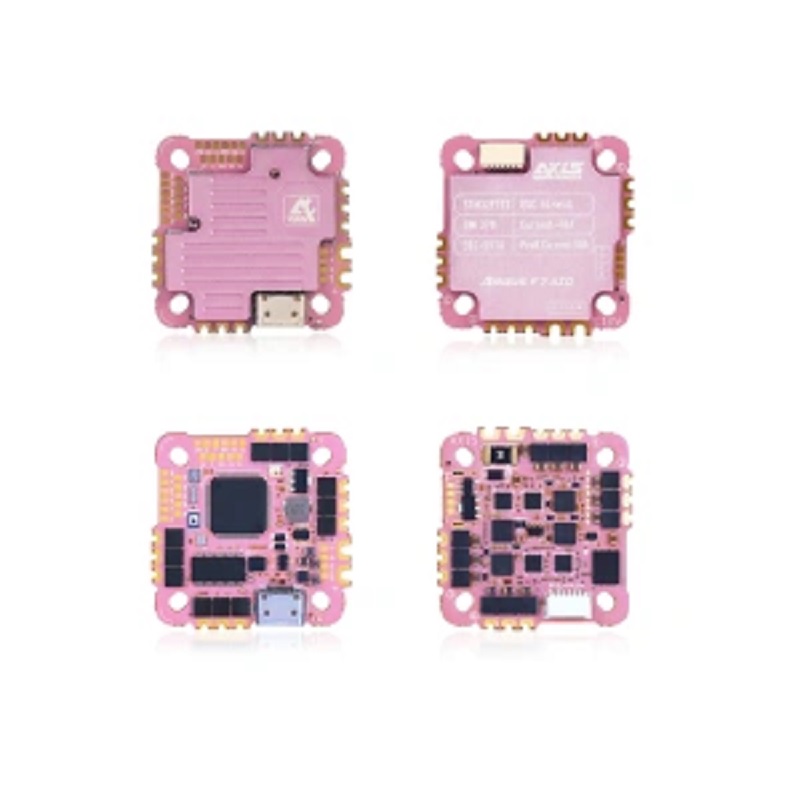

AxisFlying Argus F7 AIO F722 40A without Aluminum Shell for Cinewhoops
The AxisFlying Argus F7 AIO F722 40A is an All-in-One flight controller and ESC stack engineered for Cinewhoop drones, featuring an STM32F722 processor, BLHeli_32 40A ESCs, and 3-6S LiPo support for stable, cinematic flight performance.
Features
- STM32F722 F7 flight controller for high-speed, smooth flight control.
- Integrated BLHeli_32 40A continuous (45A peak) 4-in-1 ESCs.
- Supports 3-6S LiPo input voltage (11.1V to 25.2V).
- Integrated OSD for real-time telemetry display (voltage, RSSI).
- Compact, lightweight design (~30g) optimized for Cinewhoop builds.
Out of stock
The Argus F7 AIO integrates a high-performance STM32F722 flight controller with a 40A BLHeli_32 4-in-1 ESC on a single board, designed specifically for Cinewhoop platforms. The F7 processor provides ample processing headroom for complex flight algorithms, while the BLHeli_32 ESCs deliver precise, responsive motor control with DShot1200 support.
Its electrical design includes robust overcurrent, overvoltage, and low-voltage protections, ensuring safe operation with 3-6S LiPo batteries. The board features four UARTs for peripheral expansion, a 6-axis IMU for stability, and an integrated OSD for in-goggle telemetry, making it a complete solution for streamlined, high-performance Cinewhoop builds.
Additional Information
| Weight | 0.049 kg |
|---|---|
| Dimensions | 8 × 8 × 3 cm |
