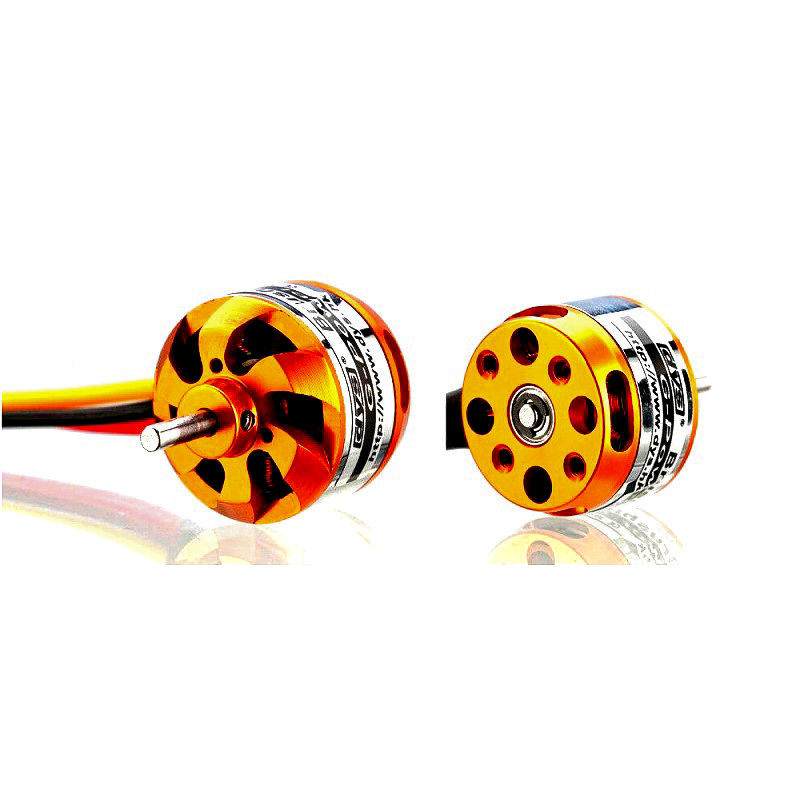

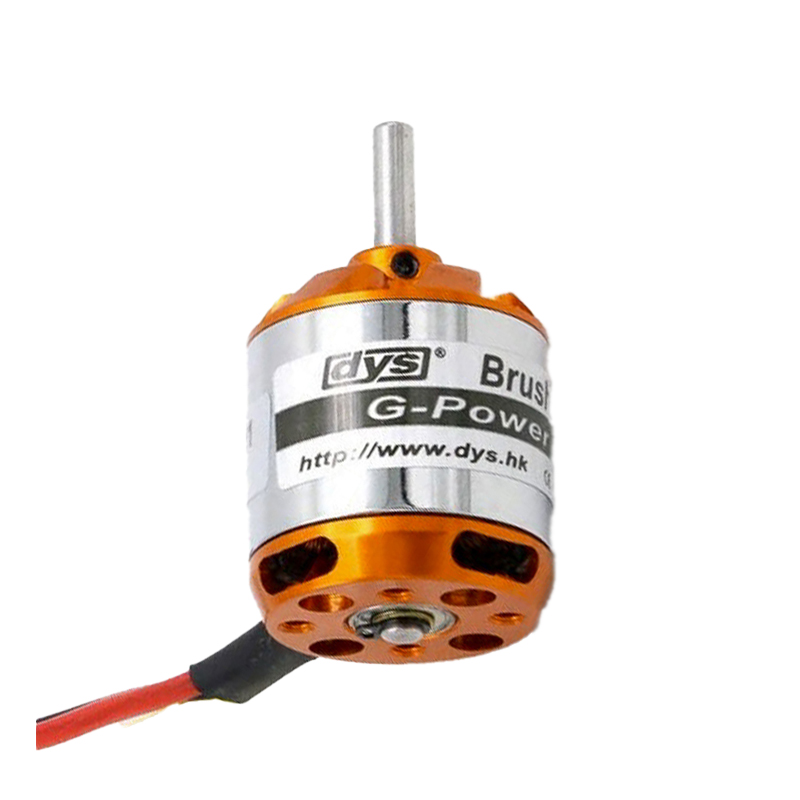

DYS D2822 1450KV Outrunner Brushless Drone Motor (Original)
DYS D2822 1450KV Outrunner Brushless Drone Motor (Original) - Image 2
DYS D2822 1450KV Outrunner Brushless Drone Motor (Original) - Image 3
DYS D2822 1450KV Outrunner Brushless Drone Motor (Original) - Image 4
DYS D2822 1450KV Outrunner Brushless Drone Motor (Original) - Image 5
DYS D2822 1450KV Outrunner Brushless Drone Motor (Original) - Image 6
SKU: DRFC-2922
📋 GST Invoice Available

DYS D2822 1450KV Outrunner Brushless Drone Motor (Original)

₹1,309.00 (Inclusive of all taxes)
Out of Stock

The DYS D2822 is a 1450KV outrunner brushless motor designed for 2S-3S LiPo multirotor applications, delivering up to 160W of power with a 3mm shaft and pre-soldered bullet connectors for simplified ESC integration.

Features

  • 1450KV outrunner design optimized for 2S-3S LiPo battery systems
  • Delivers up to 160W maximum power with a 30A ESC requirement
  • Features a 3mm (3.17mm) diameter shaft with 10mm length
  • Includes pre-soldered 3mm bullet connectors for plug-and-play ESC connection
  • Compact 28mm stator diameter with a total weight of 42 grams

Out of stock

Description

The DYS D2822 1450KV brushless motor is engineered for reliable performance in multirotor and fixed-wing UAV platforms. Its outrunner configuration provides high torque and smooth operation, suitable for a range of propeller sizes from 8 to 10 inches. The motor’s robust steel construction ensures durability under competitive flight conditions while maintaining a lightweight profile for efficient power-to-weight ratios.

Electrical integration is streamlined with factory-soldered 3mm bullet connectors, allowing direct connection to compatible 30A ESCs without additional soldering. This motor is a core component for builders seeking a balanced combination of thrust, efficiency, and ease of installation for intermediate-scale drone projects.

Key Features

  • 1450KV winding optimized for efficient 2S-3S LiPo voltage ranges
  • Robust outrunner construction with a durable steel housing for impact resistance
  • Pre-installed 3mm bullet connectors eliminate soldering for quick ESC hookup
  • Lightweight 42-gram design contributes to an optimized overall system weight
  • 3mm shaft diameter with integrated prop adapter for secure propeller mounting
  • Designed for smooth throttle response and stable flight characteristics
  • Compact 28mm stator fits a wide variety of multirotor and airplane frames

Applications

  • Medium-scale quadcopter and hexacopter builds for aerial photography
  • FPV racing drones requiring a balance of efficiency and thrust on 3S power
  • RC airplane propulsion systems for trainers and sport models
  • Heavy-lift multirotor platforms utilizing 8-10 inch propellers
  • Educational and DIY UAV projects requiring reliable, connector-ready motors

Technical Specifications

ModelD2822/14
KV Rating1450 RPM/V
Motor TypeOutrunner Brushless
Operating Voltage7.2V - 11.1V (2S-3S LiPo)
Max Power160W
ESC Requirement30A
Shaft Diameter3mm (3.17mm)
Shaft Length10mm
Stator Width28mm
Weight42g
Compatible Prop Size8" - 10"
Mounting Screw SizeM3

Frequently Asked Questions

What is the compatible voltage range for the DYS D2822 motor?

The DYS D2822 1450KV motor is designed for 2S to 3S LiPo battery systems, with an operating voltage range of 7.2V to 11.1V. Exceeding 3S (12.6V) is not recommended as it may exceed the motor's 160W power rating and cause overheating or premature failure.

Does this motor require soldering to connect to an ESC?

No, soldering is not required for basic ESC connection. The motor comes from the factory with 3mm male bullet connectors pre-soldered. You simply need to connect these to the corresponding female bullet connectors on a compatible 30A ESC for a plug-and-play installation.

What size propeller is recommended for this 1450KV motor?

This motor is optimized for propeller sizes between 8 inches and 10 inches in diameter when used on 2S or 3S LiPo batteries. The exact pitch and material should be selected based on your aircraft's weight and desired flight performance (thrust vs. efficiency). Always bench-test new prop combinations while monitoring motor temperature.

What is the mounting pattern for the DYS D2822?

The motor includes an X-type mounting bracket (motor holder) and uses M3 screws for installation. The specific bolt hole circle diameter (BHD) is not provided, but the included bracket is designed to fit a standard range of multirotor and fixed-wing motor mounts. Refer to the included hardware and your frame's specifications for compatibility.

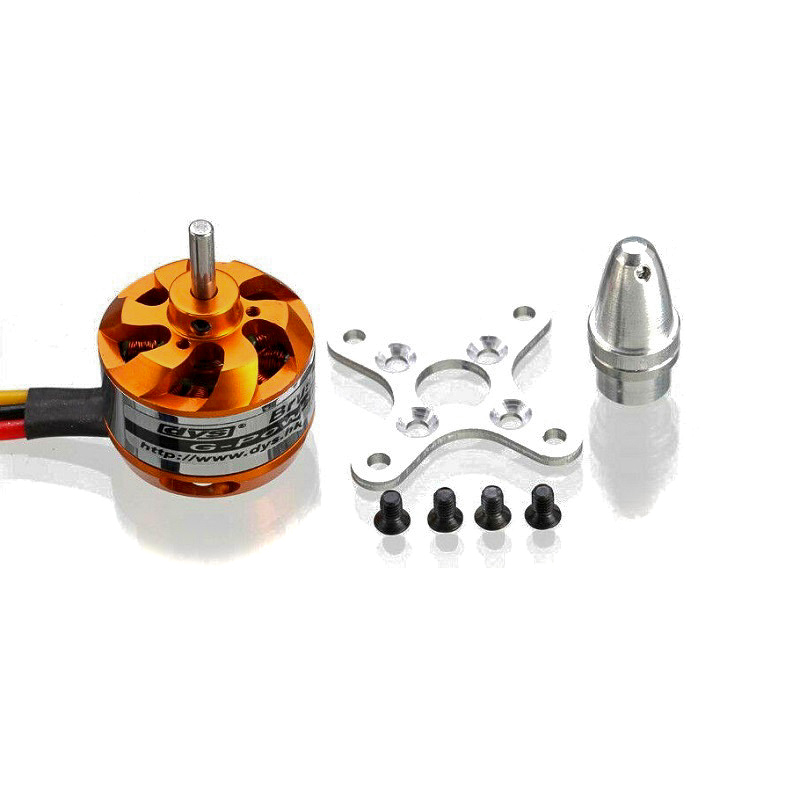

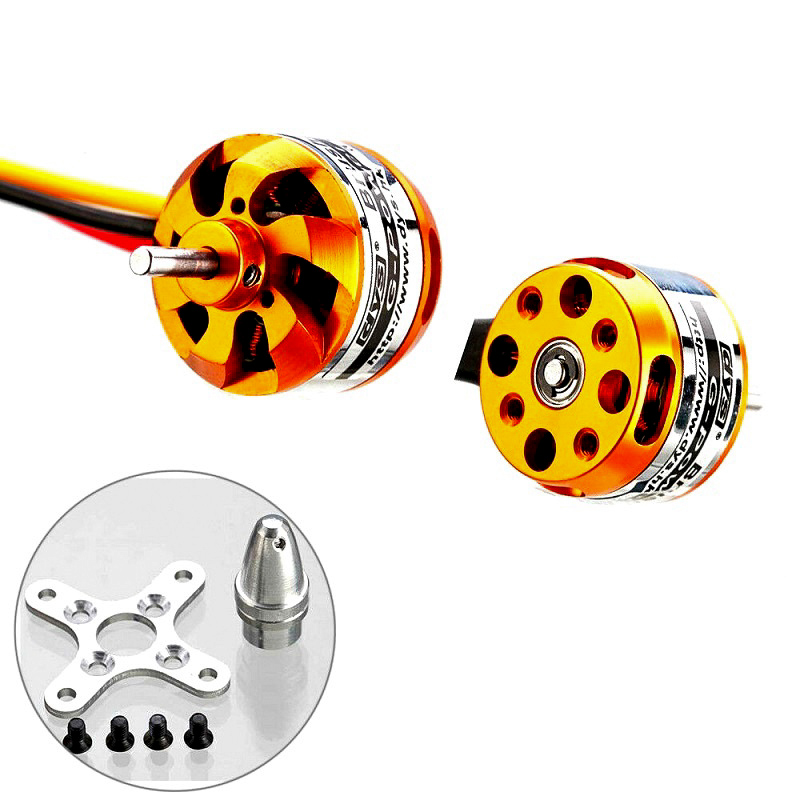

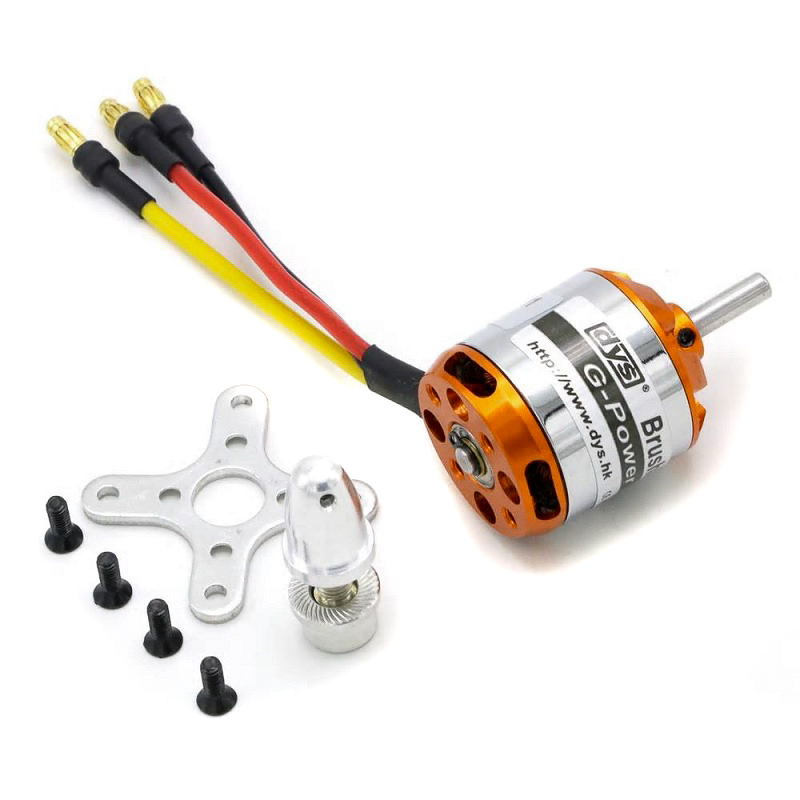

Package Includes

  • 1 x DYS D2822 1450KV Outrunner Brushless Motor
  • 1 x Propeller Adapter
  • 1 x X-Type Motor Holder (Mounting Bracket)
  • 1 x Set of Mounting Screws
  • 1 x User Manual

Additional Information

Weight 0.042 kg
Dimensions 2.8 cm

Related Products

Out of Stock

DYS SN30A 30A Mini Opto BLHeli ESC (2-6S)

1,564.00
Learn More
Out of Stock

DYS Samguk Series SHU D2306 2500Kv BLDC Motor

799.00
Learn More
Out of Stock

DYS F2204 2400KV Motor & BLHeli_30A ESC Power Combo

6,353.00
Learn More
Out of Stock

DYS SUNFUN D2207 2600KV BLDC Motor

1,269.00
Learn More
Out of Stock

DYS X2807 1500KV 3S-5S Brushless Motor for Mark4 FPV Freestyle 7inch Long Range

1,039.00
Learn More
Out of Stock

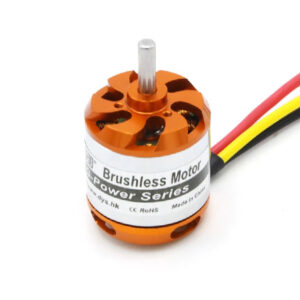

DYS D3542-5 1250KV BLDC Motor
