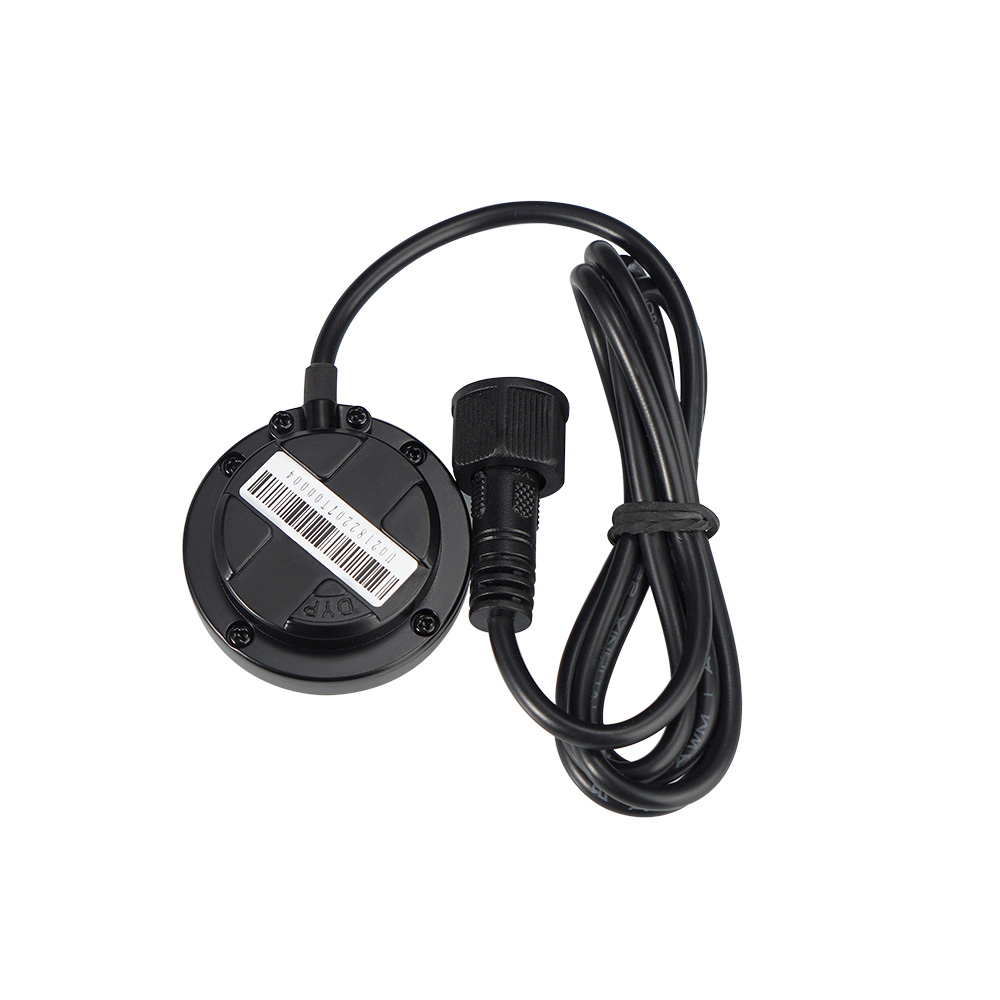

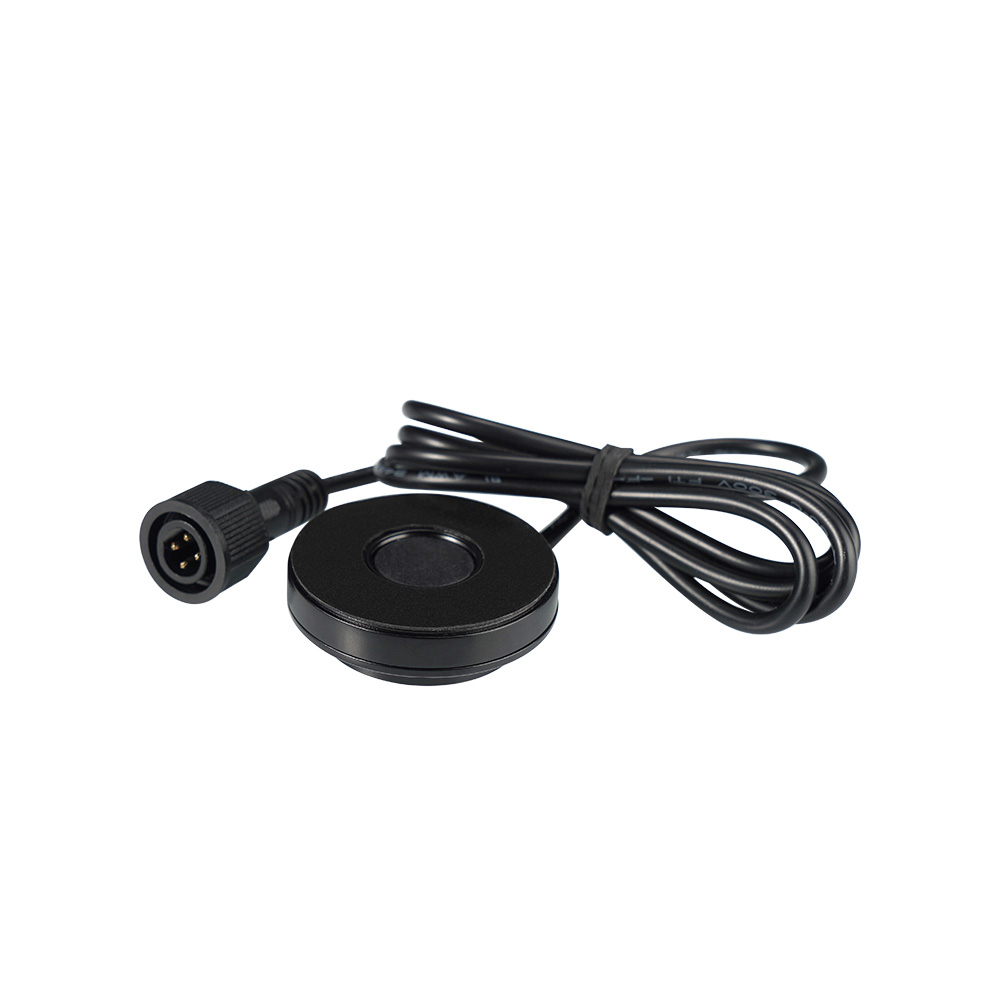

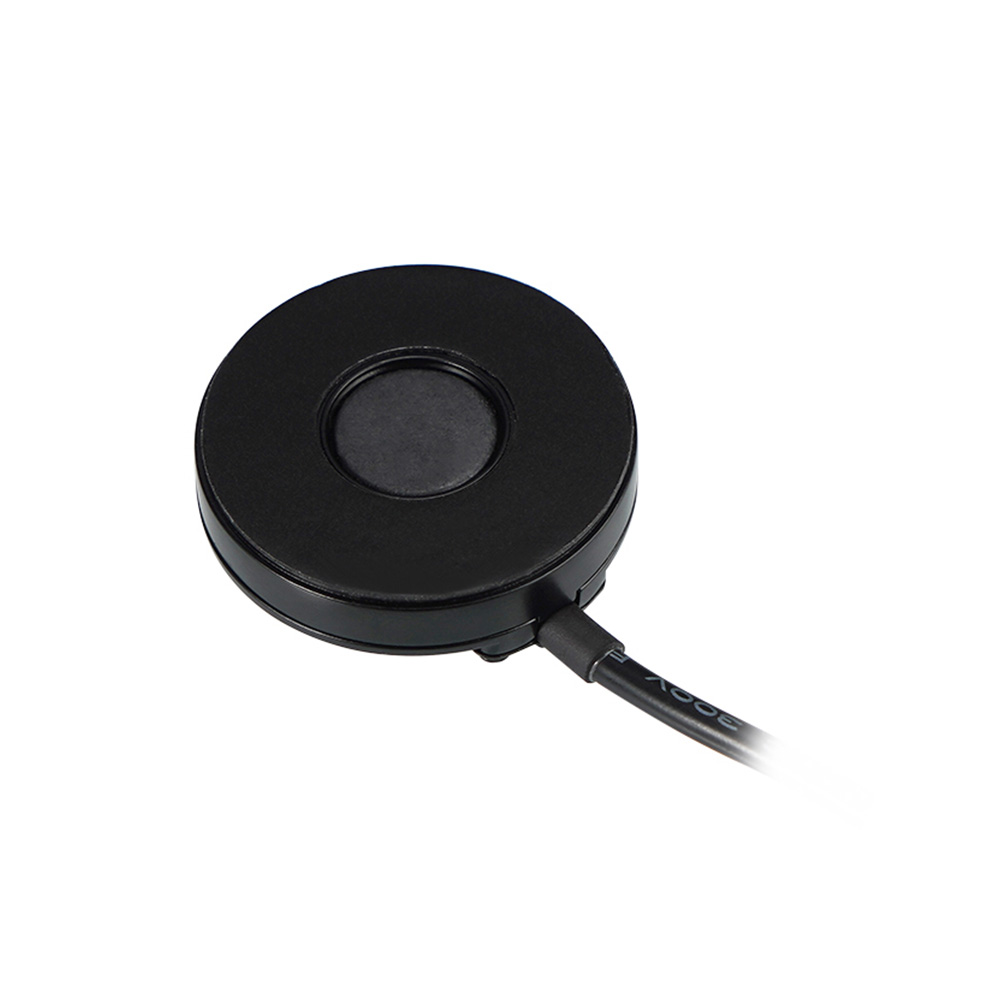

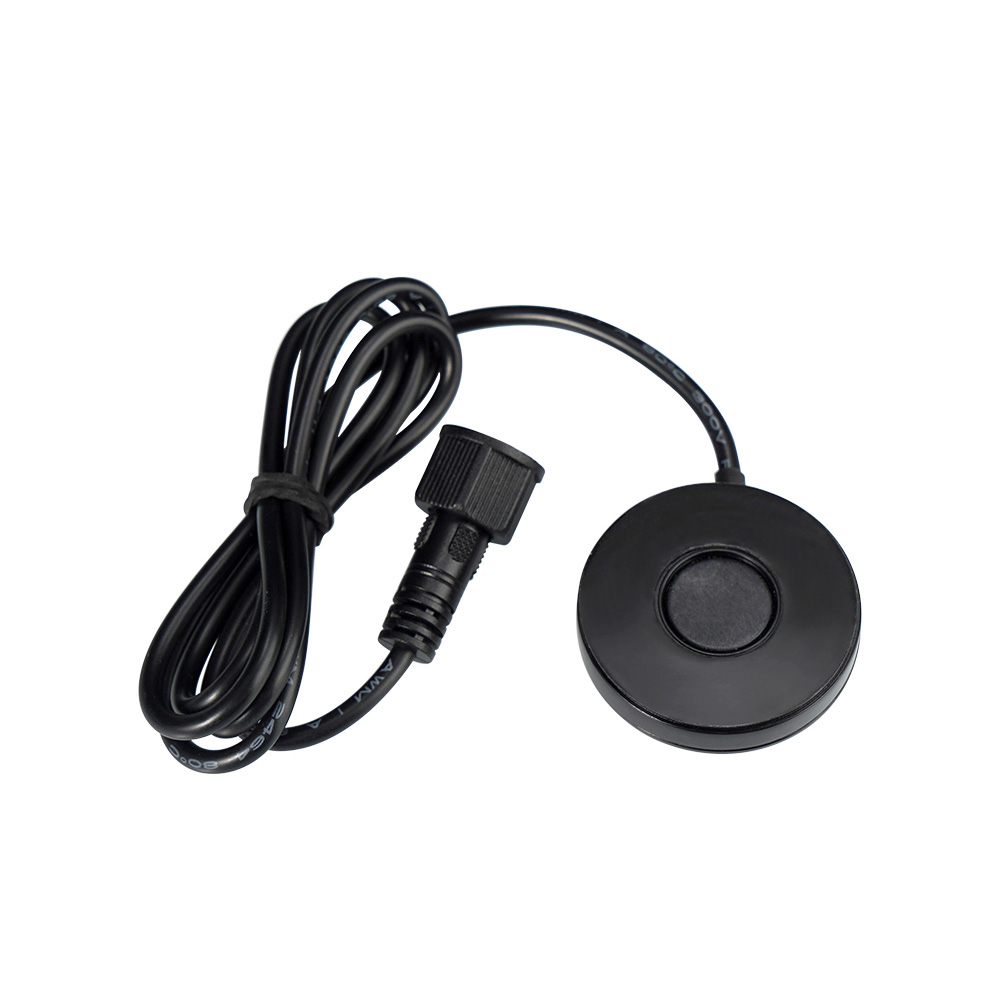

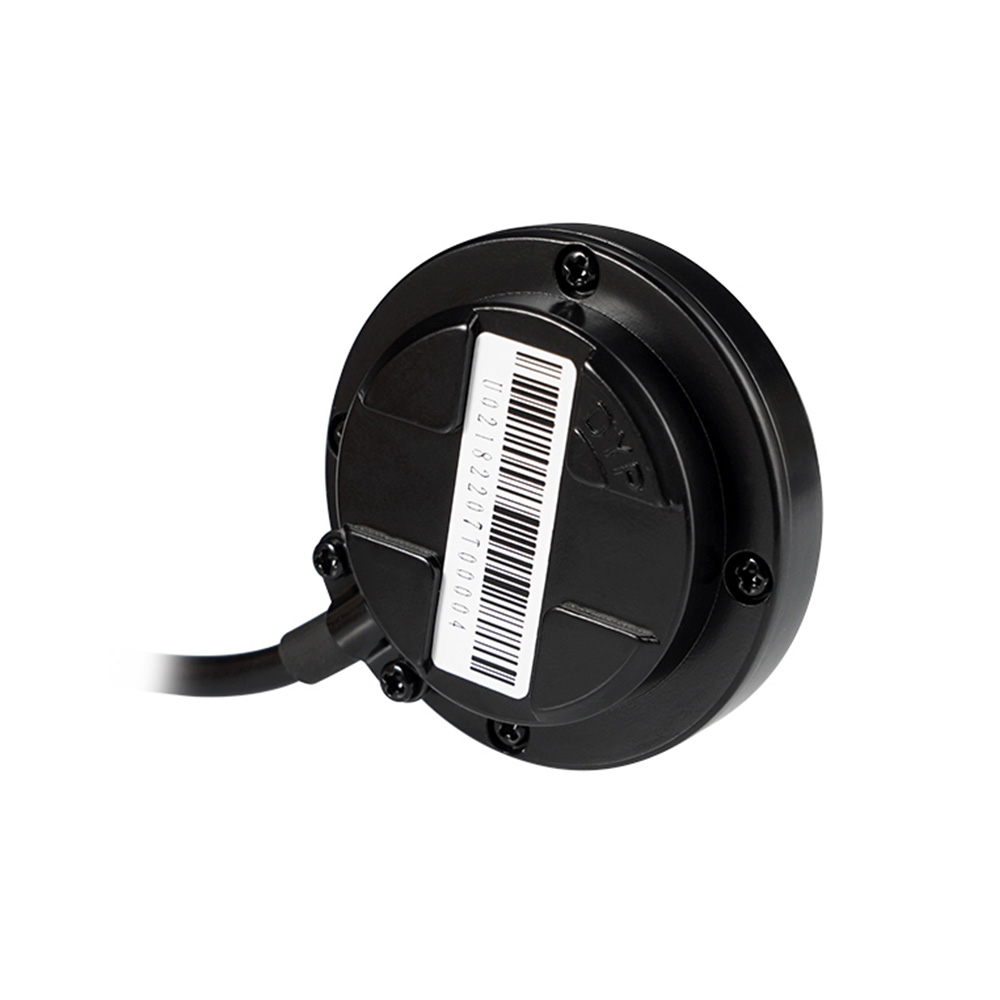

DYP-U022MVW-V1.1 TTL-UART Ultrasonic Fuel Level Sensor (Measuring Range 50~1000mm)
The DYP-U022MVW-V1.1 is a high-precision ultrasonic fuel level sensor designed for non-contact liquid measurement in vehicle and industrial tanks. It features a TTL-UART output interface for easy integration with microcontrollers, PLCs, and networked monitoring systems, operating from a wide 12-48V DC supply.
Features
- Non-contact ultrasonic measurement with 50-1000mm range and ≤5mm accuracy
- Wide operating voltage (12-48V DC) and ≤25mA average current for vehicle compatibility
- Multiple output interfaces: TTL-UART, RS232/RS485, and 0-5V analog
- Metal shell with internal potting and waterproof design for harsh environments
- High-frequency ultrasonic beam (2-4° angle) penetrates metal and plastic containers up to 5mm thick
Out of stock
The DYP-U022MVW-V1.1 ultrasonic sensor employs high-frequency sound waves to perform non-contact level measurement of fuels and other liquids. Its external mounting capability eliminates the need for tank modification or surface preparation, making installation straightforward and non-invasive. The sensor’s metal housing and internally potted electronics provide robust protection against moisture and vibration, ensuring reliable operation in mobile and industrial settings.
Equipped with a narrow 2-4° beam angle and high solid penetration, the sensor can accurately measure through container walls up to 5.0mm thick. An integrated anti-interference data processing model applies intelligent filtering and environmental compensation to deliver stable, millimeter-resolution output. This design is optimized for the dynamic conditions of vehicles, whether stationary or in motion, providing consistent data for fleet management and tank monitoring systems.
Additional Information
| Weight | 0.56 kg |
|---|---|
| Dimensions | 20 × 10 × 10 cm |
