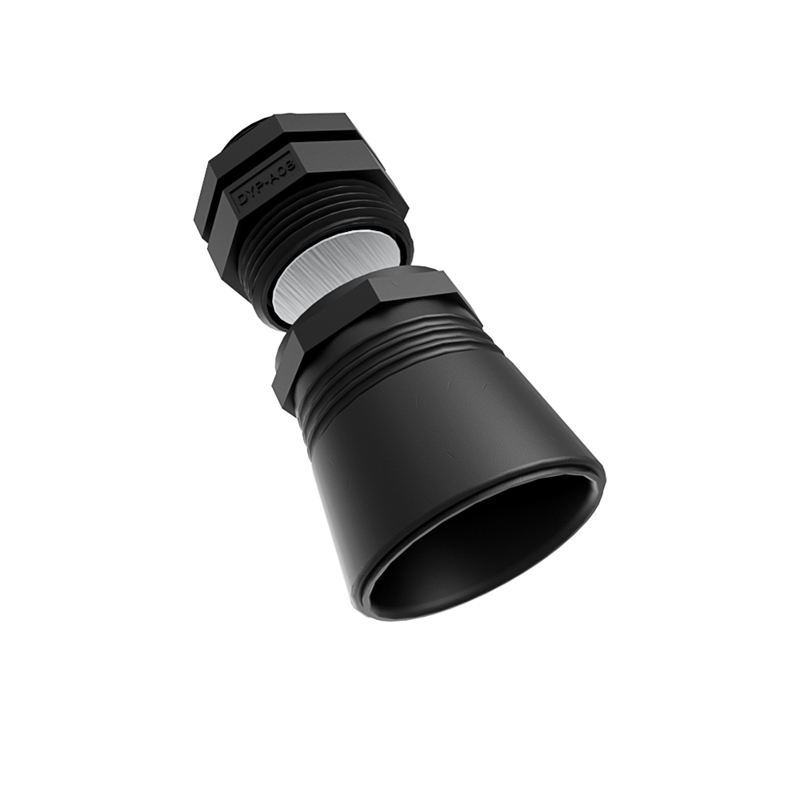

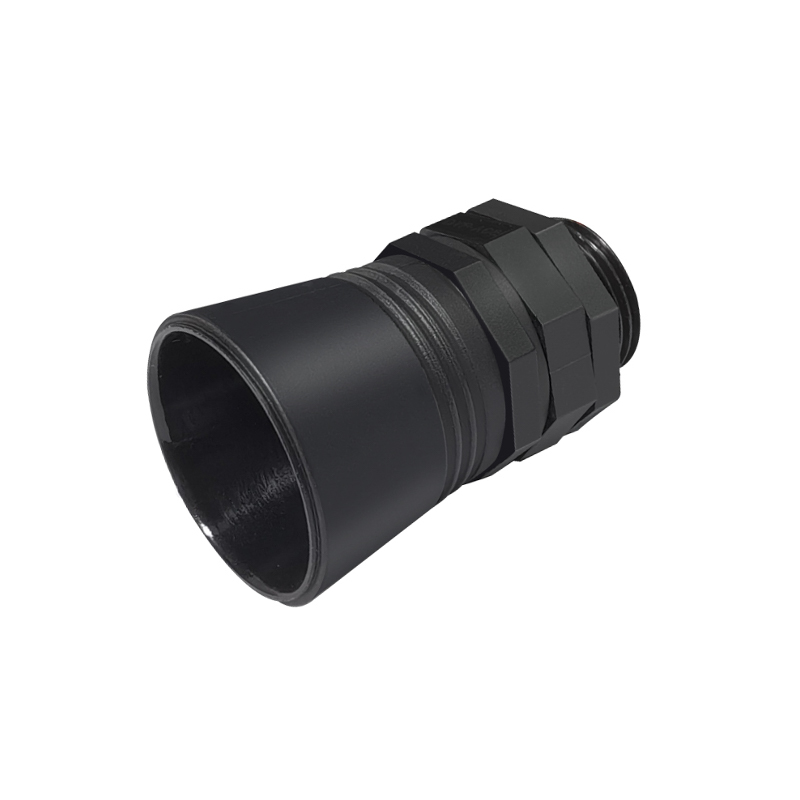

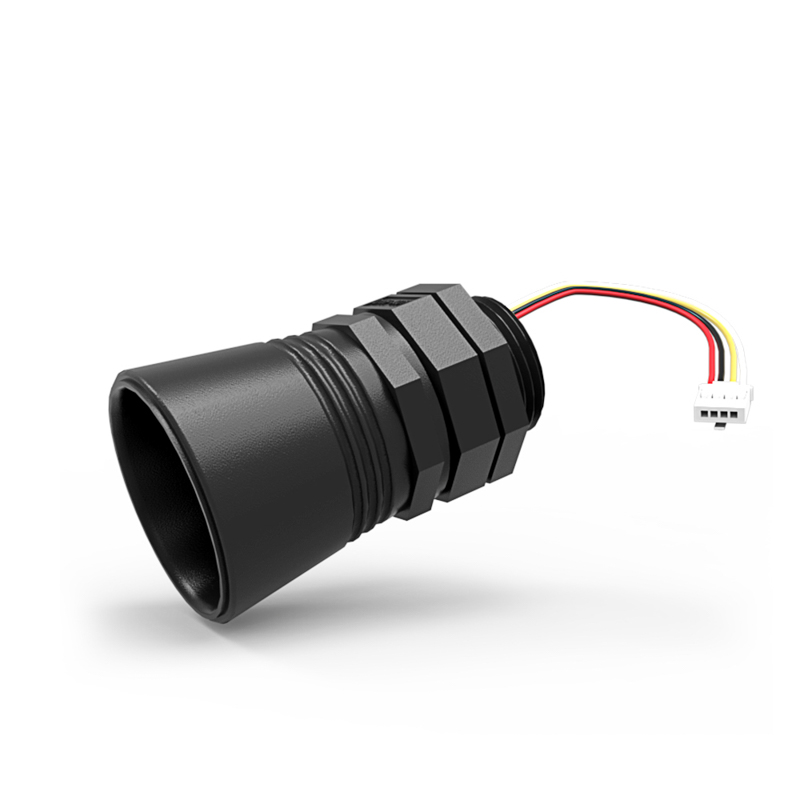

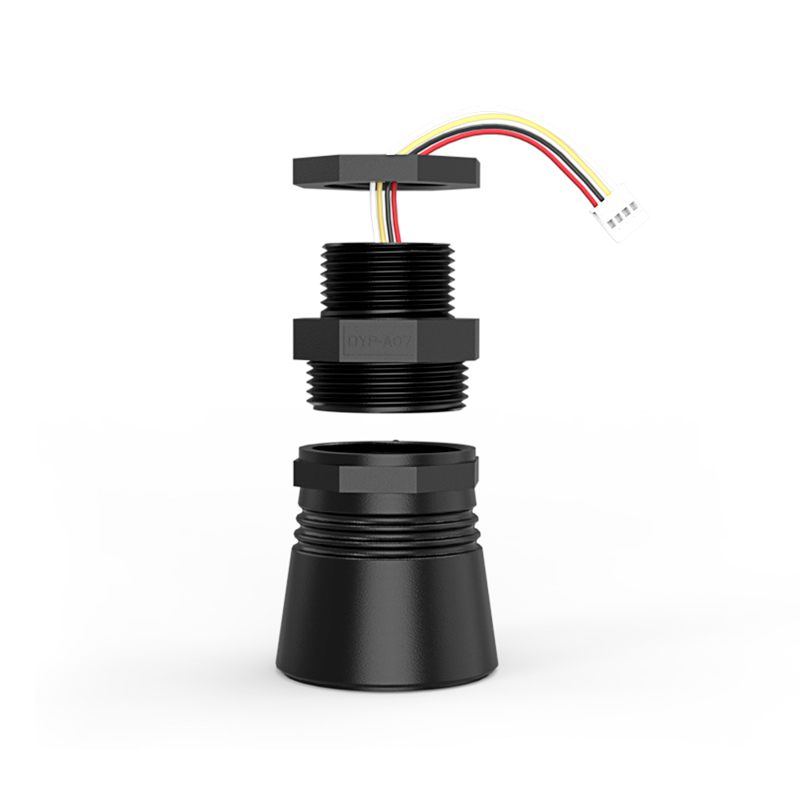

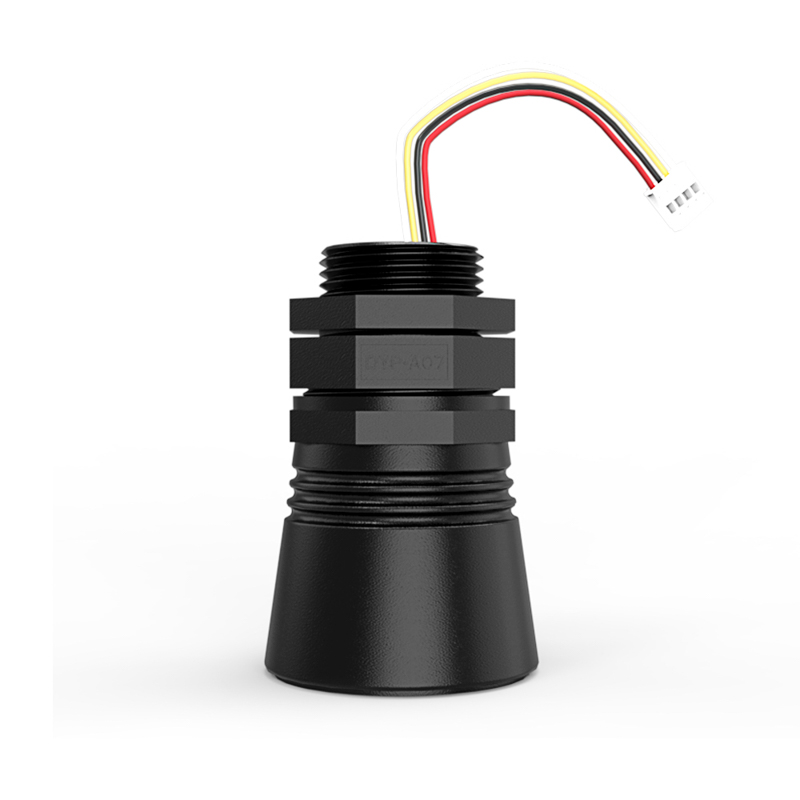

DYP DYP-A08CNYUB-V1.0 UART Ultrasonic Sensor Module - 25–200cm Range
The DYP-A08CNYUB-V1.0 is a UART-interface ultrasonic distance sensor module designed for reliable non-contact ranging from 25cm to 200cm. Operating on a 5-12V DC supply, it integrates a waterproof transducer and a high-precision processor, making it suitable for integration with microcontrollers like Arduino, Raspberry Pi, ESP32, and industrial PLCs.
Features
- UART serial communication interface for easy microcontroller integration.
- Waterproof ultrasonic transducer for reliable operation in damp or outdoor environments.
- Extended 25cm to 200cm (2m) measurement range with a narrow beam angle.
- Wide 5.0V to 12.5V DC operating voltage range for flexible power supply options.
- Built-in high-precision ranging algorithm for stable and accurate distance readings.
Out of stock
The DYP-A08CNYUB-V1.0 ultrasonic sensor module employs time-of-flight (ToF) measurement principles, emitting ultrasonic pulses and calculating distance based on the echo return time. Its integrated signal processing circuit features intelligent algorithms that minimize the measurement blind zone and ensure high accuracy across its specified range.
Designed for durability, the module incorporates a waterproof transducer and robust electronic components, supporting operation in a wide temperature range. The UART serial output provides a straightforward digital interface for data logging and system control, eliminating the need for complex analog signal conditioning.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 14 × 9 × 5 cm |
