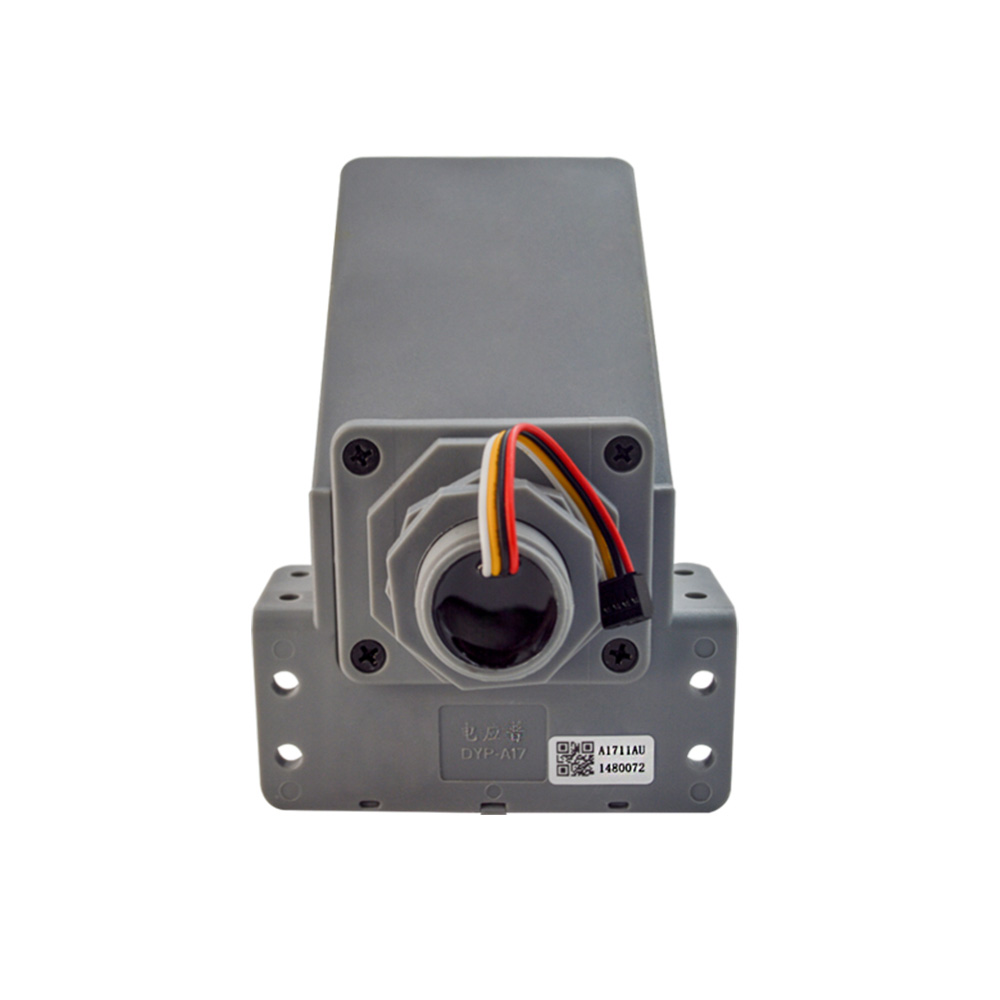

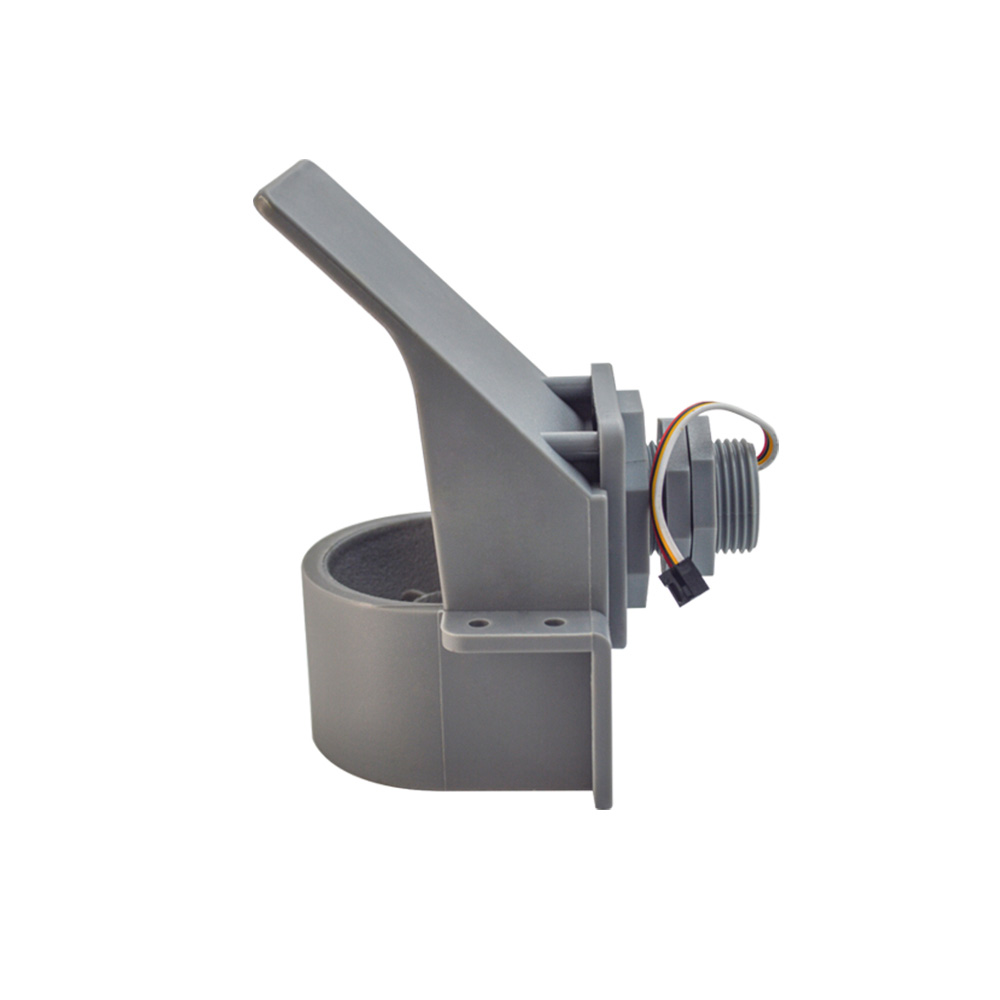

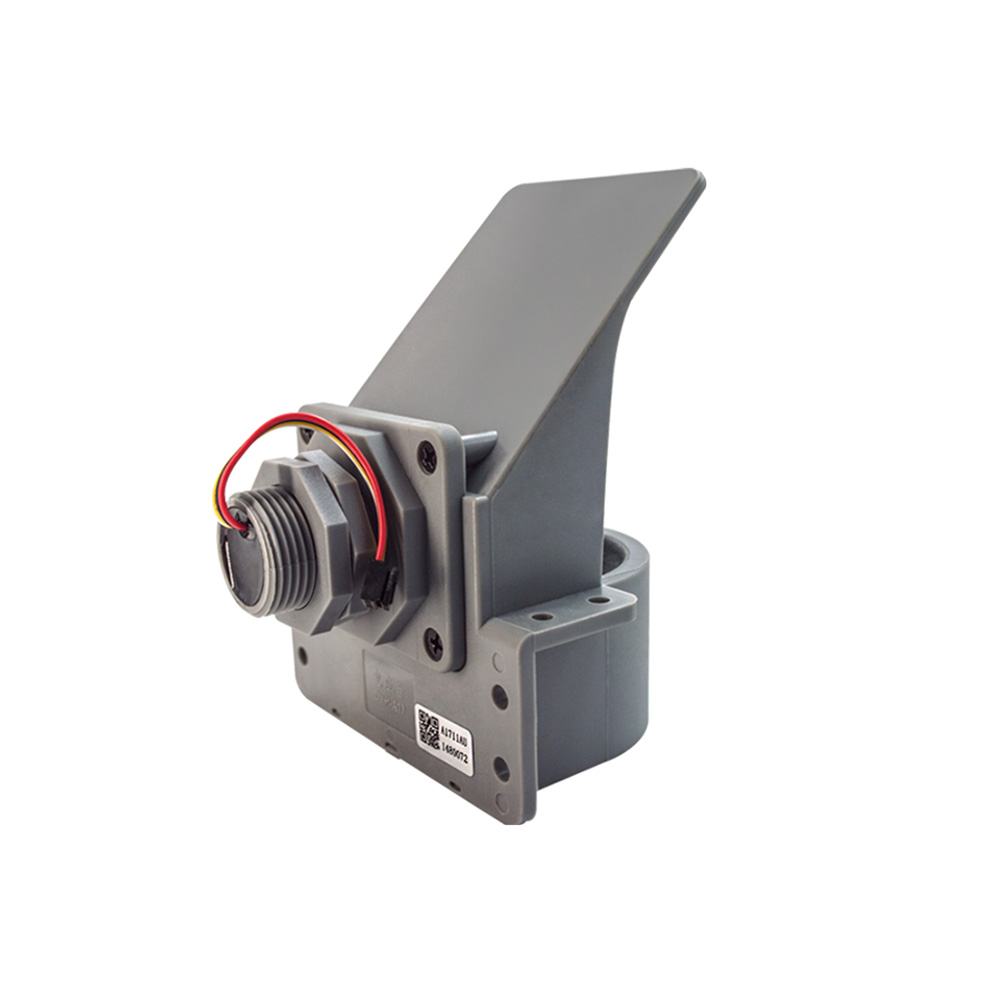

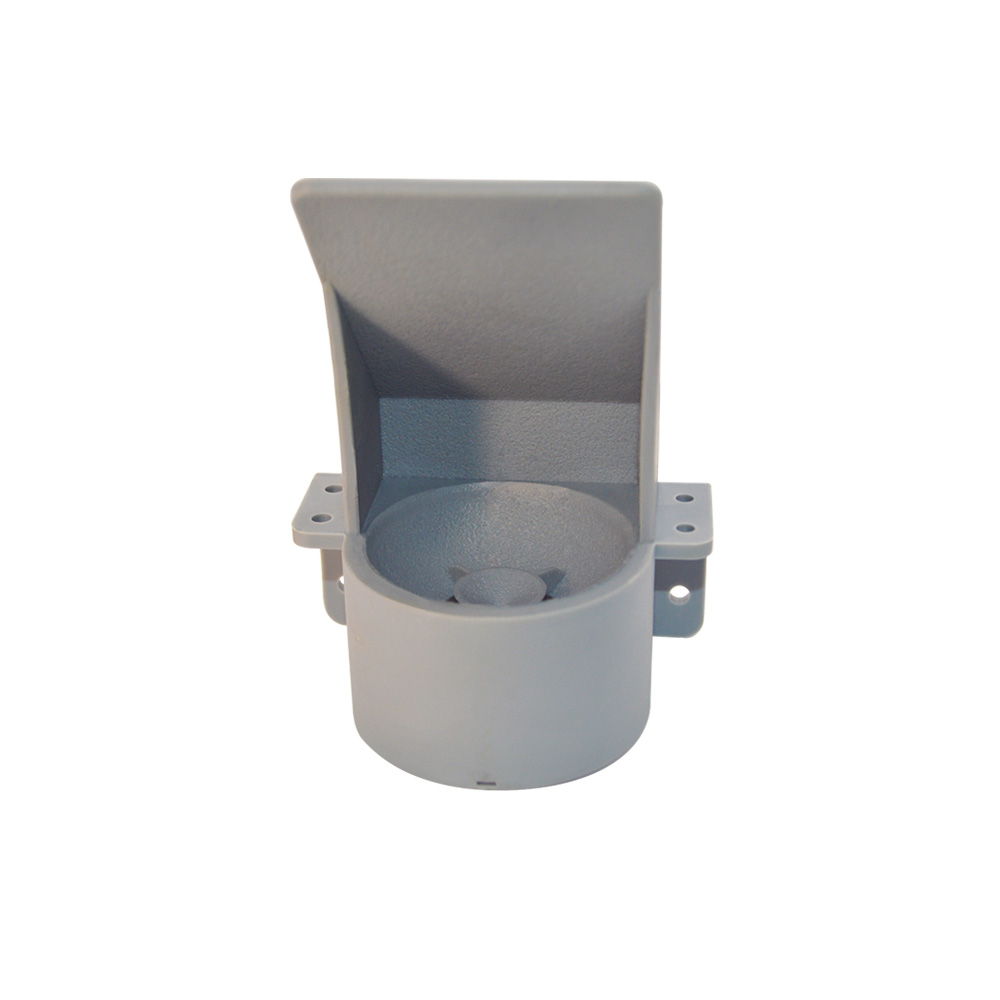

DYP-A17NYTW-V1.0 UART Ultrasonic Well Level Sensor (25-1000cm Range)
The DYP-A17NYTW-V1.0 is a UART-controlled ultrasonic well level sensor designed for reliable, long-range liquid level measurement. Operating from 3.3V to 5V DC, it integrates a high-precision algorithm and IP67-rated, anti-condensation probe for deployment in harsh industrial and environmental monitoring applications.
Features
- Extended ultrasonic measurement range from 25 cm to 1000 cm (10 meters).
- UART serial interface for direct communication with microcontrollers, PLCs, and data loggers.
- IP67 waterproof rating and anti-condensation probe design for harsh, humid environments.
- High precision with an accuracy of ±(1 + S×0.3%) cm and 1 cm resolution.
- Low power consumption with <10 µA static current and <15 mA operating current.
Out of stock
The DYP-A17NYTW-V1.0 ultrasonic sensor utilizes a reflective structure with a narrow 15° beam angle for precise, focused distance measurement. It is engineered for well, tank, and sump level monitoring, employing a high-performance processor and robust signal conditioning to deliver stable readings in variable conditions.
Its integrated high-precision algorithm compensates for environmental factors, while the IP67-rated housing and specialized anti-water probe technology prevent failure due to condensation or direct exposure. The module’s low-power design and UART protocol make it suitable for continuous, battery-backed remote monitoring systems.
Additional Information
| Weight | 0.217 kg |
|---|---|
| Dimensions | 17 × 10 × 13 cm |
