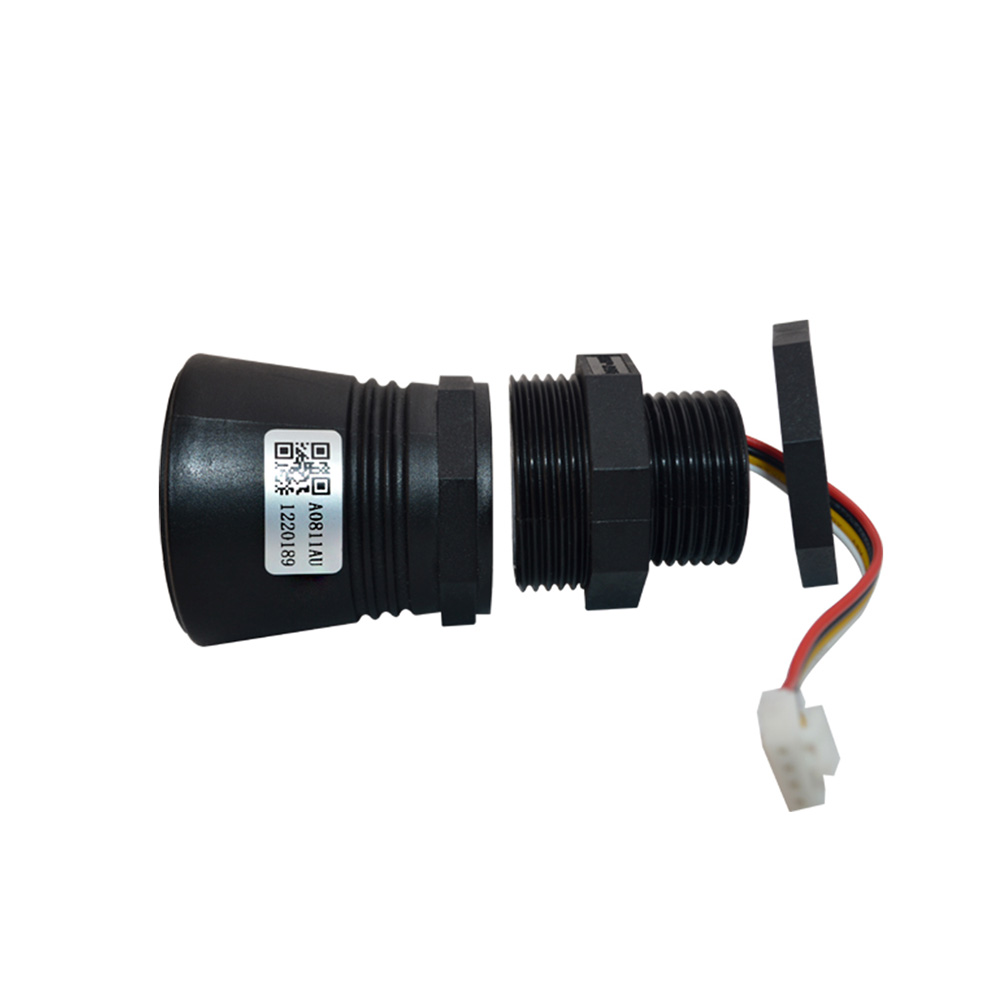

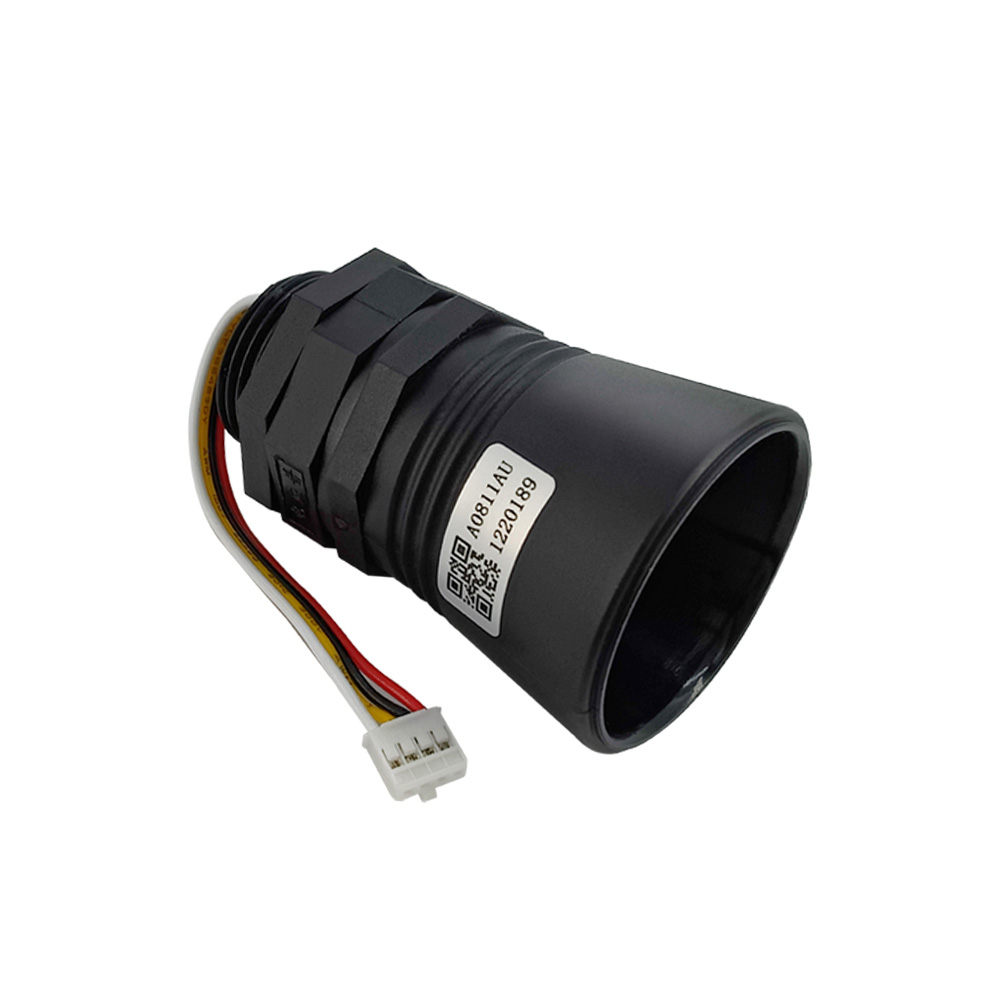

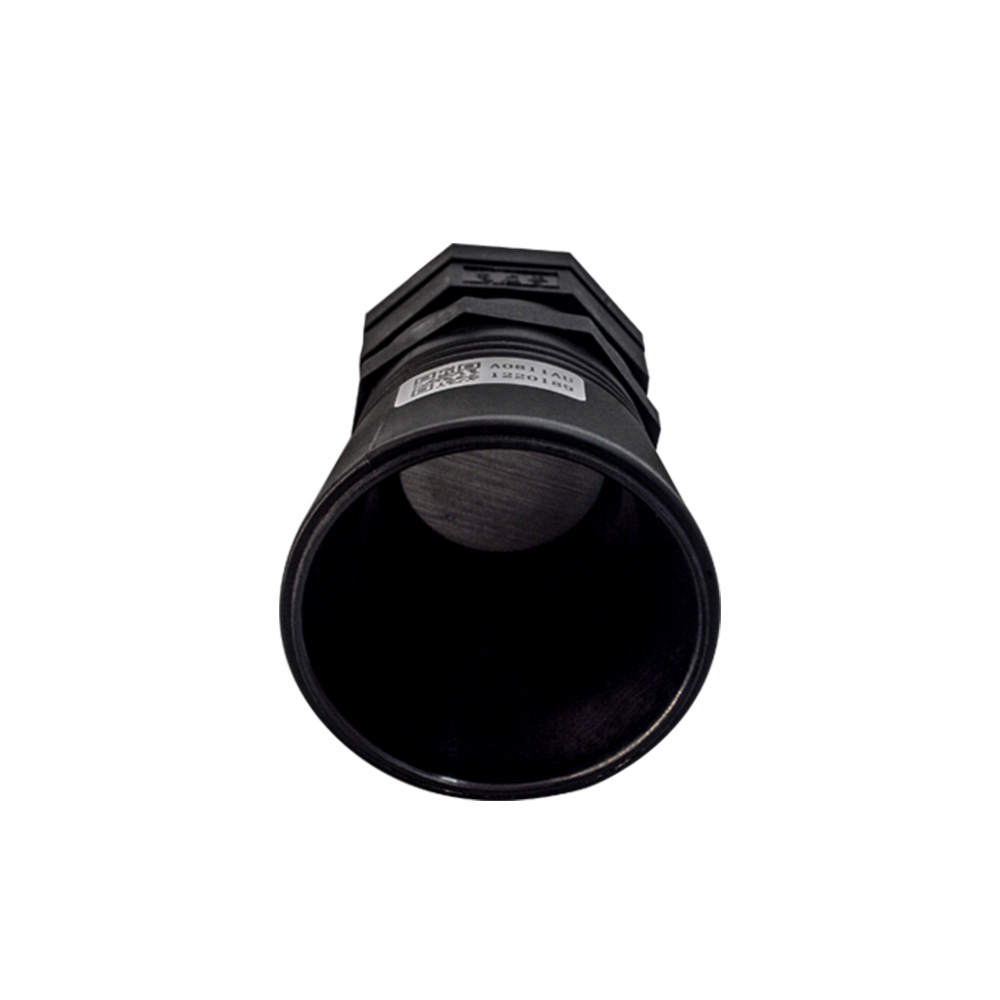

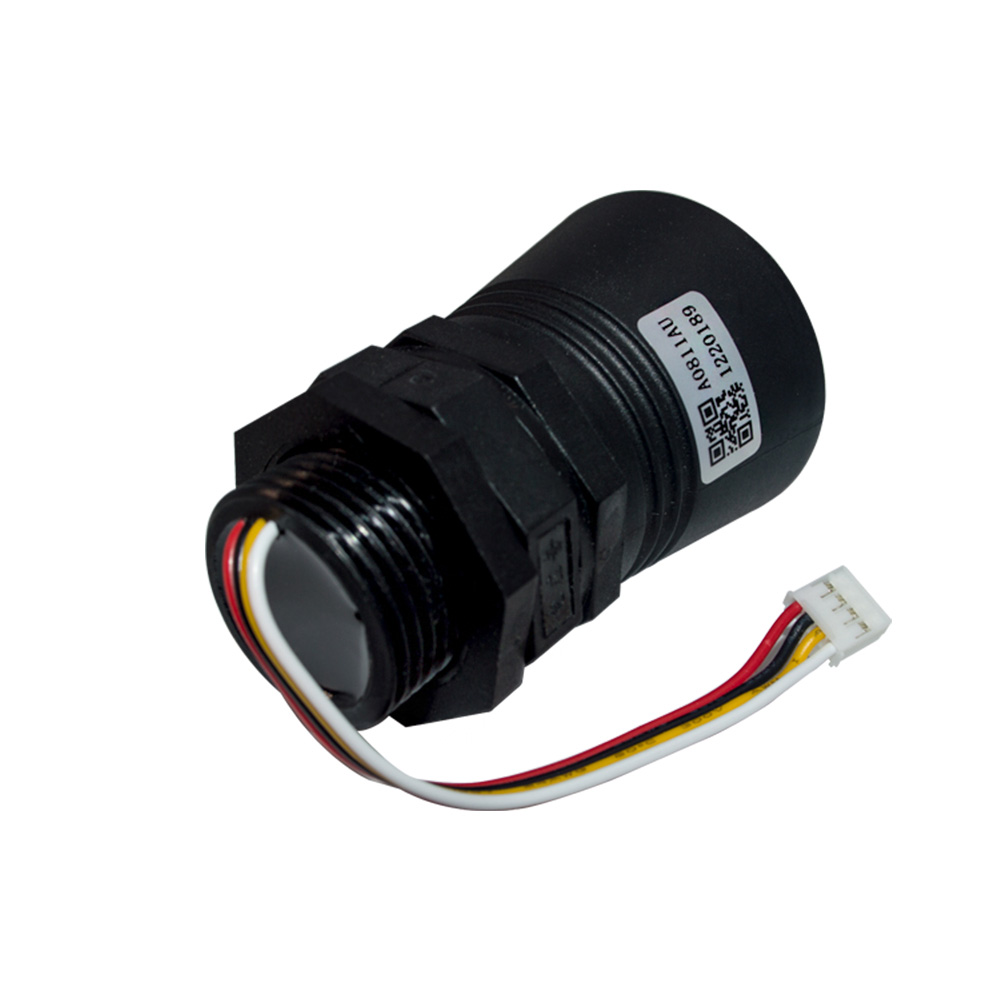

DYP A08BNYWB-V1.0 PWM Waterproof Ultrasonic Level Sensor (25~500cm Range)
The DYP-A08BNYWB-V1.0 is a waterproof ultrasonic level sensor module with a 25–500cm stable measurement range, compatible with 3.3V/5V microcontrollers like Arduino and Raspberry Pi. It offers multiple output modes including PWM, UART, and switch output for flexible integration into level monitoring and distance sensing systems.
Features
- Waterproof ultrasonic sensor with a stable measurement range of 25cm to 500cm.
- Multiple output modes: PWM value, UART automatic/controlled, and switch output.
- Low power consumption with <5µA static current and <15mA operating current.
- Wide 3.3V to 5.0V DC operating voltage for compatibility with common development boards.
- Integrated high-precision algorithm for stable readings with an accuracy of ±(1+S×0.3%).
Out of stock
The DYP A08B series ultrasonic sensor module utilizes time-of-flight (ToF) principles to accurately measure distance or liquid level. Its waterproof construction allows for reliable operation in humid or outdoor environments. The module features intelligent signal processing circuitry that minimizes the blind zone to ≤25cm and provides a narrow beam angle of ≈20° for focused detection.
Communication is highly flexible, supporting PWM for direct pulse-width reading and UART for serial data exchange with microcontrollers. The UART mode offers a choice between high-speed real-time data or algorithmically smoothed, stable output. This makes the module suitable for applications requiring either rapid response or filtered, consistent measurements in automated systems.
Additional Information
| Weight | 0.056 kg |
|---|---|
| Dimensions | 12 × 9 × 6 cm |
