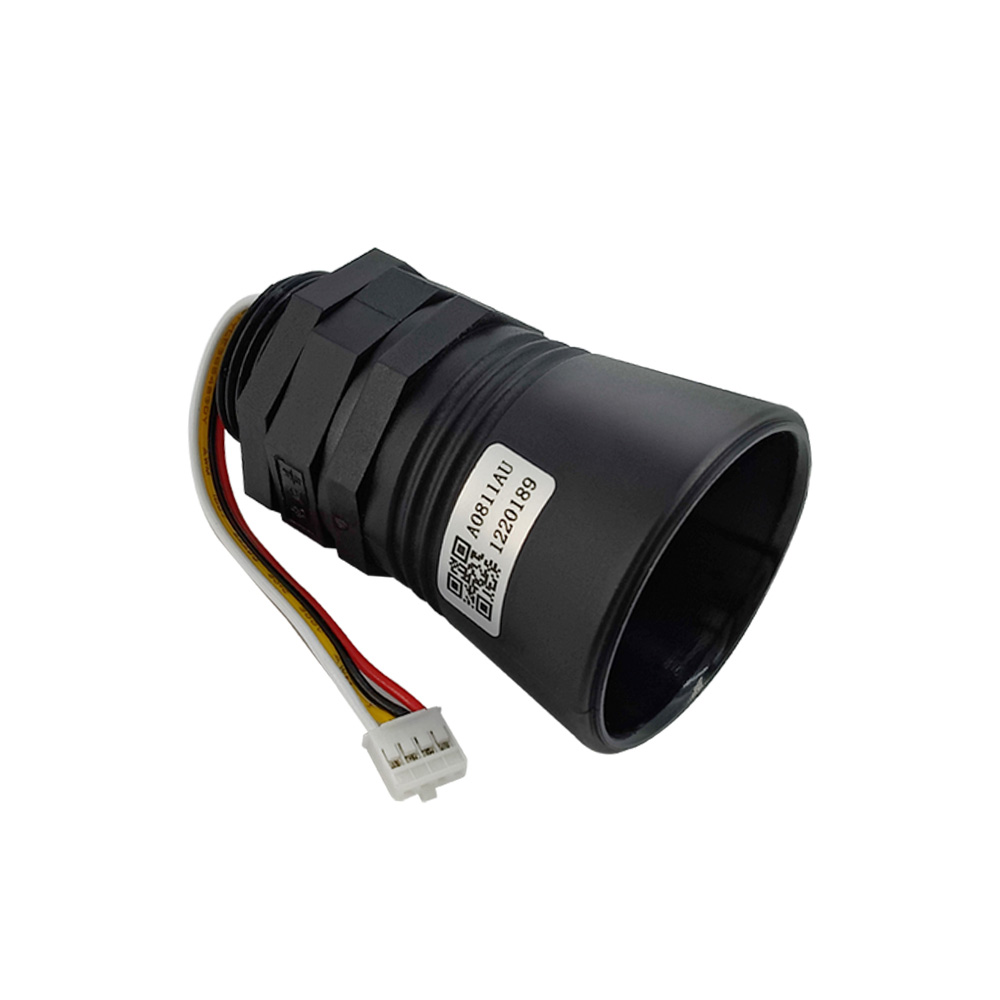

DYP A08A Series Ultrasonic Level Sensor Module - UART Interface, Waterproof, 25-800cm Range
The DYP-A08ANYUB-V1.0 is a UART-interface ultrasonic level sensor module designed for reliable distance measurement from 25 to 800 cm. Operating from a 3.3V to 5V DC supply, it is compatible with microcontrollers like Arduino, Raspberry Pi, and ESP32 for water-level monitoring and obstacle detection applications.
Features
- Ultrasonic ranging module with a 25 cm to 800 cm measurement range.
- UART serial interface for easy integration with microcontrollers and SBCs.
- Waterproof transducer design suitable for outdoor and industrial environments.
- Low power consumption with <15 mA operating current and <5 µA static current.
- High accuracy of ±(1 + S×0.3%) with a narrow 20° beam angle.
Out of stock
The DYP-A08ANYUB-V1.0 ultrasonic sensor employs time-of-flight (ToF) principles for precise non-contact distance measurement. Its integrated high-performance processor and signal conditioning circuitry ensure stable and reliable readings, even in variable environmental conditions.
Featuring a waterproof ultrasonic transducer and built-in high-precision ranging algorithm, this module delivers consistent performance for liquid level sensing and long-range object detection. Its UART output provides a straightforward digital interface for system integration, while the low-power design enables deployment in battery-powered monitoring stations.
Additional Information
| Weight | 0.054 kg |
|---|---|
| Dimensions | 13 × 9 × 5 cm |
