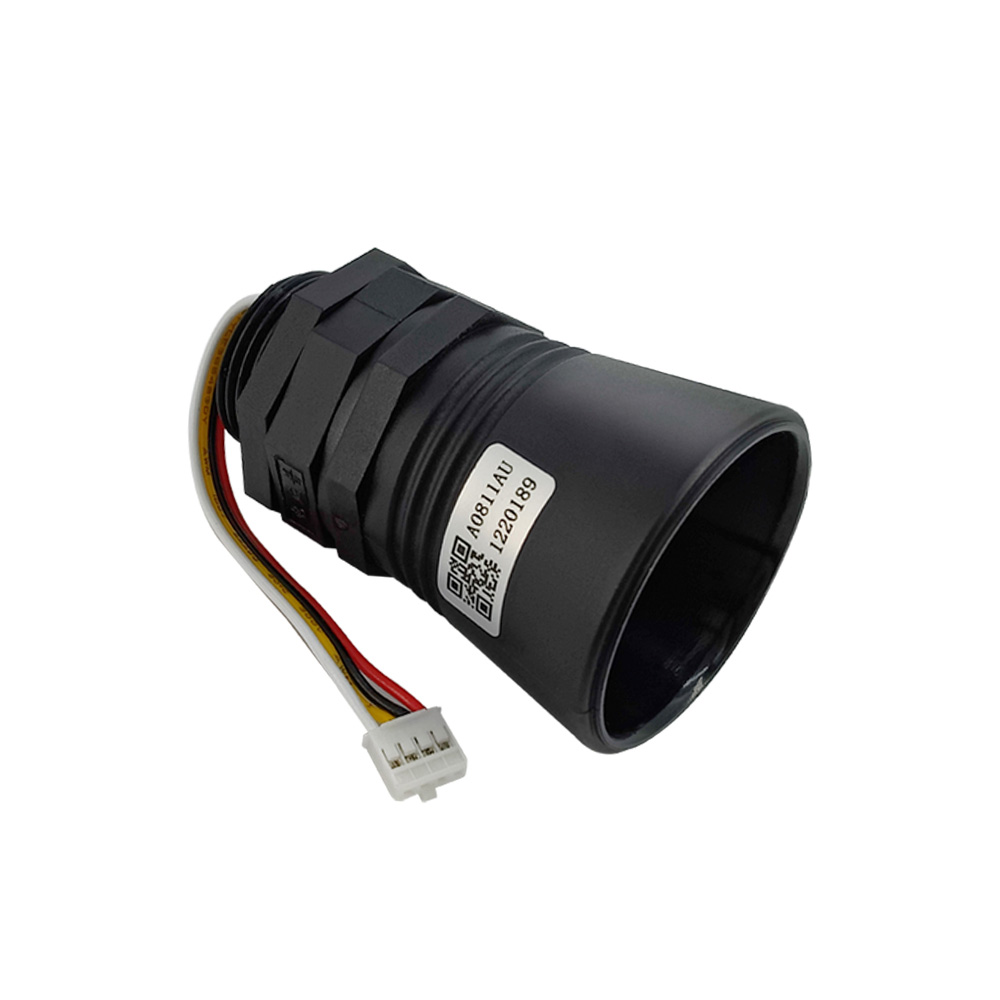

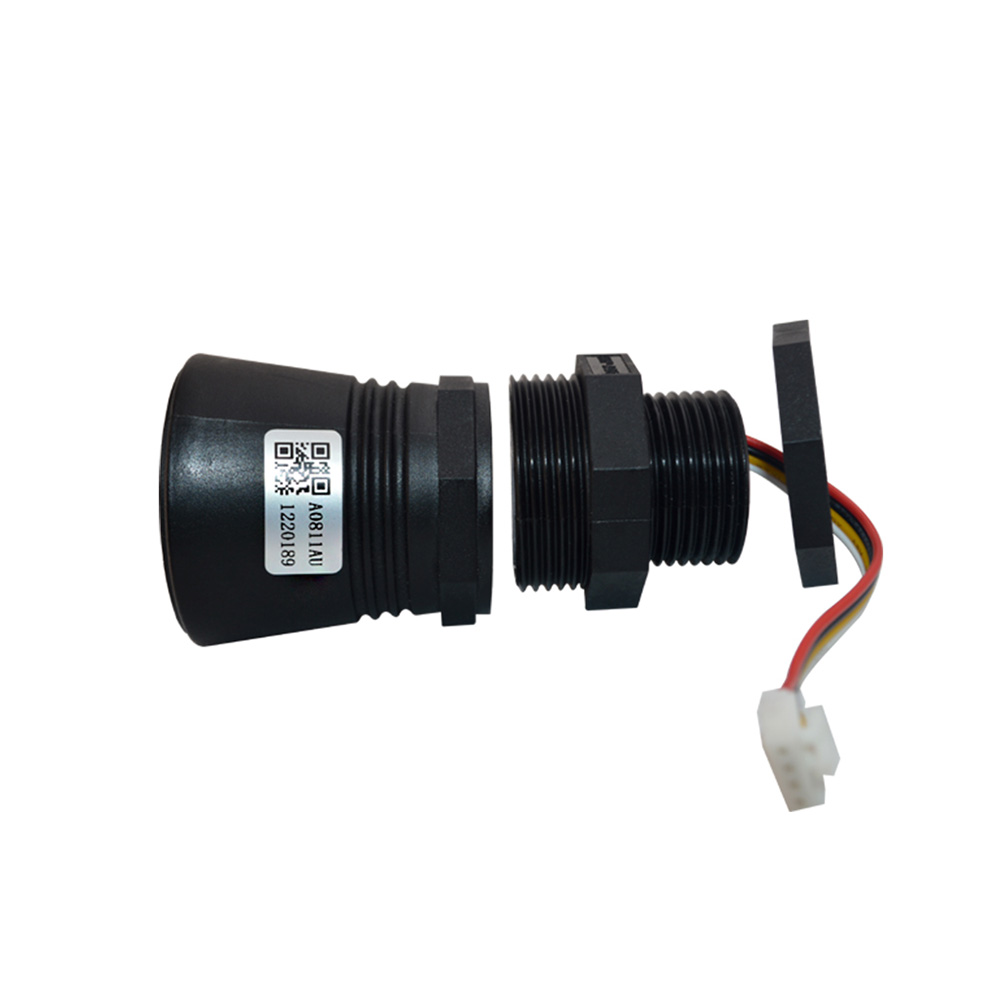

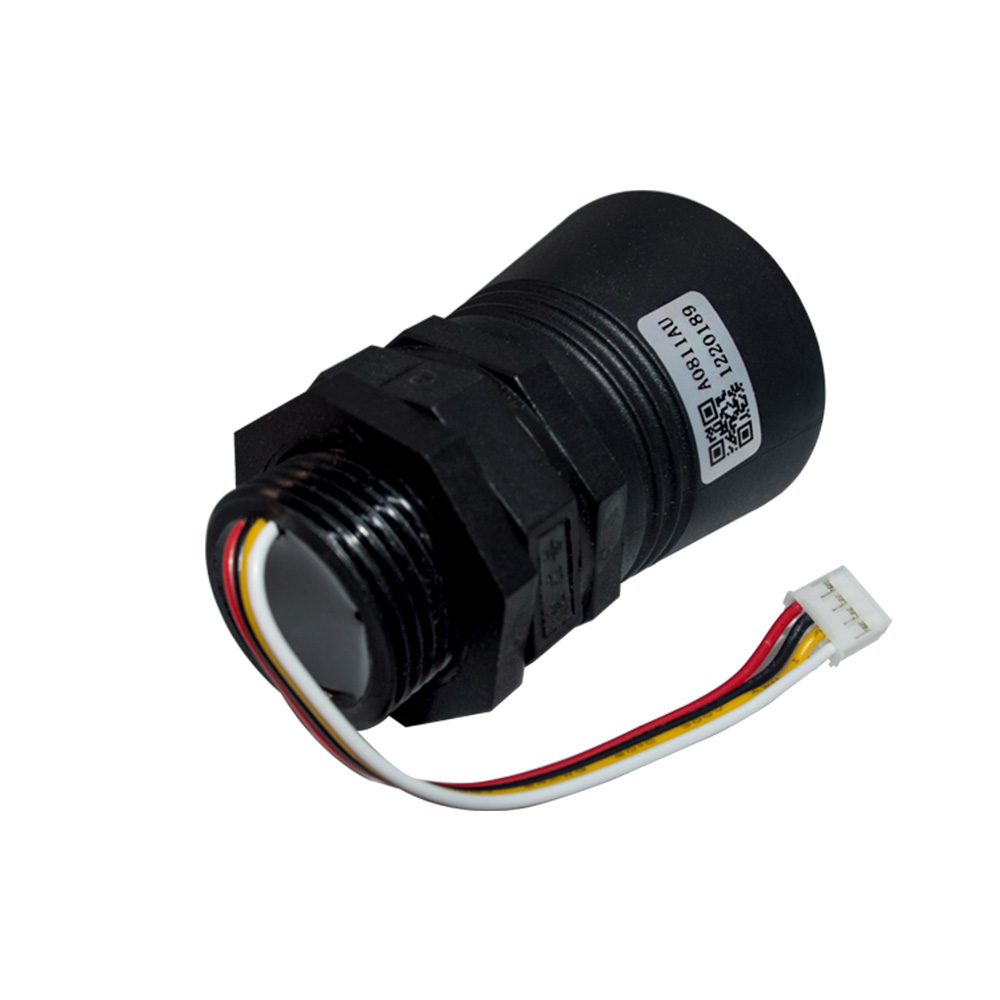

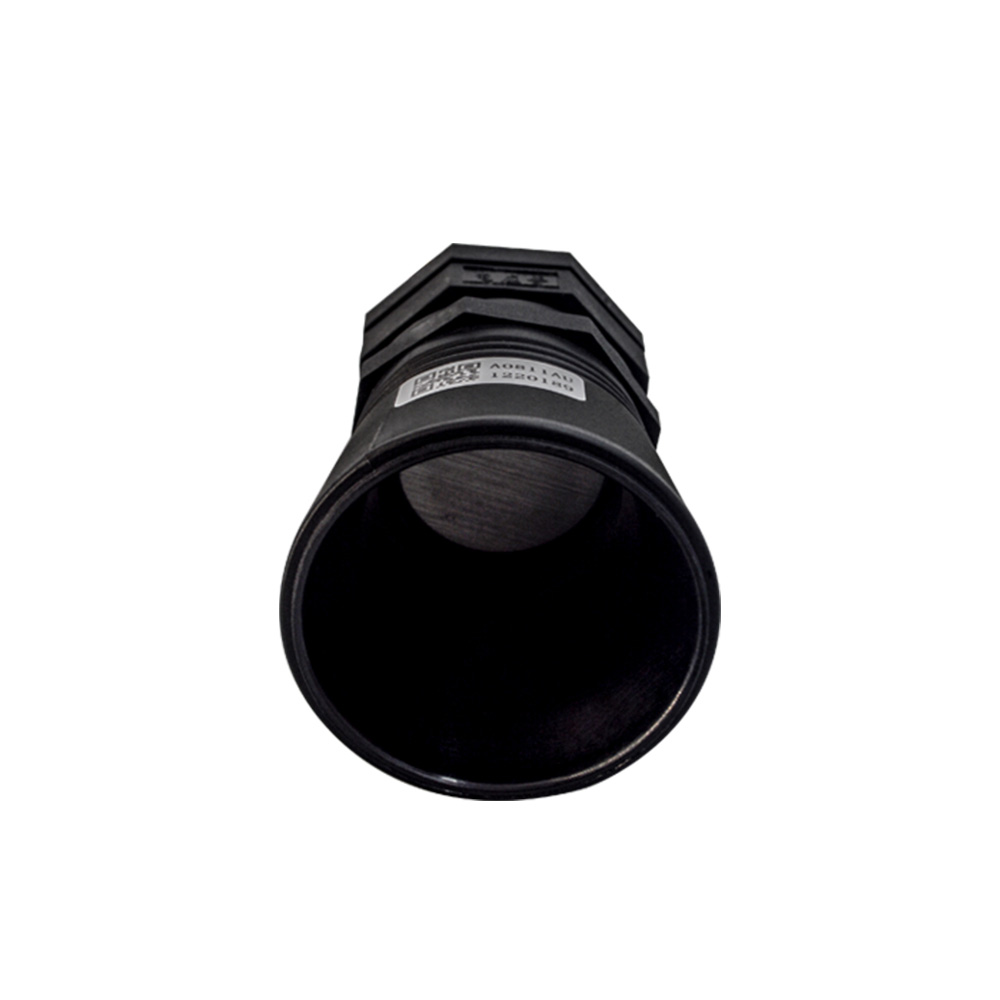

DYP A08A Series Ultrasonic Level Sensor Module - PWM Output, Waterproof, 25-800cm Range
The DYP-A08ANYWB-V1.0 is a waterproof ultrasonic level sensor module designed for precise distance measurement up to 800cm. Operating from a 3.3V to 5V DC supply, it provides a PWM output signal compatible with microcontrollers like Arduino, Raspberry Pi, and ESP32 for liquid level monitoring and object detection applications.
Features
- Waterproof ultrasonic transducer for reliable operation in damp or outdoor environments.
- Extended measurement range from 25cm to 800cm with a ±(1+S×0.3%) accuracy.
- Low power consumption with <5µA static current and <15mA operating current.
- PWM output interface for straightforward integration with digital control systems.
- Narrow beam angle (~20°) for precise targeting and reduced environmental interference.
Out of stock
The DYP A08A Series sensor employs time-of-flight ultrasonic technology to calculate distance by measuring the echo return time of high-frequency sound pulses. Its integrated high-performance processor and signal conditioning circuitry ensure stable, repeatable readings even in variable environmental conditions.
This module features a built-in high-precision ranging algorithm and intelligent power management, optimizing accuracy and energy efficiency for continuous monitoring applications. The waterproof housing and transducer make it suitable for industrial tank level sensing, outdoor bin monitoring, and automated irrigation systems where exposure to moisture is a concern.
Additional Information
| Weight | 0.055 kg |
|---|---|
| Dimensions | 13 × 9 × 6 cm |
