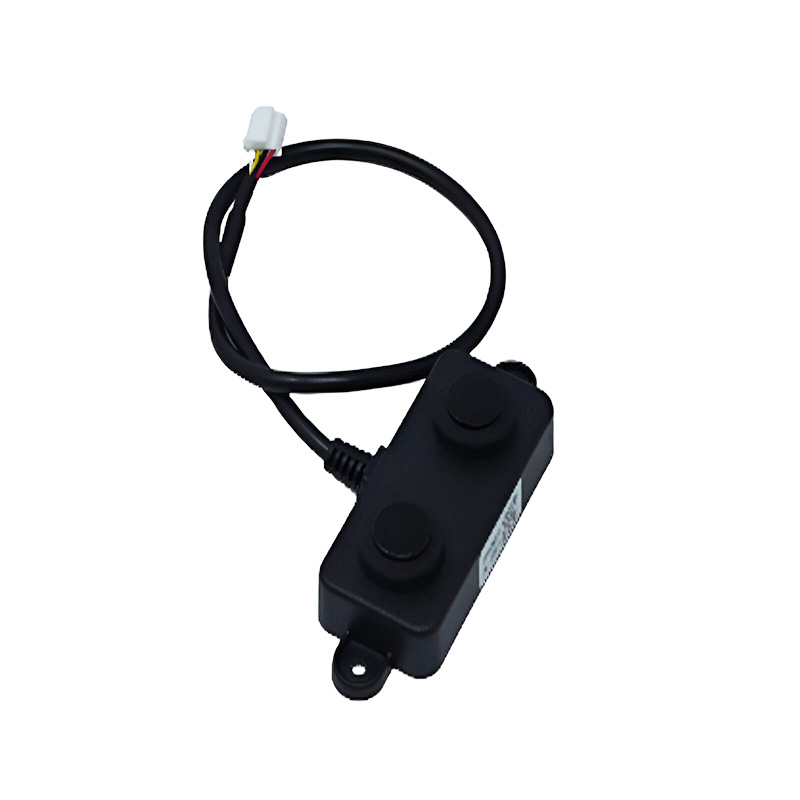

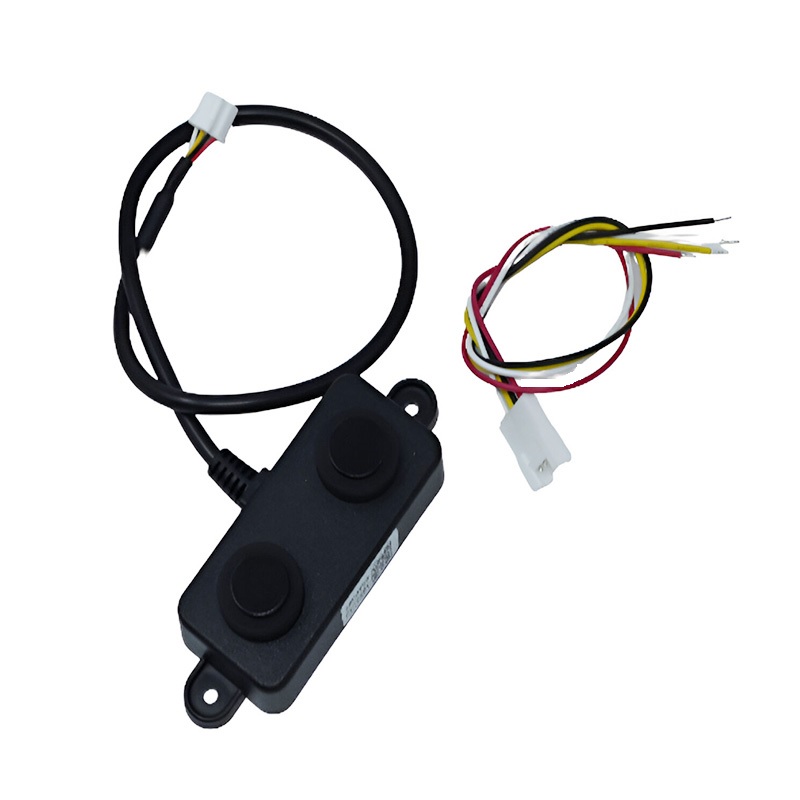

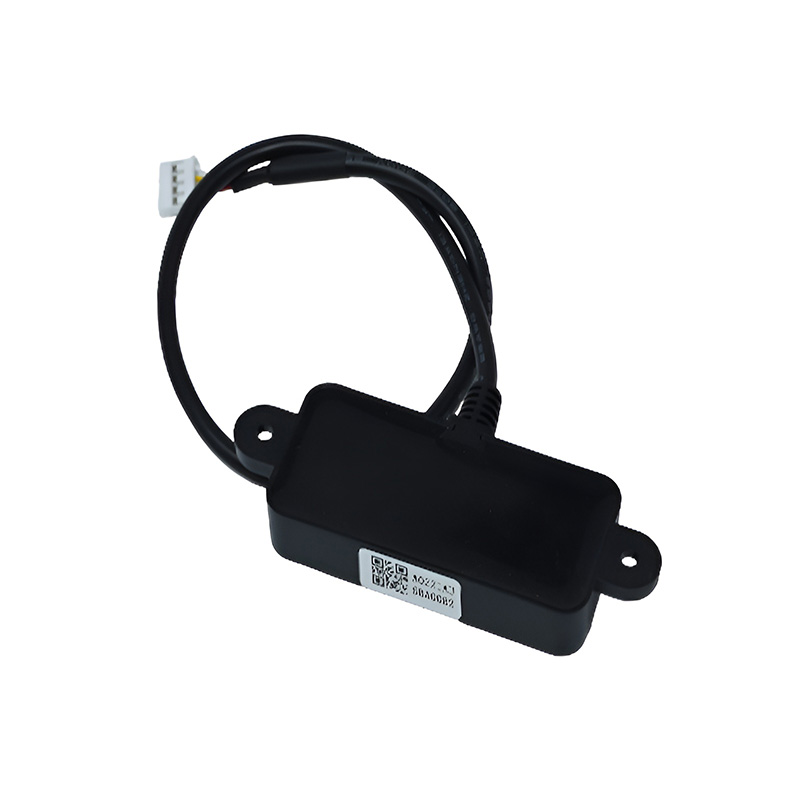

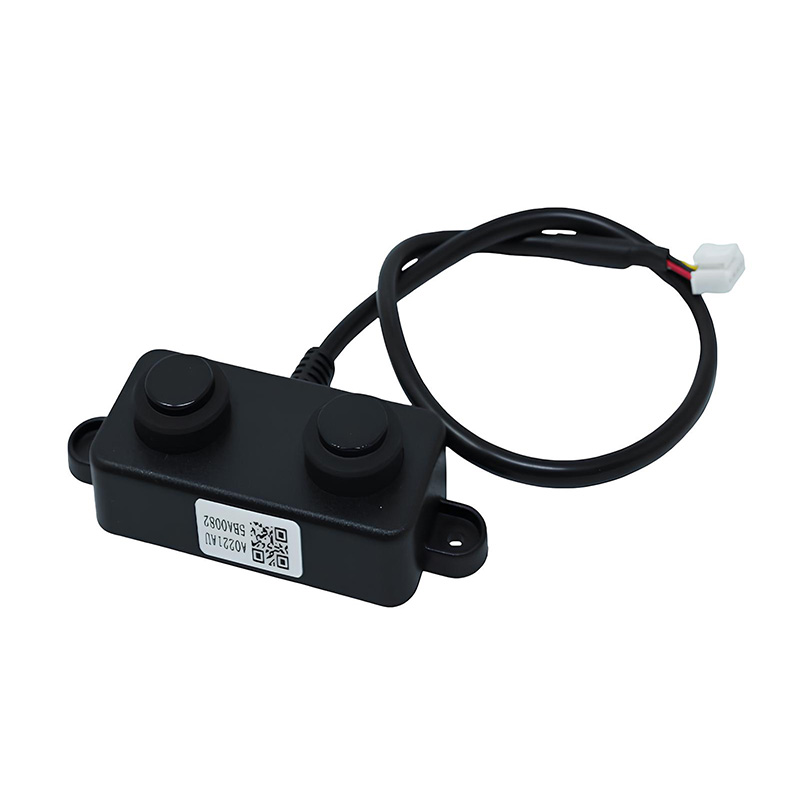

DYP A02YYUW Waterproof Ultrasonic Sensor UART IP67 3–450cm
The DYP-A02YYUW is a commercial-grade, IP67 waterproof ultrasonic distance sensor module with a UART interface, compatible with 3.3V and 5V logic systems like Arduino, Raspberry Pi, and ESP32. It provides reliable distance measurements from 3 cm to 450 cm with a minimal blind zone and integrated signal processing.
Features
- IP67 waterproof and dustproof sealed probe for harsh, moist environments.
- UART serial output (9600 baud) for direct distance value readout, simplifying integration.
- Wide 3 cm to 450 cm detection range with a minimal 3 cm blind zone.
- Low power consumption, averaging less than 8 mA at 3.3V to 5V DC supply.
- Robust construction with separated transducer and processing unit for stable performance.
Out of stock
The DYP-A02YYUW ultrasonic sensor operates on the time-of-flight principle, emitting a pulse and measuring the time lapse for the echo to return to calculate distance. Its closed, separated probe design ensures reliable operation in environments with dust, smog, or high humidity.
All signal conditioning, including temperature compensation, is handled internally. The module outputs a direct distance value via an asynchronous serial interface, requiring minimal external circuitry. This makes it suitable for integration into industrial control systems, robotics, and automated measurement applications where environmental durability is critical.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 9 × 6 × 2 cm |
