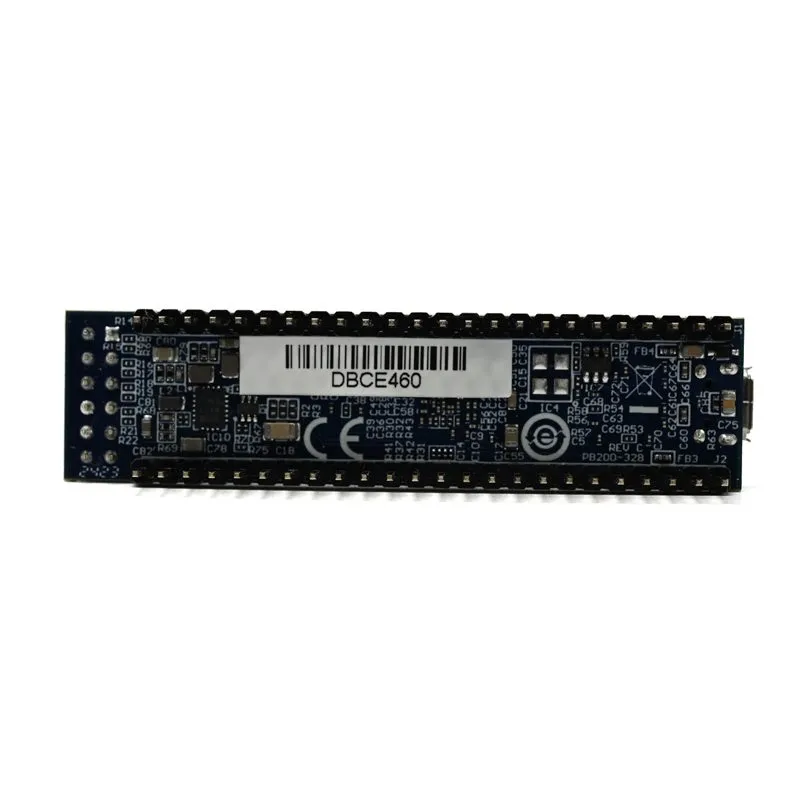

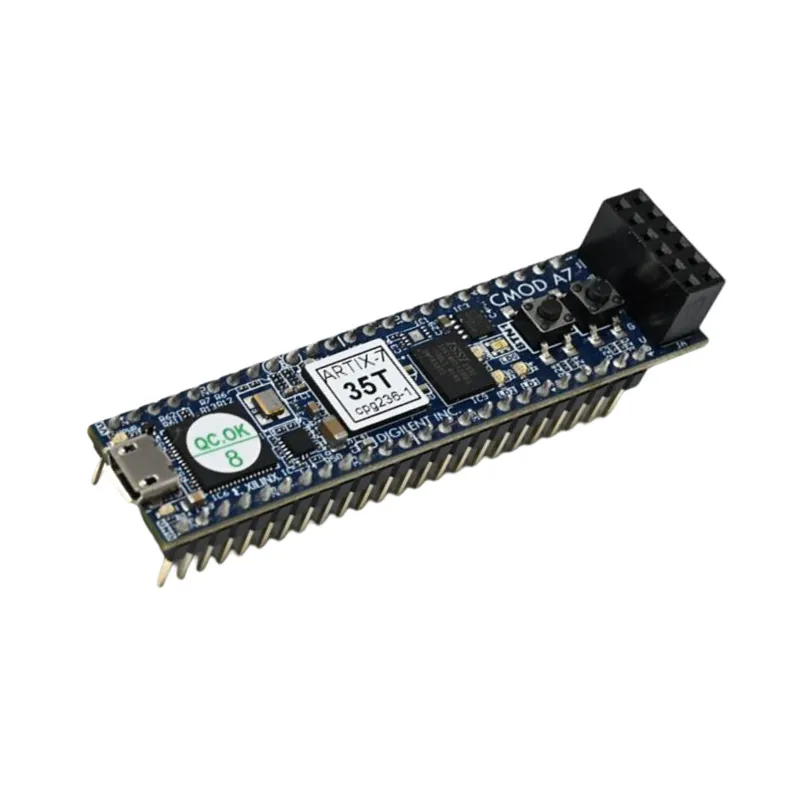

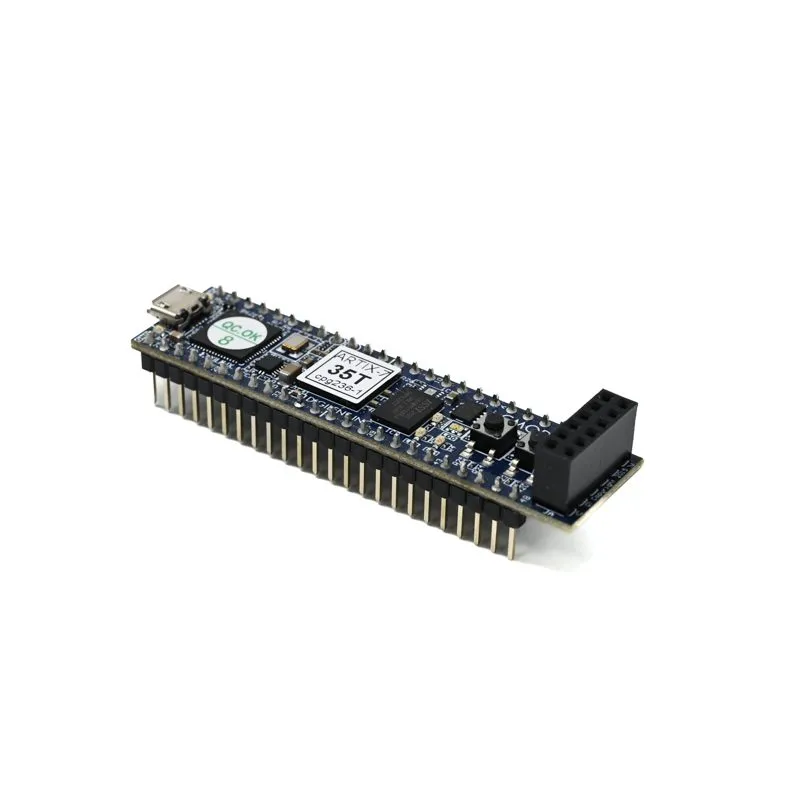

Digilent Cmod A7-35T Artix-7 FPGA Module, Breadboardable
The Digilent Cmod A7-35T is a compact, breadboardable Artix-7 FPGA module in a 48-pin DIP form factor, ideal for integrating powerful Xilinx Artix-7 capabilities into custom circuits and prototyping.
Features
- Features a Xilinx Artix-7 FPGA for high performance-per-watt logic and DSP processing.
- Designed in a 48-pin DIP form factor, enabling direct compatibility with solderless breadboards.
- Includes 512KB SRAM and 4MB Quad-SPI Flash for robust application development.
- Integrated USB-JTAG programming circuitry and a USB-UART bridge for seamless development.
- Equipped with onboard LEDs, pushbuttons, and a Pmod connector for versatile I/O expansion.
Out of stock
The Digilent Cmod A7-35T is a highly versatile Artix-7 FPGA module, part of the Cmod family designed for quick, simple, and flexible integration of FPGA technology into various projects. Its small 48-pin DIP form factor is specifically engineered to bring potent FPGA capabilities to solderless breadboards, making it an excellent choice for rapid prototyping, learning, and embedded system development.
This module comes loaded with essential features, including a Quad-SPI flash for programming and a built-in USB-JTAG programming circuit, alongside a USB-UART bridge for serial communication. It also provides an onboard clock source, a Pmod port for modular expansion, and integrated I/O comprising LEDs and pushbuttons. With 44 FPGA I/O signals routed to 100-mil-spaced through-hole pins, the Cmod A7-35T facilitates easy breadboard integration. Leveraging the Artix-7 FPGA, it offers exceptional performance-per-watt, high transceiver line rates, and advanced DSP processing, making it suitable for cost-optimized embedded applications, especially when combined with the Xilinx MicroBlaze Soft Processor Core.
Additional Information
| Weight | 0.017 kg |
|---|---|
| Dimensions | 8 × 3 × 3 cm |
