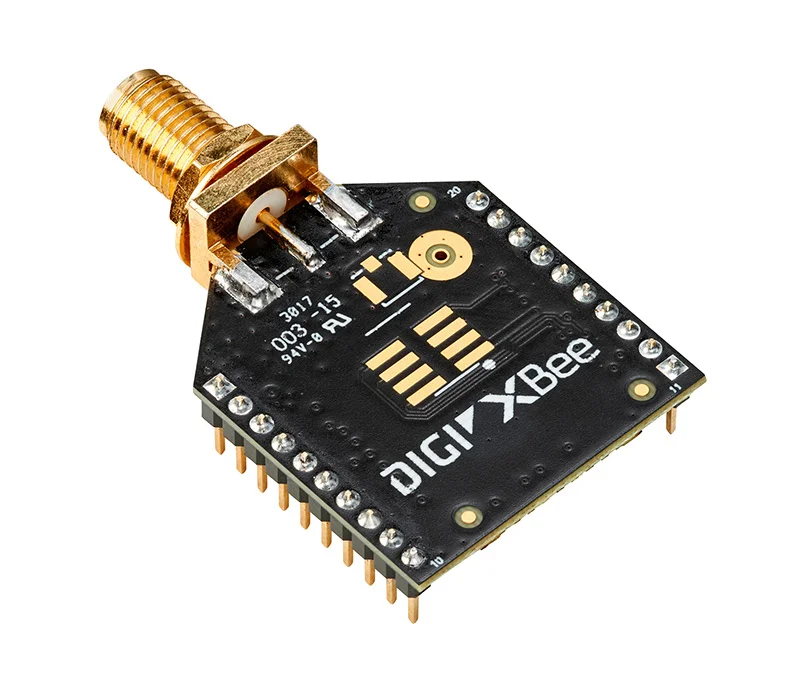

Digi International XBee3 2.4GHz ZigBee 3.0 Module w/ RP-SMA Female Connector

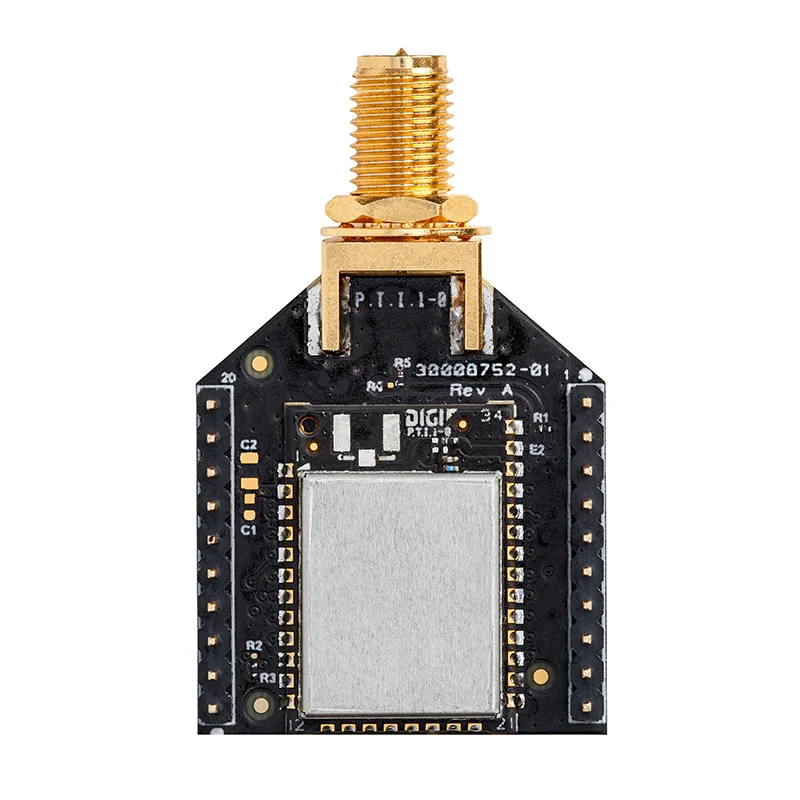

Digi International XBee3 2.4GHz ZigBee 3.0 Module w/ RP-SMA Female Connector - Image 2

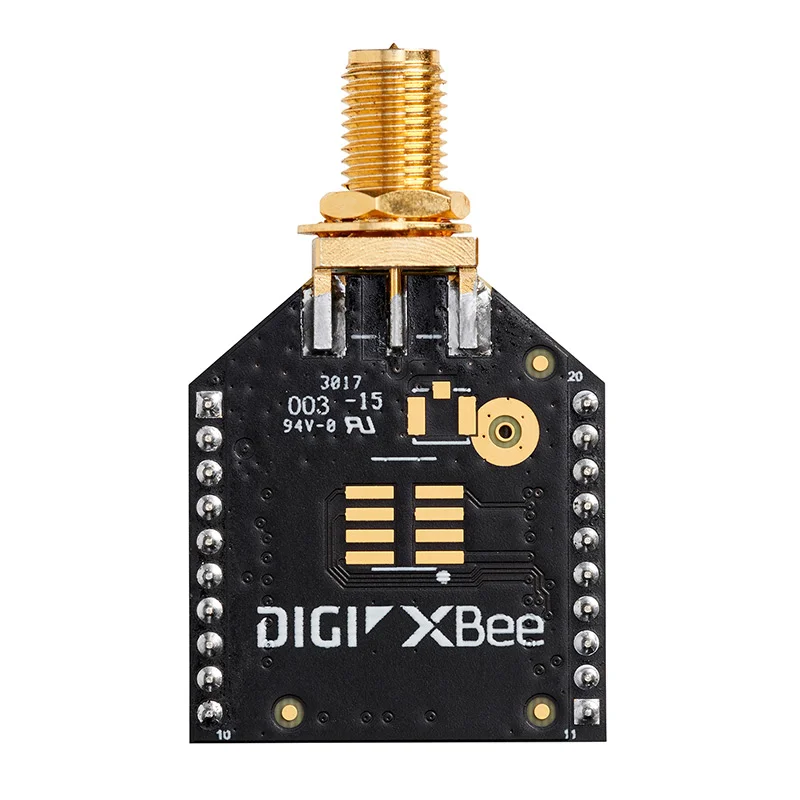

Digi International XBee3 2.4GHz ZigBee 3.0 Module w/ RP-SMA Female Connector - Image 3
SKU: IOWC-1998
📋 GST Invoice Available

Digi International XBee3 2.4GHz ZigBee 3.0 Module w/ RP-SMA Female Connector

₹3,809.00 (Inclusive of all taxes)
Out of Stock

The Digi International XBee3 is a versatile 2.4GHz wireless module featuring a Silicon Labs EFR32MG SoC, supporting ZigBee 3.0, 802.15.4, DigiMesh, and BLE protocols. It includes an RP-SMA female antenna connector for external antenna flexibility and is programmable via MicroPython, eliminating the need for an external microcontroller in many applications.

Features

  • Multi-Protocol 2.4GHz SoC: Features a Silicon Labs EFR32MG chipset supporting ZigBee 3.0, 802.15.4, DigiMesh, and Bluetooth Low Energy, all configurable via Digi International XCTU software.
  • Integrated MicroPython Engine: Enables standalone programmable smart nodes without an external MCU, accelerating development and reducing BOM cost.
  • Robust RF Performance: Offers up to +8 dBm transmit power, -103 dBm receiver sensitivity, and a rated outdoor range of up to 1200 meters with DSSS interference immunity.
  • Digi International TrustFence Security: Built-in layered IoT security framework with over 175 controls, featuring 128/256-bit AES encryption for secure edge-to-cloud communication.
  • Flexible I/O & Connectivity: Provides 15 digital I/O pins, four 10-bit ADC inputs, and UART, SPI, and I2C serial interfaces for sensor integration and peripheral control.

Out of stock

Description

The Digi International XBee3 module is a pre-certified, multi-protocol wireless transceiver designed for rapid IoT deployment. Built around the powerful Silicon Labs EFR32MG System-on-Chip, it consolidates ZigBee 3.0, 802.15.4, DigiMesh, and BLE connectivity into a single 13mm x 19mm micro form factor. This integration provides developers with unparalleled flexibility to switch between protocols as project requirements evolve.

Its architecture is optimized for low-power, long-range mesh networking, featuring a high-sensitivity receiver and configurable transmit power. The module’s onboard MicroPython interpreter transforms it into a programmable edge device, capable of running application logic directly, which simplifies system design and reduces component count. The included RP-SMA female connector allows for the attachment of higher-gain external antennas to extend operational range or meet specific form factor needs.

Key Features

  • Multi-Protocol Radio: Single hardware module supports ZigBee 3.0, 802.15.4, DigiMesh, and Bluetooth Low Energy (BLE) for maximum design flexibility.
  • MicroPython Programmable: Eliminates the need for an external microcontroller, enabling smart, standalone end-nodes and low-end gateways.
  • Digi International TrustFence Security Suite: Implements a comprehensive, layered security approach with hardware-based encryption (128/256-bit AES) and secure identity management.
  • Extended Range Connectivity: DSSS (Direct Sequence Spread Spectrum) modulation provides interference immunity with an outdoor line-of-sight range up to 1200 meters.
  • Rich Peripheral Set: Integrates 15 configurable digital I/O lines, four 10-bit ADC channels, and UART, SPI, and I2C interfaces for direct sensor and actuator connection.
  • Over-the-Air (OTA) Updates: Supports remote firmware and configuration updates via the Digi International Remote Manager cloud platform for scalable device management.
  • Ultra-Low Power Modes: Achieves a deep sleep current of 1.7 µA, making it suitable for battery-powered, long-life field deployments.

Applications

  • Industrial Monitoring & Control: For wireless sensor networks (WSNs) in IIoT applications like equipment telemetry, tank level monitoring, and predictive maintenance.
  • Smart Agriculture: Deploying soil moisture, weather, and irrigation control nodes across large fields using robust mesh networks.
  • Building Automation: Creating networks for HVAC control, lighting systems, occupancy sensing, and energy management in commercial spaces.
  • Asset Tracking: Developing indoor and outdoor tracking solutions for logistics, warehouse inventory, and high-value equipment.
  • Smart Home Hubs & Devices: Serving as the communication core for home automation systems, connecting sensors, lights, and appliances.

Technical Specifications

Microcontroller/SoCSilicon Labs EFR32MG SoC (HCS08 core up to 50.33 MHz)
Wireless ProtocolsZigBee 3.0, 802.15.4, DigiMesh, Bluetooth Low Energy (BLE)
Frequency Range2.4 GHz ISM Band
RF Transmit PowerUp to +8 dBm (configurable)
Receiver Sensitivity-103 dBm (Normal Mode)
Supply Voltage2.1V to 3.6V DC
Operating Current15 mA (Receive), 40 mA (Transmit @ +8 dBm)
Sleep Current1.7 µA (Power-down mode)
InterfacesUART, SPI, I2C, 15x Digital I/O, 4x 10-bit ADC
Antenna ConnectorRP-SMA Female (also supports U.FL, PCB antenna, RF pad)
Operating Temperature-40°C to +85°C
Dimensions13 mm x 19 mm (module); 8 cm x 5 cm x 3 cm (package)

Frequently Asked Questions

How do I configure and program the Digi International XBee3 module?

Use Digi International's free XCTU software for initial configuration via AT or API commands over a serial UART connection. For standalone programming, write and flash MicroPython scripts directly onto the module's internal memory using XCTU or a compatible IDE. The module appears as a serial COM port, allowing you to send commands or upload code. Ensure baud rates match between your host and the module's serial interface settings.

What antenna options are compatible with the RP-SMA female connector?

The RP-SMA female connector accepts standard RP-SMA male antennas. You can use a 2.4GHz dipole, whip, or panel antenna with an RP-SMA male plug. For integrated designs, the module also supports solder-on U.FL connectors for chip antennas or an RF pad for a PCB trace antenna. Always match antenna impedance to 50 ohms for optimal RF performance and range. External antennas can significantly extend line-of-sight distance beyond the integrated option.

What is the power supply requirement and how do I achieve low power consumption?

Supply a stable voltage between 2.1V and 3.6V DC to the VCC pin. For battery operation, use a 3.3V regulator or two AA cells. To minimize consumption, leverage the module's sleep modes via AT commands or MicroPython's `machine.deepsleep()`. In the deepest sleep (power-down), current drops to 1.7 µA. Design your firmware to wake the radio only for brief transmission or polling intervals to maximize battery life in field deployments.

Can I use the XBee3 for a point-to-point or mesh network?

Yes, the XBee3 supports multiple network topologies. For simple links, configure it in Transparent Mode (AT command set) for serial pass-through. For robust, self-healing networks, use the DigiMesh or ZigBee 3.0 protocol stacks to create mesh networks where modules relay data for one another. Network parameters like PAN ID and destination addresses must be configured consistently across all nodes. Mesh routing is handled automatically by the firmware.

Package Includes

  • 1 x Digi International XBee3 2.4GHz ZB3.0 Module (RP-SMA Female Connector)

Additional Information

Weight 0.06 kg
Dimensions 5 × 8 × 3 cm
