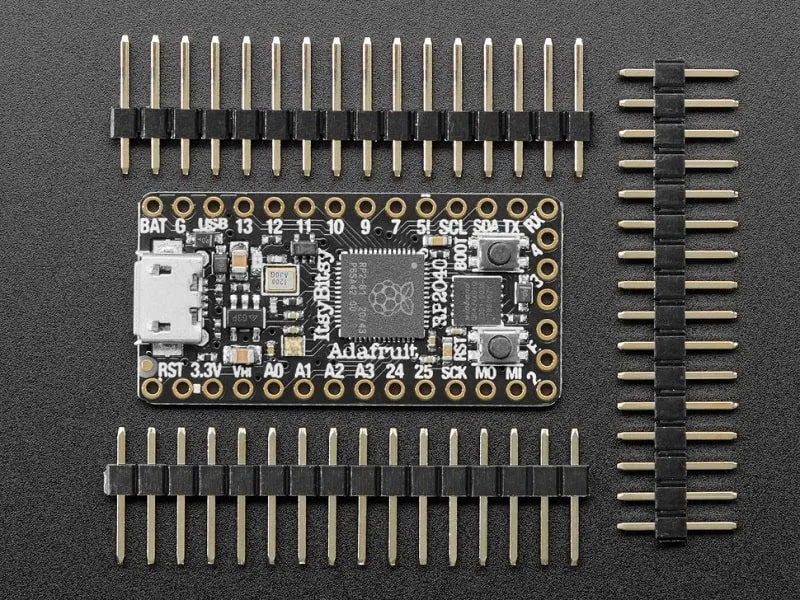

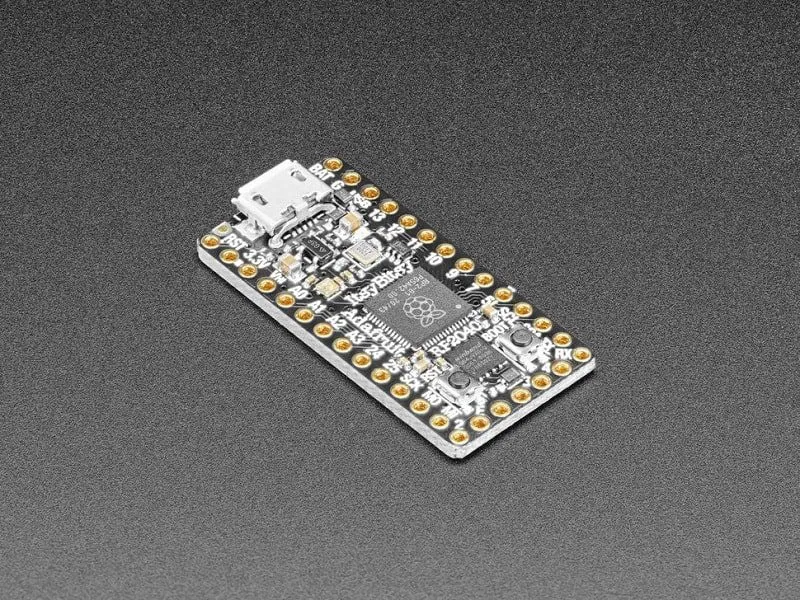

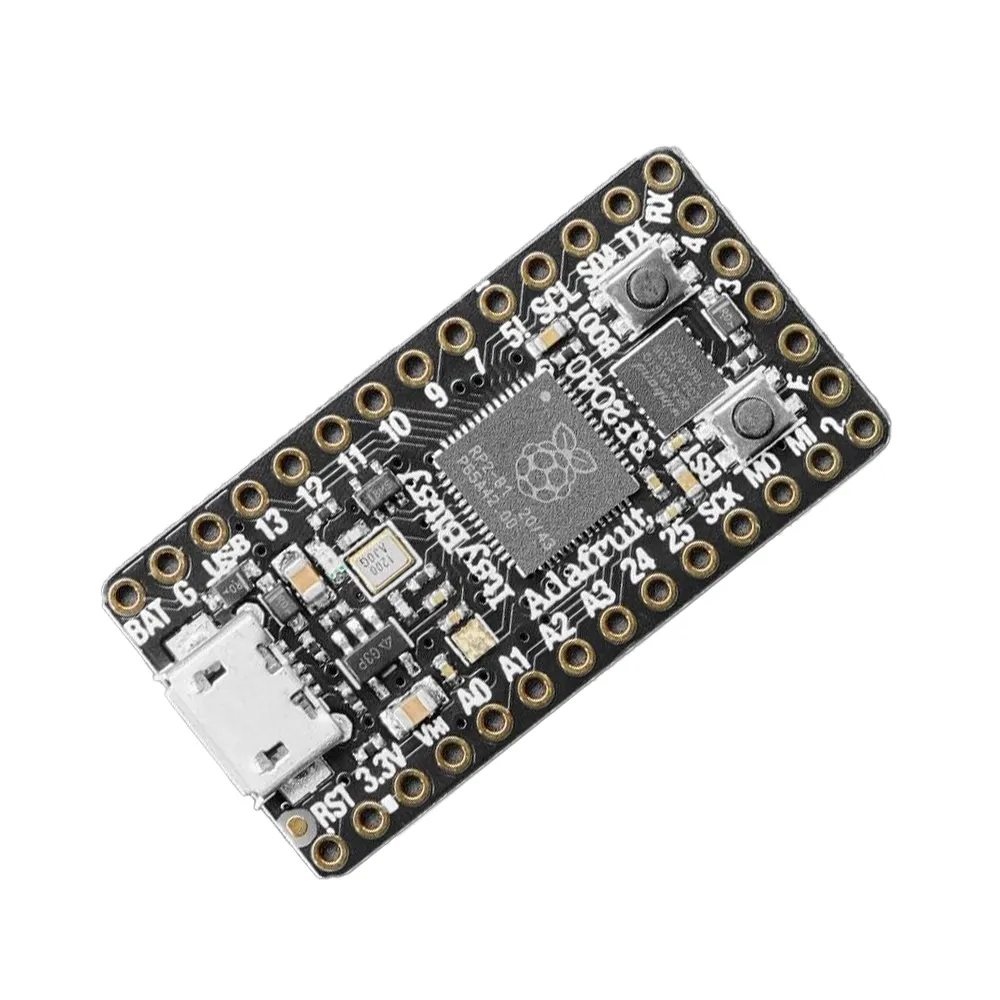

Adafruit ItsyBitsy RP2040 Development Board
The Adafruit ItsyBitsy RP2040 is a compact, powerful development board featuring the Raspberry Pi RP2040 SoC with a dual ARM Cortex-M0+ processor clocked at up to 133MHz, 264KB SRAM, and 8MB QSPI flash storage. Designed for projects requiring high performance in a small footprint, it offers extensive GPIO for diverse embedded applications.
Features
- Dual-core ARM Cortex-M0+ processor at up to 133MHz for high-speed embedded tasks.

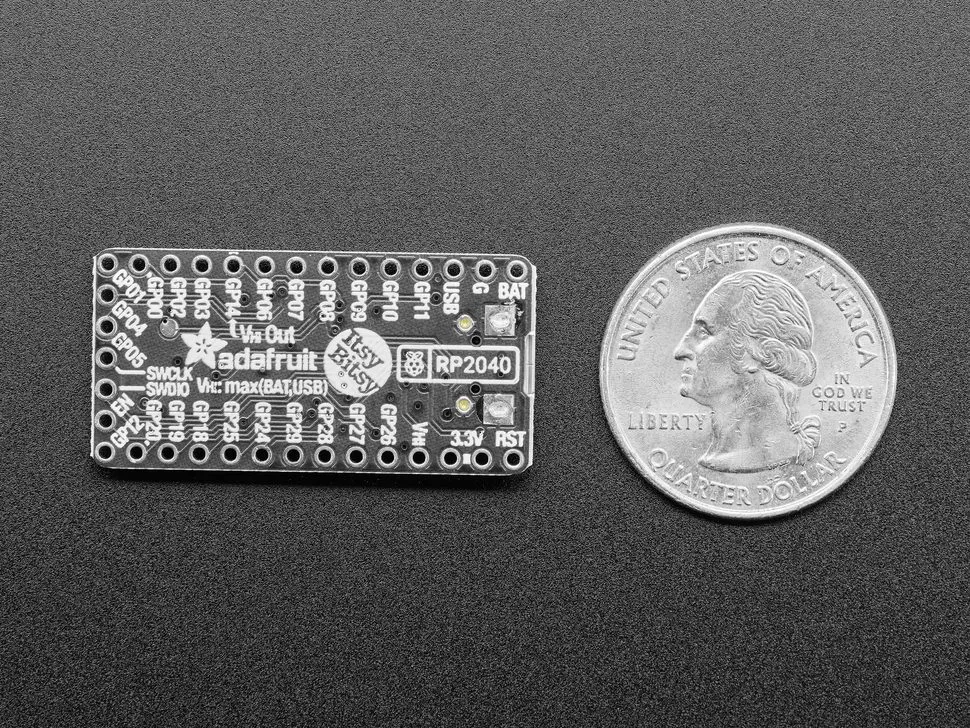

- Compact ItsyBitsy form factor (1.4″ x 0.7″) ideal for miniaturized projects.
- Integrates 264KB SRAM and a generous 8MB QSPI flash for ample program and data storage.
- Features 23 digital GPIO pins, including 4 analog inputs and 16 PWM outputs, for versatile interfacing.
- Equipped with a permanent ROM USB UF2 bootloader for simplified drag-and-drop firmware updates.
Out of stock
The Adafruit ItsyBitsy RP2040 brings the powerful Raspberry Pi RP2040 SoC into a highly compact development board, optimized for applications where space is a critical factor. It features a dual ARM Cortex-M0+ processor running at up to 133MHz, providing substantial processing power for complex embedded tasks. This board is outfitted with 264KB of on-chip SRAM and a generous 8MB of QSPI flash memory, offering ample resources for code, data logging, and file storage, making it a robust platform for demanding projects.
Despite its small 1.4″ x 0.7″ footprint, the ItsyBitsy RP2040 boasts extensive I/O capabilities. It provides 23 digital GPIO pins, including 4 analog inputs and 16 PWM outputs, facilitating diverse connections to sensors, actuators, and other peripherals. The board also includes standard interfaces such as UART, SPI, and I2C, along with a USB 1.1 controller for both host and device support, ensuring broad compatibility for various system integrations.
Programming the ItsyBitsy RP2040 is streamlined thanks to its permanent ROM USB UF2 bootloader. This feature allows for simple drag-and-drop firmware updates by presenting the board as a USB disk drive when connected while holding the BOOTSEL button. This familiar and user-friendly method supports development with CircuitPython, MicroPython, and the C/C++ SDK, enabling quick iteration and deployment for makers and engineers.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 10 × 7.5 × 1 cm |
