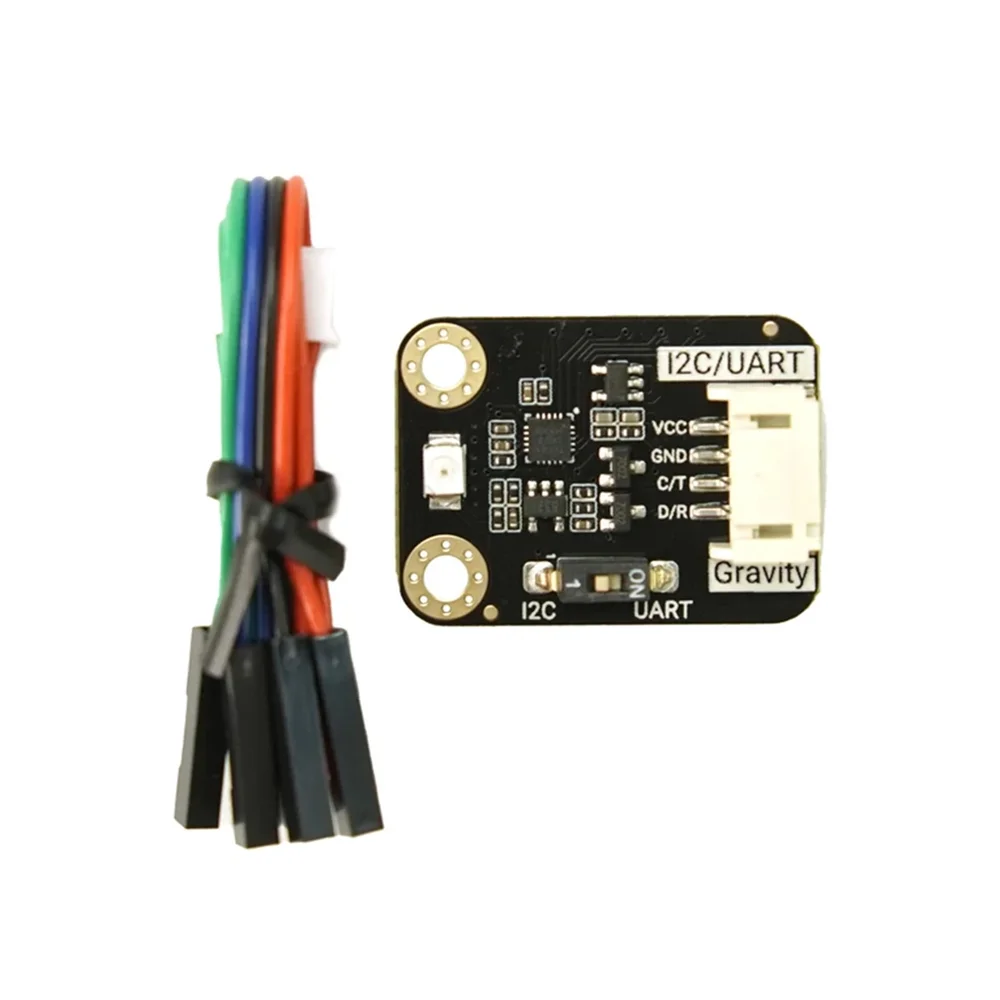

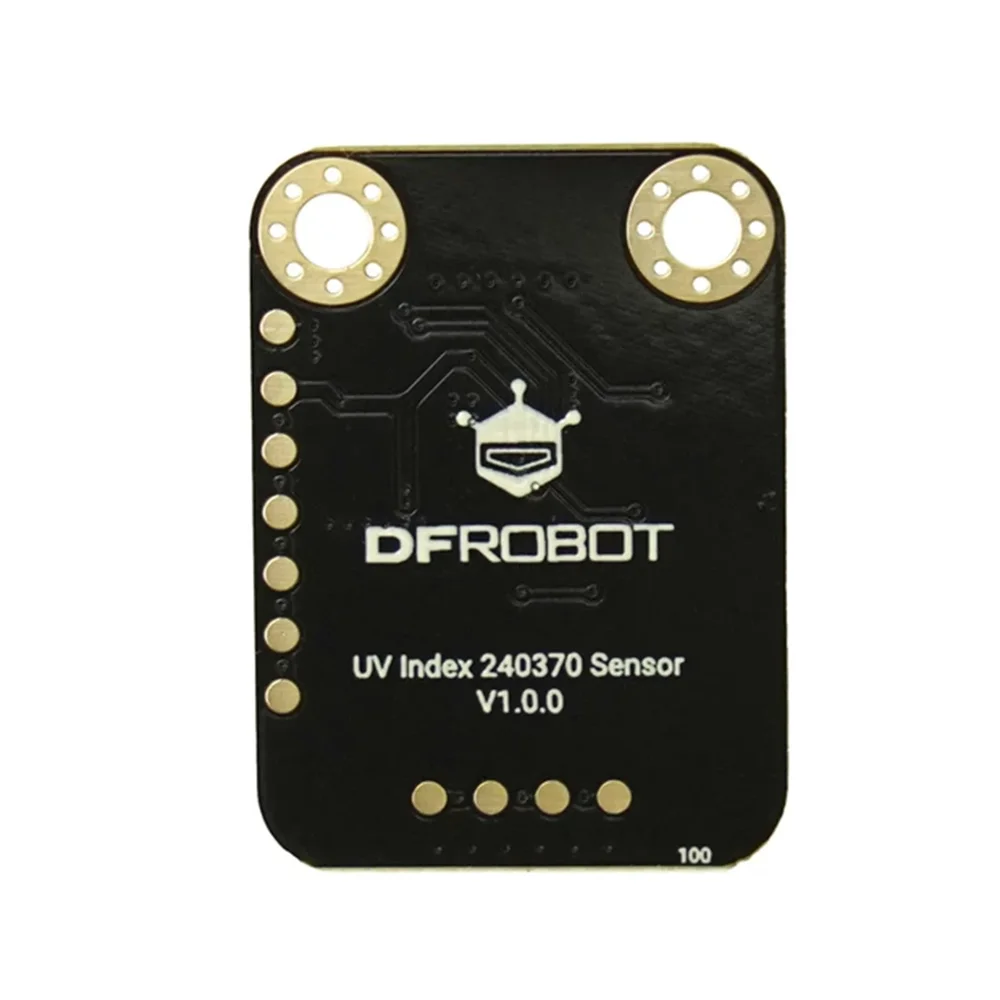

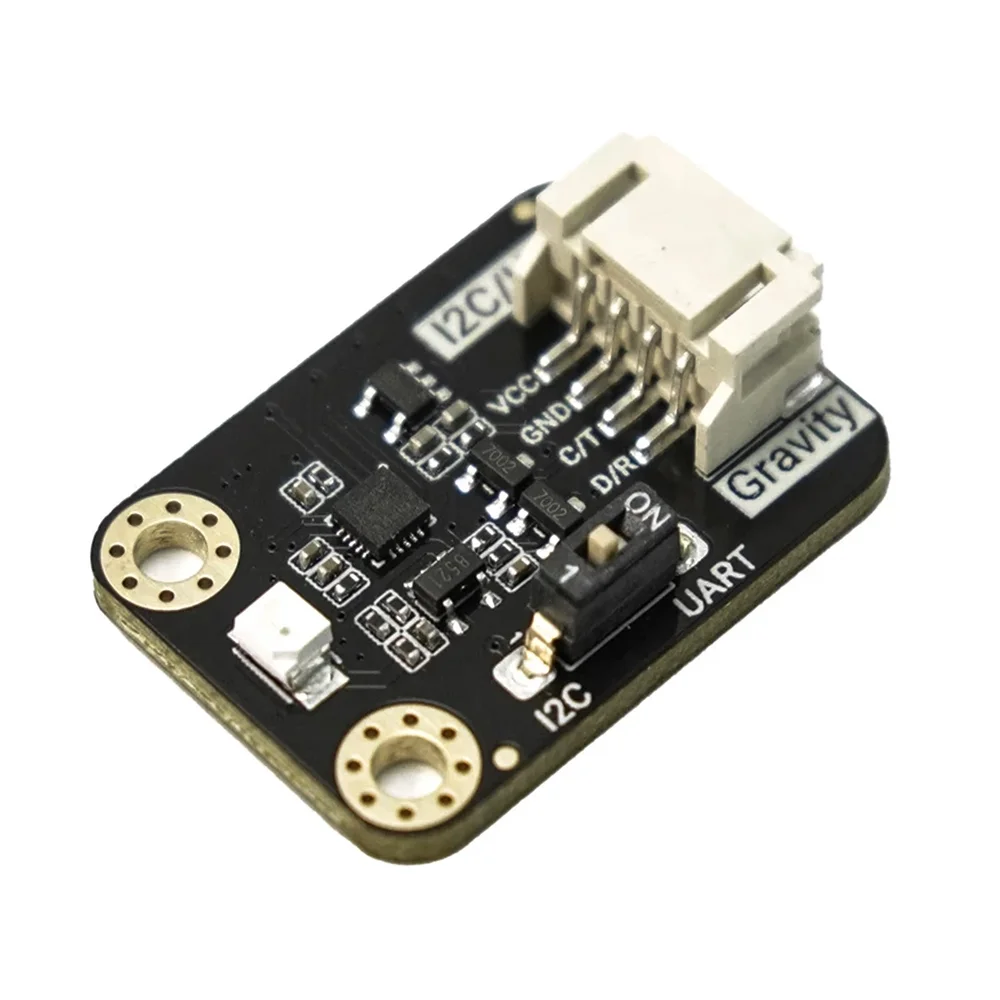

DFRobot Gravity UV Index Sensor (240-370nm, UVA, UVB, UVC) - I2C/UART
The DFRobot Gravity UV Index Sensor provides direct measurement of ultraviolet radiation across the 240-370nm spectrum (UVA, UVB, UVC). It outputs real-time UV index (0-11) and harm level (1-5) data via I2C or UART, making it compatible with Arduino, Raspberry Pi, ESP32, and other 3.3V/5V microcontroller platforms for environmental and health monitoring applications.
Features
- Measures UV radiation across the full 240-370nm spectrum (UVA, UVB, UVC).
- Directly outputs calibrated UV Index (0-11) and Harm Risk Level (1-5).
- Dual communication interfaces: I2C and UART for flexible system integration.
- Wide operating voltage range from 3.3V to 5V DC.
- Robust operating temperature range from -30°C to 80°C.
Out of stock
The DFRobot Gravity UV Index Sensor utilizes a high-performance UV-sensitive photodiode to detect ultraviolet radiation across the critical 240-370nm wavelength range. This covers the biologically significant UVA, UVB, and UVC bands, with a particular focus on UVB for accurate skin health risk assessment. The onboard signal conditioning and processing circuitry directly converts the raw sensor data into standardized outputs, eliminating the need for complex user-side calculations.
Designed for reliability in varied environments, the sensor operates from -30°C to 80°C and features the standard Gravity-series PH2.0 connector for easy plug-and-play connectivity. Its dual I2C and UART interfaces provide maximum compatibility with data acquisition systems, from educational Arduino setups to industrial-grade environmental monitoring stations, enabling precise tracking of UV exposure for health, agricultural, and energy applications.
Additional Information
| Weight | 0.02 kg |
|---|---|

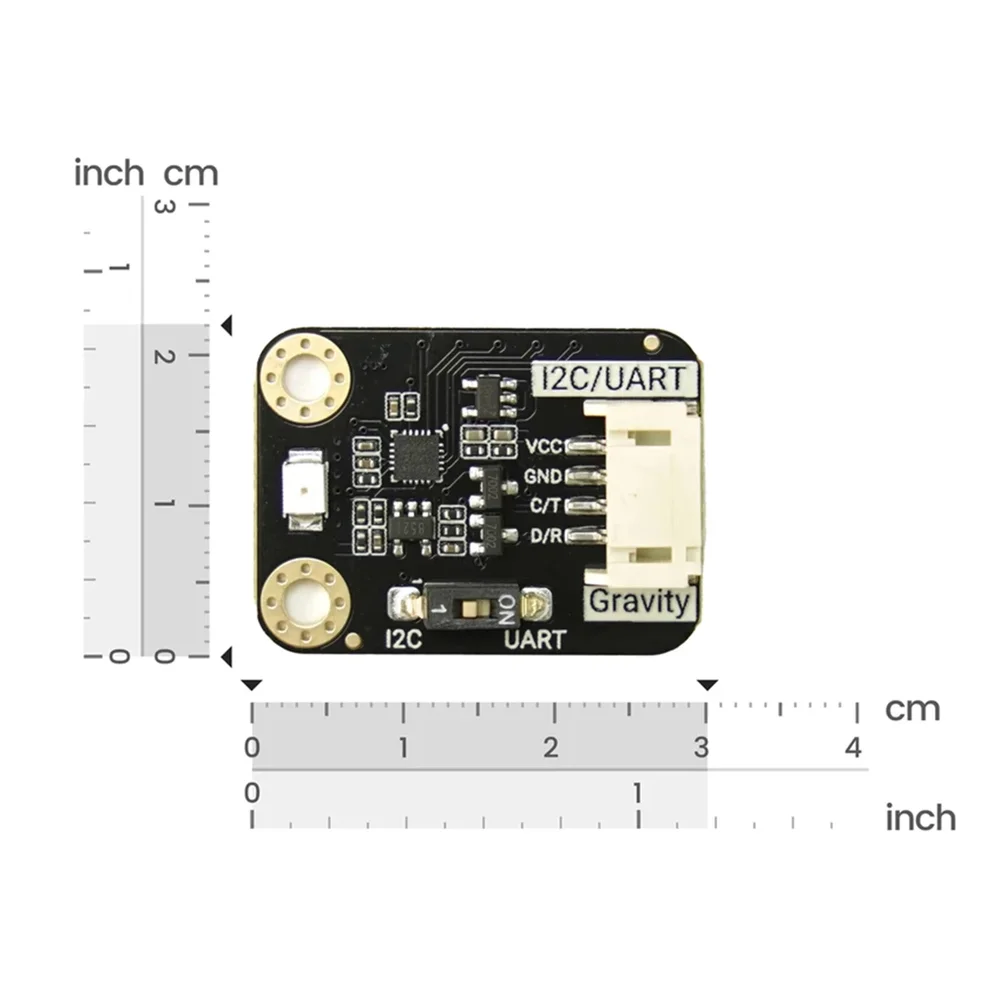

| Dimensions | 6 × 5 × 2 cm |
