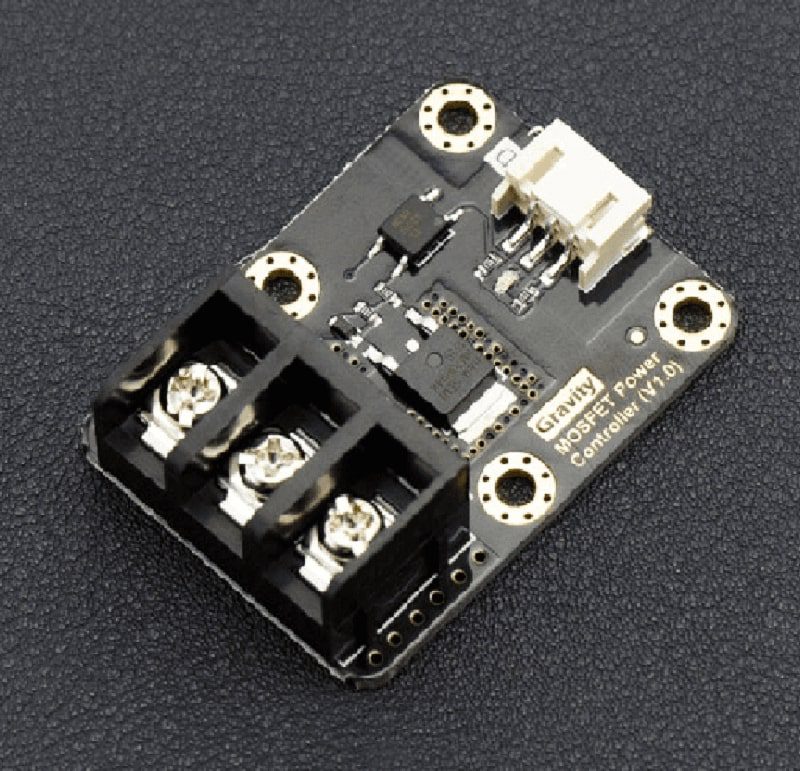

DFRobot Gravity MOSFET Power Controller Module - PH2.0-3P Interface
The DFRobot Gravity MOSFET Power Controller is a solid-state switching module designed for Arduino, Raspberry Pi, and other 3.3V/5V microcontrollers (Intel Edison, LattePanda) to drive high-current DC loads up to 20A with precise, high-frequency digital control.
Features
- High-Current Solid-State Switch: Controls DC loads from 5V to 36V at up to 20A continuous current (heat sink recommended above 10A).
- Wide Logic Compatibility: Accepts 3.3V to 10V digital control signals, making it compatible with 3.3V and 5V logic microcontrollers and SBCs.
- High-Speed Switching: Supports ON/OFF switching frequencies up to 1 kHz, ideal for PWM motor control, LED dimming, and robotic applications.
- Gravity Interface: Features a standard PH2.0-3P connector for plug-and-play integration with DFRobot Gravity ecosystem shields and modules.
- Robust Thermal Design: Operates across an industrial temperature range of -55°C to +155°C for reliable performance in demanding environments.
Out of stock
This MOSFET Power Controller module functions as a solid-state relay or MOSFET driver, enabling low-current GPIO pins from microcontrollers to safely switch high-power DC circuits. It eliminates the coil current draw and mechanical wear associated with traditional relays, offering faster switching and silent operation.
The module utilizes a power MOSFET with integrated gate driver circuitry, ensuring clean and reliable switching transitions. The design supports a broad input voltage range for the controlled load (5-36V DC) and is protected for logic-level inputs from 3.3V to 10V, providing wide system compatibility. Its compact form factor and Gravity interface simplify wiring and integration into prototyping and embedded systems.
Additional Information
| Weight | 0.015 kg |
|---|---|

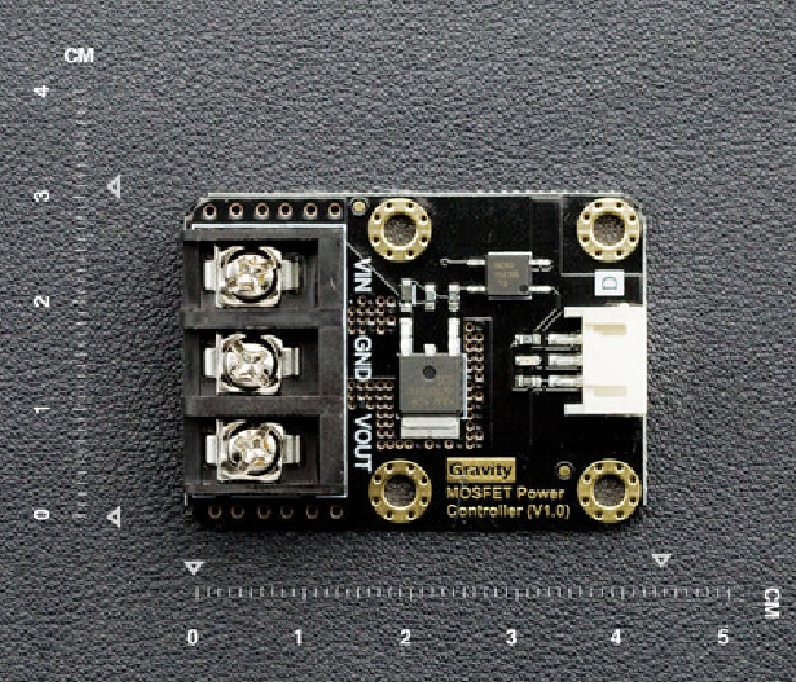

| Dimensions | 4.4 × 3.2 cm |
