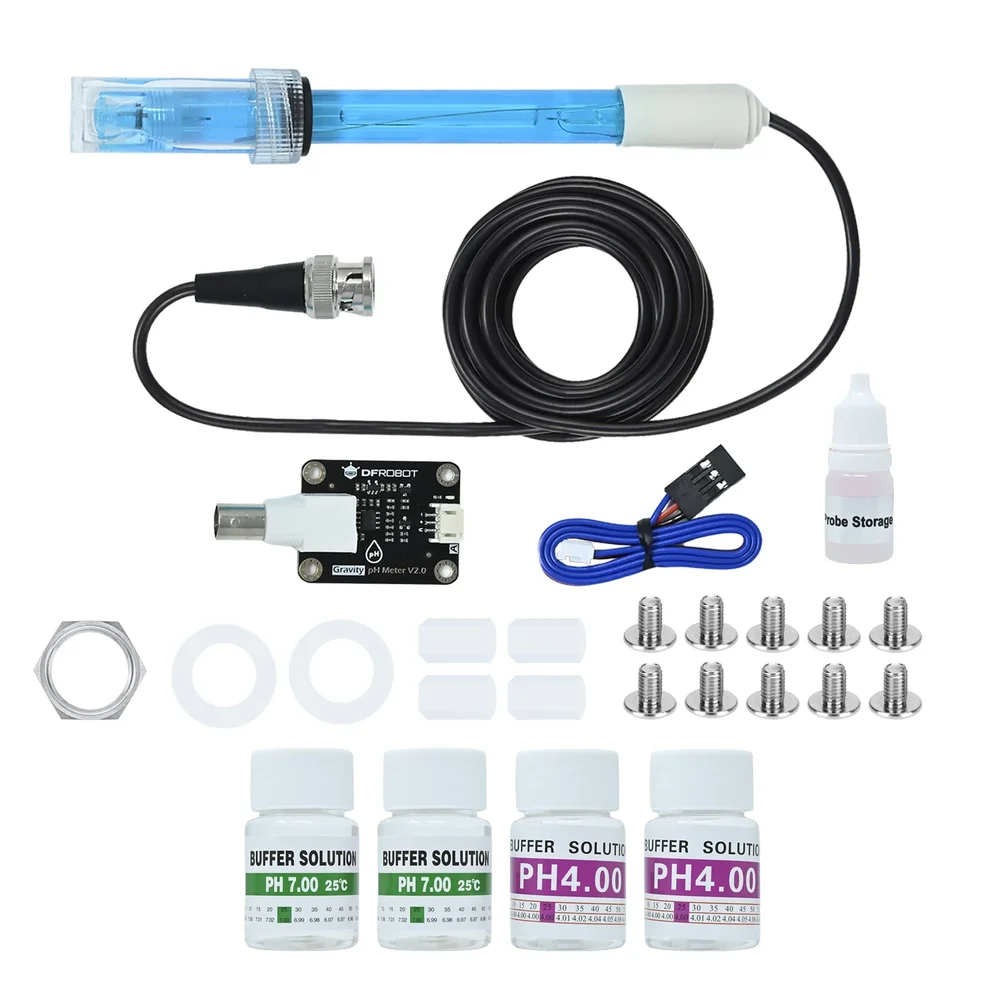

DFRobot Gravity Lab Grade Analog pH Sensor/Meter Kit V2 - BNC Probe, PH2.0-3P Connector
The DFRobot Gravity Lab Grade Analog pH Sensor/Meter Kit V2 is a precision instrument for measuring solution acidity/alkalinity (0-14 pH) with a 0-3V analog output. It features a wide 3.3-5.5V supply range for direct compatibility with Arduino, Raspberry Pi, ESP32, and other 3.3V/5V microcontrollers via its plug-and-play Gravity PH2.0-3P connector.
Features

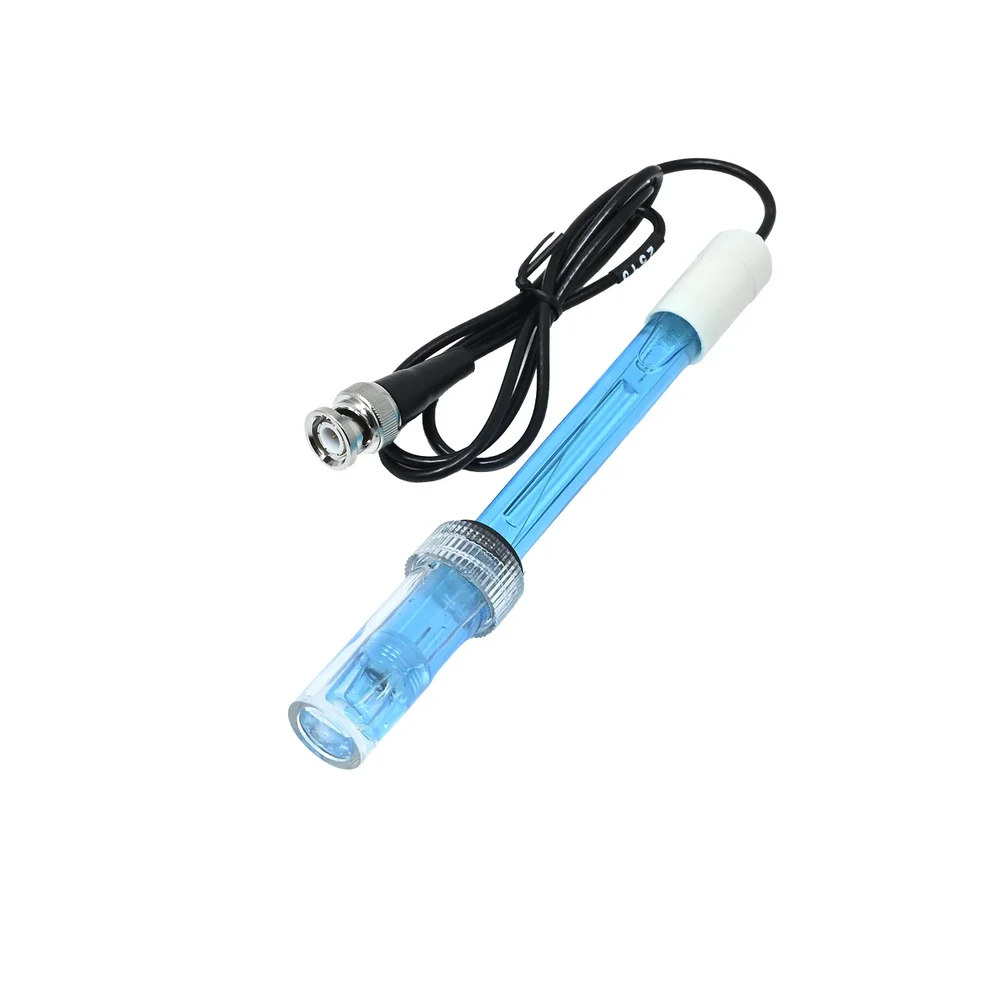

- Laboratory-grade pH probe with BNC connector for accurate 0-14 pH measurement (±0.1 accuracy at 25°C).
- Wide 3.3-5.5V operating voltage compatible with 5V & 3.3V logic systems (Arduino, Raspberry Pi, ESP32).
- Hardware-filtered 0-3.0V analog output signal for stable, low-jitter readings.
- Plug-and-play design with Gravity PH2.0-3P signal connector and BNC probe, requiring no soldering.

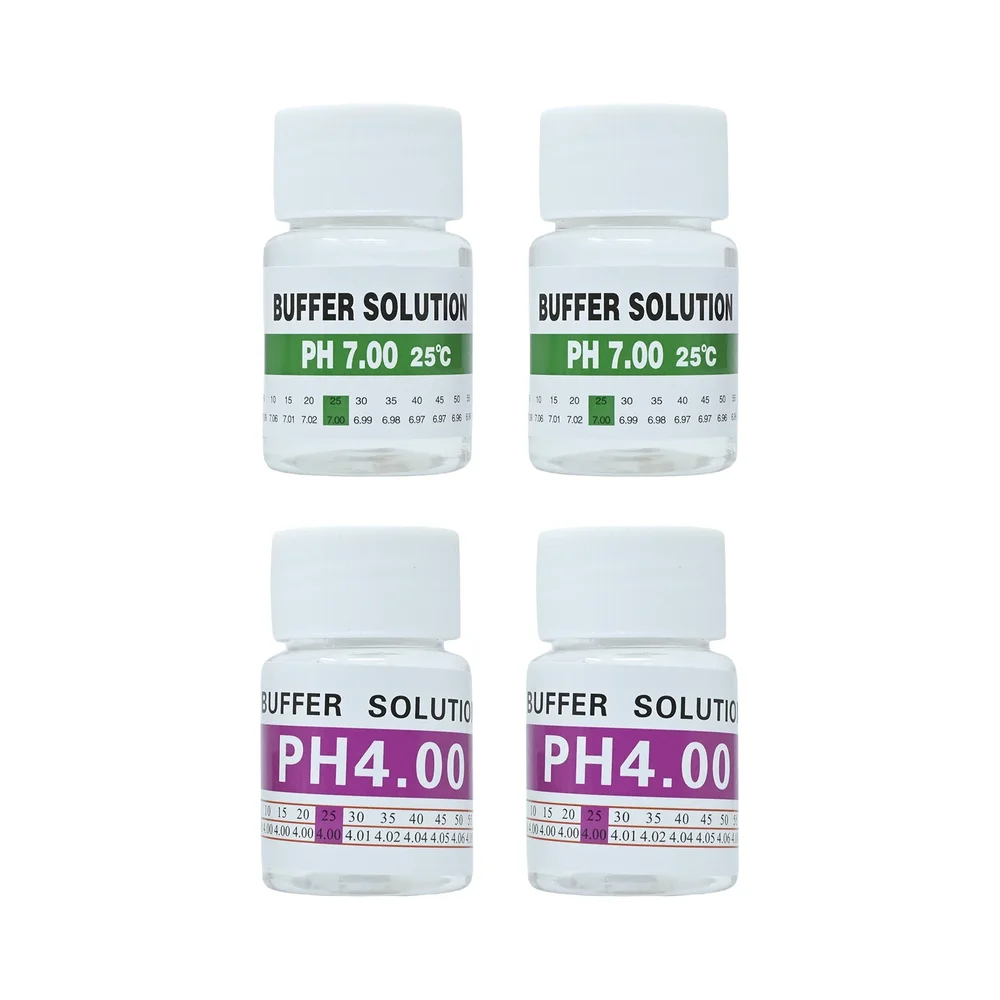

- Software library supports two-point calibration with automatic identification of 4.0 and 7.0 pH standard buffer solutions.
Out of stock

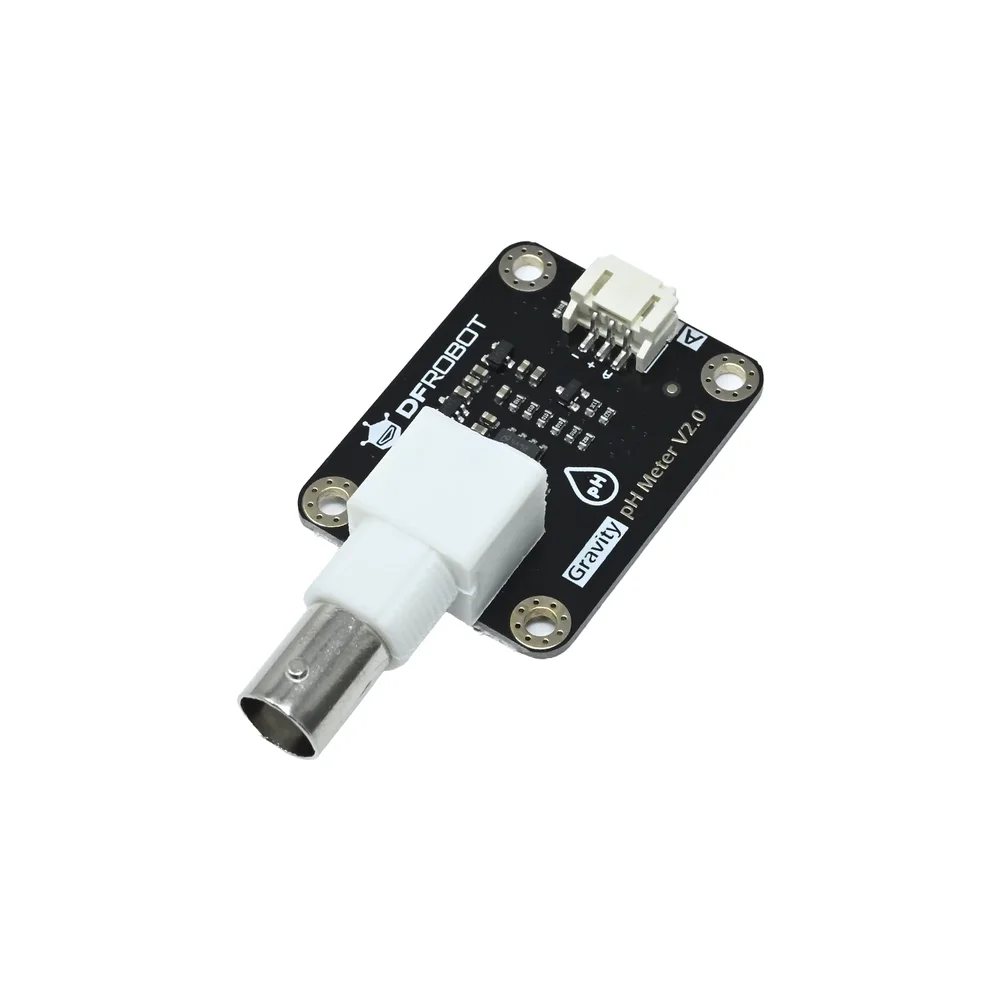

The DFRobot Gravity Analog pH Meter V2 is an upgraded sensor module designed for precise measurement of solution pH, reflecting its acidity or alkalinity. It employs a laboratory-grade glass electrode probe connected via a standard BNC interface, providing a stable analog voltage signal proportional to the pH value. The onboard voltage regulator and signal conditioning circuitry ensure a clean, low-jitter output suitable for direct ADC input on microcontrollers.
This version features improved precision and a user-friendly software library that simplifies the critical two-point calibration process. The module operates reliably across a broad temperature range of 0°C to 60°C, making it suitable for applications in aquaponics, hydroponics, aquaculture, and environmental water quality monitoring where robust and accurate pH data is essential.
Additional Information
| Weight | 0.34 kg |
|---|---|
| Dimensions | 4.2 × 3.2 cm |
