DFRobot Gravity I2C BME680 Environmental Sensor - Temperature, Humidity, Pressure & VOC
The DFRobot Gravity I2C BME680 Environmental Sensor is a 4-in-1 MEMS module integrating VOC, temperature, humidity, and barometric pressure sensing. Featuring a plug-and-play Gravity I2C connector and onboard voltage regulation, it is directly compatible with 3.3V and 5V systems like Arduino, Raspberry Pi, and ESP32 for comprehensive environmental monitoring.
Features
- 4-in-1 MEMS sensor integrates VOC, temperature, humidity, and barometric pressure.
- Gravity I2C connector for plug-and-play compatibility with 3.3V/5V microcontrollers.

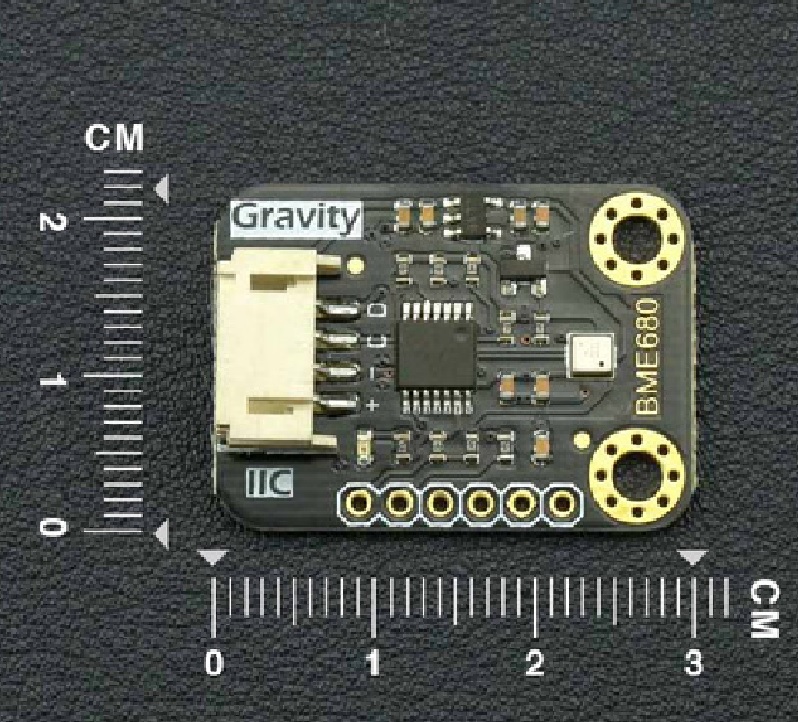

- Low power consumption (~5mA operating current) and compact footprint (30x22mm).
- Onboard voltage regulator and level translator for robust system integration.
- Reserved XH2.54 SPI connector for advanced interface expansion.
Out of stock

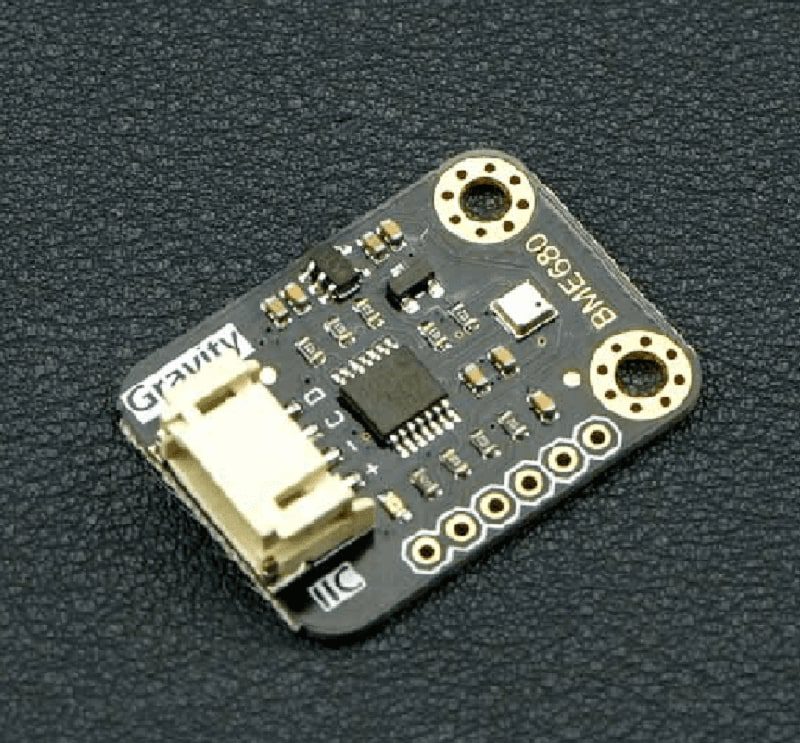

The DFRobot Gravity BME680 Environmental Sensor is based on the Bosch BME680 MEMS chip, a highly integrated environmental sensing solution. It employs a metal-oxide (MOX) sensor for detecting a wide range of volatile organic compounds (VOCs), providing an Indoor Air Quality (IAQ) index. Simultaneously, it delivers precise readings for temperature, relative humidity, and barometric pressure, making it a comprehensive tool for environmental data acquisition.
Designed for ease of integration, the module features the standard DFRobot Gravity I2C interface, allowing for daisy-chaining with other Gravity series sensors. The onboard circuitry ensures stable operation across a 3.3V to 5V DC supply range, making it suitable for a wide array of development platforms including Arduino, ESP8266/32, Raspberry Pi, and industrial data loggers. The compact form factor and low power profile enable deployment in portable, battery-powered IoT and wearable applications.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 3 × 2.2 cm |
