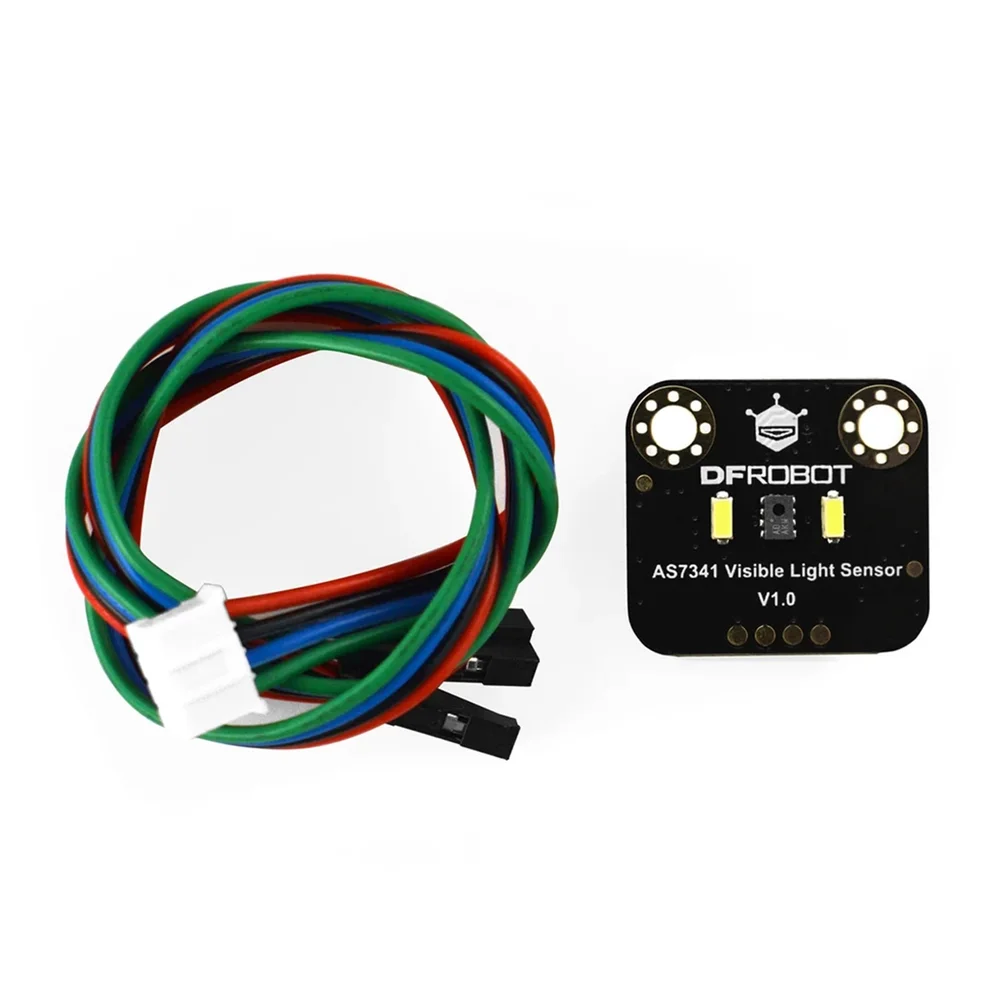

DFRobot Gravity AS7341 11-Channel Visible Light Sensor - I2C Interface
The DFRobot Gravity AS7341 is an 11-channel spectral sensor module compatible with 3.3V/5V systems like Arduino, Raspberry Pi, and ESP32. It provides high-resolution color analysis across eight visible light bands, plus near-IR and flicker detection channels for precise lighting and colorimetric applications.
Features
- 11-channel spectral sensing: 8 visible light bands, 1 near-IR channel, 1 clear channel.
- Integrated 50Hz/60Hz ambient light flicker detection for stable lighting control.
- Six independent 16-bit ADC channels for parallel, high-precision data acquisition.

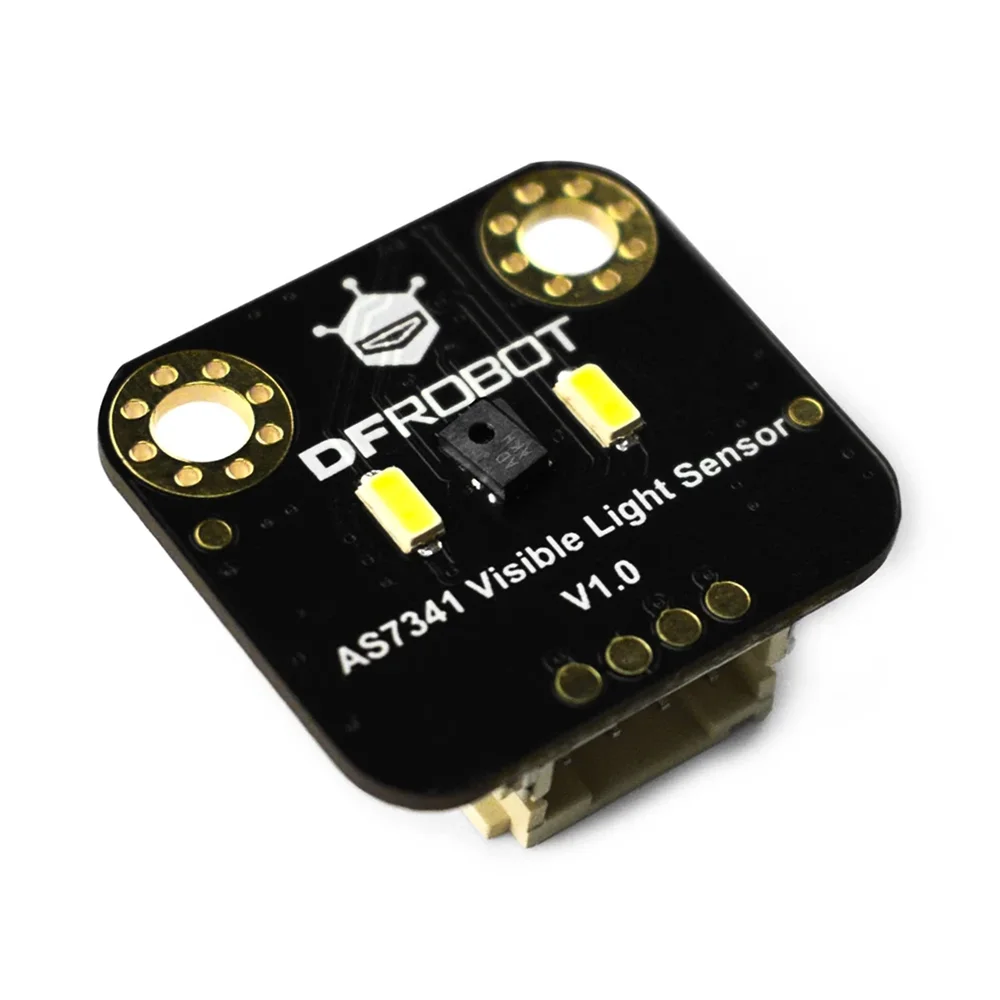

- Onboard high-brightness LEDs for illumination in low-light conditions.

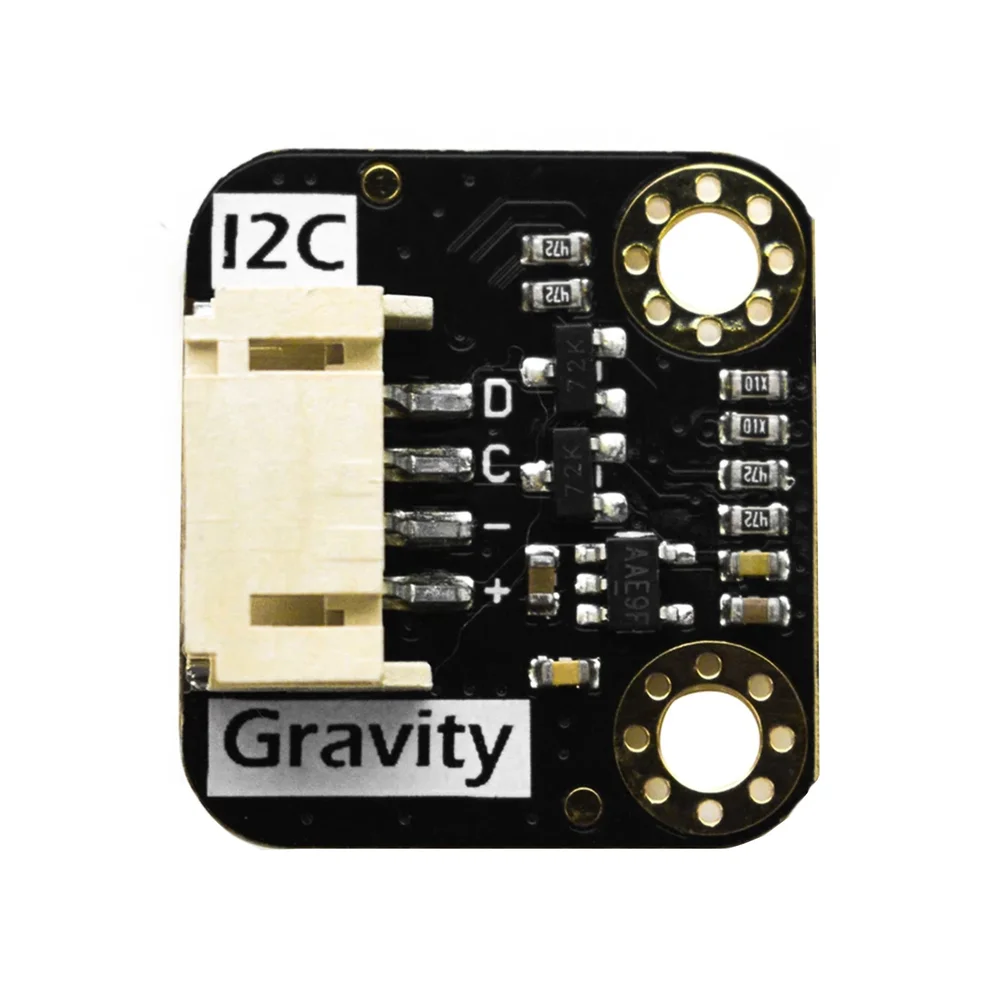

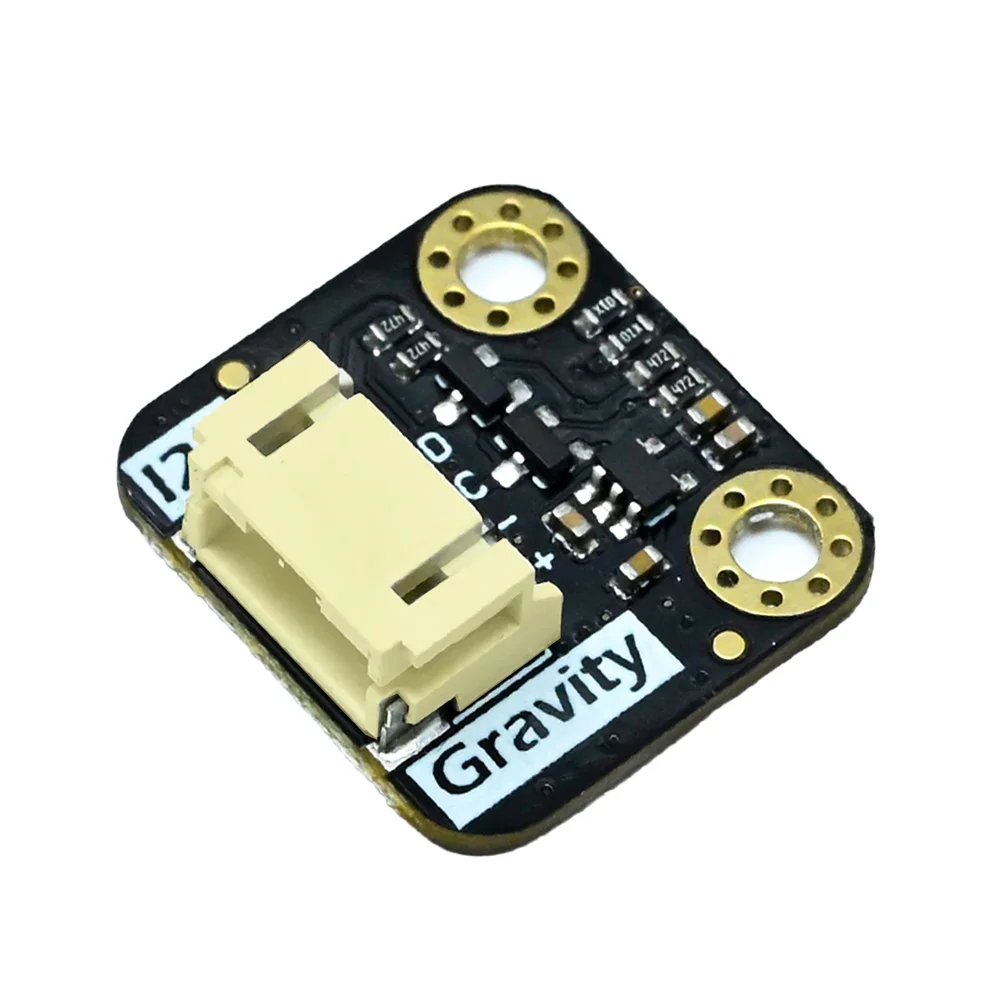

- Gravity-series connector for plug-and-play compatibility with DFRobot ecosystem and standard I2C interface.
Out of stock
The DFRobot Gravity AS7341 Visible Light Sensor employs the advanced AS7341 spectral sensor IC from ams OSRAM AG. It utilizes a configurable array of optical filters to dissect incoming light into eight specific wavelength bands across the visible spectrum (405–690nm), alongside dedicated channels for near-infrared and unfiltered light measurement. This enables precise spectral analysis far beyond simple RGB sensing.
The module integrates six independent 16-bit analog-to-digital converters, allowing simultaneous sampling for high-speed, accurate color data capture. An integrated flicker detection engine identifies 50Hz or 60Hz artificial lighting interference, critical for stable readings in indoor environments. Two onboard high-current LEDs provide supplemental illumination, ensuring reliable sensor operation in dark or controlled lighting setups.
Additional Information
| Weight | 0.02 kg |
|---|---|

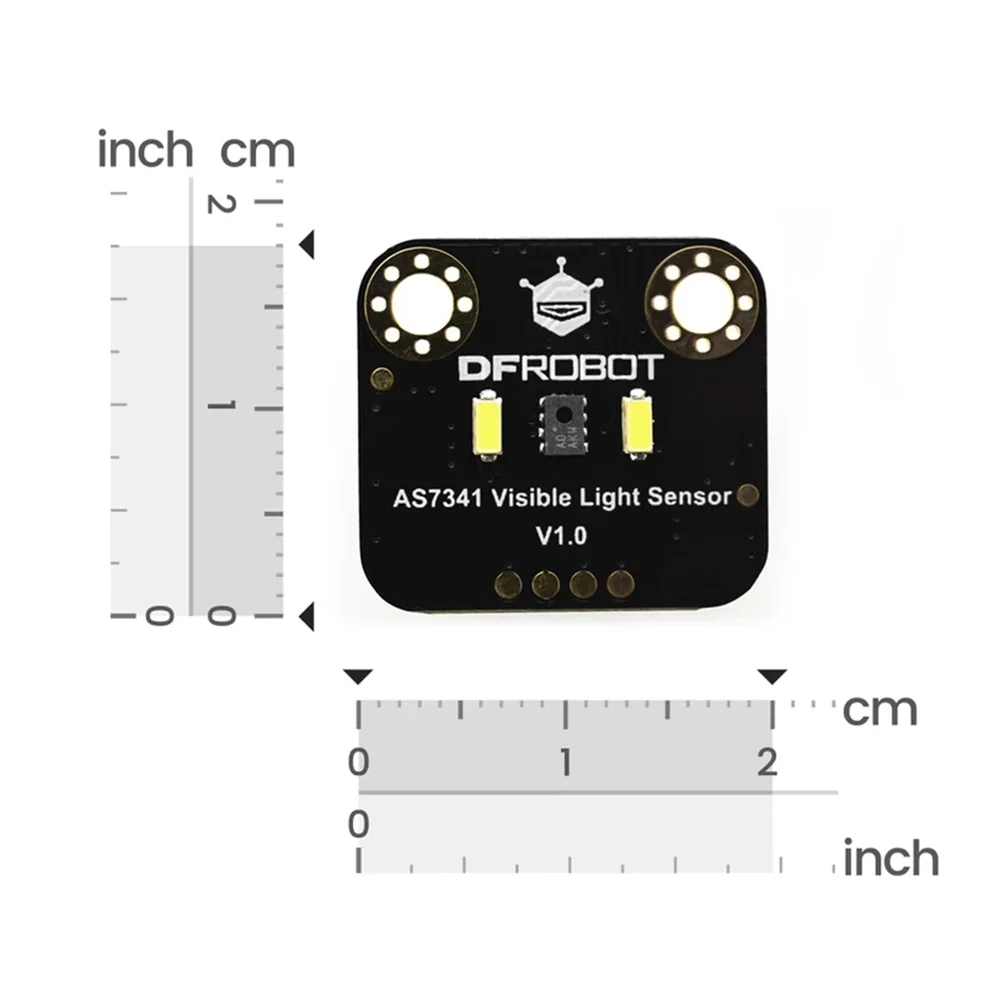

| Dimensions | 2.2 × 2 cm |
