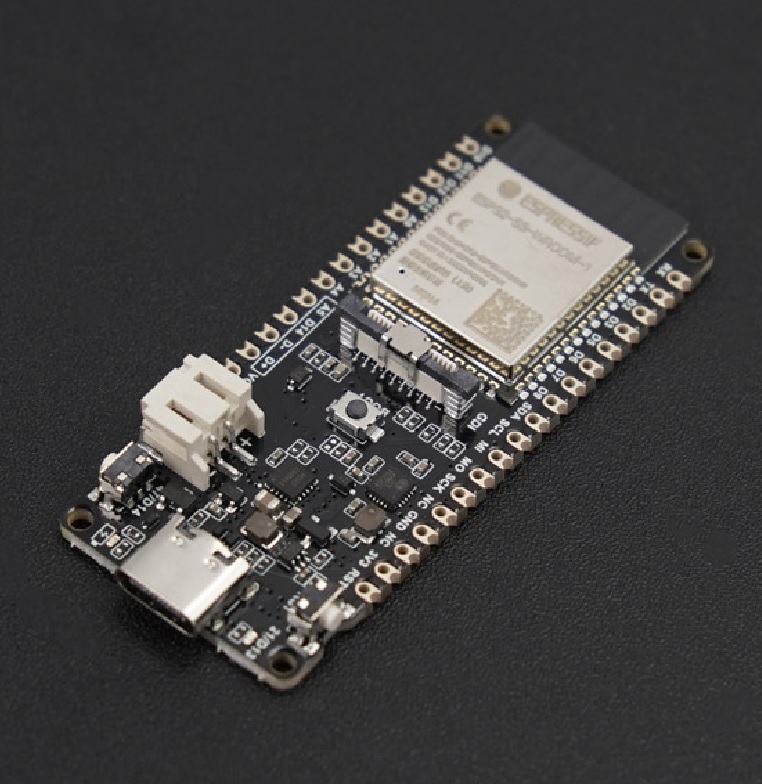

DFRobot FireBeetle 2 ESP32-S3 N4 IoT Microcontroller - WiFi & Bluetooth 5.0 AI Board
DFRobot FireBeetle 2 ESP32-S3 N4 IoT Microcontroller - WiFi & Bluetooth 5.0 AI Board - Image 2

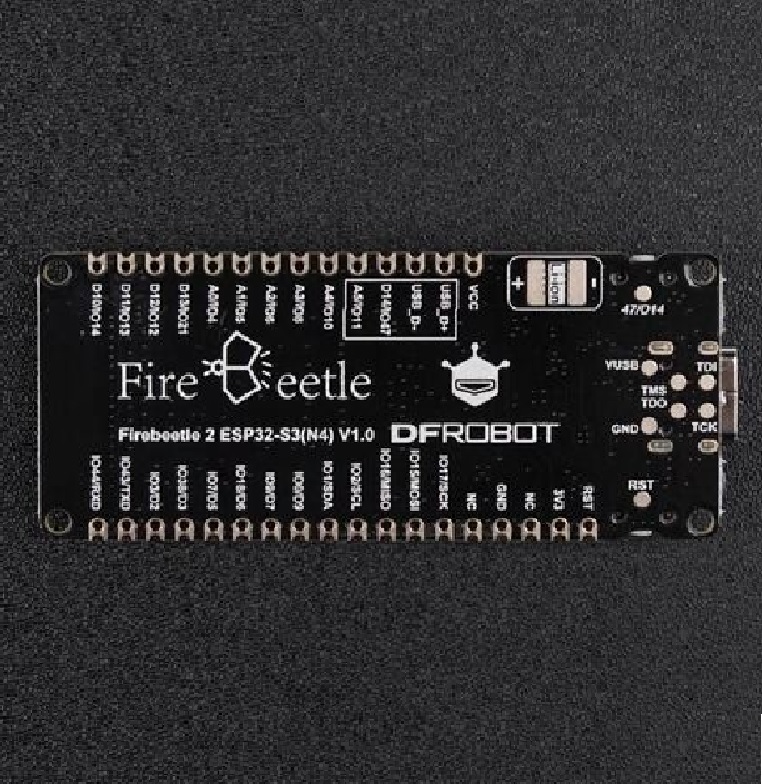

DFRobot FireBeetle 2 ESP32-S3 N4 IoT Microcontroller - WiFi & Bluetooth 5.0 AI Board - Image 3
SKU: SENS-2978
📋 GST Invoice Available

DFRobot FireBeetle 2 ESP32-S3 N4 IoT Microcontroller - WiFi & Bluetooth 5.0 AI Board

₹1,649.00 (Inclusive of all taxes)
Out of Stock

The DFRobot FireBeetle 2 ESP32-S3 (N4) is a compact IoT microcontroller board based on the Espressif ESP32-S3-WROOM-1-N4 module, featuring a dual-core 240MHz processor, 4MB Flash, and integrated WiFi & Bluetooth 5.0 connectivity. It is designed for AIoT edge computing, sensor data acquisition, and control applications, compatible with Arduino IDE, ESP-IDF, and MicroPython.

Features

  • Powered by ESP32-S3 dual-core LX7 processor with AI acceleration for edge computing tasks.
  • Integrated 2.4GHz WiFi (802.11b/g/n) and Bluetooth 5 (LE/Mesh) dual-mode communication.
  • Compact 60mm x 25.4mm form factor with rich I/O: 26x GPIO, 2x I2C, 3x UART, 2x SPI, 2x I2S.
  • Supports dual power input via USB-C (5V) or PH2.0 connector for 3.7V Li-ion battery with onboard charging.
  • Compatible with FireBeetle V2 ecosystem and programmable via Arduino, ESP-IDF, or MicroPython.

Out of stock

Description

The FireBeetle 2 ESP32-S3 (N4) is a feature-rich main control board built around the Espressif ESP32-S3-WROOM-1-N4 module. Its Xtensa® dual-core 32-bit LX7 microprocessor operates at up to 240 MHz, supported by 512KB SRAM and 4MB of Flash memory, providing substantial computational headroom for embedded IoT and low-power AI inference tasks. The board integrates a comprehensive power management system supporting lithium battery charging and hardware power control.

Its communication suite includes a 2.4GHz IEEE 802.11b/g/n Wi-Fi interface with Station, SoftAP, and mixed modes, alongside Bluetooth 5.0 LE and mesh networking capabilities. The extensive peripheral set includes multiple SPI, UART, I2C, and I2S interfaces, a dedicated GDI display connector, PWM channels, infrared transceivers, and 20-channel 12-bit SAR ADCs, making it a versatile hub for sensor networks and actuator control in industrial and prototyping environments.

Key Features

  • AI-Enhanced Processing: ESP32-S3 dual-core processor with Vector Technics instructions for accelerated machine learning operations at the edge.
  • Robust Wireless Connectivity: Integrated 2.4GHz Wi-Fi and Bluetooth 5.0 with LE and mesh support for flexible network topologies.
  • Comprehensive I/O Expansion: Provides 26 digital I/O pins, multiple serial interfaces (UART, I2C, SPI, I2S), and high-resolution ADC channels for sensor integration.
  • Flexible Power Architecture: Supports USB-C (5V) or Li-ion battery (3.7V) input with onboard battery charging and power management IC.
  • Developer-Friendly Ecosystem: Fully compatible with Arduino IDE, ESP-IDF, and MicroPython, accelerating firmware development and deployment.
  • Compact & Durable Design: Small footprint (60x25.4mm) and FireBeetle V2 series compatibility for space-constrained and embedded system designs.

Applications

  • Wireless sensor node for industrial condition monitoring (temperature, vibration, gas).
  • Edge AI gateway for localized image recognition or predictive maintenance analytics.
  • Smart agriculture controller managing soil moisture sensors, weather stations, and irrigation valves via Bluetooth mesh.
  • Prototyping platform for IoT product development, integrating multiple sensor modules via I2C/SPI.
  • Embedded control unit for robotics and automation, handling motor PWM control and sensor feedback.

Technical Specifications

Core ModuleESP32-S3-WROOM-1-N4
ProcessorXtensa® dual-core 32-bit LX7
Clock FrequencyUp to 240 MHz
SRAM512 KB
Flash Memory4 MB
WiFi ProtocolIEEE 802.11 b/g/n (2.4 GHz)
BluetoothBluetooth 5.0 LE & Mesh
Digital I/O26 pins
Analog Input (ADC)2 x 12-bit SAR, 20 channels
Communication InterfacesUART x3, I2C x2, SPI x2, I2S x2
USB InterfaceUSB 2.0 OTG (Full-Speed)
Input VoltageUSB-C: 5V DC; PH2.0: 3.7V Li-ion; VCC Pin: 5V DC
Dimensions (L x W)60 mm x 25.4 mm
Programming SupportArduino IDE, ESP-IDF, MicroPython

Frequently Asked Questions

What are the power input options for the FireBeetle 2 ESP32-S3 board?

The board supports three primary power inputs: a USB-C port for 5V DC, a PH2.0 connector for a 3.7V Li-ion battery (with onboard charging circuitry), and the VCC pin which also accepts 5V DC. The integrated power management unit automatically handles power source selection and battery charging.

Does this board support camera interfaces for computer vision projects?

No, the FireBeetle 2 ESP32-S3 (N4) model does not include a dedicated camera interface (DVP or MIPI-CSI). It is optimized for general-purpose IoT, sensor data acquisition, and low-computational AI tasks using its built-in AI acceleration instructions, not for direct image sensor connectivity.

What programming environments are supported for firmware development?

Development is supported in multiple environments: the Arduino IDE using the ESP32 board package, Espressif's official ESP-IDF framework for full feature access, and MicroPython for rapid scripting. The board's bootloader and exposed serial pins facilitate easy flashing via the USB-C port.

How many analog input channels are available and what is their resolution?

The board provides access to 20 analog input channels via two 12-bit Successive Approximation Register (SAR) Analog-to-Digital Converters (ADCs). These channels are suitable for reading a wide range of analog sensor outputs, such as voltage, potentiometers, or various environmental sensors.

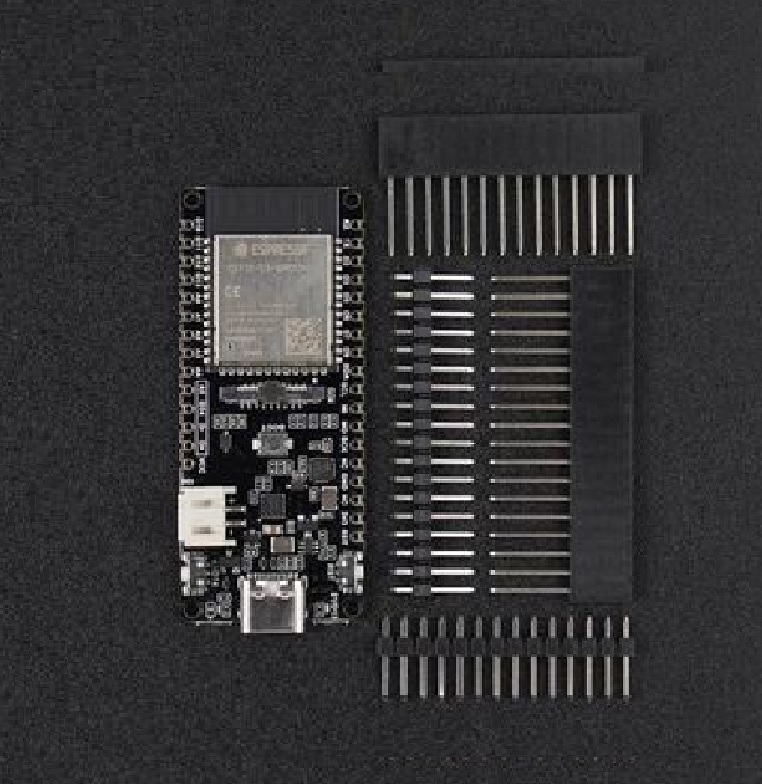

Package Includes

  • 1 x FireBeetle 2 ESP32-S3 (N4) IoT Microcontroller Board
  • 1 x 18-pin 2.54mm pitch male header
  • 1 x 18-pin 2.54mm pitch female header
  • 1 x 14-pin 2.54mm pitch male header
  • 1 x 14-pin 2.54mm pitch female header

Additional Information

Weight 0.015 kg
Dimensions 6 × 2.54 cm
