SKU: SBCD-1478
📋 GST Invoice Available

Raspberry Pi Zero W Starter Kit

₹2,519.00 (Inclusive of all taxes)
Out of Stock

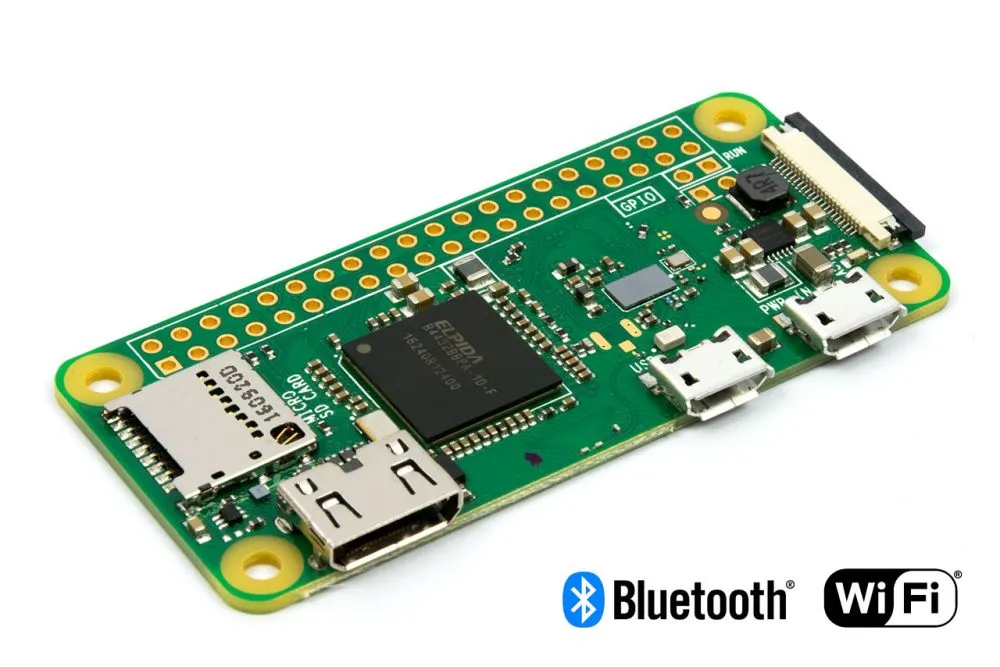

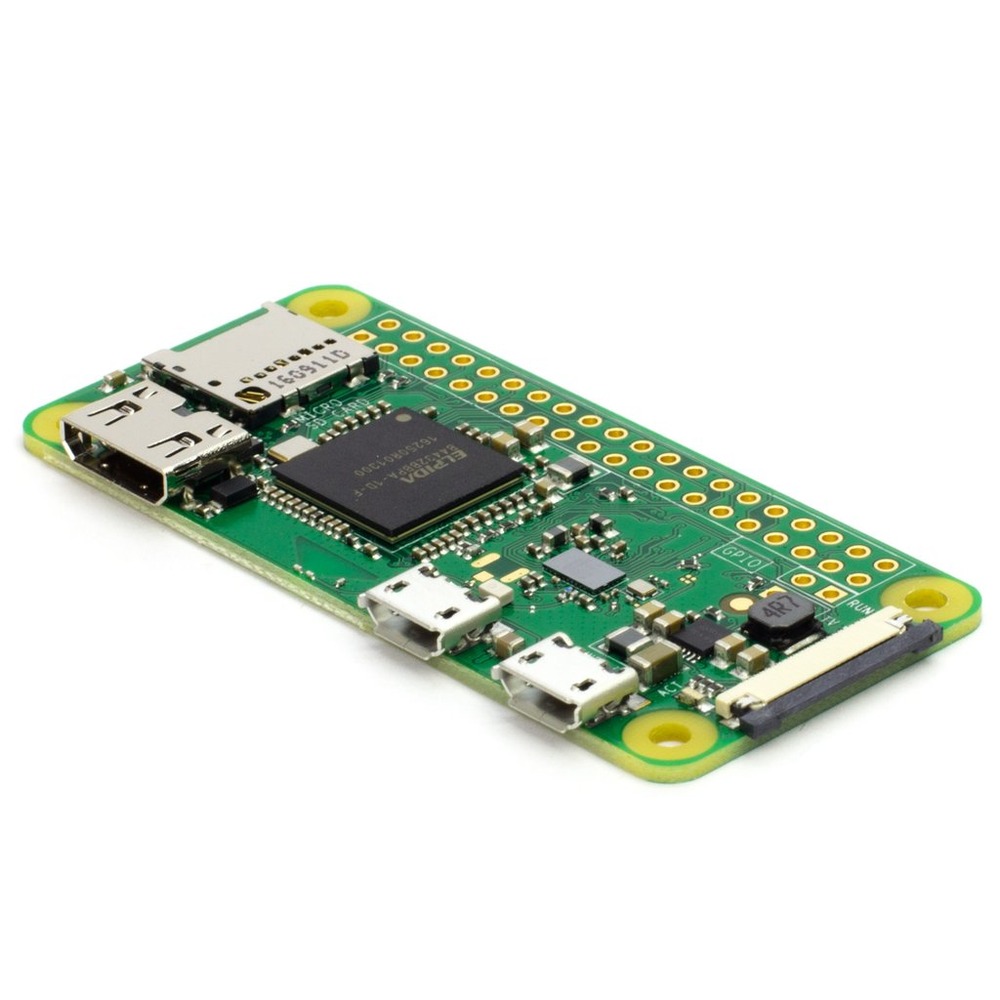

This Raspberry Pi Zero W Starter Kit provides a complete platform for embedded projects, featuring a 1GHz BCM2835 processor, 512MB RAM, and integrated WiFi and Bluetooth 4.1 LE for immediate wireless connectivity. It is an ideal, cost-effective solution for compact IoT and DIY applications.

Features

  • Integrated WiFi (BCM43143) and Bluetooth 4.1 LE for robust wireless communication.
  • Powered by a 1GHz Broadcom BCM2835 ARM11 single-core processor with 512MB LPDDR2 SDRAM.
  • Ultra-compact 65 x 30 mm form factor, perfect for space-constrained projects.
  • Includes essential accessories: official case, power supply, HDMI adapter, USB adapter, and 16GB SD card.
  • Features mini-HDMI, micro-B USB for data/power, and an unpopulated 40-pin GPIO header.

Out of stock

Description

The Raspberry Pi Zero W builds upon the ultra-compact design of the original Pi Zero, significantly enhancing its capabilities with integrated wireless communication. This starter kit provides everything needed to get up and running, including the Zero W board itself, a versatile official case, a 16GB microSD card pre-loaded with an operating system, and all necessary adapters for power and connectivity.

Equipped with a 1GHz BCM2835 ARM11 processor and 512MB of LPDDR2 SDRAM, the Zero W delivers performance comparable to the original Raspberry Pi 1, all within a minuscule footprint. The standout feature is its integrated BCM43143 chip, which provides 2.4 GHz 802.11n Wi-Fi and Bluetooth 4.1 with Low Energy (BLE) support. This eliminates the need for external wireless dongles, making it an excellent foundation for IoT solutions, embedded sensing, and other connected projects.

Connectivity options include a mini-HDMI port for video output, a micro-B USB port that supports OTG for data and also serves as the power input, and an unpopulated 40-pin GPIO header compatible with existing Raspberry Pi HATs. The kit’s included accessories ensure seamless integration into various setups, offering a robust and flexible platform for developers and makers alike.

Key Features

  • **Processor:** Broadcom BCM2835 SoC (32-bit ARM-based processor)
  • **CPU Speed:** 1GHz
  • **RAM:** 512MB LPDDR2 SDRAM
  • **Wireless Connectivity:** Integrated 2.4 GHz 802.11n WiFi (BCM43143 chip)
  • **Bluetooth:** Integrated Bluetooth 4.1 with Low Energy (BLE) support
  • **Video & Audio Output:** mini-HDMI port
  • **USB Port:** 1x micro-B USB for data (OTG capable) and power input
  • **Camera Interface:** CSI camera connector (requires adaptor cable, 0.5mm pitch)
  • **GPIO:** Unpopulated 40-pin GPIO connector, compatible with Raspberry Pi Zero and Raspberry Pi 3 HATs
  • **Power Input:** 5V via micro-B USB
  • **Dimensions:** 65mm x 30mm x 5mm

Applications

  • Internet of Things (IoT) endpoints and gateways
  • Compact embedded sensing and control systems
  • Robotics and drone control (with external power management)
  • Retro gaming emulation and media centers
  • Educational projects and rapid prototyping
  • Low-power network appliances

Technical Specifications

SoCBroadcom BCM2835 (ARM11, 32-bit)
CPU Clock Speed1GHz
RAM512MB LPDDR2 SDRAM
Wireless2.4 GHz 802.11n Wi-Fi (BCM43143)
BluetoothBluetooth 4.1 / BLE
Video Outputmini-HDMI
USB Ports1x micro-B USB (OTG data & power)
GPIO40-pin header (unpopulated)
Camera InterfaceCSI-2 (requires adapter)
StoragemicroSD card slot
Power Input5V via micro-B USB
Dimensions65 x 30 x 5 mm
Operating SystemRaspberry Pi OS (or other ARM-compatible Linux)

Frequently Asked Questions

What is the core processor and memory on the Raspberry Pi Zero W?

The Raspberry Pi Zero W is powered by a 1GHz Broadcom BCM2835 single-core ARM11 processor, coupled with 512MB of LPDDR2 SDRAM. This combination offers a balance of performance and efficiency suitable for many compact embedded and IoT applications, maintaining a low power footprint.

How does the Raspberry Pi Zero W handle wireless connectivity?

The Zero W significantly upgrades connectivity by integrating a BCM43143 chip directly onto the board. This provides 2.4 GHz 802.11n Wi-Fi and Bluetooth 4.1 with Low Energy (BLE) support, allowing for immediate wireless network access and peripheral communication without needing external adapters.

What power supply is recommended for the Raspberry Pi Zero W?

A stable 5V power supply is required for the Raspberry Pi Zero W, typically delivered via its micro-B USB power input. While the board itself uses minimal power, a 2.5A power supply is recommended, especially when connecting multiple USB peripherals or HATs, to ensure reliable operation.

Can standard Raspberry Pi HATs be used with the Zero W?

Yes, the Raspberry Pi Zero W features the same 40-pin GPIO header layout as its larger counterparts. Although the pins are unpopulated by default, once headers are soldered, it is fully compatible with most existing Raspberry Pi HATs and pHATs, enabling broad expansion for various projects.

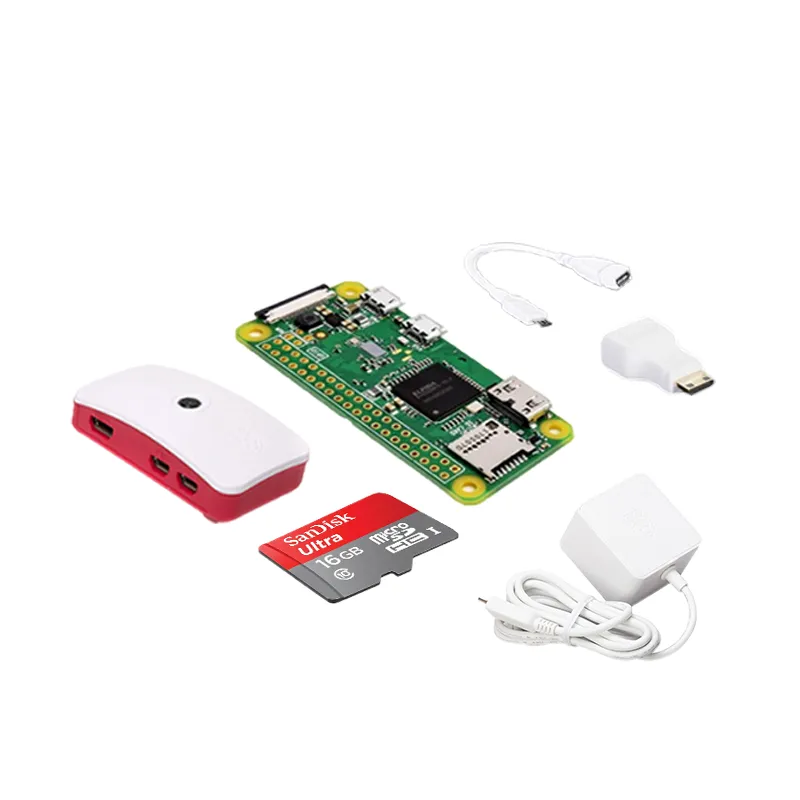

Package Includes

  • 1 x Raspberry Pi Zero W (Wireless) Board

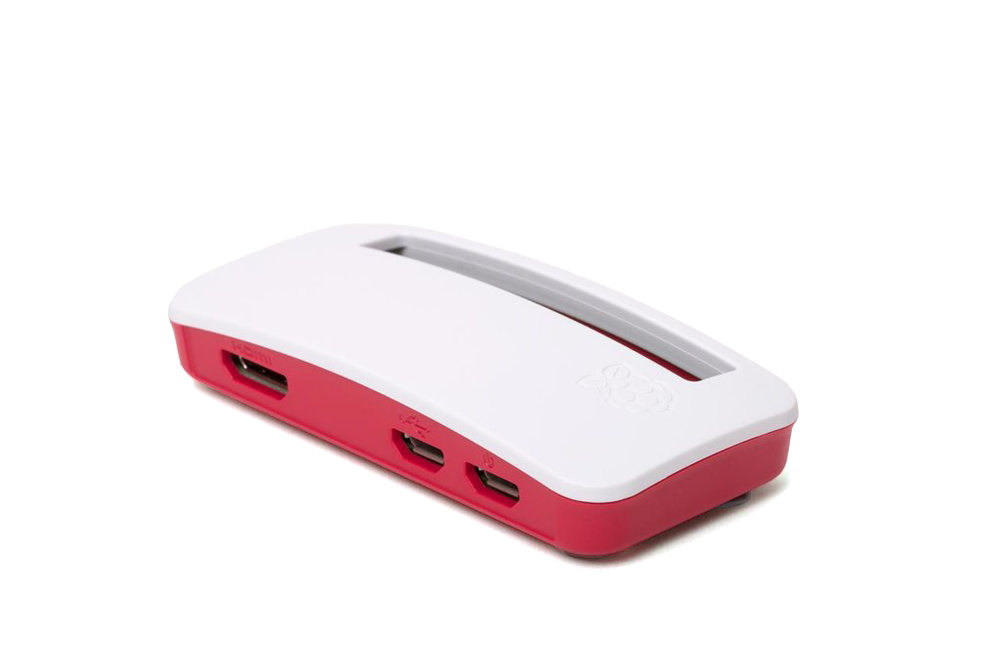

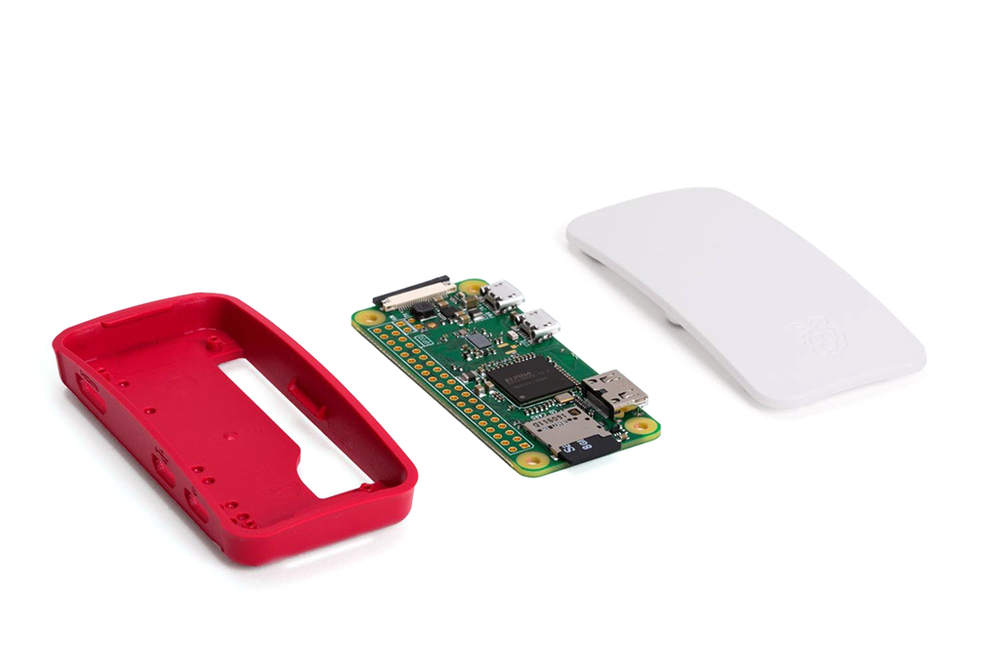

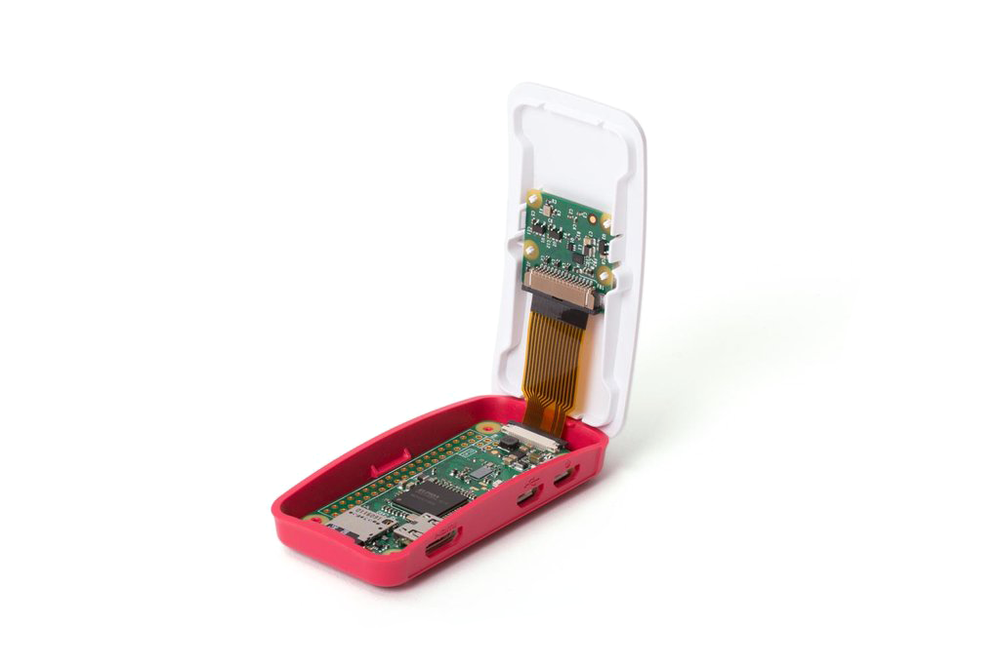

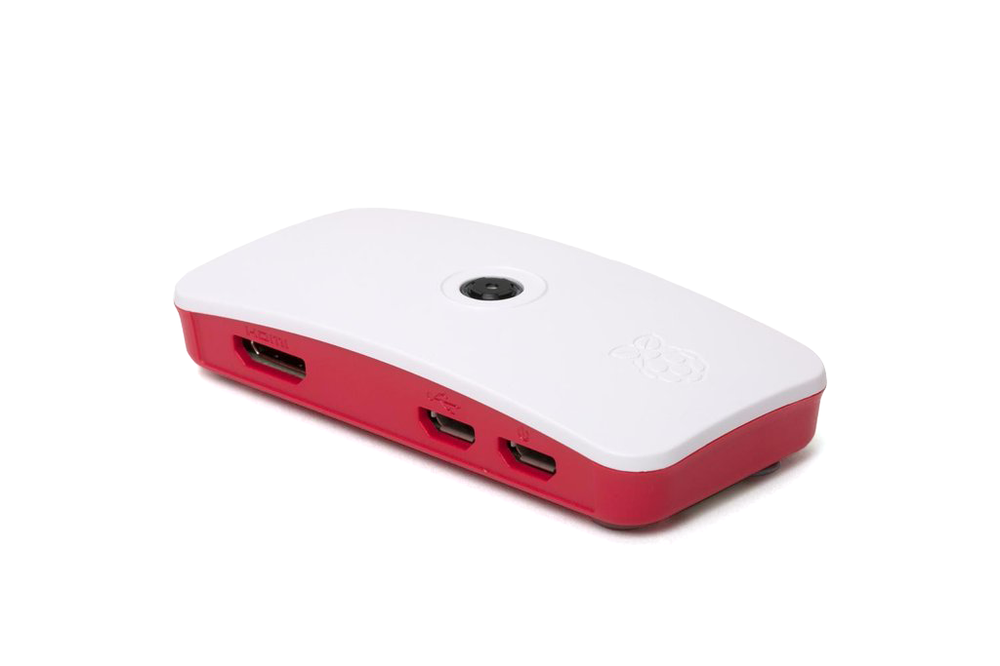

  • 1 x Official Raspberry Pi Zero / Zero W Case (with 3 lids: solid, GPIO access, camera mount)
  • 1 x Official Raspberry Pi Mini HDMI male to HDMI Female Adapter
  • 1 x Official Raspberry Pi 5.1V 2.5A Micro USB Power Supply (White)
  • 1 x SanDisk Micro SD/SDHC 16GB Class 10 Memory Card (up to 98MB/s)
  • 1 x Official Raspberry Pi USB Micro-B Male to USB-A Female Adapter (OTG cable)

Additional Information

Weight 0.04 kg
Dimensions 6.5 × 3 × 0.5 cm
