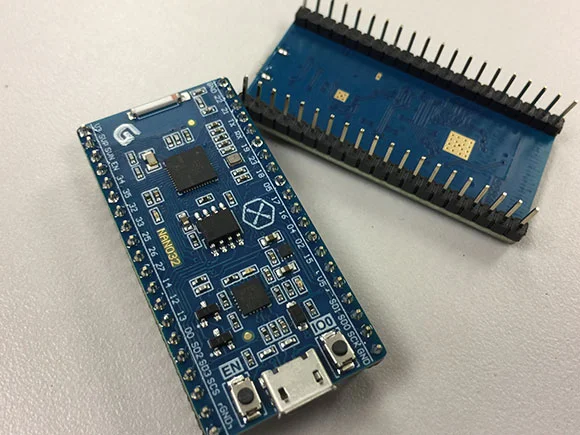

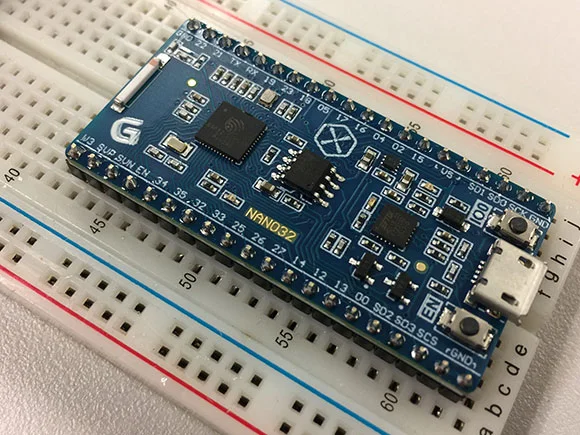

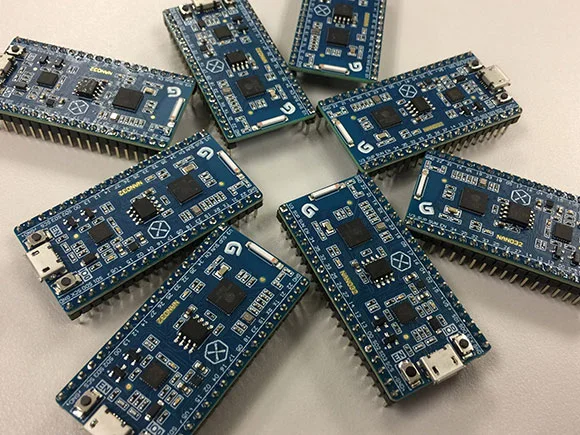

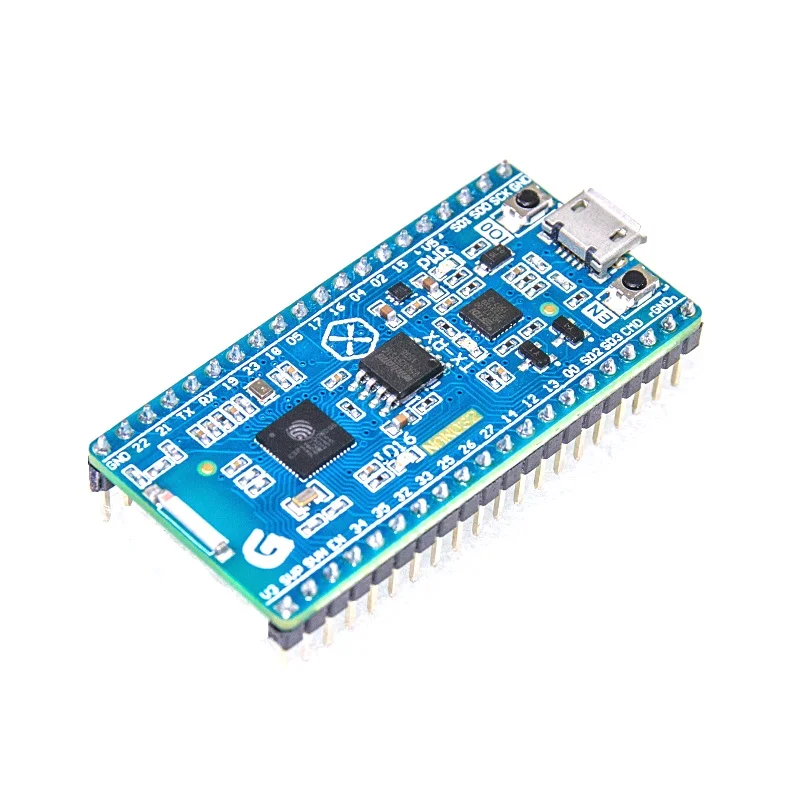

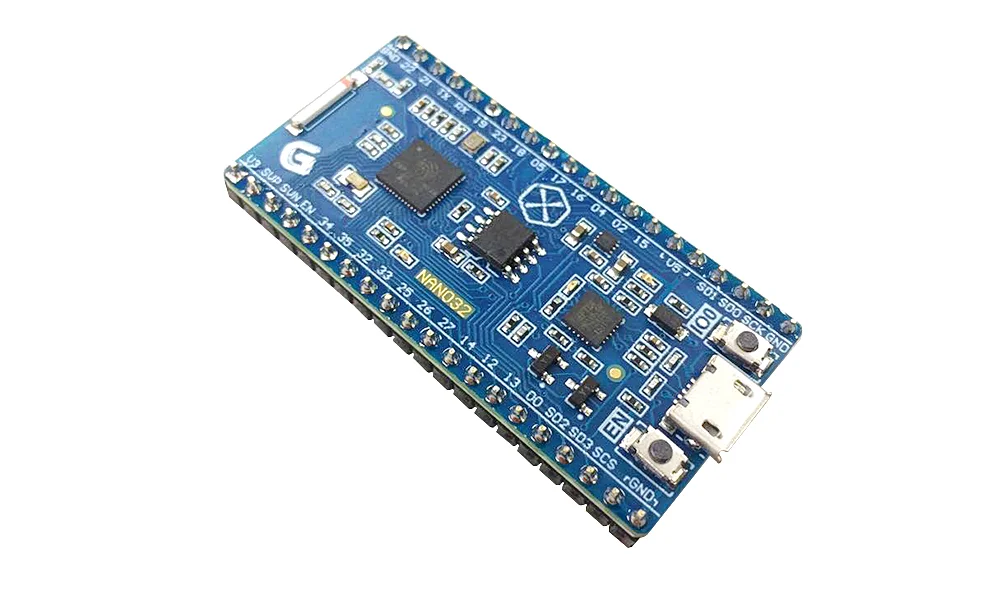

Cytron Technologies NANO32 ESP32 IoT Development Board
The Cytron Technologies NANO32 is a compact ESP32 development board featuring integrated Wi-Fi and Bluetooth BLE connectivity, 4MB flash, and an on-board FTDI USB-to-serial chip for simplified programming and power. Ideal for Arduino IDE and ESP-IDF projects requiring a small-footprint IoT node.
Features
- ESP32 SoC with integrated 2.4GHz Wi-Fi and Bluetooth 4.2 BLE for dual-mode wireless connectivity.

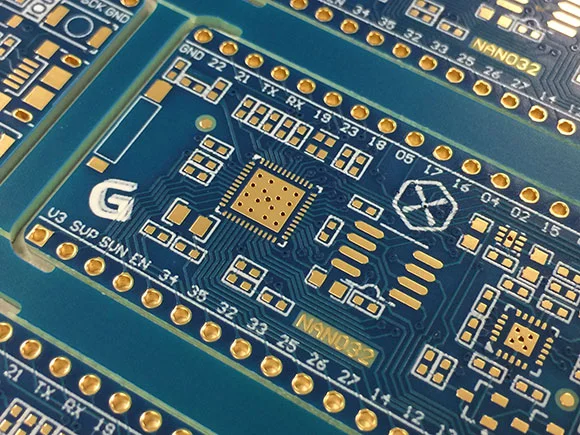

- Compact 54mm x 28mm form factor with integrated 2.5dBi peak gain PCB antenna for space-constrained projects.
- On-board FTDI231 USB-to-serial converter enables plug-and-play programming and auto-reset for firmware uploads.
- Robust 3.3V, 0.5A LDO voltage regulator (tested up to 1A) ensures stable power for peripherals.
- Features 40MHz CPU crystal and 32.768kHz RTC crystal for precise timing and low-power sleep modes.
Out of stock
The Cytron Technologies NANO32 ESP32 Development Board provides a streamlined platform for IoT prototyping and deployment. Its core is the Espressif ESP32 dual-core microcontroller, which delivers robust wireless performance with integrated 2.4GHz Wi-Fi and Bluetooth Low Energy. The board’s design prioritizes developer convenience by incorporating an FTDI231 USB-to-serial bridge, eliminating the need for an external programmer and enabling automatic bootloader reset during flashing.
Power management is handled by an efficient 3.3V LDO regulator capable of sourcing up to 0.5A continuously, with stress testing supporting peaks up to 1A for driving sensors and peripherals. The inclusion of dual crystals—a 40MHz main clock and a 32.768kHz RTC crystal—ensures accurate timing for CPU operations and enables deep sleep modes critical for battery-powered applications. The integrated PCB antenna with 2.5dBi peak gain offers a reliable wireless link without external antenna components.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5.4 × 2.8 cm |
