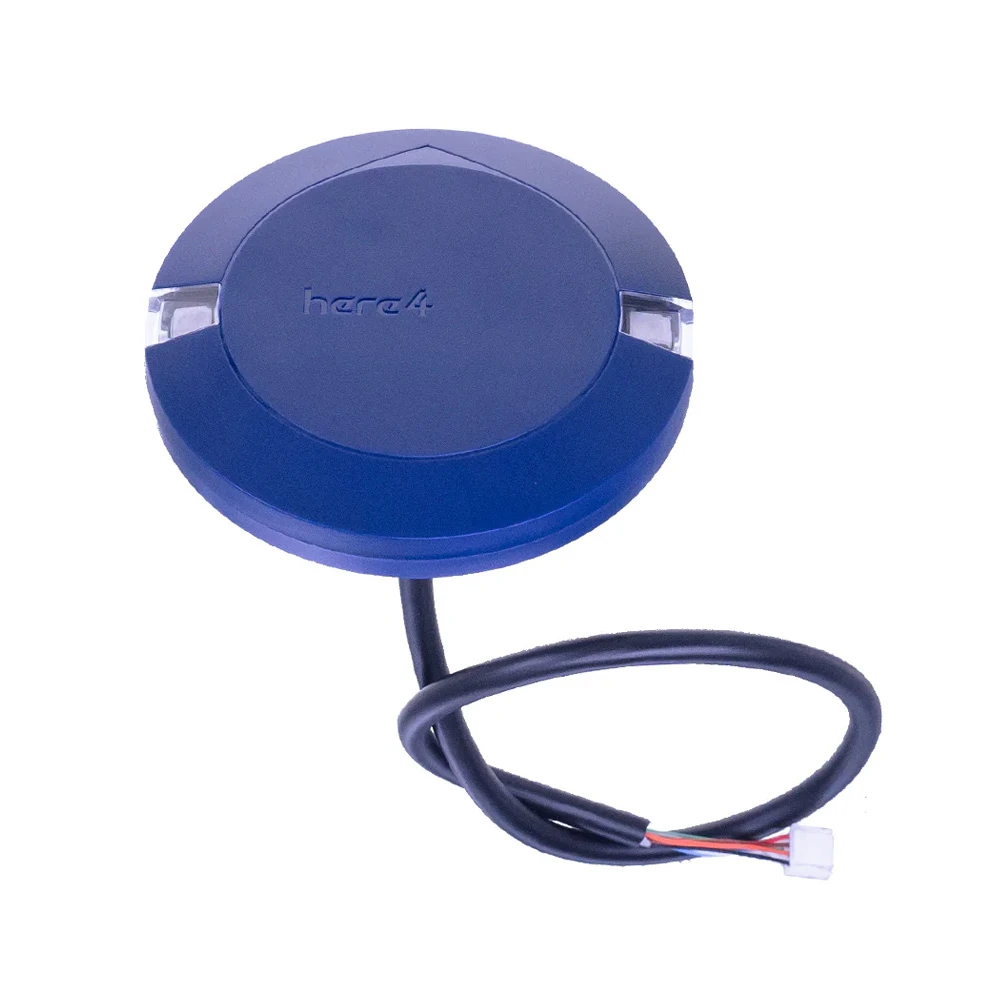

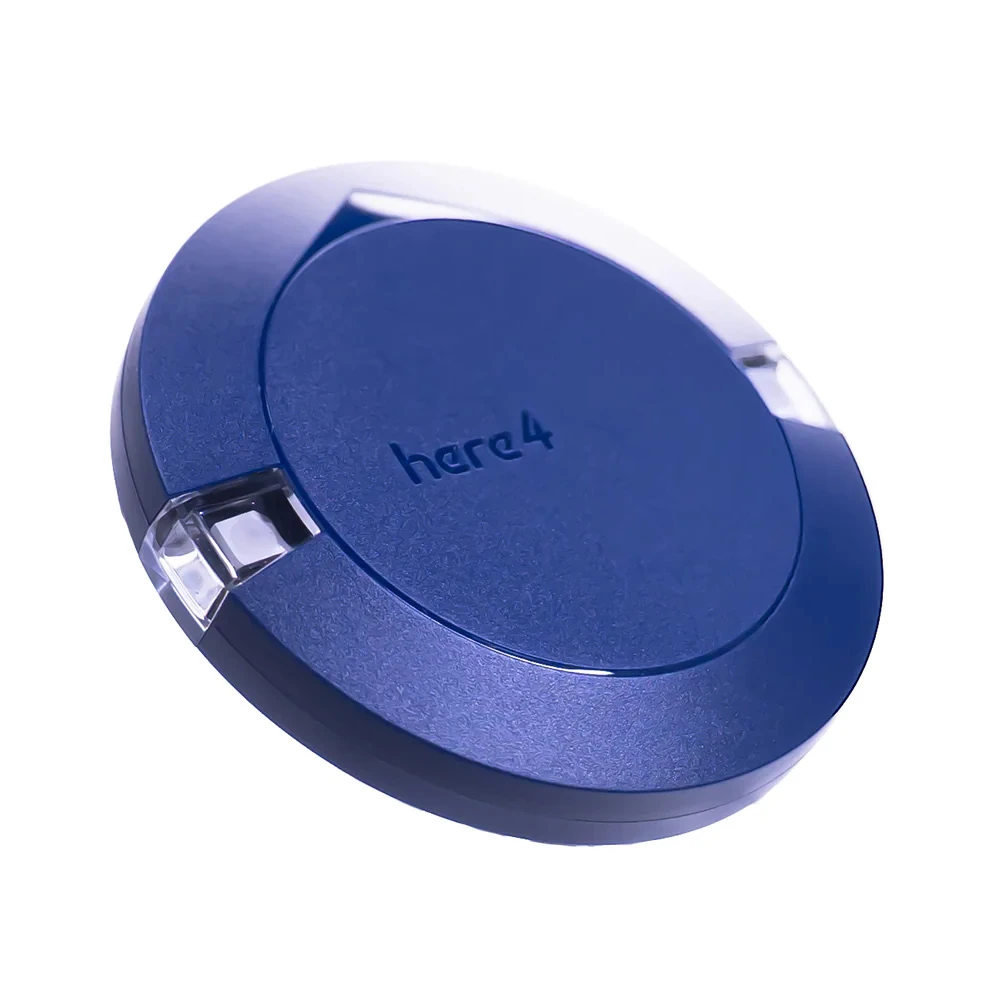

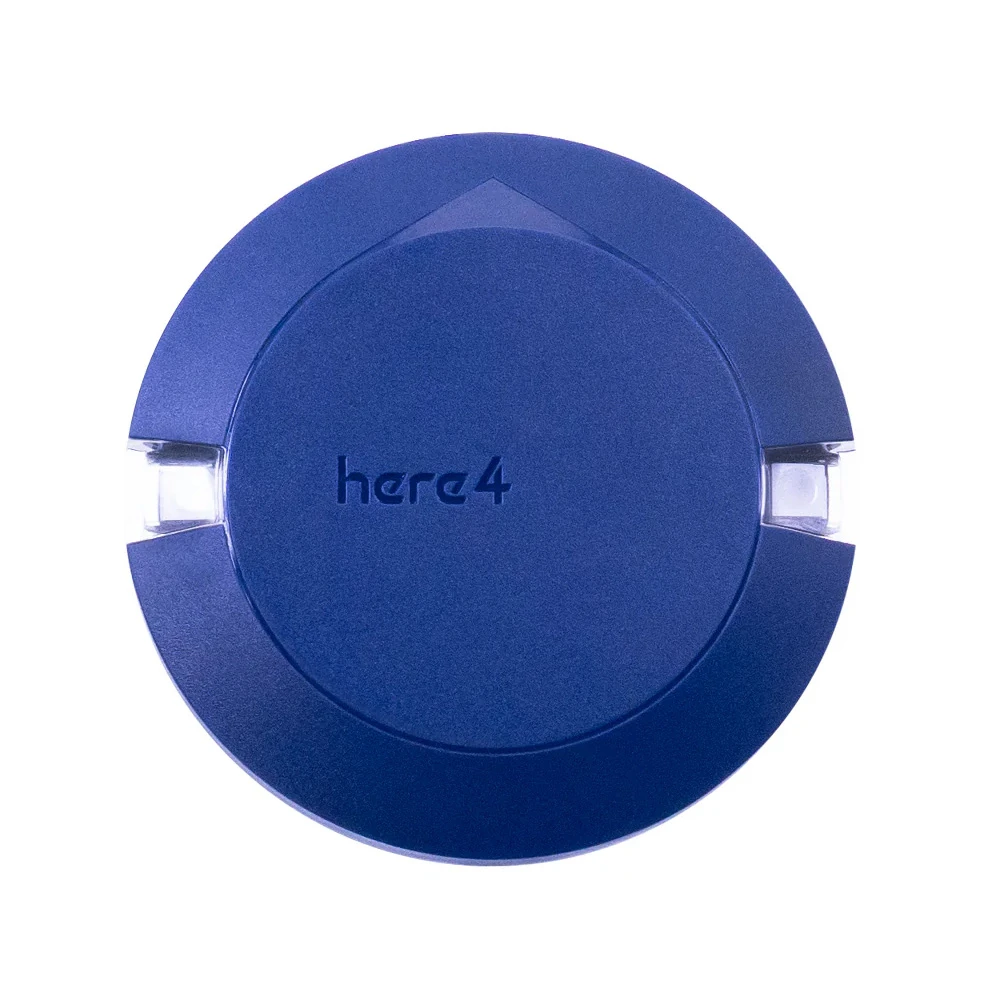

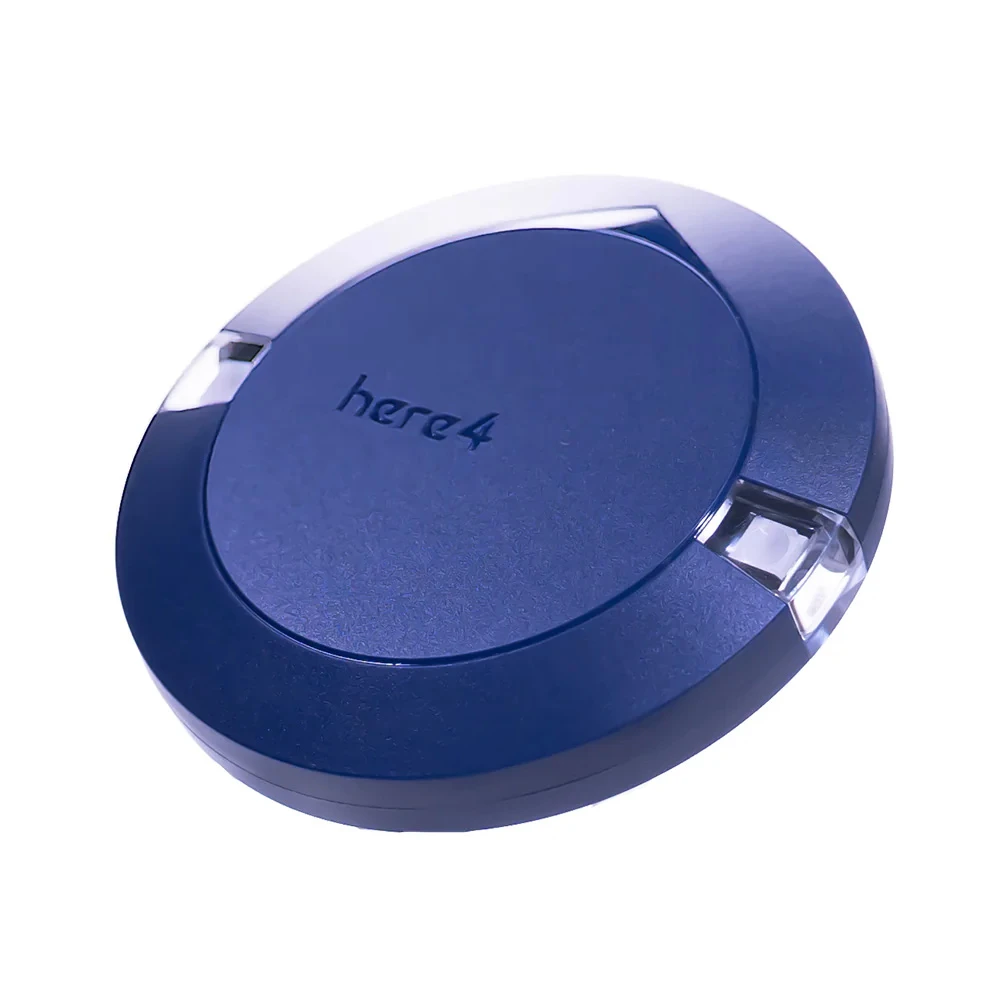

CubePilot Here4 Blue Multiband RTK GNSS w/ NRF 2.4GHz Radio

The Here4 Blue leverages the u-blox NEO-F9P module to provide centimeter-level RTK positioning accuracy. This high precision, combined with fast satellite lock times across multiple constellations, ensures reliable and extremely accurate navigation for critical drone and robotics applications, significantly enhancing operational performance.

The Here4 Blue integrates Bluetooth 5.2 wireless connectivity, which directly supports Remote ID functionality. This allows for compliance with drone regulations requiring broadcast identification, ensuring your UAV can operate legally and safely within controlled airspace. Its robust wireless communication is designed for reliability.

The Here4 Blue utilizes the DroneCAN FD protocol, which supports data transfer speeds up to 8 Mbps. This high-bandwidth, robust communication standard ensures rapid and stable data exchange between the GNSS module and the flight controller, critical for real-time RTK corrections and precise flight control in demanding applications.

The Here4 Blue integrates an RM3100 compass and an ICM42688 IMU (Inertial Measurement Unit). These sensors provide accurate orientation and motion tracking data, complementing the GNSS positioning. This sensor fusion is vital for enhanced navigation, stable flight, and precise heading information, particularly in challenging environments.
