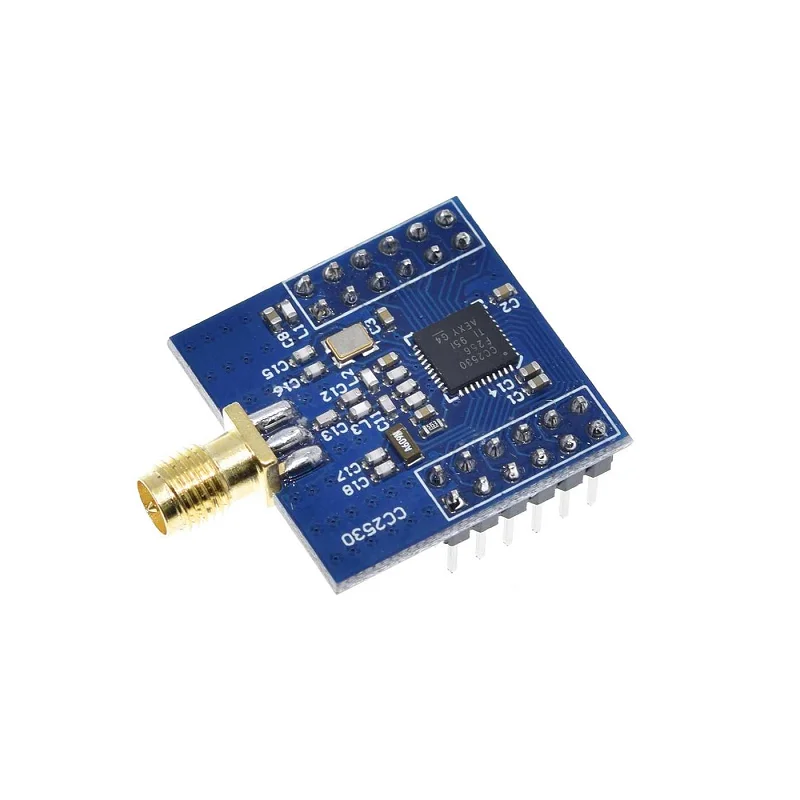

CC2530F256 Zigbee UART Wireless Core Development Board
This CC2530F256 Zigbee UART wireless core board integrates a 2.4GHz IEEE 802.15.4 RF transceiver and an 8051 microcontroller, providing a streamlined development platform for Zigbee mesh network applications via a simple serial interface.
Features
- Features the CC2530F256 SoC with an integrated 2.4GHz IEEE 802.15.4 RF transceiver and 8051 MCU core for Zigbee protocol stacks.
- Offers excellent receiver sensitivity and programmable RF output power up to +4.5 dBm for robust wireless links.
- Includes a dedicated UART serial port (TX/RX) for easy AT command control and integration with host microcontrollers or PCs.
- Provides 21 programmable GPIO pins for sensor interfacing and peripheral control within Zigbee sensor nodes.
- Built with minimal external components for a compact footprint, suitable for embedded wireless designs.
Out of stock
The CC2530F256 Zigbee UART Wireless Core Development Board is a fundamental building block for creating 2.4GHz Zigbee network nodes. It centers on the Texas Instruments CC2530 system-on-chip, which combines an RF transceiver, an 8051 microcontroller, and in-system programmable flash memory. This integration allows developers to implement full Zigbee PRO or Zigbee 3.0 protocol stacks for creating mesh networks.

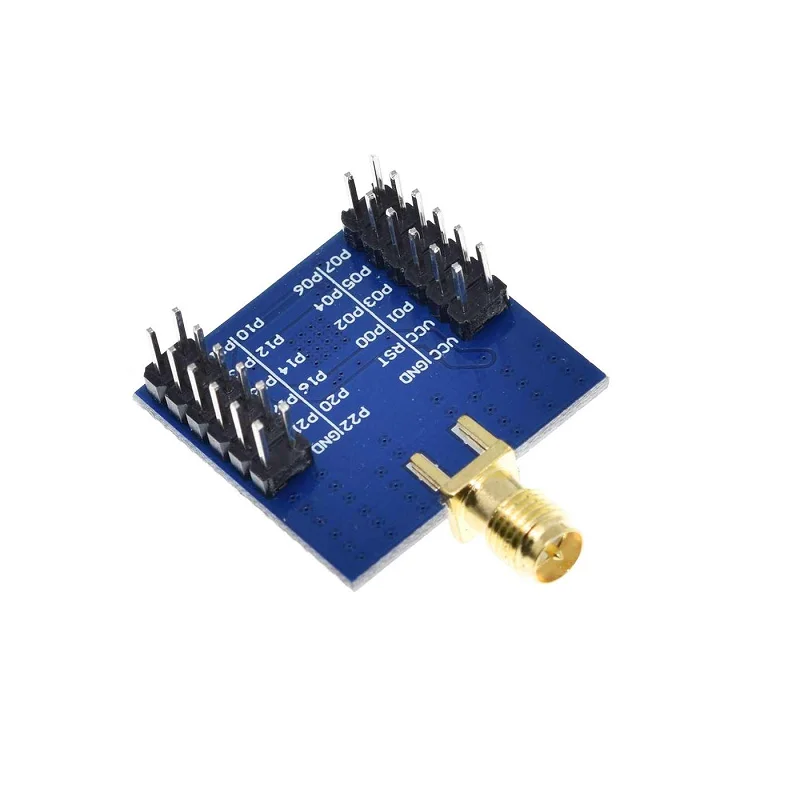

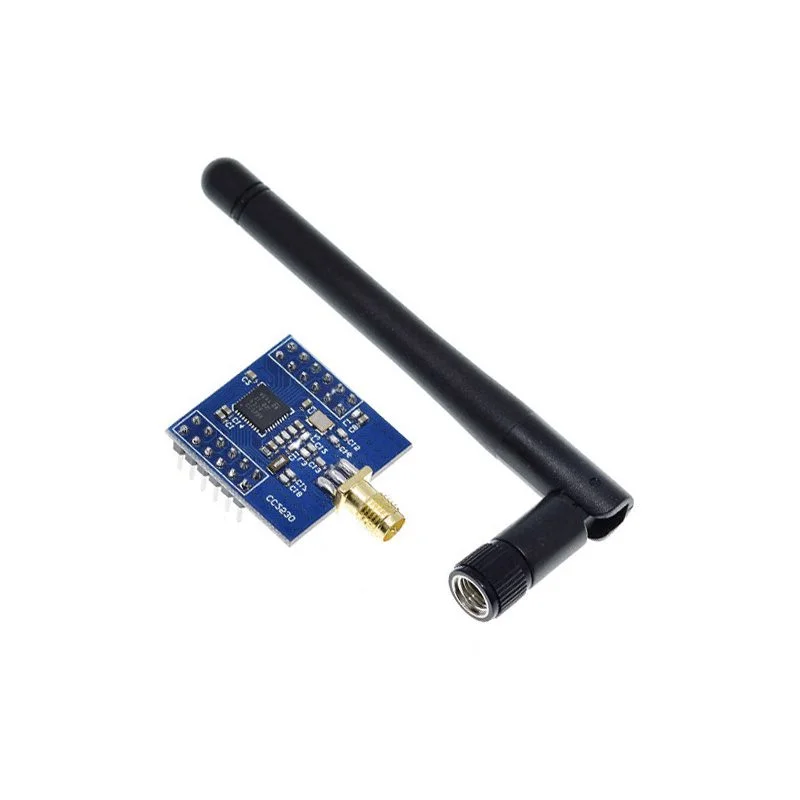

The board’s design emphasizes ease of integration, exposing the core UART (P0.2 as RX, P0.3 as TX) for serial communication, alongside debug (P2.1, P2.2) and reset pins. It operates on a 3.3V supply and supports an industrial temperature range from -40°C to +125°C, making it suitable for demanding environments. The RF section requires an external antenna connected via a compatible connector, enabling flexible range optimization.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 5 × 3 cm |
