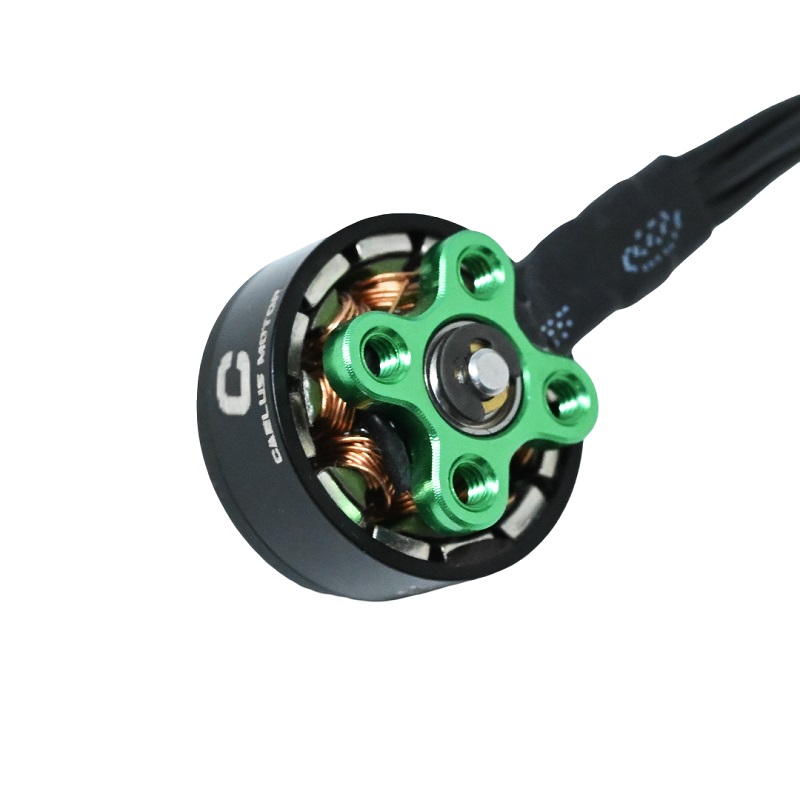

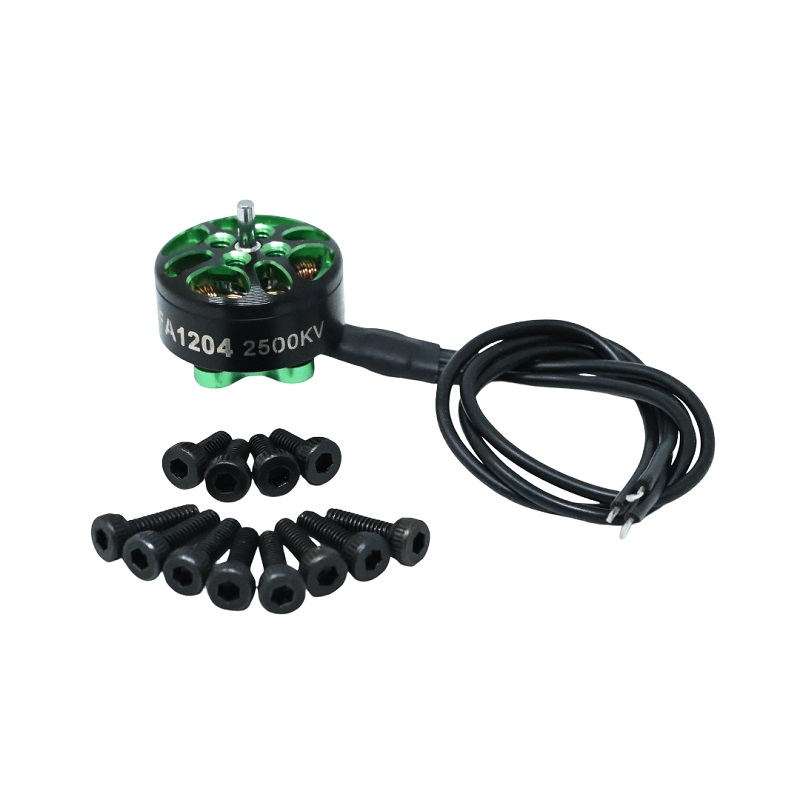

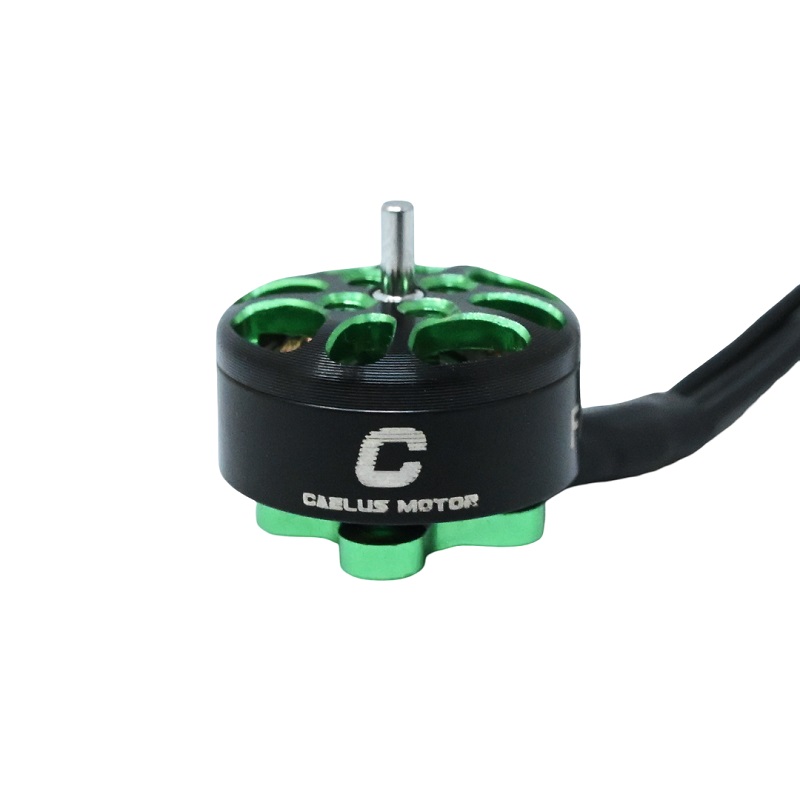

CAELUS FA1204 2500KV Brushless Motor
The CAELUS FA1204 2500KV brushless motor is engineered for 2–3 inch micro-class FPV drones, offering a lightweight 6g design with a durable 7075-T6 aluminum bell and NSK bearings for smooth, efficient performance across 2S–4S LiPo battery configurations.
Features
- 2500KV rating optimized for 2–3 inch propellers on 2S–4S LiPo batteries.
- Ultra-lightweight 6g design featuring a durable 7075-T6 aluminum bell.
- High-quality NSK bearings for reduced friction and extended operational lifespan.
- 0.15mm Kawasaki silicon-steel stator laminations for improved electromagnetic efficiency.
- Compact 15.7mm diameter with 4x M2 mounting holes on a 9mm PCD.
Out of stock
The CAELUS FA1204 2500KV brushless motor utilizes a 9N12P framework with a 12x4mm stator, engineered for stable and responsive throttle control in micro FPV applications. Its construction prioritizes low vibration and thermal management, enabling consistent power delivery for freestyle, cinematic, and long-duration cruising flights.
Designed with precise PWM tuning (900–2100 µs), the motor maintains excellent efficiency across its operational current range, peaking at 48W of power. The 2.0mm shaft diameter and robust bearing system ensure reliable performance, making it a core component for high-performance micro drone builds.
Additional Information
| Weight | 0.018 kg |
|---|---|
| Dimensions | 5 × 5 × 4 cm |
