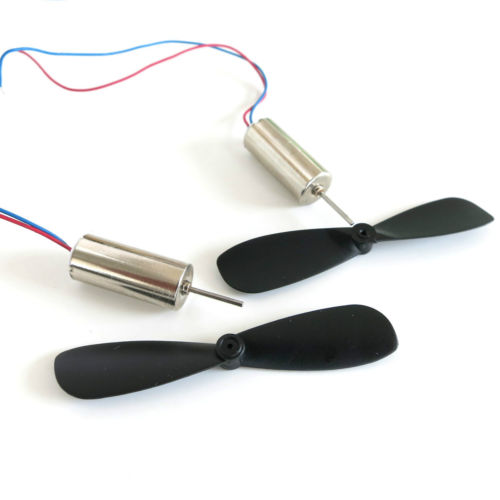

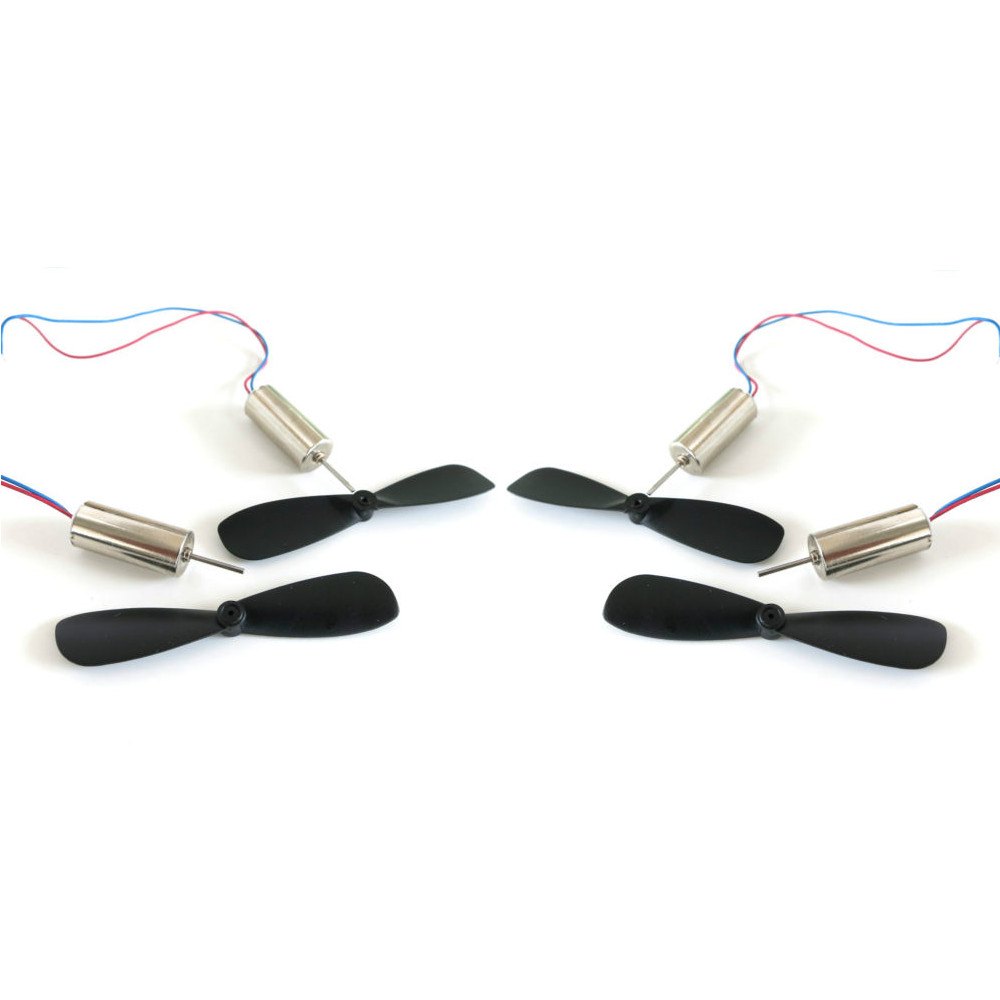

720 Magnetic Micro Coreless Motor + 55mm Propeller - Set of 4Pcs

₹659.00 (Inclusive of all taxes)
Out of Stock

The 720 Magnetic Micro Coreless Motor is a 3.7V high-RPM motor designed for lightweight micro quadcopters and DIY drone projects, paired with durable 55mm propellers for stable flight.

Features

  • High-speed 720 coreless motor rated for 48,000 RPM at 3.7V.
  • Includes four matching 55mm propellers made from high-tenacity plastic for impact resistance.
  • 1.0mm shaft diameter with a compact 7x20mm metal motor housing.
  • Low-noise, low-resistance operation ideal for entry-level micro multirotor builds.
  • Set of four motors and propellers for a complete micro quadcopter propulsion system.

Out of stock

Description

The 720 Magnetic Micro Coreless Motor provides a straightforward propulsion solution for micro-class drones and experimental multirotor platforms. Operating at a nominal 3.7V, it delivers high rotational speeds suitable for lightweight airframes where minimal torque requirements are acceptable.

This set pairs each motor with a robust 55mm propeller, engineered from durable plastic to withstand minor impacts during flight testing and indoor use. The combination offers a balanced performance profile for pilots seeking to understand coreless motor characteristics and basic drone aerodynamics.

Key Features

  • Magnetic coreless design for smooth, low-vibration operation.
  • Metal motor casing enhances durability and heat dissipation.
  • Pre-soldered 5cm wire leads simplify integration into micro drone frames.
  • Propellers feature a standard hub design compatible with 720, 8520, and 615 coreless motor shafts.
  • Optimized performance-to-weight ratio for micro quadcopter applications.

Applications

  • Ultra-micro DIY quadcopter and hexacopter prototypes.
  • Lightweight indoor drone platforms and educational STEM kits.
  • Small-scale multirotor designs requiring sub-8mm motor diameters.
  • Replacement propulsion for toy-grade drones using 720-series coreless motors.

Technical Specifications

Model720 Coreless Motor
Rated Voltage3.7 VDC
Rated RPM48,000
Max RPM50,000
Operating Current0.1 A
Shaft Diameter1.0 mm
Motor Diameter7 mm
Motor Length20 mm
Motor MaterialMetal
Wire Length5 cm
Propeller Length55 mm
Propeller MaterialPlastic
Operating Temperature-10°C to 50°C

Frequently Asked Questions

What is the main difference between a coreless motor like the 720 and a standard brushless motor?

Coreless motors, such as the 720, lack an iron core in the rotor, resulting in lower inertia, faster response, and less electrical noise. However, they provide significantly lower torque compared to brushless motors of similar size, making them suitable only for ultra-lightweight micro drones where high RPM is prioritized over thrust.

What type of battery is required to power these 720 coreless motors?

These motors are rated for a nominal 3.7V, which corresponds to a 1S LiPo battery. It is crucial not to exceed this voltage, as higher input (e.g., 2S 7.4V) will quickly overheat and damage the motor due to its low current draw (0.1A) and minimal thermal mass.

Are the included 55mm propellers a direct fit, or do they require an adapter?

The propellers are designed with a hub that fits the 1.0mm shaft diameter of the 720 motor. They should press-fit directly onto the shaft without requiring an additional adapter. They are also compatible with other coreless motors in the same size family, such as the 8520 and 615.

Package Includes

  • 4x 720 Magnetic Micro Coreless Motors (Silver)
  • 4x 55mm Propellers (Black)

Additional Information

Weight 0.03 kg
Dimensions 4 × 3 × 2 cm
