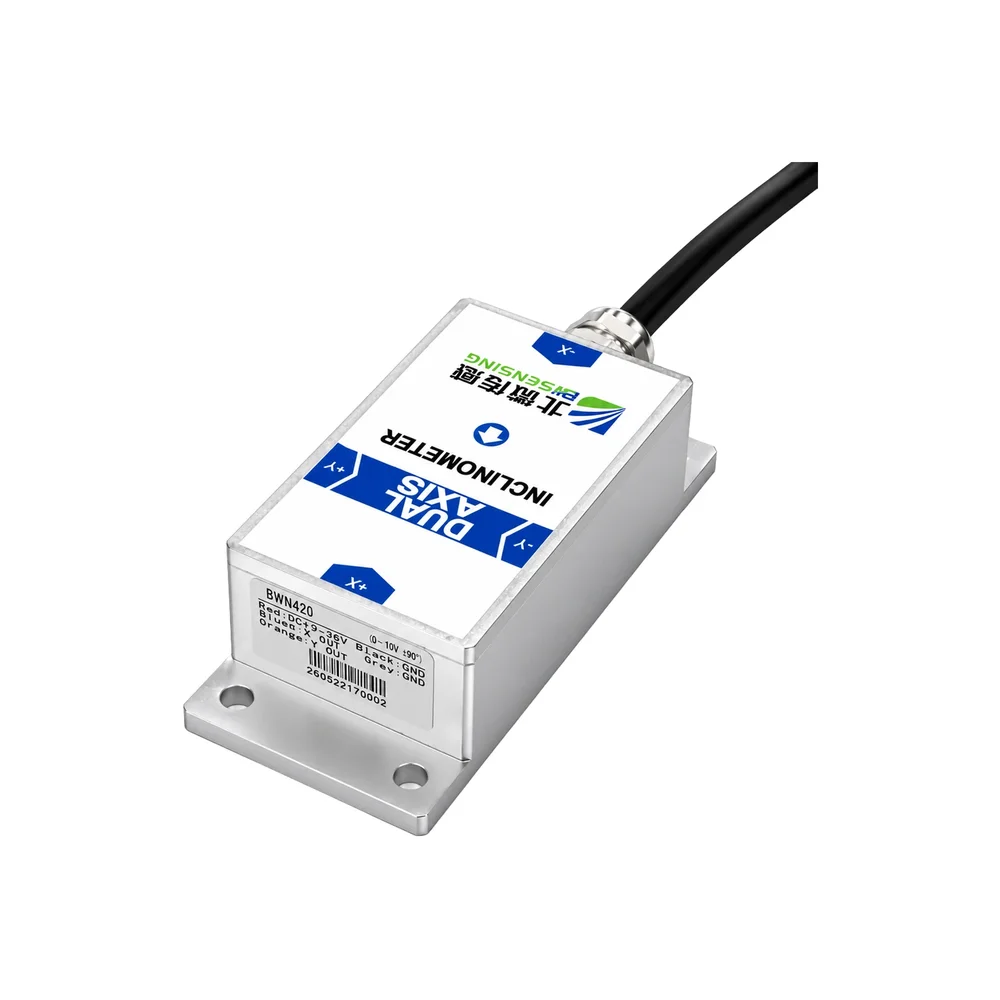

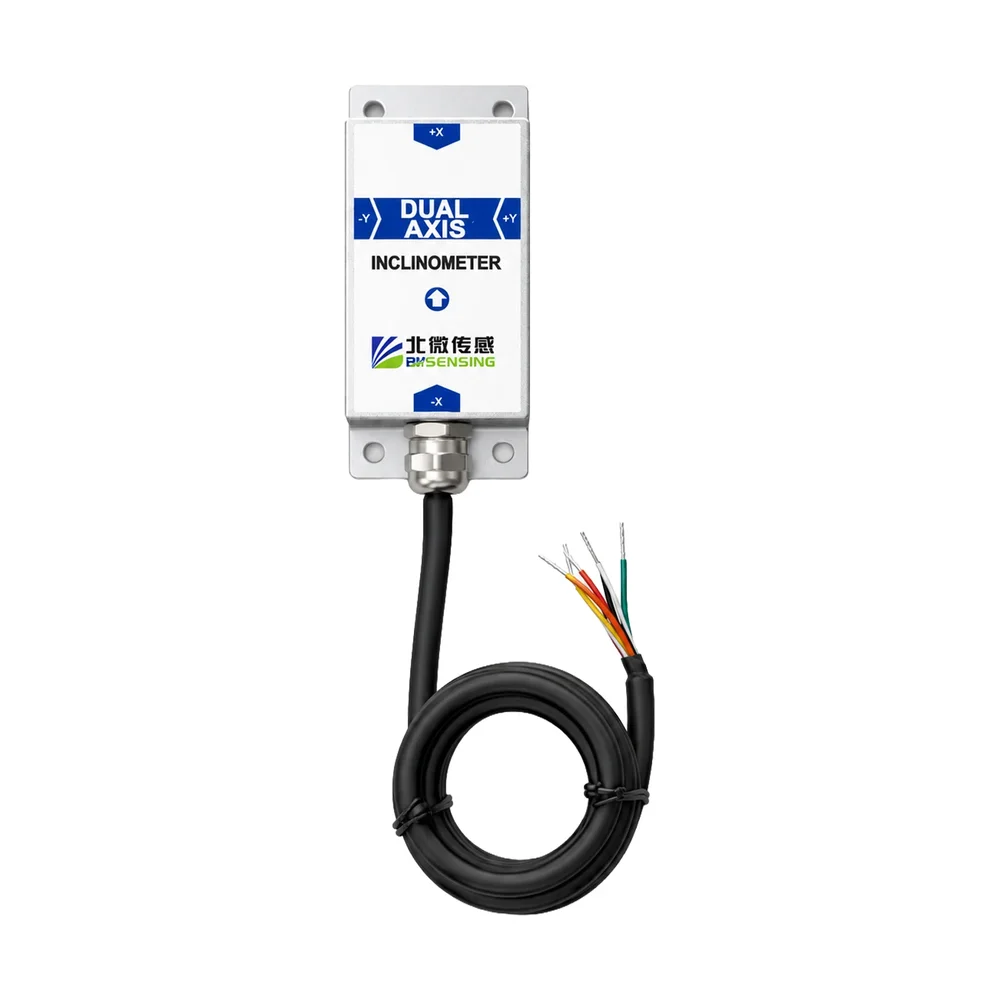

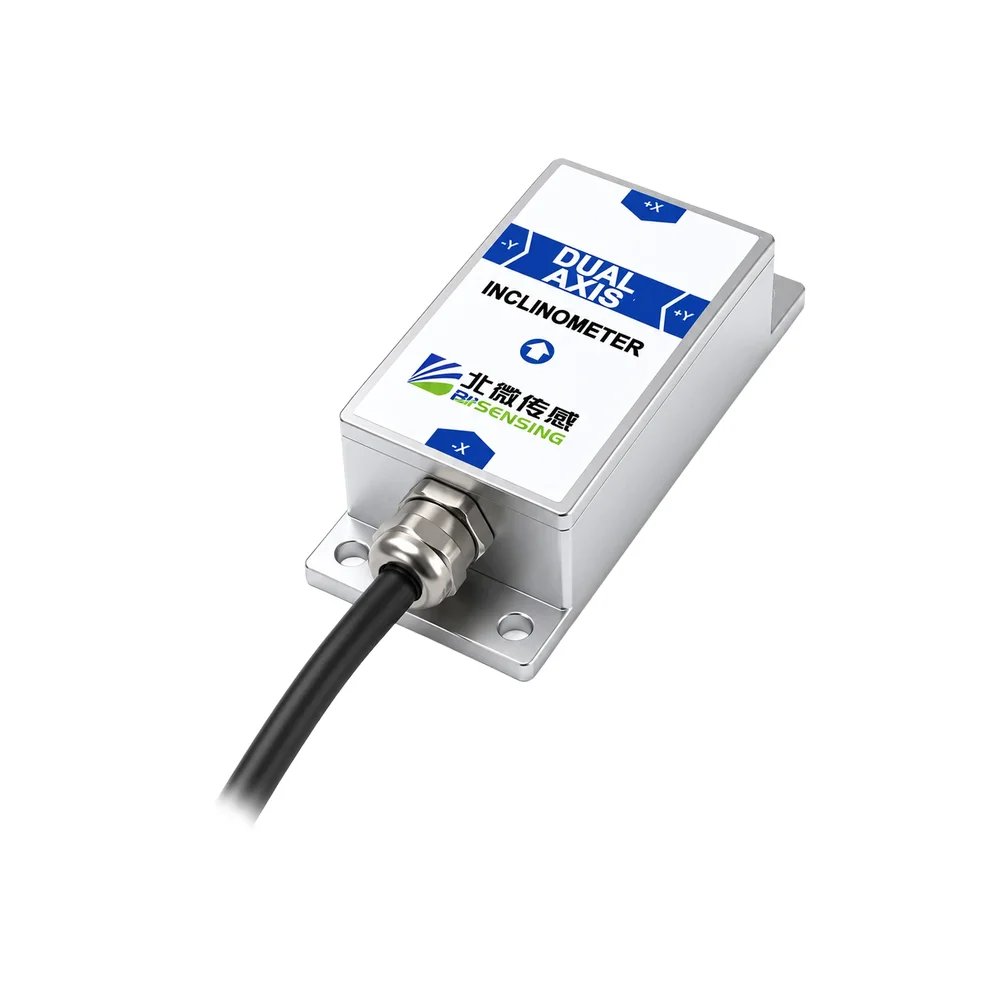

BWSENSING BWN420 Dual Axis Inclinometer ±90° - 0~10V Analog Output, IP67, Magnesium Aluminum Alloy Housing

₹12,329.00 (Inclusive of all taxes)
Out of Stock

The BWSENSING BWN420 is a high-precision dual-axis MEMS inclinometer delivering ±90° measurement with 0.02° accuracy and a stable 0~10V analog output. Designed for industrial PLCs and control systems, it operates on a wide 12-35V DC supply and features a rugged IP67-rated magnesium aluminum alloy housing for reliable performance in harsh environments.

Features

  • Dual-axis (X-Y) MEMS inclinometer with a ±90° measurement range.
  • High accuracy of 0.02° and a fine resolution of 0.001° for precise angle detection.
  • Standard 0~10V analog output signal, compatible with industrial PLCs and DAQ systems.
  • Rugged IP67-rated magnesium aluminum alloy housing ensures durability in demanding conditions.
  • Wide operating voltage range (12-35V DC) and temperature range (-40°C to +85°C).

Out of stock

Description

The BWSENSING BWN420 employs advanced MEMS sensor technology to provide highly accurate dual-axis inclination measurement. It incorporates automatic temperature compensation and digital filtering algorithms to ensure signal stability and minimal drift over its operational lifespan, making it suitable for long-term monitoring applications.

Engineered for industrial environments, the sensor features a robust magnesium aluminum alloy housing with an IP67 protection rating, offering resistance to dust, water ingress, and mechanical shock. Its wide 12-35V DC input range and configurable output frequency (5-100Hz) provide flexibility for integration into various automation, structural health monitoring, and alignment systems.

Key Features

  • High-precision MEMS dual-axis tilt sensor with 0.02° accuracy.
  • Stable 0~10V analog voltage output with excellent linearity.
  • Rugged IP67-rated magnesium aluminum alloy construction for industrial durability.
  • Wide operating voltage range (12-35V DC) and low power consumption (20-40mA).
  • Advanced internal compensation for minimal temperature drift and high long-term stability.
  • Configurable output frequency from 5Hz to 100Hz to match application bandwidth needs.
  • High impact resistance (2000g, 0.5ms) and extended MTBF (≥90,000 hours).
  • Includes a 1.5-meter cable with metal connector for reliable field wiring.

Applications

  • Industrial machinery leveling and alignment monitoring in manufacturing plants.
  • Structural tilt and inclination monitoring for bridges, dams, and buildings.
  • Solar photovoltaic panel tracking systems for optimal sun angle adjustment.
  • Crane boom angle measurement and anti-tip safety systems.
  • Platform leveling and stabilization in mobile equipment and agricultural vehicles.

Technical Specifications

ModelBWN420-90-010
Sensor TypeDual Axis Inclinometer
TechnologyMEMS
Measurement AxisX-Y
Measurement Range±90°
Accuracy0.02°
Resolution0.001°
Output Signal0~10V Analog
Optional Output0~5V / 0~10V
Power Supply12-35V DC
Working Current20-40mA
Output Frequency5-100Hz Adjustable
Operating Temperature-40°C to +85°C
Storage Temperature-55°C to +100°C
Protection RatingIP67
Housing MaterialMagnesium Aluminum Alloy
Insulation Resistance≥100 MΩ
Impact Resistance2000g, 0.5ms
MTBF≥90,000 hours
ConnectorMetal Joint with 1.5m Cable
InstallationThree M4 Screws
Dimensions (L×W×H)90 × 40.5 × 26 mm

Frequently Asked Questions

What is the power supply requirement for the BWN420 inclinometer?

The BWN420 operates on a wide-range DC power supply from 12V to 35V, with a typical working current between 20mA and 40mA. This range makes it compatible with standard 24V industrial power systems as well as 12V vehicle or mobile equipment power sources.

How is the 0~10V analog output signal scaled?

The 0~10V output is linearly proportional to the measured tilt angle across the full ±90° range. For example, -90° corresponds to 0V, 0° (level) corresponds to 5V, and +90° corresponds to 10V. This standard scaling allows direct connection to PLC analog input modules or data acquisition systems.

What mounting method is used for installation?

The sensor is installed using three M4 mounting screws through the provided holes on its base. For accurate measurement, ensure the sensor's reference plane is securely fastened and aligned parallel to the surface whose inclination you intend to monitor.

Can the output frequency be adjusted?

Yes, the BWN420's output frequency is configurable within a range of 5Hz to 100Hz. A lower frequency provides heavier filtering for stable readings in high-vibration environments, while a higher frequency offers faster response for dynamic applications.

Package Includes

  • 1 x BWSENSING BWN420 Dual Axis Inclinometer Sensor
  • 1 x 1.5-meter pre-attached cable with metal connector

Additional Information

Dimensions 9 × 4.05 × 2.6 cm
