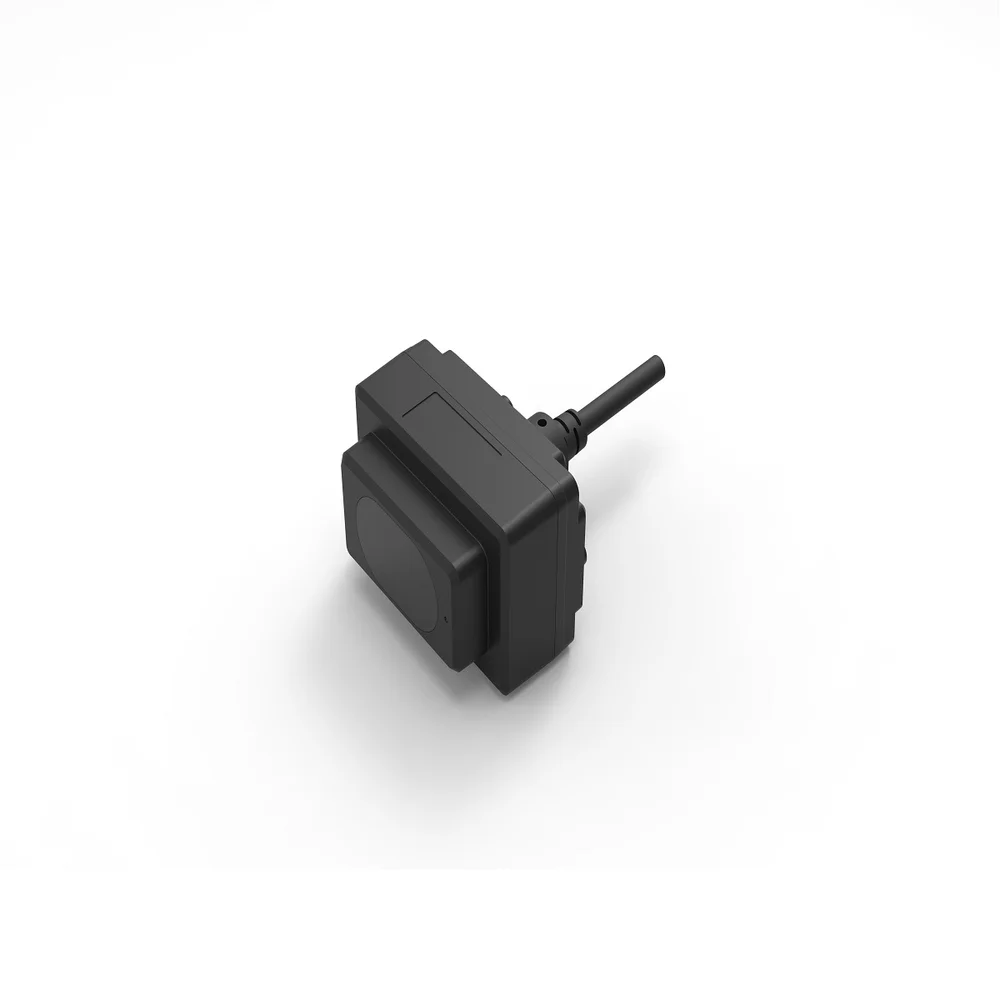

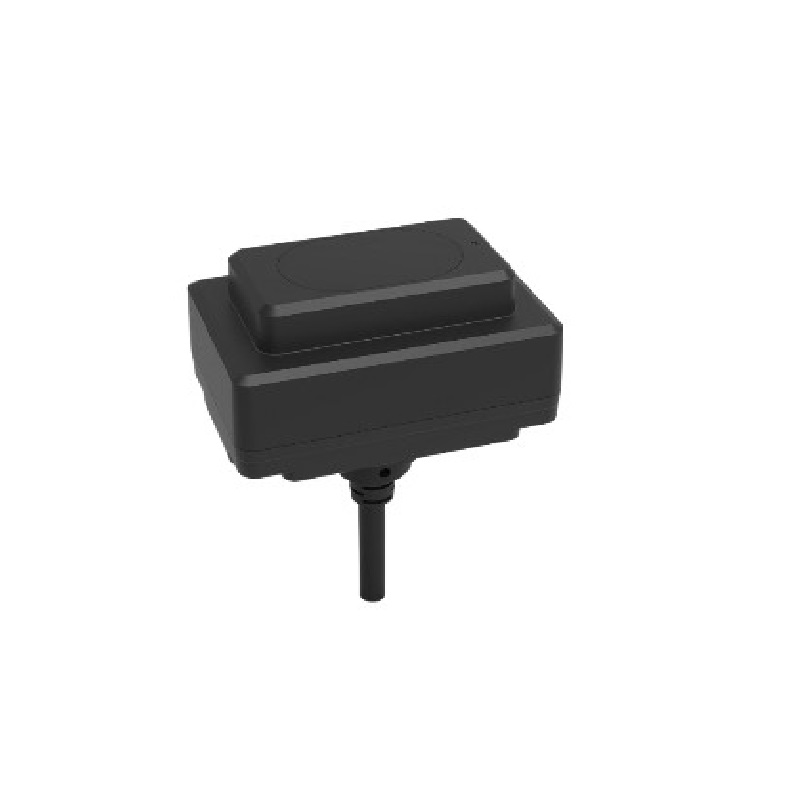

Benewake TFmini-i-RS485 LiDAR Long Distance Sensor Module (Range: 0.1~12m) - IP65 Enclosure
The Benewake TFmini-i-RS485 is an industrial-grade, single-point LiDAR distance sensor module featuring a 0.1 to 12-meter range, RS485 communication, and a robust IP65-rated enclosure. It operates on a wide 7-30V DC supply, making it compatible with industrial PLCs, vehicle systems, and automation controllers for precise, long-distance ranging applications.
Features
- Long-range LiDAR sensing from 0.1 to 12 meters with high accuracy.
- Industrial RS485 communication interface for robust, noise-immune data transmission.
- Wide 7-30V DC input voltage range with reverse and overvoltage protection.
- IP65-rated enclosure ensures dust-tight and water-jet resistant operation.
- High 100Hz frame rate and 70Klux ambient light immunity for reliable performance in challenging environments.
Out of stock
The TFmini-i-RS485 is an enhanced iteration of the TFmini-S platform, utilizing time-of-flight (ToF) LiDAR technology with an 850nm infrared laser for precise, non-contact distance measurement. It is engineered for industrial durability, featuring an IP65 enclosure that protects against dust ingress and low-pressure water jets, ensuring reliable operation in outdoor or harsh indoor settings.
Its wide supply voltage range and integrated reverse polarity protection (up to 40V) safeguard the module against common wiring errors and voltage fluctuations in mobile or industrial power systems. The sensor outputs distance data via a standard RS485 interface, supporting long cable runs and network configurations for integration into distributed control systems, autonomous vehicles, and safety monitoring applications.
Additional Information
| Weight | 0.166 kg |
|---|---|
| Dimensions | 10 × 12 × 5 cm |
