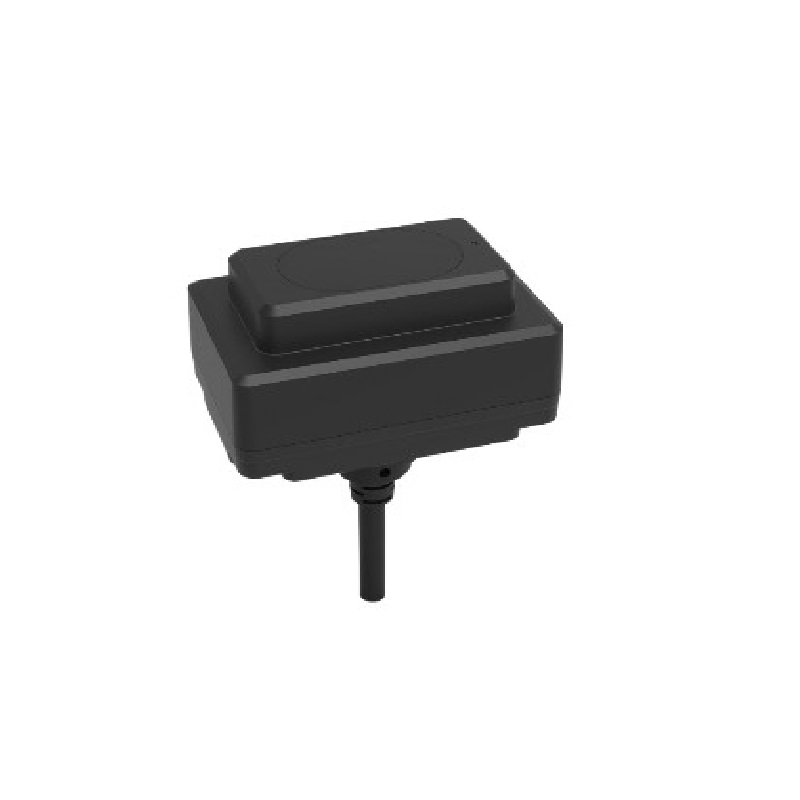

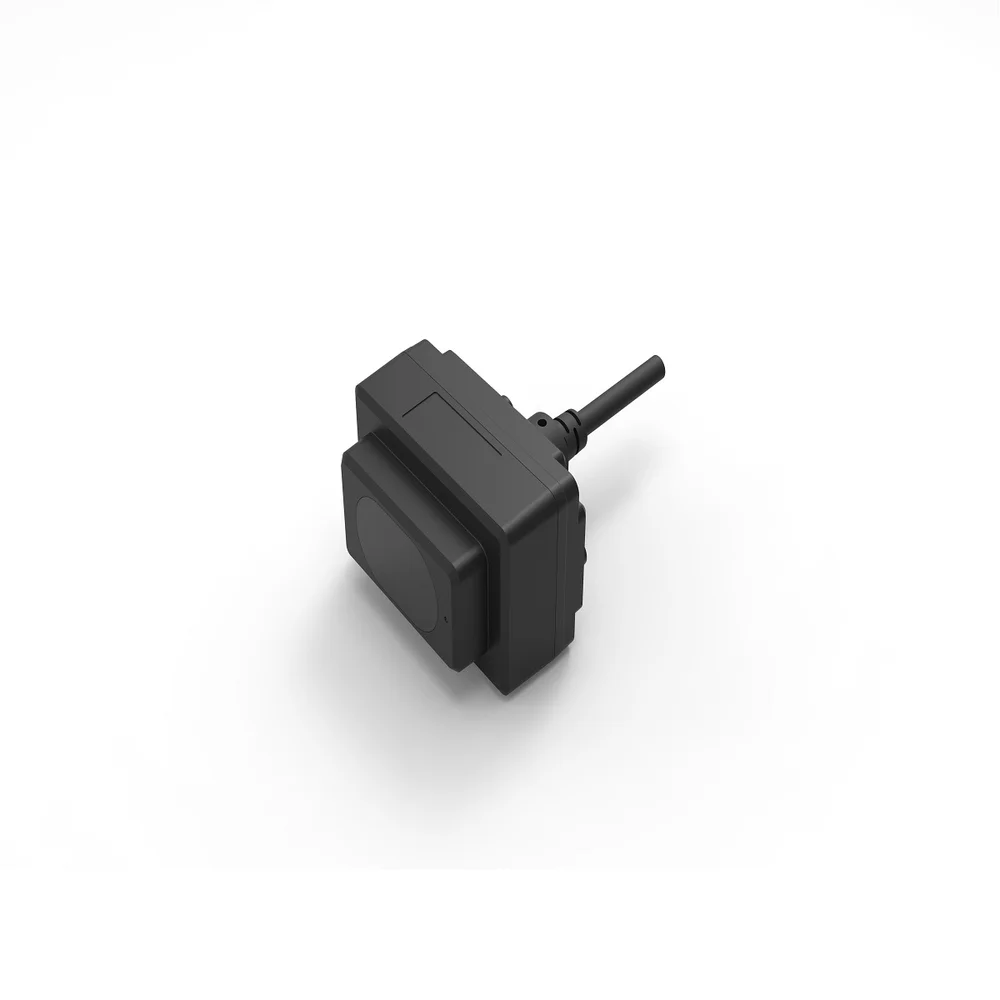

Benewake TFmini-i-CAN LiDAR Long Distance Sensor Module (Range: 0.1~12m) - CAN Interface, IP65
The Benewake TFmini-i-CAN is a single-point LiDAR distance sensor module featuring a 0.1 to 12-meter range and a CAN communication interface. Designed for industrial environments, it operates from a 7-30V DC supply and integrates reverse polarity protection for robust system integration.
Features
- Long-range single-point LiDAR with 0.1m to 12m measurement capability
- Industrial CAN bus interface for reliable, noise-immune communication
- Wide 7V to 30V DC input range with reverse polarity and overvoltage protection
- IP65-rated enclosure for dust and water resistance in harsh environments
- High 70,000 Lux ambient light immunity and configurable 100Hz frame rate
Out of stock
The TFmini-i-CAN is an industrial-grade evolution of the TFmini-S platform, optimized for demanding applications. It utilizes time-of-flight (ToF) LiDAR technology with an 850nm infrared laser to provide precise, non-contact distance measurements. The module includes built-in signal conditioning and outputs data via a CAN bus interface, making it suitable for integration into vehicular, robotic, and automated industrial control systems.
Engineered for environmental resilience, the sensor operates across a -20°C to 70°C temperature range and is housed in an IP65 enclosure, protecting it from dust and water jets. Its wide supply voltage tolerance and integrated electrical protections ensure stable operation in electrically noisy environments common in automotive and factory automation settings.
Additional Information
| Weight | 0.166 kg |
|---|---|
| Dimensions | 10 × 12 × 5 cm |
