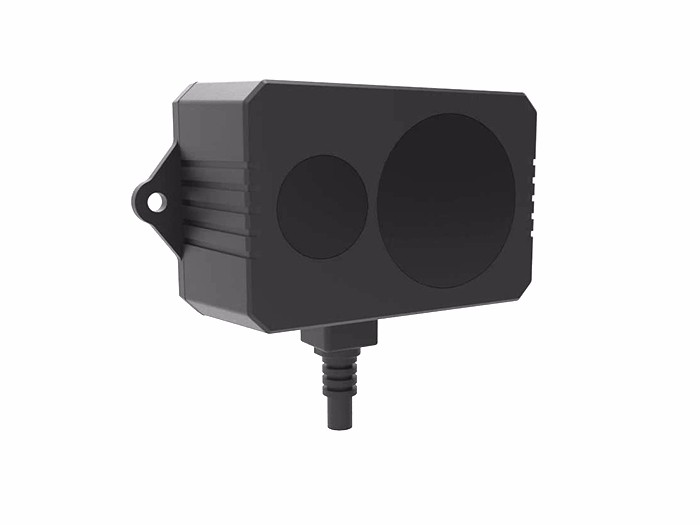

Benewake TF02 LiDAR Distance Ranging Sensor 22m - UART/CAN Interface, IP65
The Benewake TF02 is a unidirectional LiDAR distance ranging sensor designed for high-speed, centimeter-level precision measurement up to 22 meters. It features a UART/CAN communication interface, IP65 environmental protection, and is compatible with drone flight controllers (e.g., Pixhawk, APM) and robotic systems.
Features
- Centimeter-level accuracy with a 0.3M to 22m measurement range.
- High-speed 100Hz sampling frequency for real-time distance detection.
- IP65-rated protective shell ensures resistance to dust, water, and corrosion.
- Operates under high ambient light conditions (up to 100k Lux).
- Dual communication interface: UART and CAN for flexible system integration.
Out of stock
The TF02 is a compact, industrial-grade LiDAR sensor utilizing time-of-flight (ToF) technology for precise, non-contact distance measurement. Its narrow 3° field of view (FOV) provides focused, long-range detection ideal for applications requiring accurate altitude or position data. The sensor’s protective housing, constructed from high infrared transmittance materials, safeguards the optical components without degrading performance.
Engineered for harsh environments, the TF02 is resistant to temperature fluctuations, humidity, and corrosive agents like pesticides. Its low power consumption and robust communication protocols (UART/CAN) make it suitable for integration into autonomous drones, robotic navigation systems, and industrial automation platforms where reliable, high-speed ranging is critical.
Additional Information
| Weight | 0.052 kg |
|---|---|

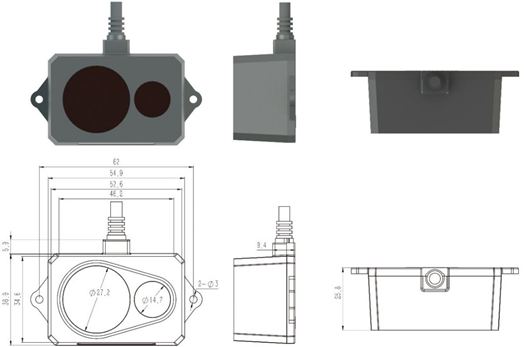

| Dimensions | 5.1 × 3.6 × 4.8 cm |
