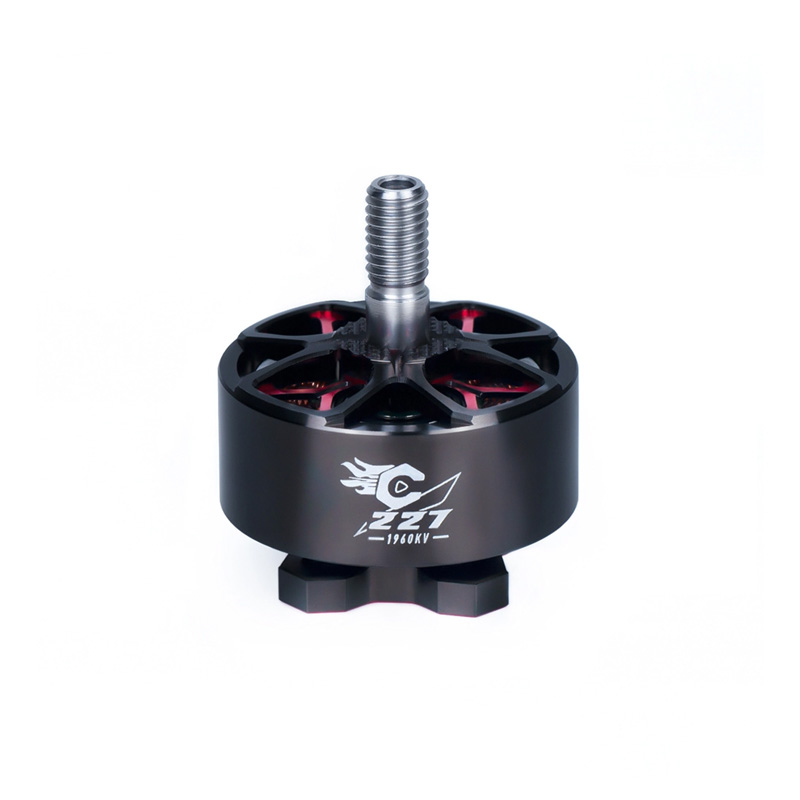

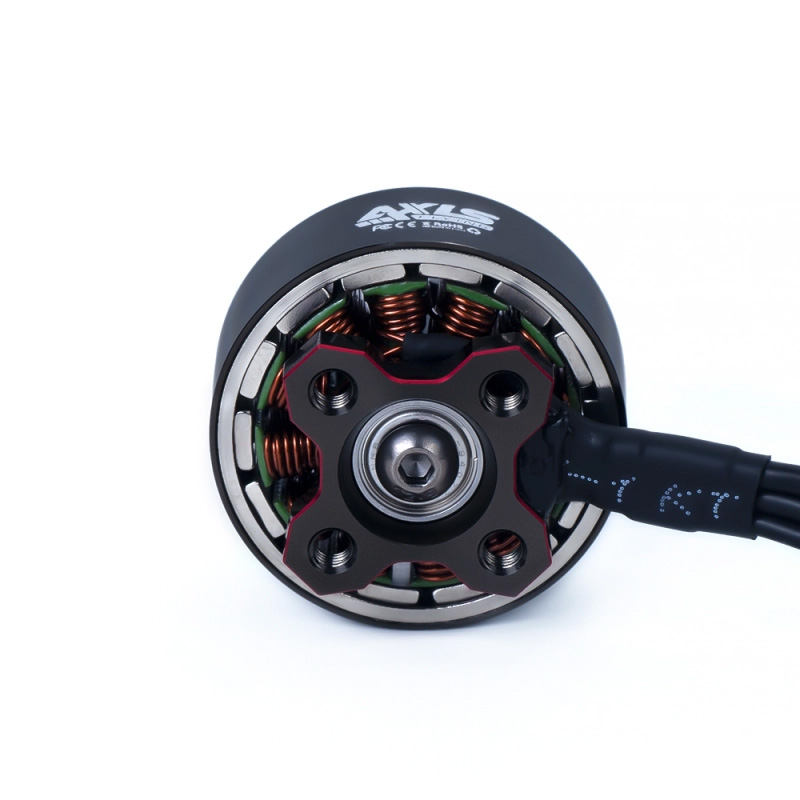

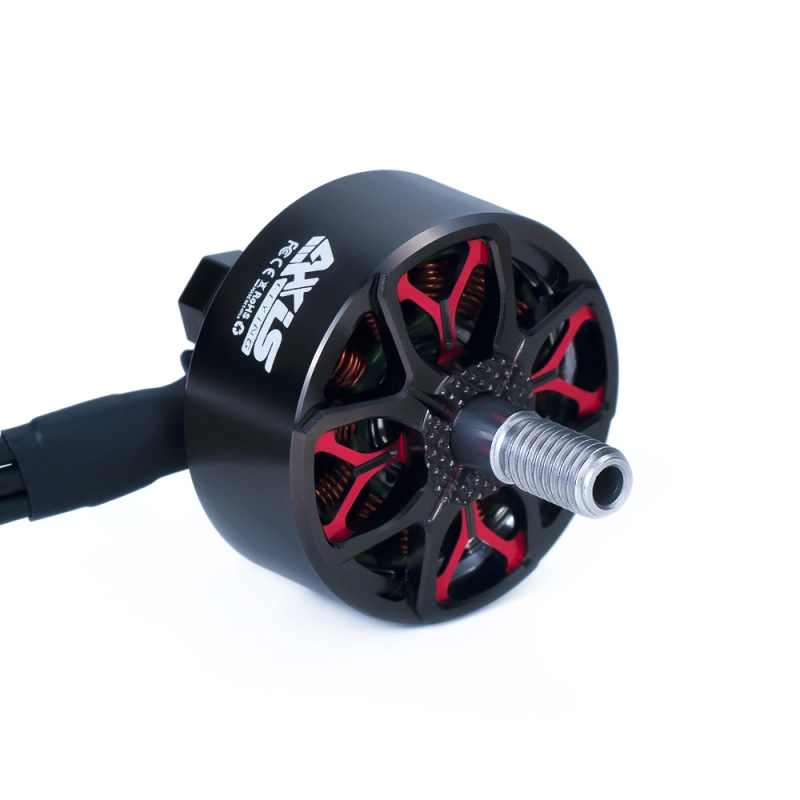

AxisFlying C227/5 Inch C2207 1960KV Brushless Motor - 6-8S
The AxisFlying C227/5 Inch C2207 is a 1960KV brushless motor engineered for 5-inch FPV racing and Cinewhoop drones, optimized for 6-8S LiPo battery systems to deliver a balance of high torque and responsive speed.
Features
- 1960KV rating optimized for 5-inch propellers on 6-8S LiPo voltage.
- Delivers up to 1048.66W continuous power with a max thrust of 1753g.
- Low internal resistance of 64.75 mΩ for efficient power delivery and extended flight times.
- Compact Ø28 x 32.5mm dimensions and lightweight 35.8g build (including wire).
- 12N14P magnet configuration for smooth, powerful operation ideal for freestyle and cinematic flight.
Out of stock
The AxisFlying C227/5 Inch C2207 brushless motor is designed for pilots seeking high performance in the 5-inch FPV and Cinewhoop class. Its 1960KV rating is specifically tuned for use with 6-8S LiPo batteries, providing a potent mix of torque and rotational speed that translates to explosive power for racing and stable, controlled thrust for smooth cinematic footage.
Constructed with a 12N14P stator configuration, the motor ensures smooth operation and efficient power transfer. The low internal resistance minimizes electrical losses as heat, allowing the motor to handle its rated 1048.66W continuous power envelope reliably. The lightweight design contributes directly to improved quadcopter agility and flight time efficiency.
Additional Information
| Weight | 0.0358 kg |
|---|
