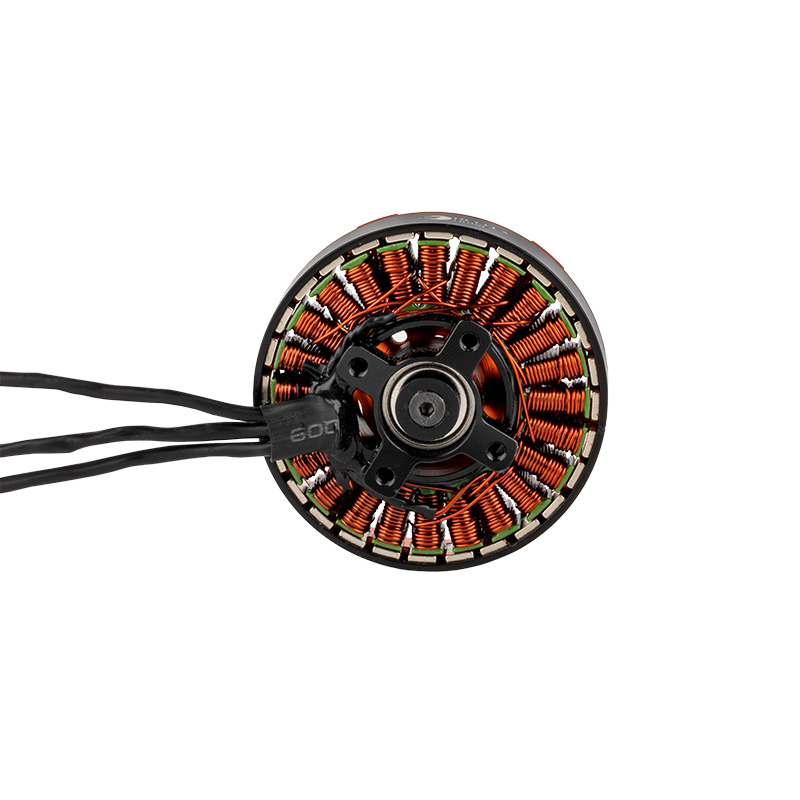

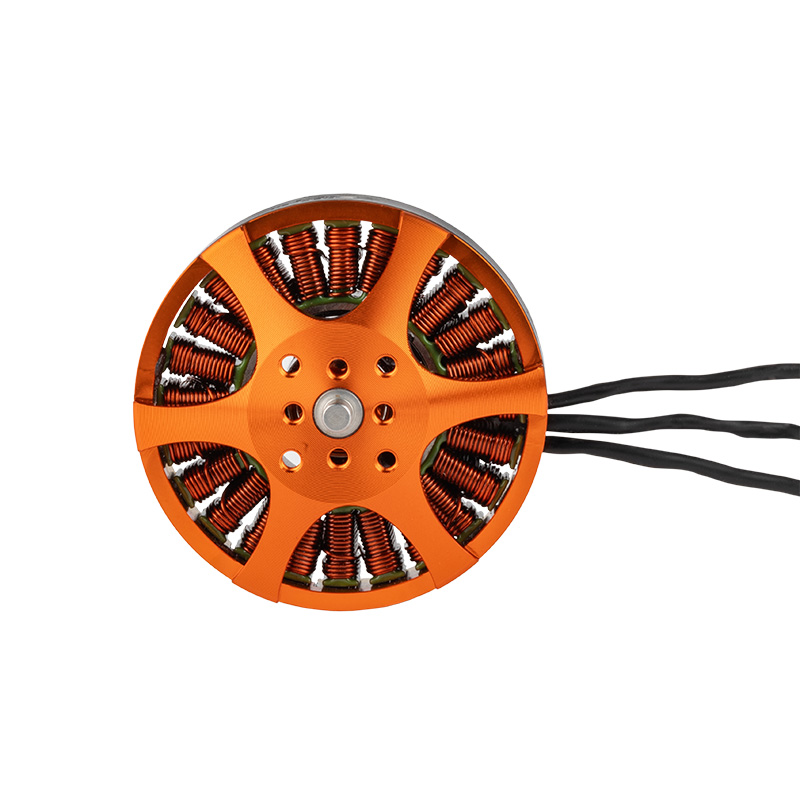

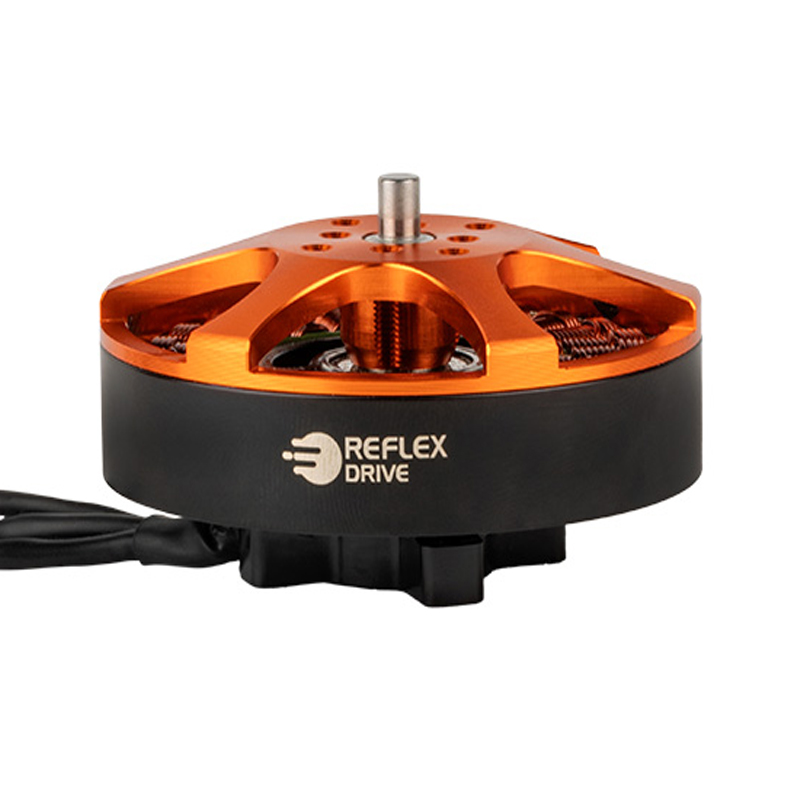

Reflex Drive RD 5008 KV370 Motor 6S
The Reflex Drive RD 5008 is a 370KV brushless motor engineered for 4S-6S LiPo systems, delivering up to 1.23KW peak power and 4.2KG of thrust for medium to large-sized cinematic and heavy-lift drone platforms.
Features
- 370KV rating optimized for 4S to 6S LiPo battery systems.
- High-power 24N28P configuration delivers up to 1.23KW peak power (15 sec).
- Generates up to 4.2KG of maximum thrust with 17×60-inch propellers.
- Robust construction with a weight of 135g including cables.
- Compact dimensions (φ55.6mm x 27mm) for efficient integration into medium and large drone frames.
Out of stock
The Reflex Drive RD 5008 KV370 is a high-torque brushless motor designed for demanding multirotor applications requiring sustained power and efficiency. Its 24N28P stator and rotor configuration ensures smooth operation and excellent thermal management under high loads, making it suitable for extended flight times with heavy payloads.
With a peak current handling of 51A for 15-second bursts, this motor is built to deliver consistent performance in cinematic filming, surveillance, and industrial drone platforms. The balanced design minimizes vibration, contributing to stable flight and clear aerial footage when paired with compatible flight controllers and ESCs.
Additional Information
| Weight | 0.135 kg |
|---|---|
| Dimensions | 6 × 11 × 3 cm |
