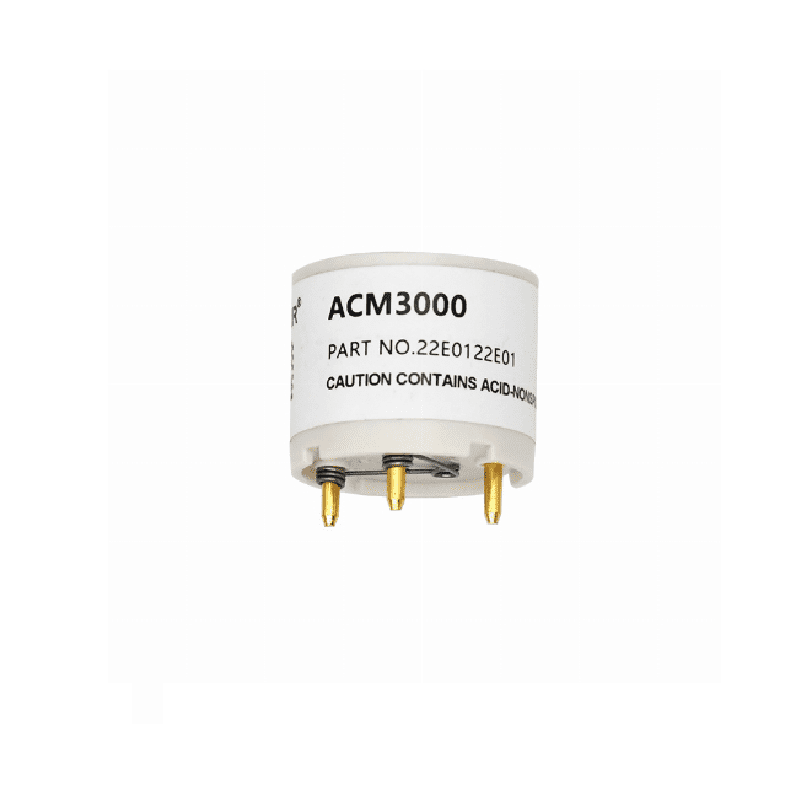

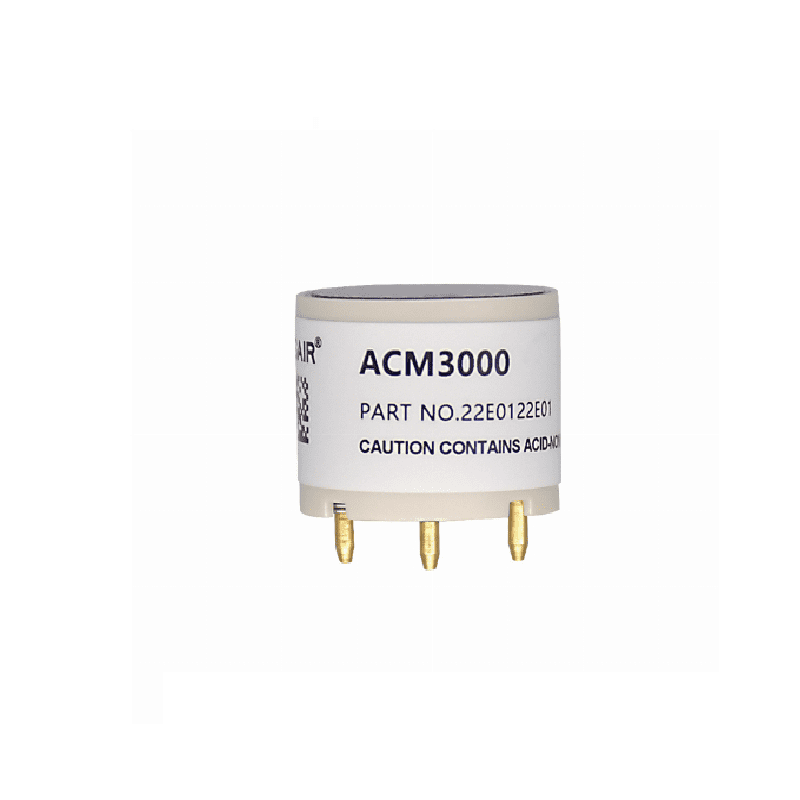

Asair ACM3000 Carbon Monoxide Gas Sensor - 0-1000 ppm Electrochemical
The Asair ACM3000 is an electrochemical carbon monoxide (CO) gas sensor module designed for integration into CO analyzers, alarms, and detection systems. It provides accurate measurements from 0 to 1000 ppm with a fast response time, making it suitable for residential, automotive, and industrial safety applications.
Features
- Electrochemical sensing principle for precise CO detection from 0 to 1000 ppm.
- Fast response time (T90) of ≤15 seconds for concentrations up to 500 ppm.
- High sensitivity of 70±15 nA/ppm with a resolution of less than 1 ppm.
- Low power consumption, operating at 0.9–1.1V with a current draw under 20mA.
- Long operational lifespan of 2 years with stable output and minimal drift.
Out of stock
The Asair ACM3000 Carbon Monoxide Gas Sensor employs a three-electrode electrochemical cell to measure CO concentration by detecting the redox current generated between the working, counter, and reference electrodes. This method ensures high selectivity and linearity across its full measurement range.
Designed for reliability in demanding environments, the sensor operates effectively within a temperature range of -20°C to 55°C and humidity from 15% to 90% RH (non-condensing). Its compact form factor and low power requirements facilitate easy integration into portable detectors, fixed alarms, and industrial monitoring systems.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 10 × 15 × 3 cm |
