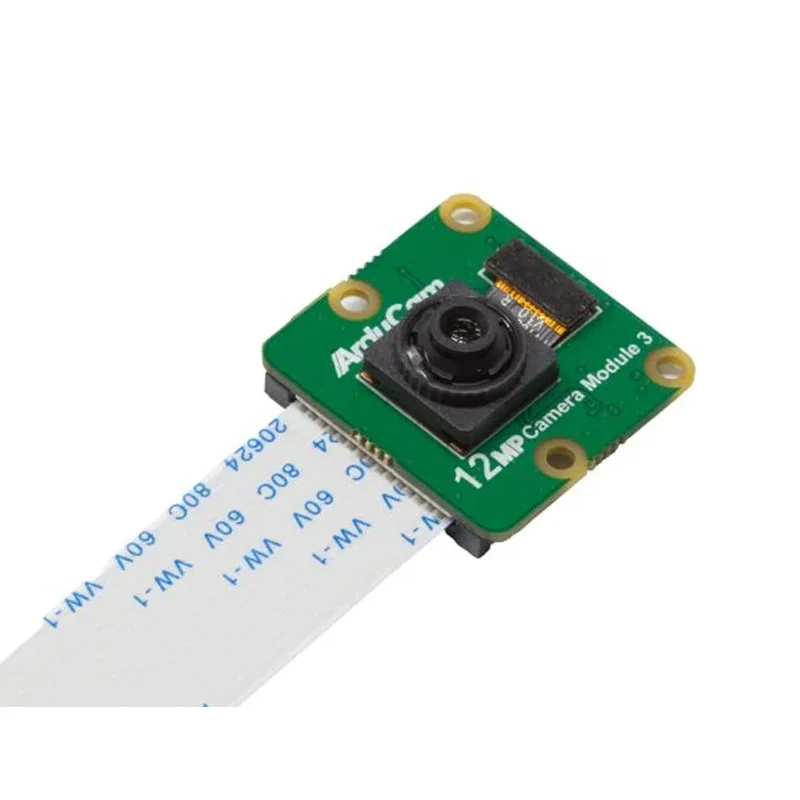

Arducam 12MP IMX708 Fixed Focus HDR Camera Module for Raspberry Pi

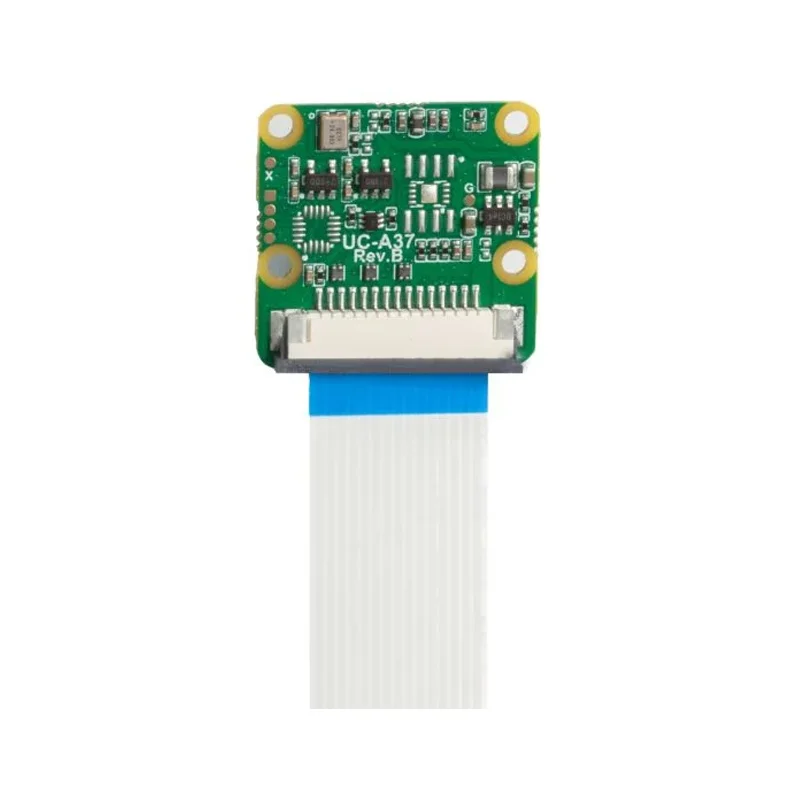

Arducam 12MP IMX708 Fixed Focus HDR Camera Module for Raspberry Pi - Image 2

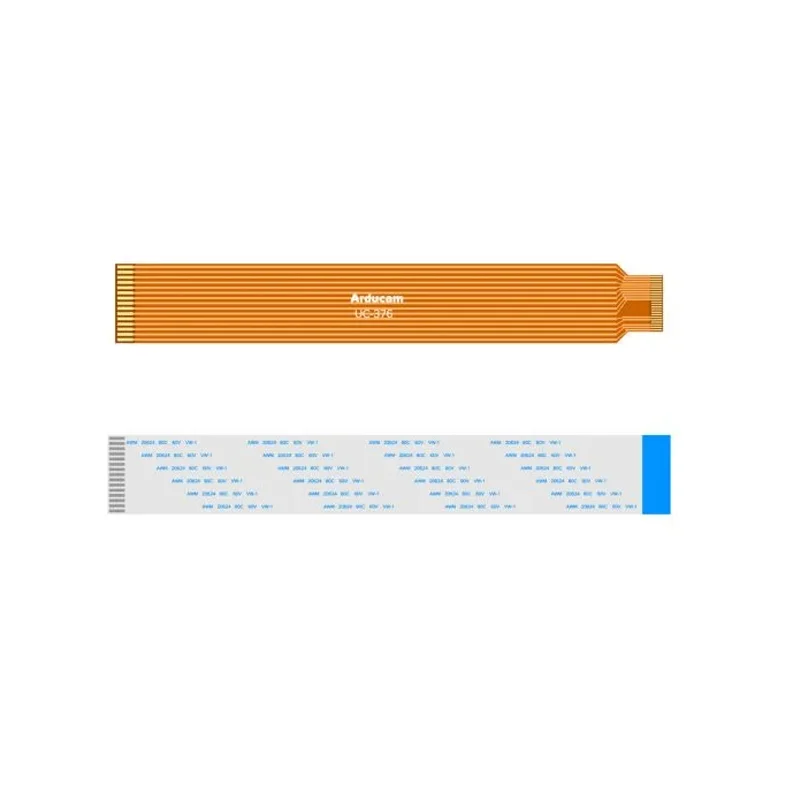

Arducam 12MP IMX708 Fixed Focus HDR Camera Module for Raspberry Pi - Image 3
SKU: IOWC-0358
📋 GST Invoice Available

Arducam 12MP IMX708 Fixed Focus HDR Camera Module for Raspberry Pi

₹2,755.00 (Inclusive of all taxes)
Out of Stock

The Arducam 12MP IMX708 Fixed Focus Camera Module provides a high-performance, stable imaging solution for Raspberry Pi 5, featuring a Sony back-illuminated sensor with HDR support and native OS compatibility for machine vision and embedded applications.

Features

  • 12MP Sony IMX708 Sensor: Delivers 11.9MP stills and Full HD video with a high signal-to-noise ratio and HDR support for superior image quality in varying light conditions.
  • Fixed Focus Lens: Ensures fast, stable image capture without autofocus lag, ideal for machine vision, AI, and continuous monitoring applications.
  • Native Raspberry Pi Support: Works seamlessly with Raspberry Pi OS, libcamera, and Picamera2 without requiring additional drivers for quick integration.
  • Compact & Integrated Design: Features a built-in IR-cut filter for accurate color reproduction and a lightweight form factor suitable for embedded systems.
  • Complete Connectivity Kit: Includes both 15-pin to 22-pin and 15-pin to 15-pin FPC cables (150mm each) for flexible connection to Raspberry Pi 5 and other compatible boards.

Out of stock

Description

The Arducam 12MP IMX708 Fixed Focus Camera Module is engineered for developers and integrators requiring reliable, high-speed imaging on the Raspberry Pi platform. At its core is the Sony IMX708, a 1/2.43-inch back-illuminated stacked CMOS sensor that outputs 4608 x 2592 pixel resolution with enhanced dynamic range through HDR modes. The fixed-focus F1.8 lens with a 66° horizontal field of view eliminates focus hunting, providing consistent performance for computer vision, surveillance, and data acquisition projects.

This module is fully supported by the standard Raspberry Pi camera software stack, including libcamera and Picamera2, enabling immediate use for still capture and video streaming up to 120fps at lower resolutions. Its integrated IR-cut filter ensures color accuracy for visible-light applications, while the compact 25mm x 24mm footprint allows for easy integration into space-constrained designs. The included dual FPC cables offer direct compatibility with the Raspberry Pi 5’s 22-pin connector and other standard 15-pin interfaces.

Key Features

  • Sony IMX708 12MP back-illuminated stacked CMOS sensor for high-resolution, low-noise imaging.
  • Fixed focus F1.8 lens with 66° HFOV ensures rapid, consistent capture without autofocus delay.
  • High Dynamic Range (HDR) support enhances detail in both shadows and highlights.
  • High Signal-to-Noise Ratio (SNR) with 2D DPC and QBC re-mosaic for cleaner image data.
  • Integrated IR-cut filter restricts sensitivity to the visible light spectrum for accurate color reproduction.
  • Native compatibility with Raspberry Pi OS camera libraries (libcamera, Picamera2) for plug-and-play operation.
  • Compact, lightweight design (25mm x 24mm) ideal for embedded and portable vision systems.
  • Supports high-frame-rate video modes including 120fps at 1536x864 resolution.

Applications

  • Machine Vision & AI Inference: Object detection, classification, and robotic guidance systems.
  • Wildlife & Environmental Monitoring: Long-term, stable capture for remote sensing stations.
  • Smart Home & Security: Fixed-focus surveillance cameras and doorbell monitors.
  • Educational & Maker Projects: High-quality imaging for Raspberry Pi-based computer vision tutorials.
  • Industrial Inspection: Consistent image capture for quality control and telemetry applications.

Technical Specifications

Image SensorSony IMX708
Still Resolution11.9 Megapixels (4608 x 2592)
Sensor Optical Size1/2.43"
Pixel Size1.4μm x 1.4μm
Lens TypeFixed Focus
Focal Length4.74 mm
Aperture (F.NO)F1.8
Field of View (HFOV)66°
Focus Distance1.5m to ∞
IR FilterIntegrated IR-cut (Visible Light)
Video Modes2304x1296p56, 2304x1296p30 HDR, 1536x864p120
CompatibilityRaspberry Pi 5 (Native OS Support)
Dimensions (L x W)25 mm x 24 mm
Weight3 g

Frequently Asked Questions

Is this Arducam IMX708 module compatible with Raspberry Pi 4 or only Pi 5?

The module is natively designed for the Raspberry Pi 5's 22-pin connector, which uses a different pinout. However, using the included 15-pin to 15-pin FPC cable, it can be connected to the standard 15-pin camera port on a Raspberry Pi 4 or earlier models. You will need to ensure your Raspberry Pi OS is updated to support the IMX708 sensor via libcamera. Configuration in the `/boot/config.txt` file may be required to specify the sensor model for proper initialization on Pi 4.

How do I enable and configure this camera module in Raspberry Pi OS?

First, connect the module using the appropriate FPC cable (22-pin for Pi 5, 15-pin for older models). Ensure your Raspberry Pi OS is up-to-date with `sudo apt update && sudo apt upgrade`. The IMX708 is supported natively by libcamera. You can test it using the command `libcamera-hello` or `libcamera-jpeg -o test.webp`. For Picamera2, install the library via `sudo apt install python3-picamera2`. No manual driver installation is needed, but you may need to disable the legacy camera stack by ensuring `camera_auto_detect=1` is set in `/boot/config.txt`.

What are the power requirements and GPIO connections for this camera?

The camera module draws power directly from the Raspberry Pi's camera connector (typically 3.3V). No external power supply or specific GPIO configuration is required for basic operation. The data communication uses the CSI-2 interface over the FPC cable. Ensure the cable is firmly seated in the connector on both the camera and the Raspberry Pi board. The total power consumption is minimal and within the Pi's onboard regulator capabilities, making it suitable for portable and battery-powered vision applications.

Can I use this fixed focus camera for close-up macro photography?

No, this module is not suitable for macro or close-up photography. The fixed focus lens is set for a focus distance ranging from approximately 1.5 meters to infinity. It is optimized for medium to long-range scenes, making it ideal for surveillance, general monitoring, and machine vision applications where the subject is not extremely close. For projects requiring sharp focus on objects nearer than 1.5 meters, a different camera module with adjustable or macro focus capabilities would be necessary.

Package Includes

  • 1 x Arducam 12MP IMX708 Fixed Focus HDR Camera Module
  • 1 x 150mm 15-pin to 22-pin FPC Cable
  • 1 x 150mm 15-pin to 15-pin FPC Cable

Additional Information

Weight 0.003 kg
Dimensions 2.5 × 2.4 cm

Related Products

Out of Stock

Waveshare IMX327 2MP IR-CUT Starlight Camera for Raspberry Pi

4,459.00
Learn More
Out of Stock

ATOMSTACK A5 Pro 40W Laser Engraver & Cutter

34,326.00
Learn More
Out of Stock

Raspberry Pi 5 Display FPC Cable - 300mm

219.00
Learn More
Out of Stock

Argon Industria PCIe M.2 Single NVMe Board

1,259.00
Learn More
Out of Stock

Waveshare OV5693 5MP USB Camera (B) - Fixed-focus & Auto Focusing

2,879.00
Learn More
Out of Stock

Bambu Lab TH Board FPC Cable For P2S

1,040.00
Learn More
Out of Stock

KKSB Cases Panel Mount Case for Raspberry Pi 5 & 7-inch Display 2

3,149.00
Learn More
Out of Stock

Argon ONE V5 Quad M.2 NVMe Expansion Board Gen 2.0

3,989.00
Learn More
Out of Stock

KKSB Cases Display Stand for Raspberry Pi 5 Touch Display V2

5,889.00
Learn More
Out of Stock

Creality FPC cable- K2 Plus

289.00
Learn More
Out of Stock

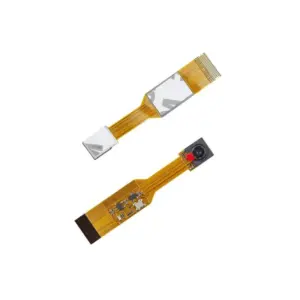

Arducam 5MP OV5647 NoIR MINI Camera Module w/ Flex Cable
