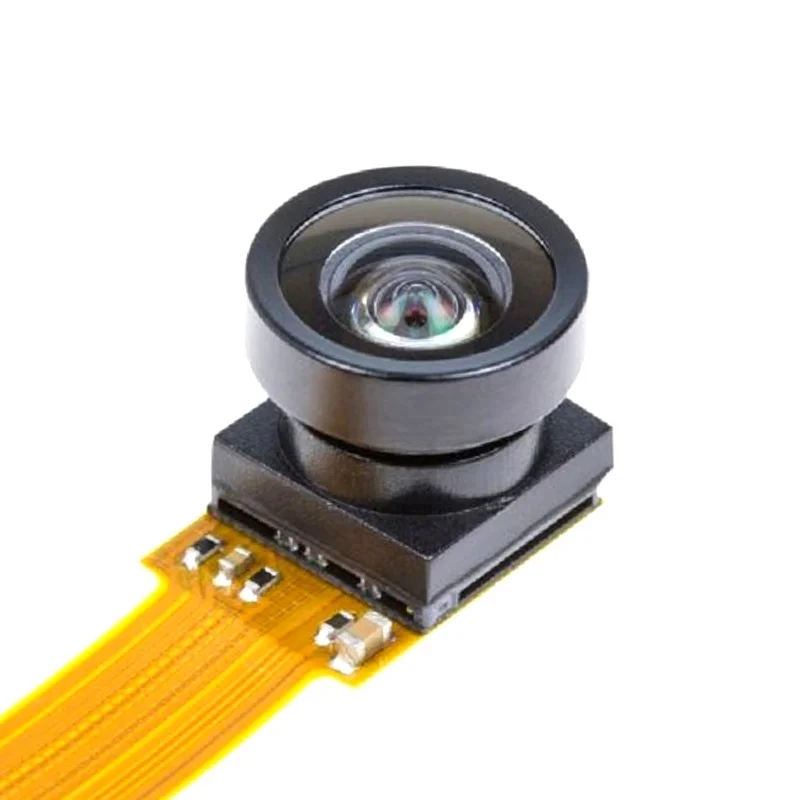

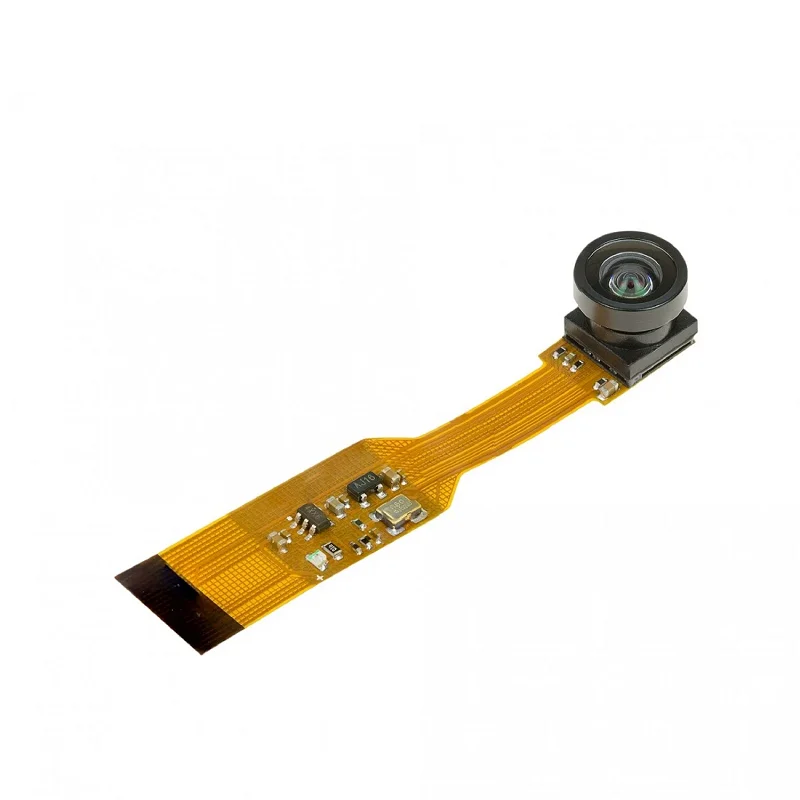

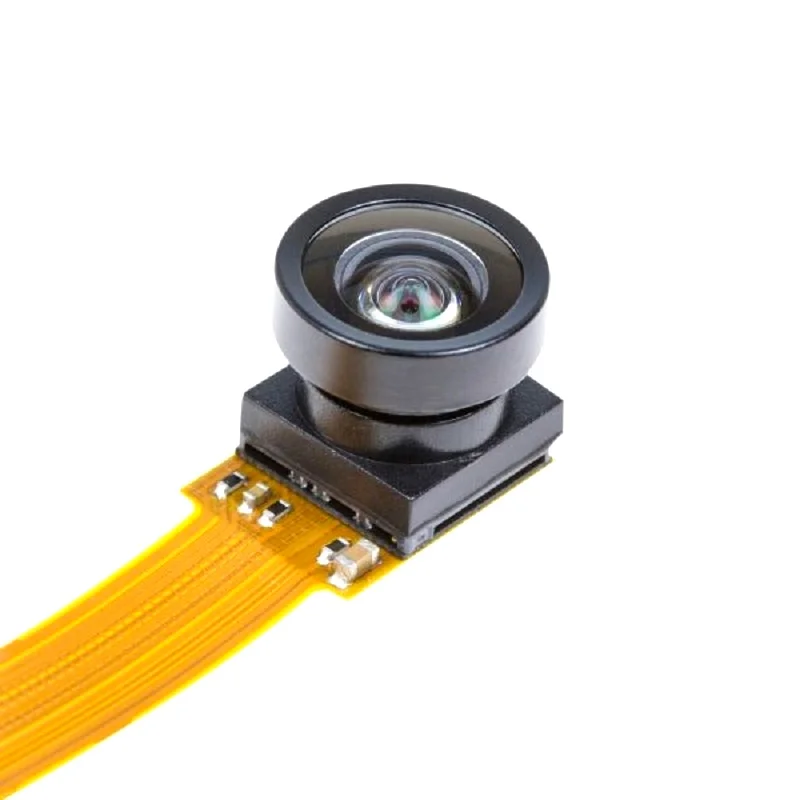

Arducam 5MP OV5647 160° Wide Angle Camera Module
The Arducam 5MP OV5647 is a compact, wide-angle camera module designed for the Raspberry Pi Zero and Compute Module, connecting via a 15cm CSI ribbon cable for high-bandwidth video and image capture.
Features
- 5MP OV5647 sensor delivers 2592 x 1944 pixel still images and supports 1080p30 video.
- 160° ultra-wide field of view lens for expansive scene coverage in surveillance or inspection.
- Direct CSI interface connection ensures high-speed data transfer to Raspberry Pi Zero/Compute Module.
- Compact 6mm neck width and flexible form factor ideal for embedded, drone, or endoscopic applications.
- Fixed focus from 1 meter to infinity simplifies setup for various imaging projects.
Out of stock
The Arducam 5MP OV5647 camera module provides a dedicated imaging solution for space-constrained Raspberry Pi Zero and Compute Module projects. Its native 5-megapixel sensor communicates over the dedicated Camera Serial Interface (CSI) bus via a supplied 15cm flat ribbon cable, ensuring minimal latency and maximum bandwidth for pixel data transmission, supporting video modes up to 1080p at 30fps.
Engineered with a 160-degree ultra-wide-angle lens, this module captures expansive fields of view, making it suitable for applications where peripheral vision is critical. The fixed-focus lens, set from 1 meter to infinity, eliminates the need for manual adjustment. The module’s slender 6mm neck and flexible cable design allow for integration into tight enclosures or mobile platforms, from DIY endoscopes to compact surveillance systems.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 5 × 1.5 cm |
