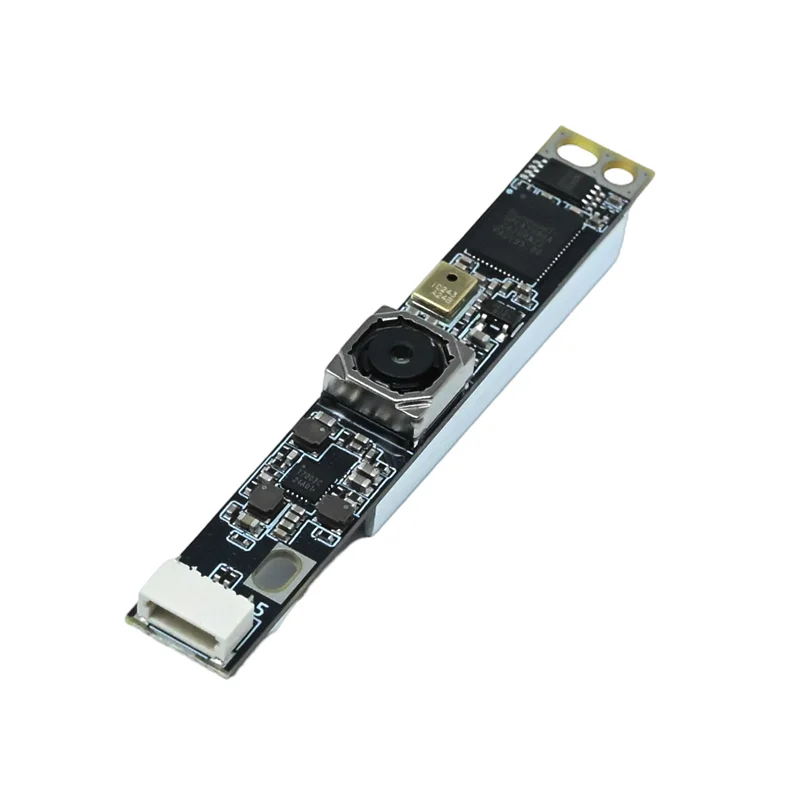

Arducam 5MP Autofocus USB Camera Module w/ Microphone

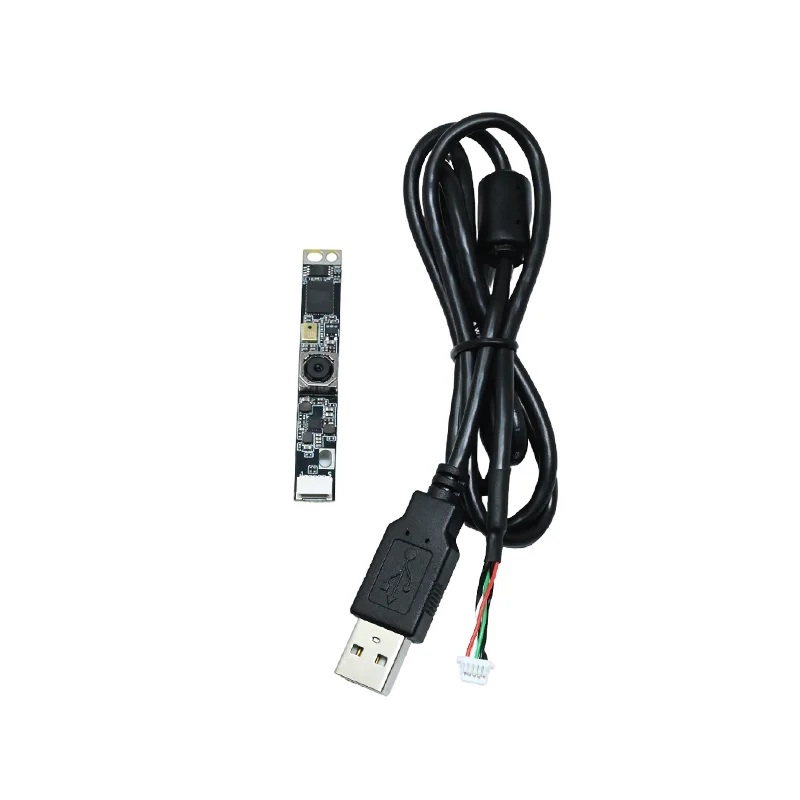

Arducam 5MP Autofocus USB Camera Module w/ Microphone - Image 2

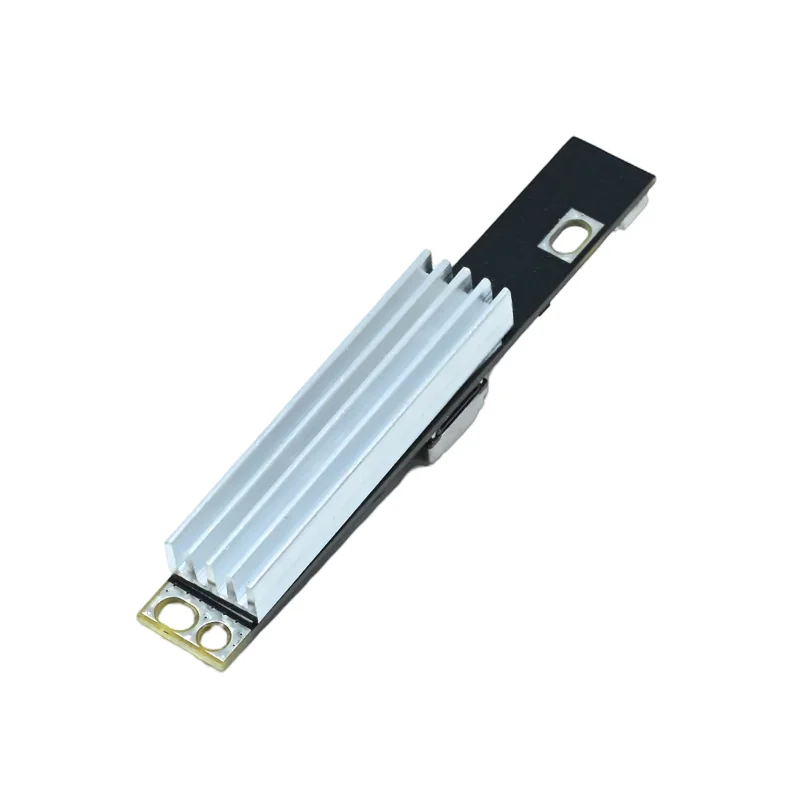

Arducam 5MP Autofocus USB Camera Module w/ Microphone - Image 3
SKU: IOWC-0371
📋 GST Invoice Available

Arducam 5MP Autofocus USB Camera Module w/ Microphone

₹4,279.00 (Inclusive of all taxes)
Out of Stock

The Arducam 5MP Autofocus USB Camera Module is a plug-and-play UVC-compliant camera with a built-in microphone, delivering 2592×1944 resolution at 30fps. It requires no drivers and is compatible with Windows, Linux, macOS, and Android for embedded vision applications.

Features

  • 5MP Autofocus Sensor: Delivers sharp 2592×1944 resolution at up to 30fps with a 69° horizontal field of view for detailed image capture.
  • UVC Plug-and-Play: No drivers required; simply connect via USB 2.0 for immediate use with Windows, Linux, macOS, and Android systems.
  • Integrated Single Microphone: Features an onboard audio input/output port for synchronized video and audio capture in teleconferencing or recording setups.
  • Compact & Embedded-Ready: Miniature 62mm x 9mm board size with a lightweight design ideal for integration into 3D scanners, VR rigs, and medical devices.
  • Flexible Output Formats: Supports both MJPEG and YUYV video encoding, allowing optimization for bandwidth or quality across various resolutions and frame rates.

Out of stock

Description

The Arducam 5MP Autofocus USB Camera Module is a fully integrated imaging solution built around a 1/4-inch color sensor with rolling shutter. It employs a standard UVC (USB Video Class) protocol, ensuring broad compatibility and eliminating the need for custom driver installation on host systems. The module’s fixed-focus lens with an M6.5 mount provides a consistent 69-degree horizontal field of view, suitable for a wide range of computer vision tasks.

Power and data are delivered through a single USB 2.0 connection, with a maximum operating current of 300mA at 5VDC, making it suitable for portable and embedded applications. The inclusion of a single microphone channel enables the module to function as a complete audio-visual input peripheral. Its robust construction supports an operating temperature range from -20°C to 70°C, allowing for deployment in varied environmental conditions.

Key Features

  • High-resolution 5-megapixel sensor capable of 2592x1944 (30fps) output for capturing fine details.
  • Autofocus lens system with a 69° horizontal FoV and f/2.0 aperture for consistent focus across distances.
  • UVC (USB Video Class) compliant for true plug-and-play operation across Windows, Linux, macOS, and Android.
  • Dual video encoding support for MJPEG (high frame rate) and YUYV (uncompressed) output formats.
  • Integrated single microphone provides synchronized audio capture for complete AV applications.
  • Compact and lightweight PCB design (62mm x 9mm) for easy integration into space-constrained projects.
  • Wide operating temperature range (-20°C to 70°C) ensures reliability in industrial and outdoor environments.
  • Standard USB 2.0 interface with a 1-meter cable included for immediate connectivity.

Applications

  • Embedded vision for 3D scanning and VR/AR camera rigs.
  • Machine vision for LightBurn laser engravers and CNC machines.
  • Video conferencing and telepresence systems.
  • Industrial surveillance and quality inspection systems.
  • Medical imaging devices and electronic microscopes.
  • Educational and robotics projects requiring plug-and-play vision.

Technical Specifications

Sensor Resolution5MP (2592 x 1944)
Max Frame Rate30fps @ 2592x1944 (MJPEG)
Sensor Optical Size1/4-inch
Pixel Size1.4μm x 1.4μm
Shutter TypeRolling Shutter
Lens Field of View69° (Horizontal)
Focus TypeAuto Focus
Focal Length2.46mm
Aperture (F.NO)2.0 ±5%
Video Output FormatsMJPEG, YUYV
InterfaceUSB 2.0 Device
AudioSingle Microphone Input/Output
Supply Voltage5 VDC
Operating CurrentMax 300mA
Operating Temperature-20°C to 70°C
Board Dimensions62mm x 9mm x 6mm
Connector TypeSM05B-SRSS-TB (USB)

Frequently Asked Questions

What operating systems are compatible with this Arducam USB camera module?

The camera is fully UVC (USB Video Class) compliant, requiring no additional drivers. It is plug-and-play compatible with Windows, Linux, macOS, and Android operating systems. Simply connect the USB cable to an available port, and the device will be recognized as a standard video source by most applications that support webcams.

How do I achieve the maximum 2592x1944 resolution at 30 frames per second?

To achieve the full 5MP resolution at 30fps, you must select the MJPEG video encoding format within your capturing software's settings. The YUYV format is limited to lower frame rates at high resolutions. Ensure your USB 2.0 host port can handle the necessary bandwidth, and use the provided or a high-quality USB cable to maintain a stable data connection.

Can I use this camera for applications requiring audio input?

Yes, the module includes a single integrated microphone providing audio input and output capabilities. When connected, your operating system should enumerate both a video and an audio device. You can select this audio source in your conferencing, recording, or streaming software to capture synchronized sound alongside the video feed from the 5MP sensor.

Package Includes

  • 1 x Arducam 5MP Autofocus USB Camera Module
  • 1 x USB Cable (1 meter)
  • 1 x Paper Quick Start Guide

Additional Information

Weight 0.05 kg
Dimensions 9 × 8 × 4 cm
